MikroProg pour PIC, DSPIC et PIC32
MikroProg pour PIC, DSPIC et PIC32
Impossible de charger la disponibilité du service de retrait
Overview

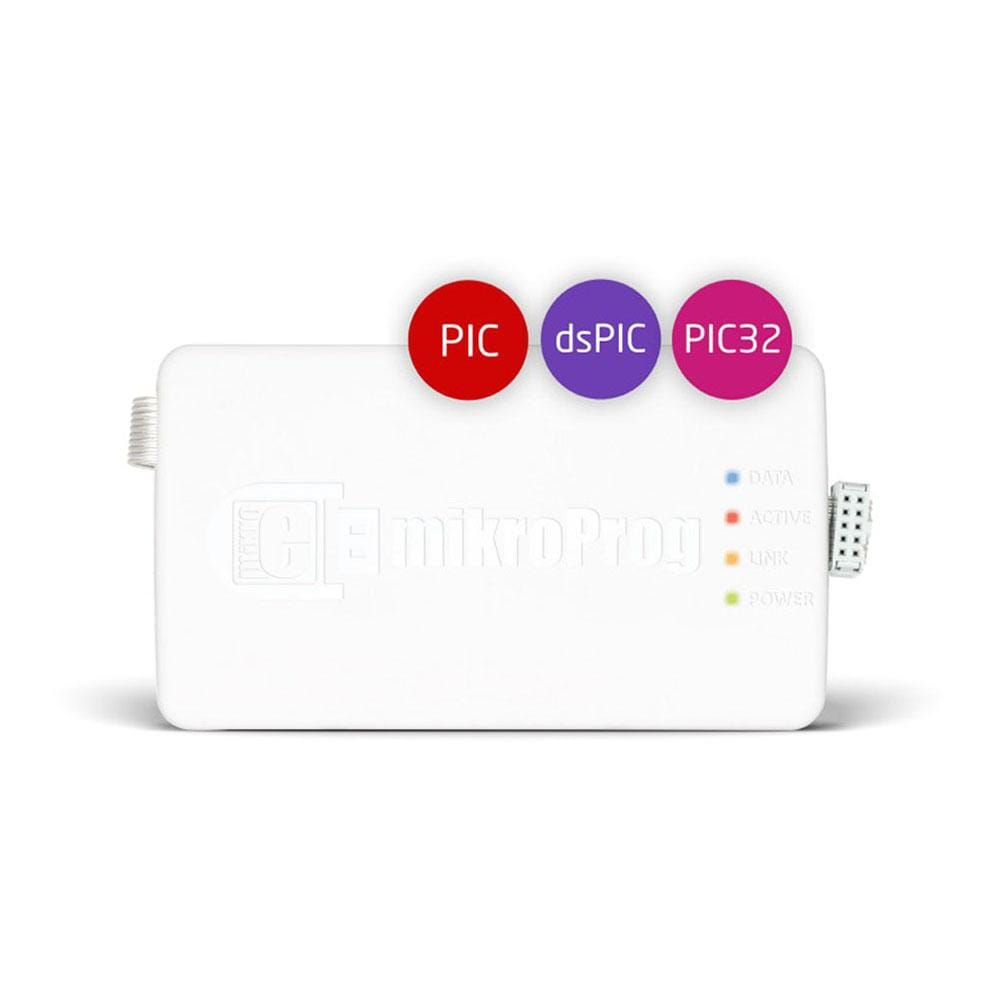

Le MikroProg pour PIC, dsPIC et PIC32 est un programmateur USB 2.0 rapide avec un débogueur matériel intégré MikroICD. Une ingénierie intelligente permet à MikroProg de prendre en charge les périphériques PIC10, PIC12, PIC16, PIC18, dsPIC30/33, PIC24 et PIC32 dans un seul programmateur !
Il prend en charge plus de 920 microcontrôleurs de Microchip. Ses principales caractéristiques sont des performances exceptionnelles, une utilisation simple et un design élégant. Déboguez votre code et surveillez l'exécution du code sur la puce elle-même. La technologie MikroProg apporte la puissance du débogage matériel à votre compilateur préféré.
MikroProg est pris en charge avec les compilateurs MikroC, MikroBasic et MikroPascal pour PIC.
mikroProg for PIC, dsPIC and PIC32 is a fast USB 2.0 programmer with mikroICD™ hardware In-Circuit Debugger. Smart engineering allows mikroProg to support PIC10, PIC12, PIC16, PIC18, dsPIC30/33, PIC24 and PIC32 devices in a single programmer! It supports over 1000 microcontrollers from Microchip. Outstanding performance, easy operation and elegant design are it's top features. Debug your code and monitor code execution on the chip itself. mikroProg™ technology brings the power of hardware debugging to your favorite compiler.
Compiler Compatibility
mikroProg™ is supported with mikroC™, mikroBasic™ and mikroPascal™ compilers for PIC®, dsPIC® and PIC32®. Choose the flavour that you like the most.
Faster programming
We have done major enhancements in programming and debugging algorithms, and boosted programmer electronics to make it all possible. And the results are stunning! mikroProg™ is up to 400% faster than LvPICFlash.
SingleClick™ Debugging
mikroProg™ has native support for mikroICD™ - hardware step-by-step In-Circuit Debugging in mikroElektronika compilers. It supports Step-over [F8], Step-into[F7], Step-out[Ctrl+F8], Run[F6] Run To Cursor[F4] debugging operations, as well as standard and advanced breakpoints.
One firmware for all Devices
With mikroProg™, single firmware takes care of all supported architectures. Supporting new microcontrollers is easy. Just by downloading the latest version of mikroProg Suite™ your programmer is ready to program new devices.
Power your Target Board
mikroProg™ can provide power supply to your target board. Using mikroProg Suite™ Software, or directly from your compiler you can set the voltage level to be generated for you. It can provide up to 150mA of current in the voltage range from 1.8–5V.
Compatible with PICFlash
If you have already integrated previous programmer connector in your device, don't worry. mikroProg™ retained the original connector pinout. Use front row of the connector (next to the knob) when programming mikromedia boards.

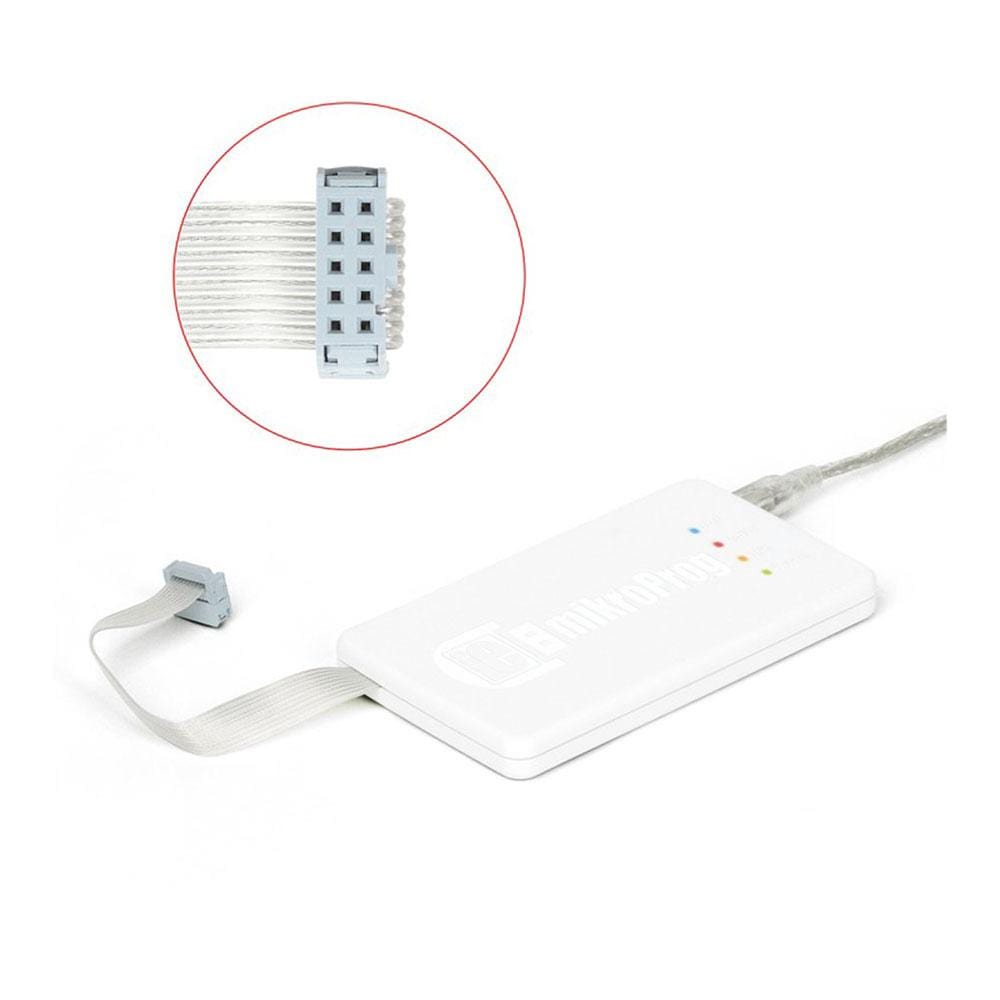

You won't rip out the cable
How many times have you pulled the cable out of some device accidentally and it just stopped working? We made sure to provide a secure connection of programer cable and created a holder to tie it firmly into place.
