Carte à clic ADC 15
Carte à clic ADC 15
Impossible de charger la disponibilité du service de retrait
Key Features:
- Deux entrées différentielles à échantillonnage simultané, gain et débit de données programmables, pompe de charge négative intégrée permettant des signaux d'entrée sous terre, large plage dynamique, faible consommation et fonctionnalités spécifiques à la mesure de l'énergie, et bien plus encore
- Basé sur l'ADS131M02 - convertisseur analogique-numérique (CAN) delta-sigma (ΔΣ) 24 bits à faible consommation, à deux canaux, à échantillonnage simultané, avec une tension de référence interne à faible dérive de Texas Instruments
- Peut être utilisé pour les applications de mesure d'énergie, de métrologie de puissance et de disjoncteur
- mikroBUS : interface SPI
Le Carte à clic ADC 15™ est une carte complémentaire compacte qui contient un convertisseur de données hautes performances. Cette carte comprend l'ADS131M02, un convertisseur analogique-numérique delta-sigma (ΔΣ) 24 bits à deux canaux et à échantillonnage simultané de Texas Instruments. Les entrées ADC peuvent être configurées indépendamment via une interface périphérique série en fonction de l'entrée du capteur. Un amplificateur à gain programmable (PGA) à faible bruit fournit des gains allant de 1 à 128 pour amplifier les signaux de faible niveau. De plus, cet ADC intègre des registres d'étalonnage de phase, de décalage et de gain canal à canal pour aider à éliminer les erreurs de chaîne de signal ainsi qu'une référence intégrée à faible dérive de 1,2 V.
La carte à clic ADC 15™ offre une large plage dynamique, une faible consommation et des fonctionnalités spécifiques à la mesure de l'énergie, ce qui fait de l'appareil un excellent choix pour les applications de comptage d'énergie, de métrologie de puissance et de disjoncteur.

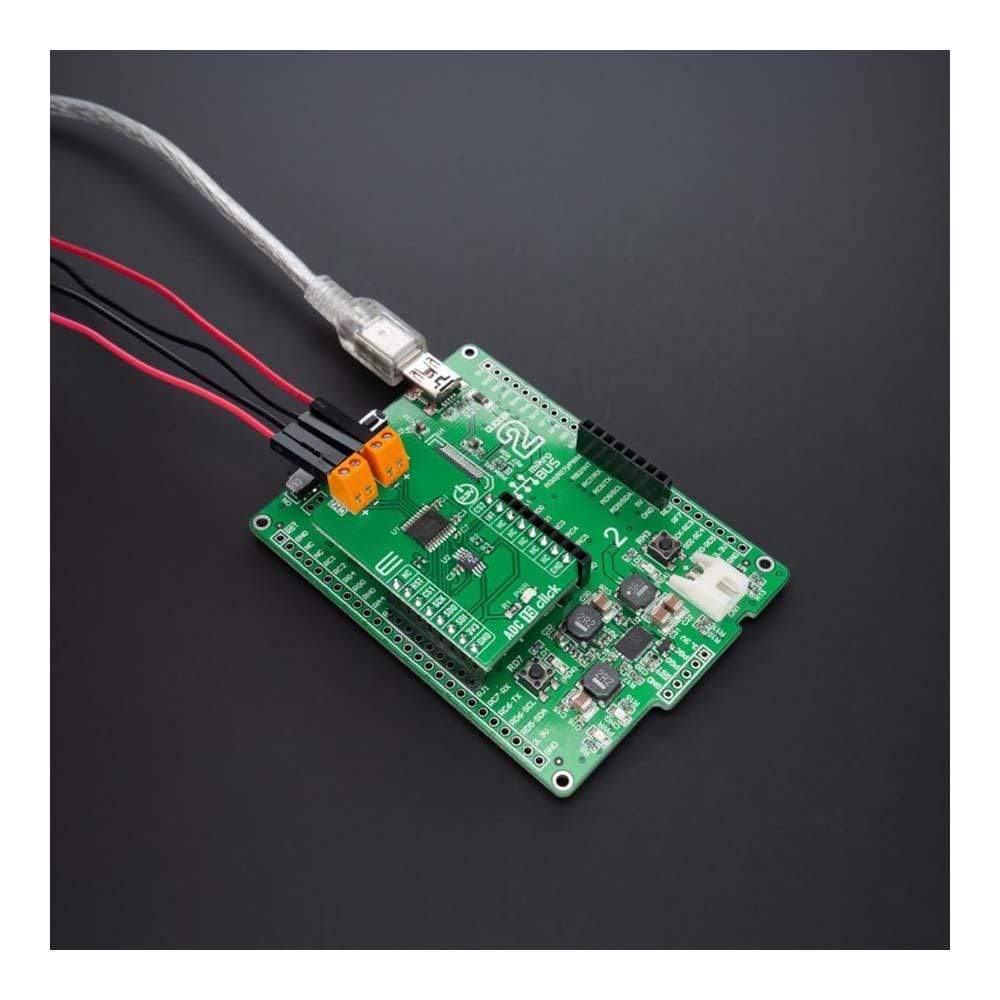

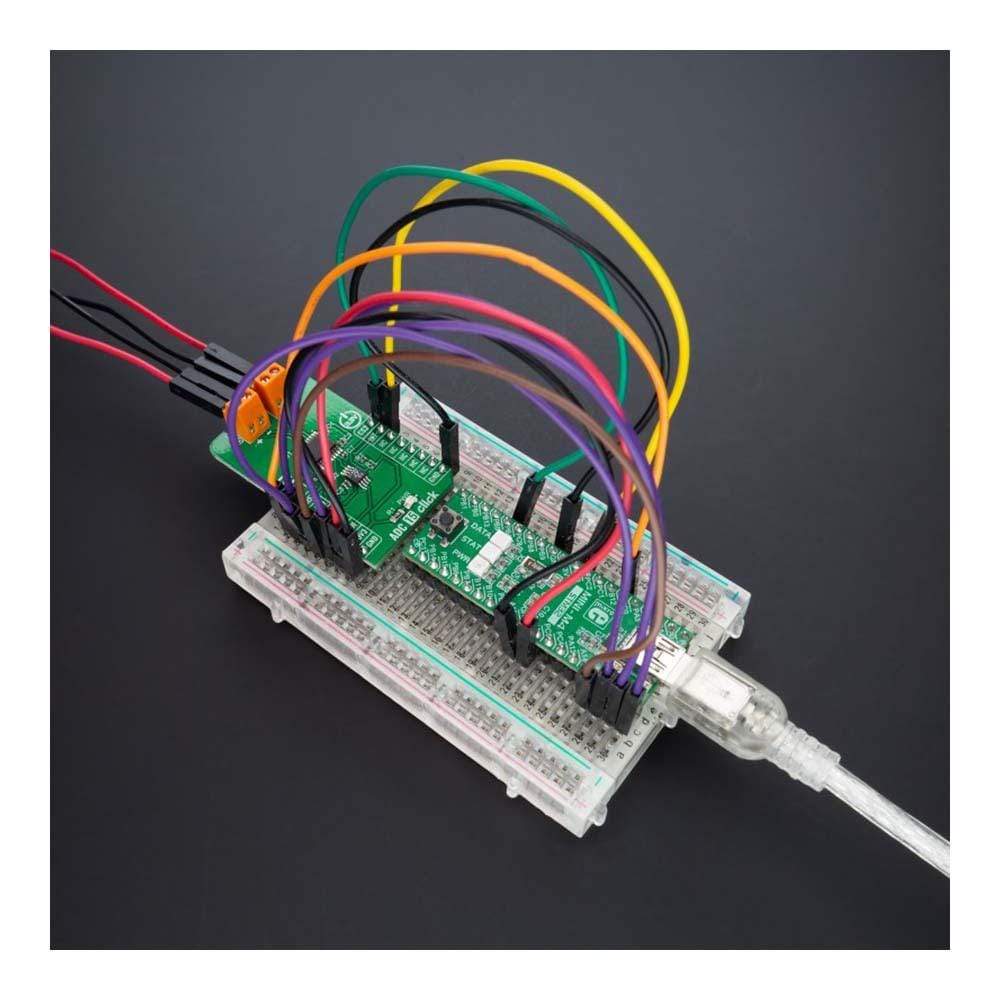

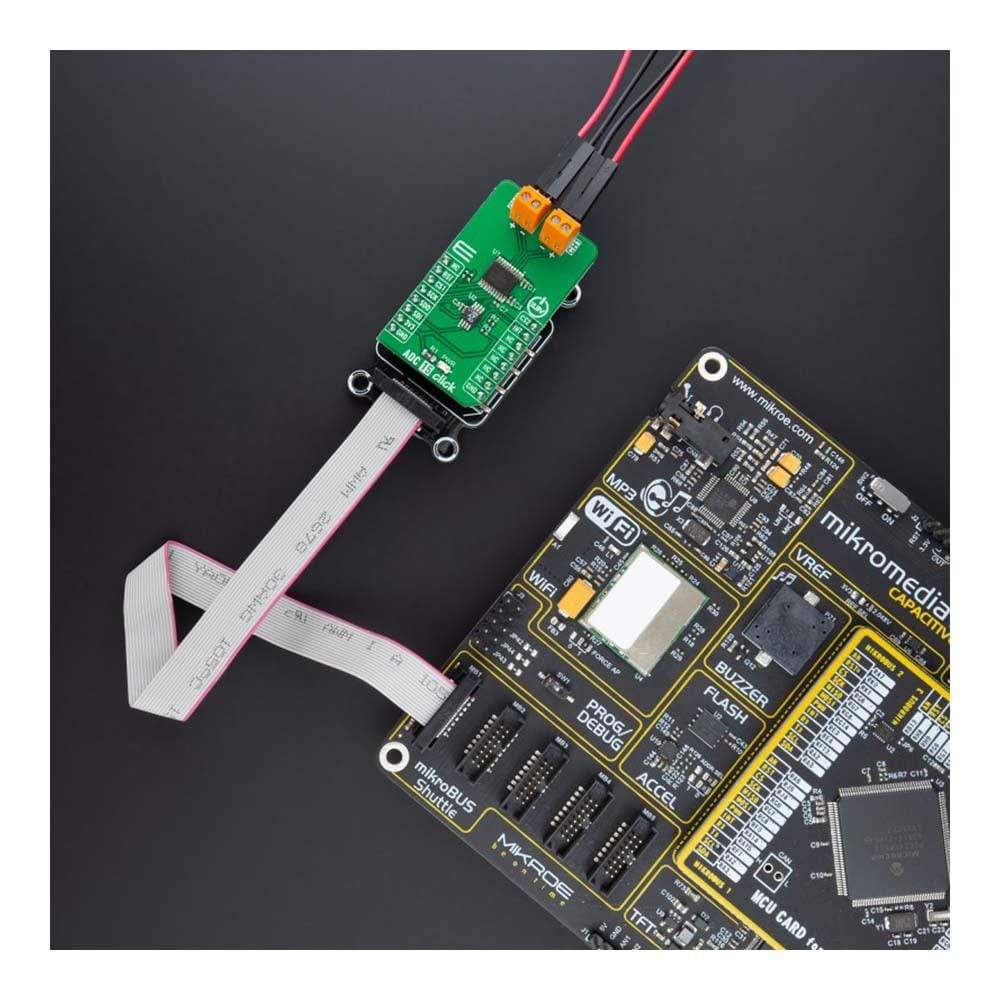

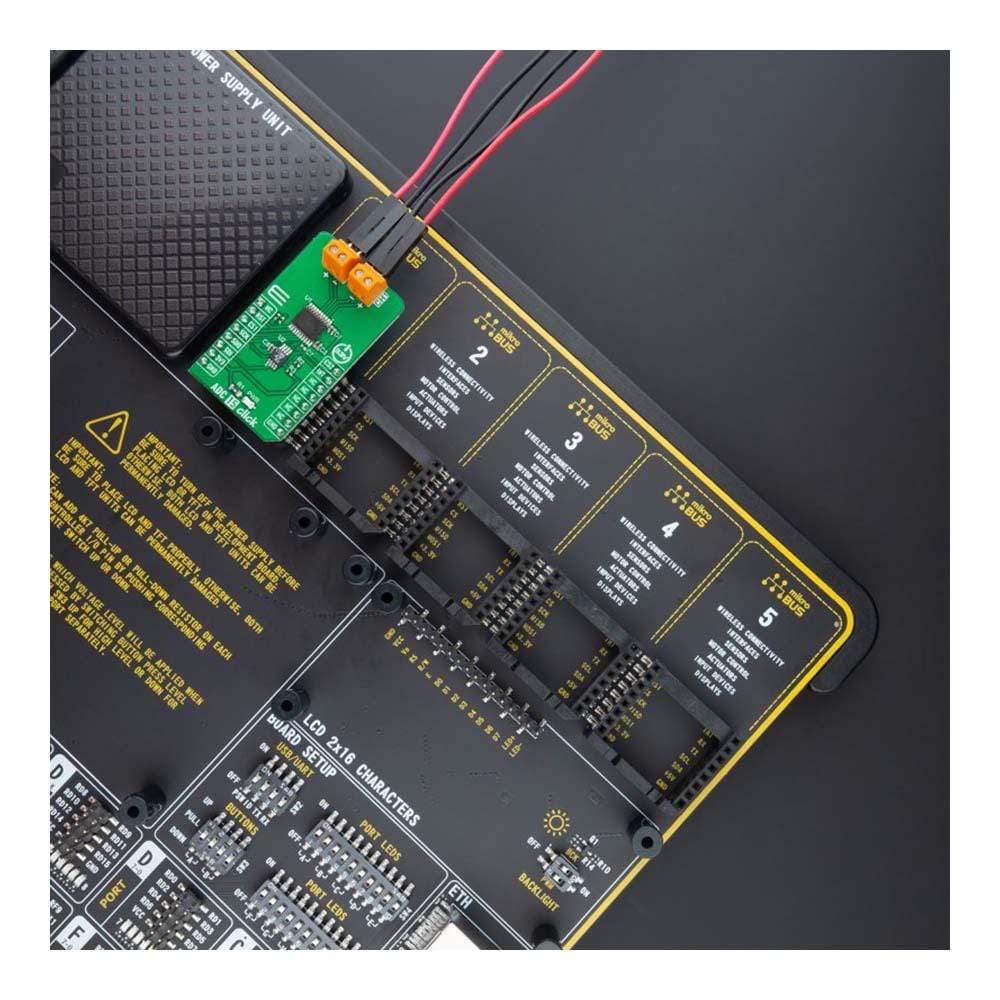

How Does The ADC 15 Click Board™ Work?

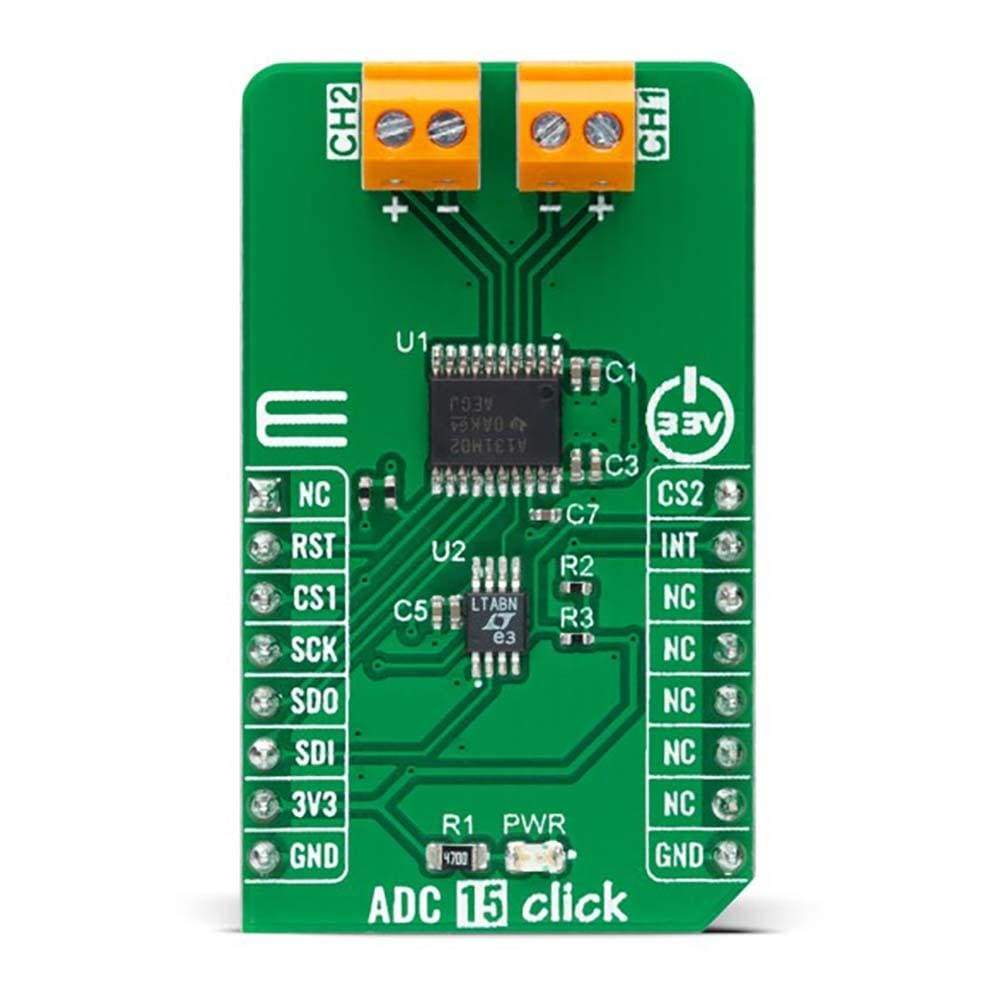

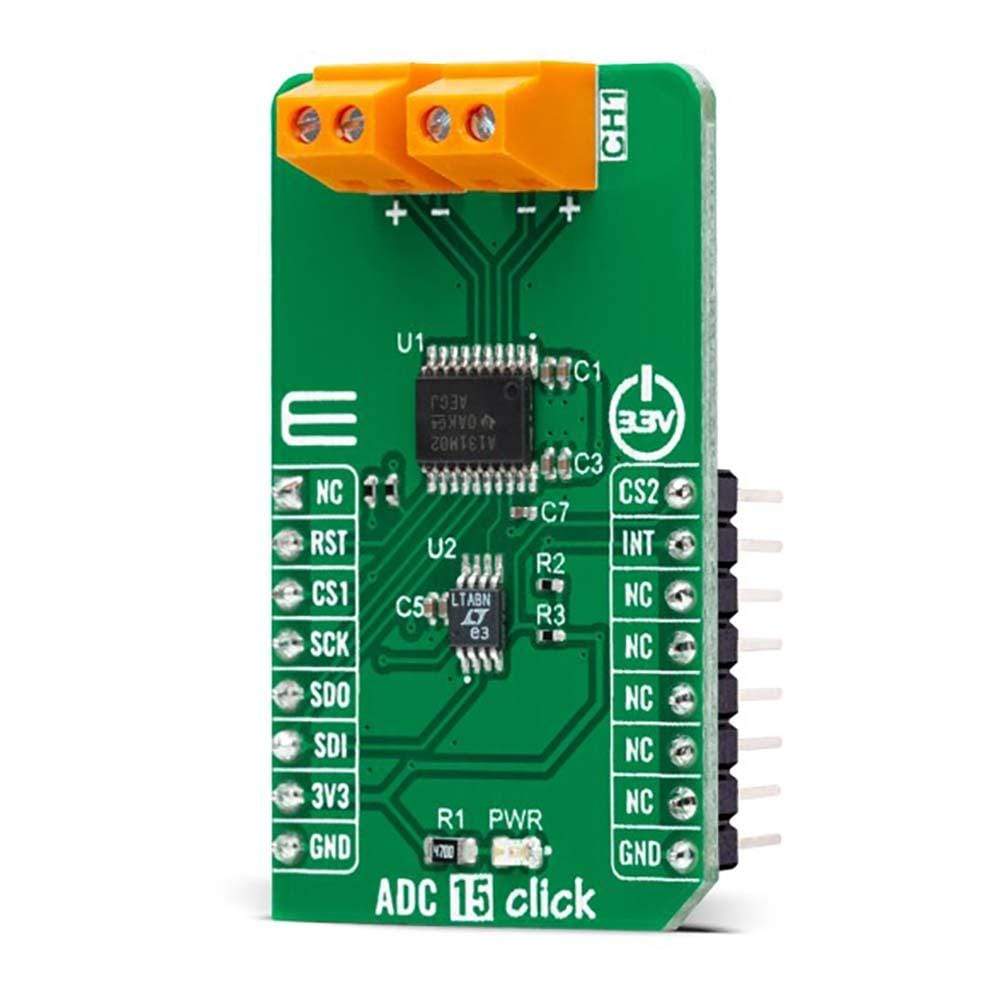

The ADC 15 Click Board™ as its foundation uses the ADS131M02, a low-power, two-channel, simultaneously sampling, 24-bit, delta-sigma (ΔΣ) analogue-to-digital converter (ADC) with a low-drift internal reference voltage from Texas Instruments. The dynamic range, size, feature set, and power consumption are optimized for cost-sensitive applications requiring simultaneous sampling. An integrated negative charge pump allows absolute input voltages as low as -1.3 V, which enables measurements of input signals varying around the ground with a single-ended power supply.
The ADS131M02 features a programmable gain amplifier (PGA) with gains up to 128. An integrated input pre-charge buffer enabled at gains greater than 4 ensures high input impedance at high PGA gain settings. The ADC receives its reference voltage from an integrated 1.2V reference, allowing differential input voltages as large as the reference. Each channel on the ADS131M02 contains a digital decimation filter that demodulates the output of the ΔΣ modulators. The filter enables data rates as high as 32 kSPS per channel in high-resolution mode. The relative phase of the samples can be configured between channels, thus allowing an accurate compensation for the sensor phase response. Offset and gain calibration registers can be programmed to adjust output samples for measured offset and gain errors automatically.
The ADC 15 Click Board™ communicates with MCU through a standard SPI interface to read the conversion data, configure and control the ADS131M02, supporting the most common SPI mode - SPI Mode 1. To normally run the ADS131M02, an LVCMOS clock must be continuously provided at the CLKIN pin, which is achieved with the LTC6903 programmable oscillator activated via the CS2 pin routed to the PWM pin on the mikroBUS™ socket. The frequency of the clock can be scaled in conjunction with the power mode to provide a trade-off between power consumption and dynamic range. Selection of the bits in the CLOCK register allows the device to be configured in one of three power modes: high-resolution (HR) mode, low-power (LP) mode, and very low-power (VLP) mode.
In addition, the ADC 15 Click Board™ also uses features such as data-ready/interrupt routed to the INT pin on the mikroBUS™ socket, that serves as a flag to the host to indicate that new conversion data are available, and Reset routed to the RST pin that allows for a hardware device reset.
The ADC 15 Click Board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before use with MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | ADC |
| Applications | Can be used for energy metering, power metrology, and circuit breaker applications |
| On-board modules | ADS131M02 - low-power, two-channel, simultaneously sampling, 24-bit, delta-sigma (ΔΣ) analogue-to-digital converter (ADC) with a low-drift internal reference voltage from Texas Instruments |
| Key Features | Two simultaneously sampling differential inputs, programmable gain and data rate, integrated negative charge pump allows input signals below ground, wide dynamic range, low power, and energy-measurement-specific features, and many more |
| Interface | SPI |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
| Input Voltage | 3.3V |

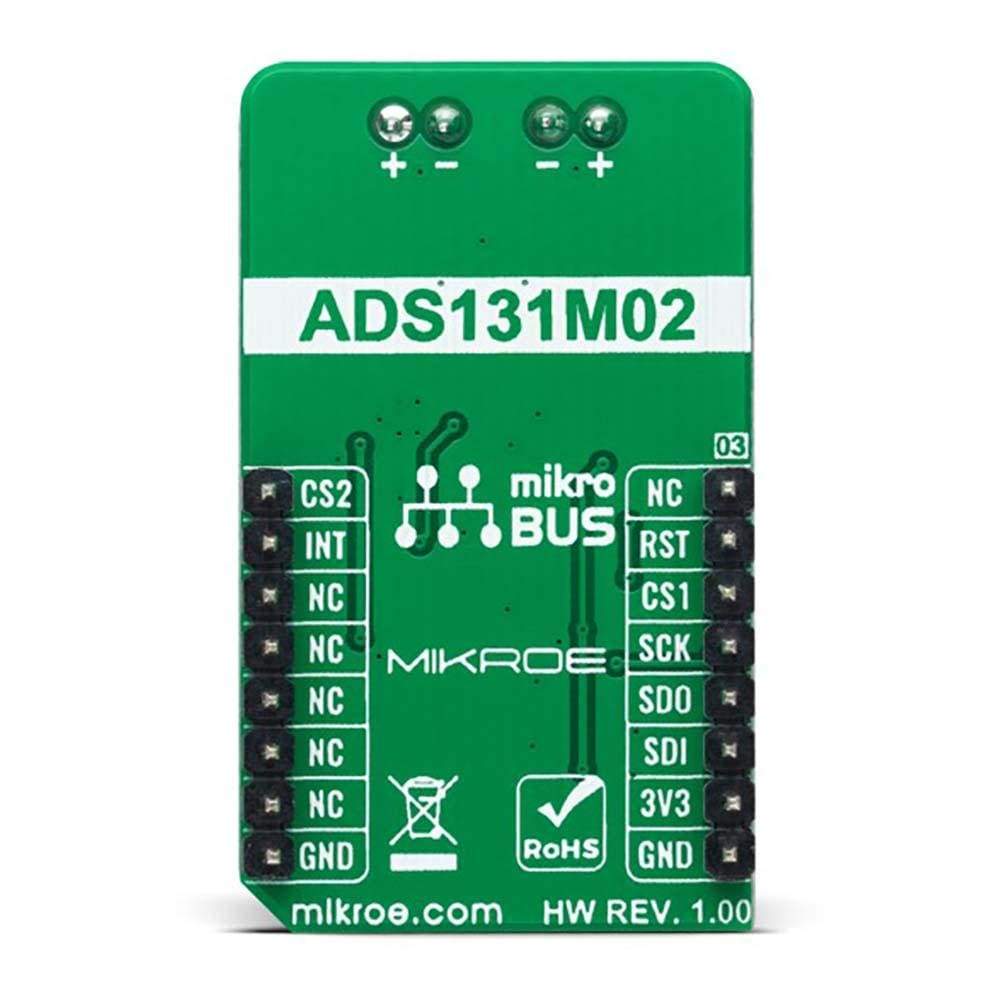

PINOUT DIAGRAM
This table shows how the pinout of the ADC 15 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | CS2 | LTC6903 Enable | |
| Reset | RST | 2 | RST | INT | 15 | INT | Data-Ready / Interrupt |
| SPI Chip Select | CS | 3 | CS | RX | 14 | NC | |
| SPI Clock | SCK | 4 | SCK | TX | 13 | NC | |
| SPI Data OUT | SDO | 5 | MISO | SCL | 12 | NC | |
| SPI Data IN | SDI | 6 | MOSI | SDA | 11 | NC | |
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | NC | |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
ADC 15 CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage VCC | - | 3.3 | - | V |
| Analog Input Voltage Range | -1.3 | - | 3.6 | V |
| Resolution | 24 | - | - | bit |
| Data Rate | - | - | 64 | kSPS |
| Operating Temperature Range | -40 | +25 | +125 | °C |
Software Support
We provide a library for the ADC 15 Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
The package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe GitHub account.
Library Description
This library contains an API for the ADC 15 Click Board™ driver.
Key functions
-
adc15_read_voltageGet voltage value. -
adc15_set_gainSet gain for channel. -
adc15_set_word_lenSet word len.
Example Description
This example showcases the ability of the click board to read ADC data from 2 different channels. It's also configurable to read data in different output rates, resolutions( word/data len ), and gain.
void application_task ( void )
{
while ( adc15_data_ready( &adc15 ) );
float channel1 = 0;
float channel2 = 0;
uint16_t status = 0;
if ( !adc15_read_voltage( &adc15, &status, &channel1, &channel2 ) )
{
log_printf( &logger, " > Status: 0x%.4Xrn", status );
log_printf( &logger, " > V ch1: %frn", channel1 );
log_printf( &logger, " > V ch2: %frn", channel2 );
log_printf( &logger, "************************rn" );
Delay_ms( 1000 );
}
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe GitHub account.
Other Mikroe Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.ADC15
Additional Notes and Information
Depending on the development board you are using, you may need a USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.
MIKROSDK
The ADC 15 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
