Lineeye Co Ltd

Lineeye LE-25M3WP-2 CAN/LIN Waterproof Cable

Lineeye LE-25M3WP-2 CAN/LIN Waterproof Cable

SKU: LE-25M3WP-2

€222,95 EUR exc tax
€222,95 EUR exc tax
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll ship within 10 working days.
View full details
  • Lineeye Co Ltd LE-25M3WP-2 LE-25m3WP-2 CAN/LIN Waterproof Cable - The Debug Store UK
  • Lineeye Co Ltd LE-25M3WP-2 LE-25m3WP-2 CAN/LIN Waterproof Cable - The Debug Store UK
  • Lineeye Co Ltd LE-25M3WP-2 LE-25m3WP-2 CAN/LIN Waterproof Cable - The Debug Store UK
  • Lineeye Co Ltd LE-25M3WP-2 LE-25m3WP-2 CAN/LIN Waterproof Cable - The Debug Store UK

Overview

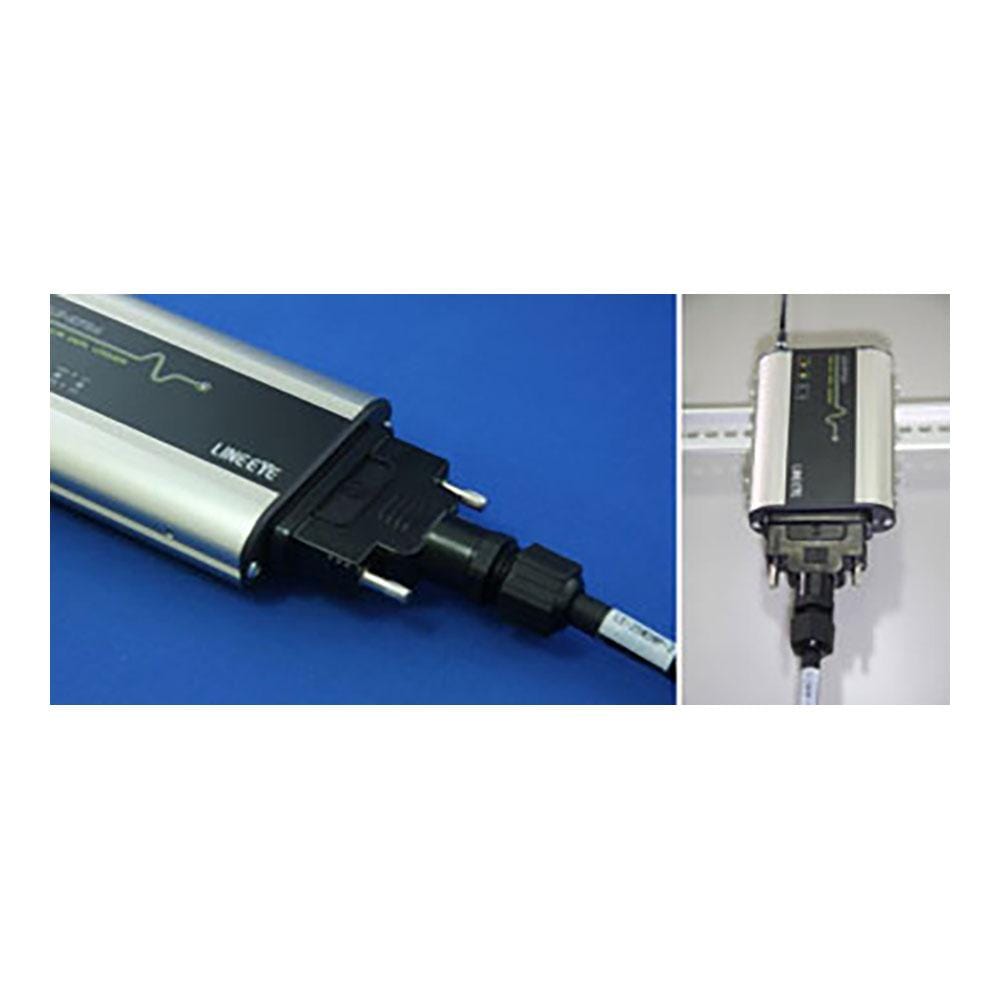

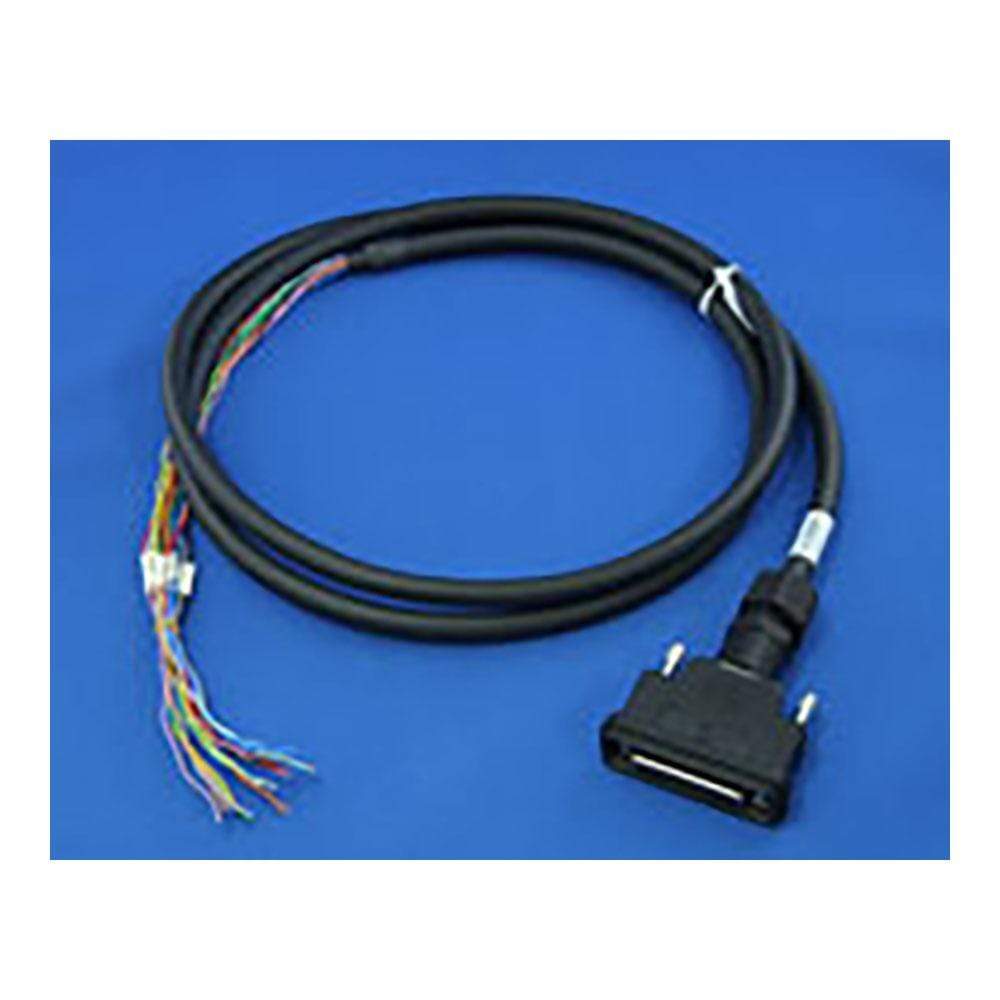

The Lineeye LE-25M3WP-2 is a 2m long Water and Dustproof DSUB cable for use with the LE-270AR/A CAN/LIN Bus Data Loggers.

A connector is only fitted at one end. Wires at the other end are fitted with identification tags.

Cable Outline

Cable Pin Assignment

Specification

Length 2m

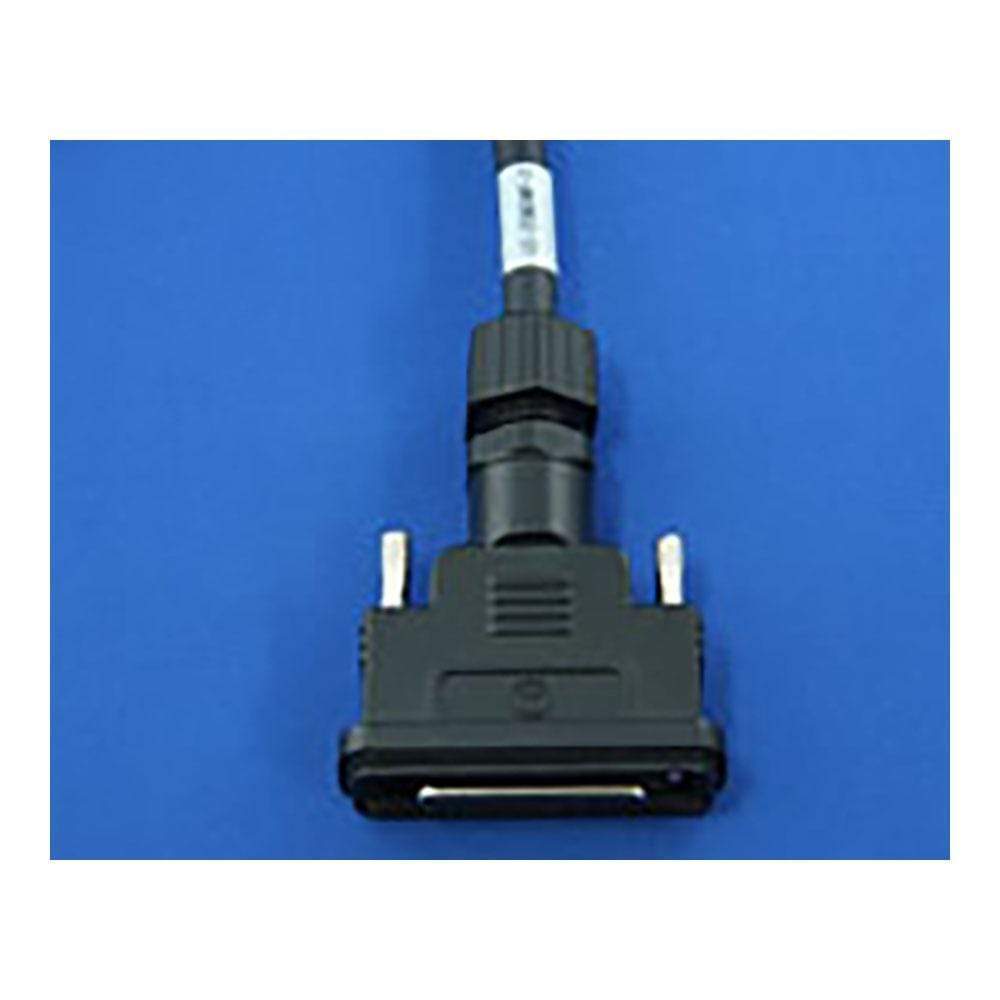

Connector CN1: DSUB 25-pin (female) connecter. Water-proofing. #4-40 inch screw.

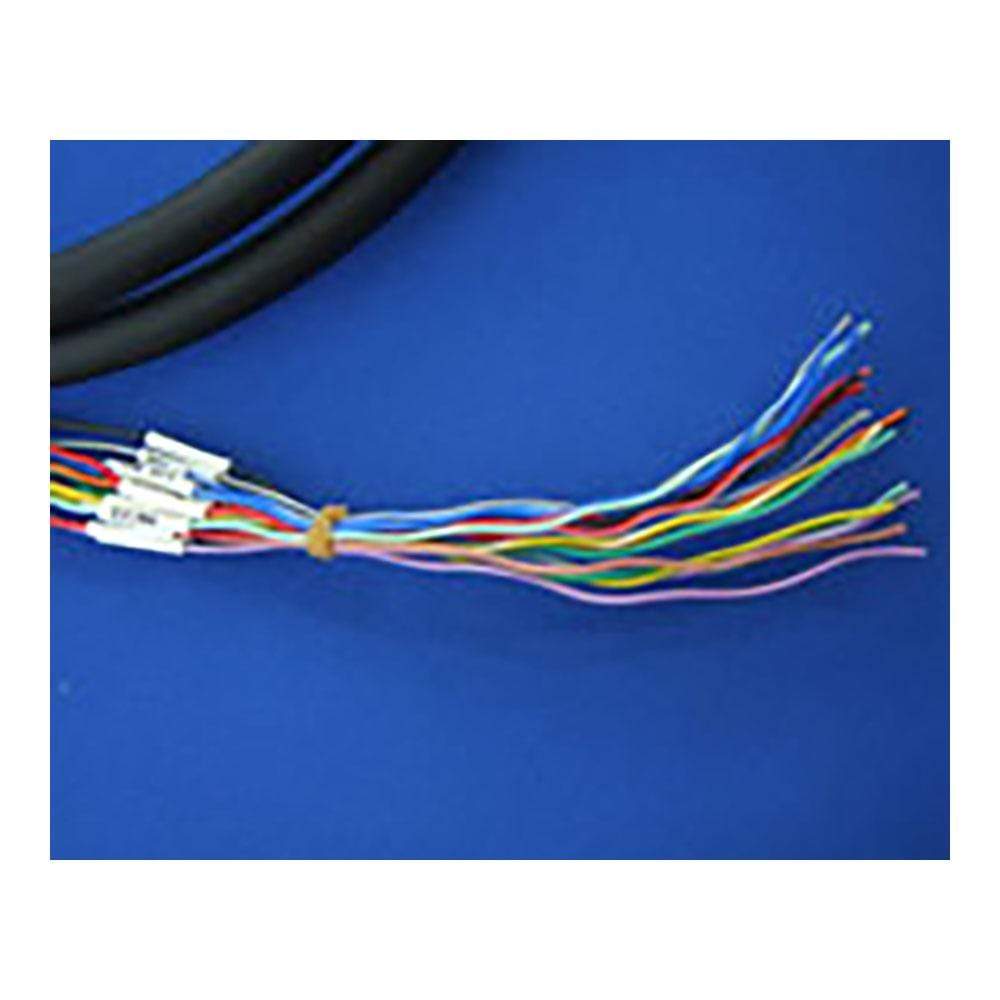

CN2: Free wires with identification tags.
Cable Twisted shield cable. AWG #24 10 pairs (17 lines are used). Length: 2m.
Compatible Analysers LE-270AR/LE-270A

* Connectors or clips necessary for connecting to the target to be measured are to be provided by the user.
* DSUB connectors are not waterproof when disconnected.
* Custom cables of the required length are available.
