Fiber Opt Click Board
Fiber Opt Click Board
Couldn't load pickup availability
Overview

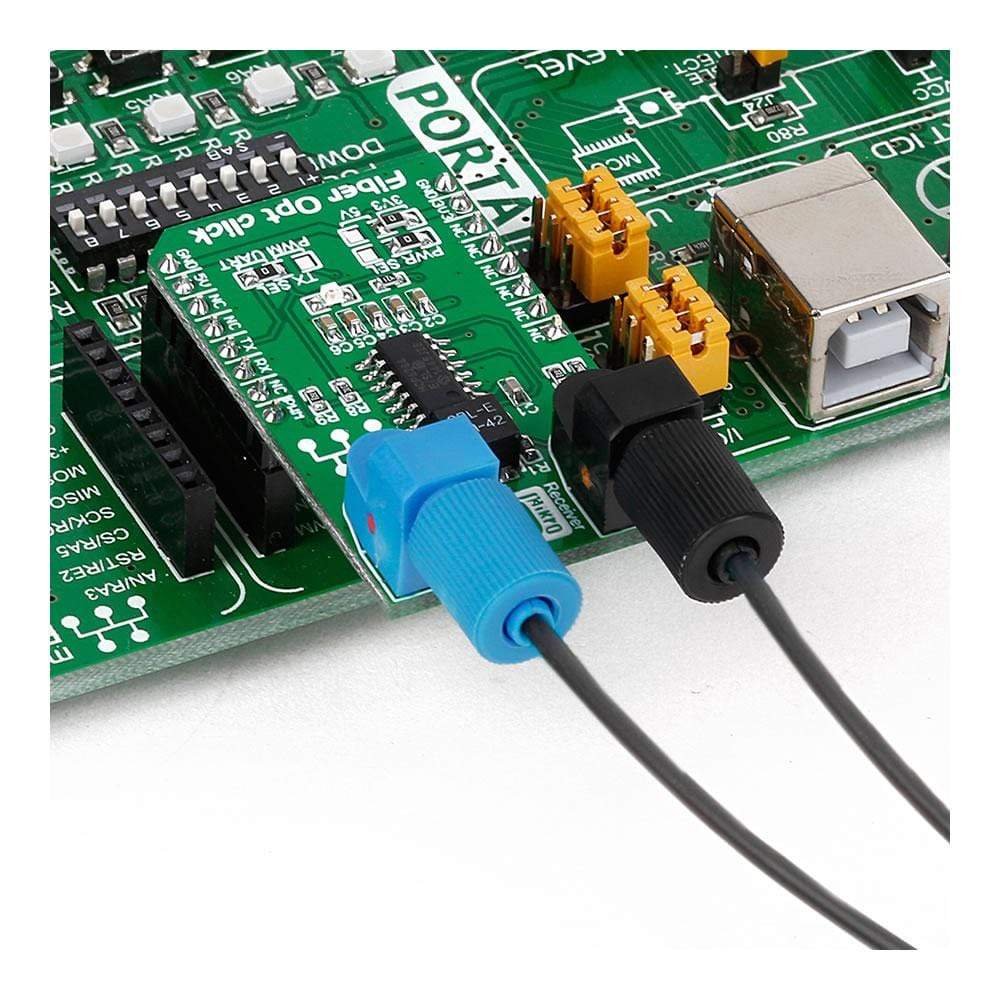

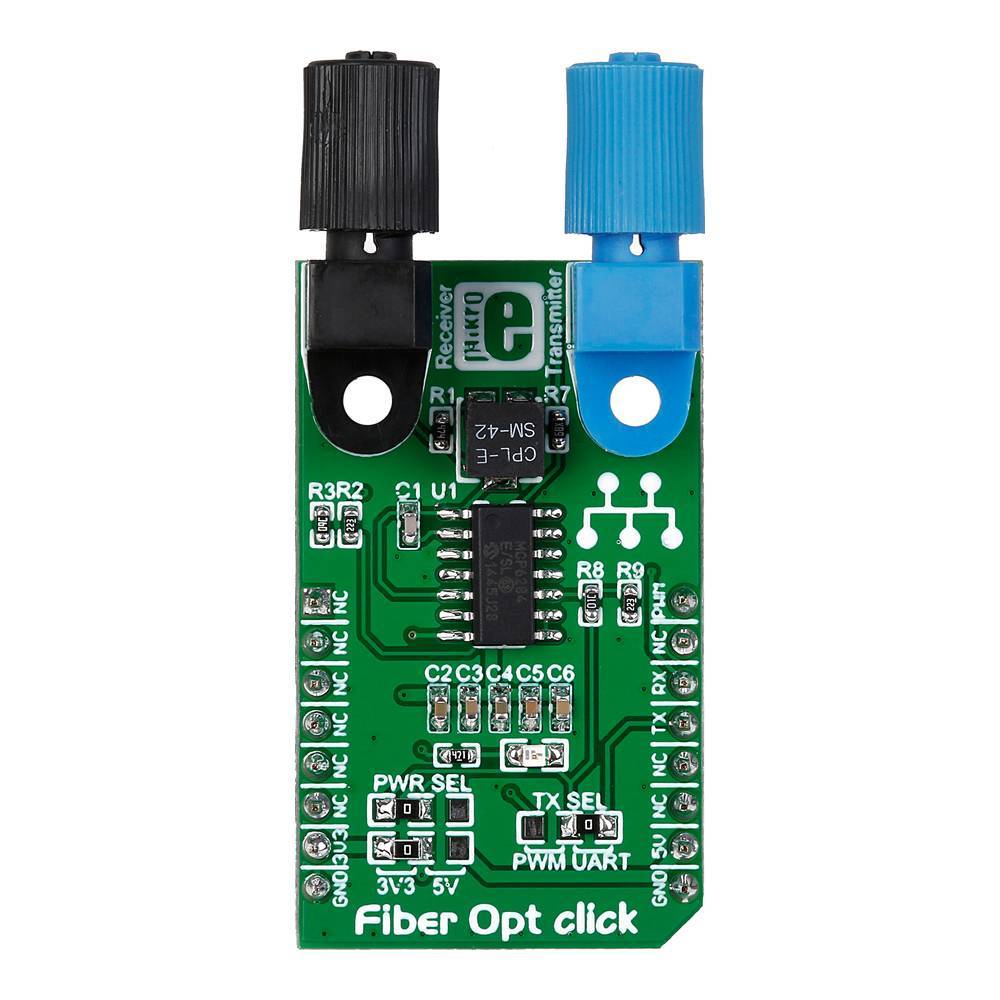

The Fibre Opt Click Board™ is a compact and easy solution for adding fibre-optic communication to your design.
It features an IF-D91 fibre-optic photodiode as well as two operational amplifiers.
The Fibre Optic Click Board™ is a compact and easy solution for adding fiber-optic communication to your design. It features IF-D91 fiber-optic photodiode, IF-E97 fiber-optic LED diode as well as two operational amplifiers. Provided plastic optic connectors feature an internal micro-lens and a precision-molded PBT housing to ensure efficient optical coupling with plastic fiber cable. Data rates of up to 512 Kbps can be achieved.

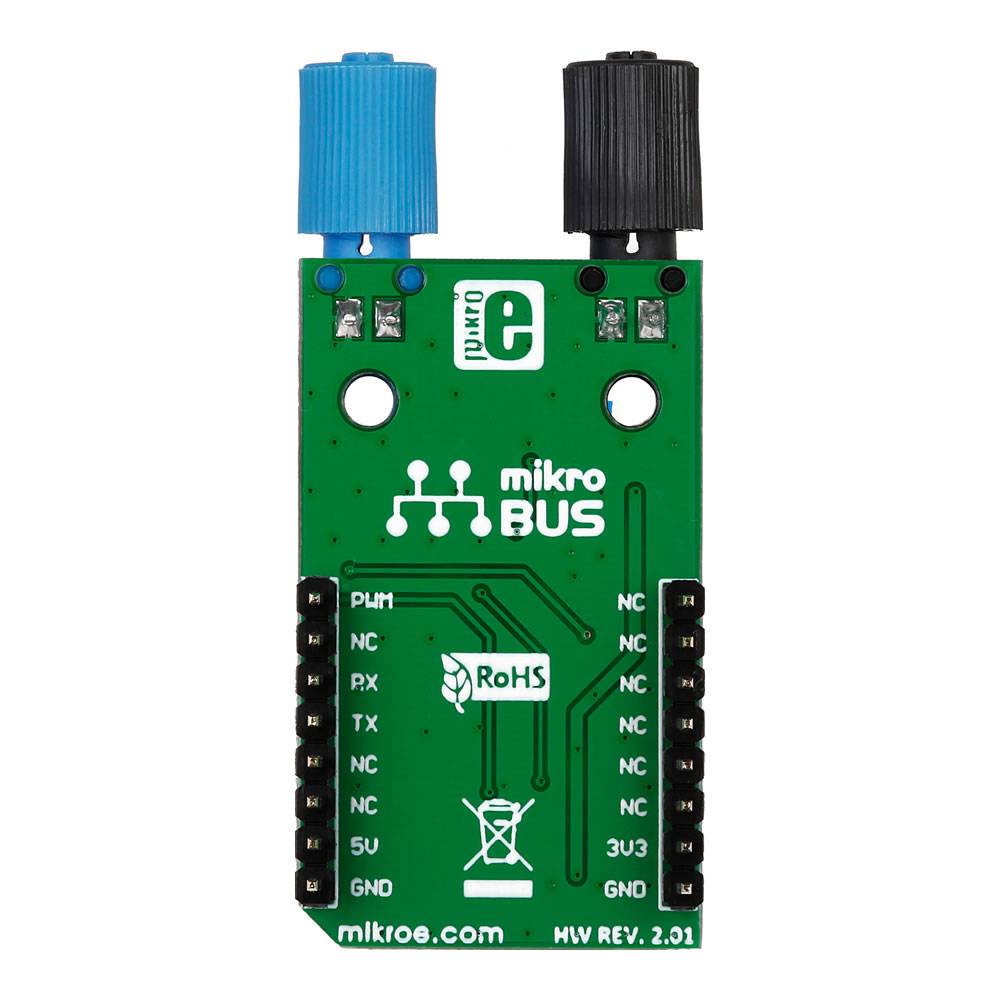

The Fiber Opt Click Board™ communicates with the target MCU via UART interface or directly through the GPIO pins depending on the position of on-board TX jumpers. UART position is set by default. Board is designed to use either 3.3V or 5V power supply.
