USB 3.1 Standard-A to Lightning USB2 - Advanced Cable Tester Module
USB 3.1 Standard-A to Lightning USB2 - Advanced Cable Tester Module
Regular price
€548,95 EUR
exc tax
Regular price
Sale price
Unit price
per
€548,95 EUR
exc tax
Shipping calculated at checkout.
Check Availability before Ordering
Couldn't load pickup availability

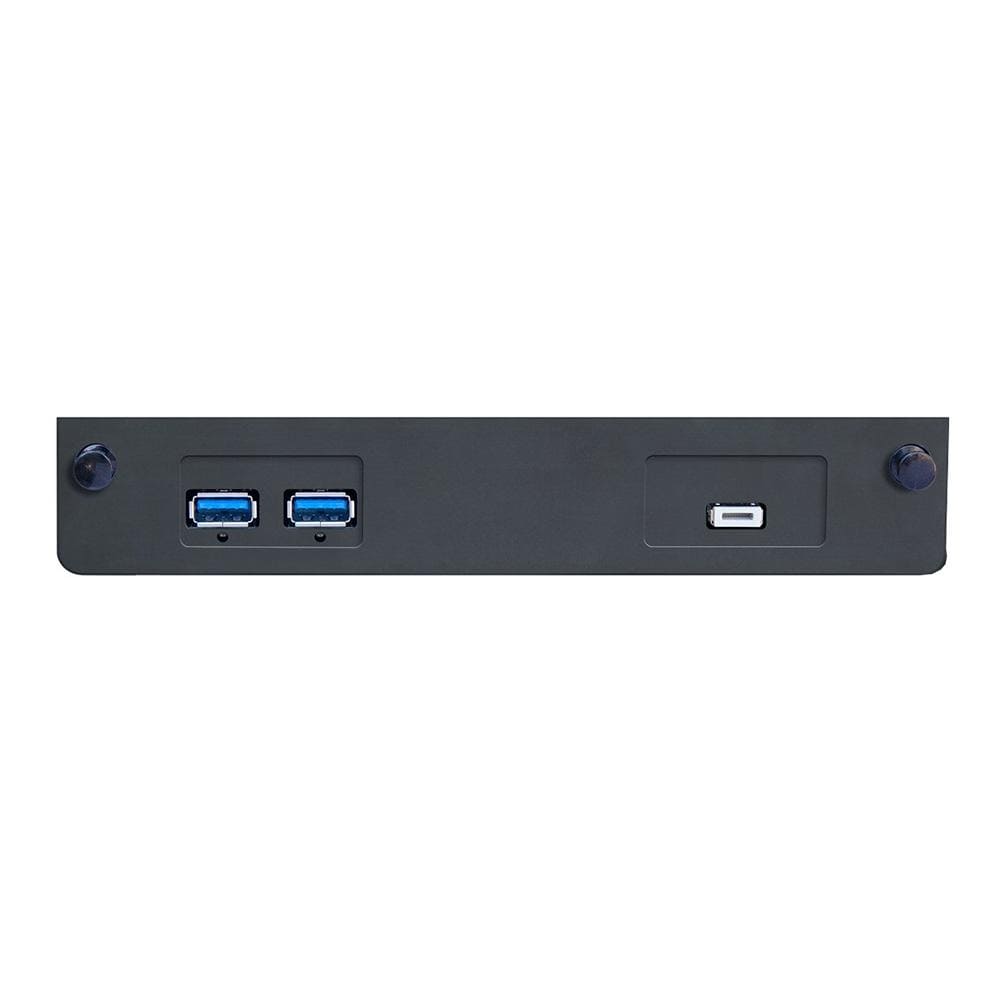

The USB 3.1 Standard-A to Lightning USB2 Module has been designed to allow the Total Phase Advanced Cable Tester to test USB 3.1 Standard-A to Lightning USB2 cables.
The module facilitates testing of the USB connectors and cable
- Short testing - Dynamic visualization of test results
- Open testing - Dynamic visualization of test results
- Continuity testing - Dynamic visualization of test results
- DC resistance measurement for most wires, with milliohm precision on ground and power wires, ohm resolution on most other wires, continuity check only on high-speed data lines
- Signal integrity testing of data lines to 12.8 Gbps per channel
Quality
- REACH, RoHS, China RoHS
- Manufacturing: ISO 9001, ISO 13485, AS9100C, ITAR
- Warranty for 90 days or 1000 insertions, whichever comes first.
Connections
- Each module utilizes a proprietary finger style connector for use with Advanced Cable Tester v2 only
- DisplayPort module has 2 DisplayPort receptacles for DUT
Dimensions
- W x D x H: 19.4 mm. x 3.8mm. x 3.5 mm excluding attachment pins
(7 5/8 in. x 1 1/2 in. x 1 3/8 in.)
Weight
- 90 g (2.5 oz)
Operating Temperature
- 10º–35º C (50º–95º F)
USB 3.1 Standard-A to Lightning USB2 - Advanced Cable Tester Module
Frequently Asked Questions
Have a Question?
Be the first to ask a question about this.
What's Included
USB 3.1 Standard-A to Lightning USB2 - Advanced Cable Tester Module
- USB 3.1 Standard-A to Lightning USB2 Module
