Lineeye LE-8500X Ethernet & PoE Protocol Analyser
Lineeye LE-8500X Ethernet & PoE Protocol Analyser
SKU: LE-8500X-E
Couldn't load pickup availability
Key Features
Overview
Overview
The Lineeye LE-8500X is a handheld LAN protocol analyser for 10/100/1000BASE-T. It can observe two Ethernet lines concurrently while measuring Power over Ethernet (PoE) on one line, capture traffic to internal storage or USB 3.0 media in PCAP-NG format, and review frames on its colour touchscreen or in Wireshark. Engineers can operate it standalone in the field or tether it to a PC to stream captures for deeper analysis.
Within the same family, the LE-8500XR adds Wi-Fi for PC connections, and the higher-throughput LE-8600X extends analysis to 10 GbE links. For serial-bus work, the LE-8500X-RT variant targets RS-232/422/485 and TTL/CMOS protocols. A replacement battery pack (P-26LW2) is available from Debug Store.
Why Consider the LE-8500X?
If you need portable, self-contained Ethernet and PoE verification without a laptop and TAP, the LE-8500X offers inline PoE measurement, dual-channel capture, packet generation and statistical analysis in one tool—reducing kit weight and setup time while preserving wire-rate visibility.
Why Engineers Choose The Lineeye LE-8500X Ethernet & PoE Protocol Analyser
Portable, All-In-One Troubleshooting
PoE + Packet Insight Together
Standards-Friendly Workflow
Features
- Simultaneous measurement of 2 Ethernet packets and PoE power (LE-8500X / LE-8500XR)
- Output test packets at wire-rate from 2 channels at the same time (LE-8500X / LE-8500XR)
- PoE++ judgment, long-time PoE power recording (LE-8500X / LE-8500XR)
- Supports RS-232C, RS-422/RS-485, TTL communication (LE-8500X-RT / LE-8500XR-RT)
- Supports high-speed serial communication of up to 20 Mbps (LE-8500X-RT / LE-8500XR-RT)
- Various data can be displayed on the 7-inch wide-color LCD main unit screen, with touch operation capability
- Accurate time stamps with time correction function using GNSS (PPS) signals
- Automatically records communication logs to large-capacity external storage via USB3.2 (Gen1)
- Measurement data can be transferred to a PC for analysis via LAN, USB, or Wi-Fi (XR only) connection
Specification
| Model*1 | LE-8500X / LE-8500XR | LE-8500X-RT / LE-8500XR-RT |
|---|---|---|

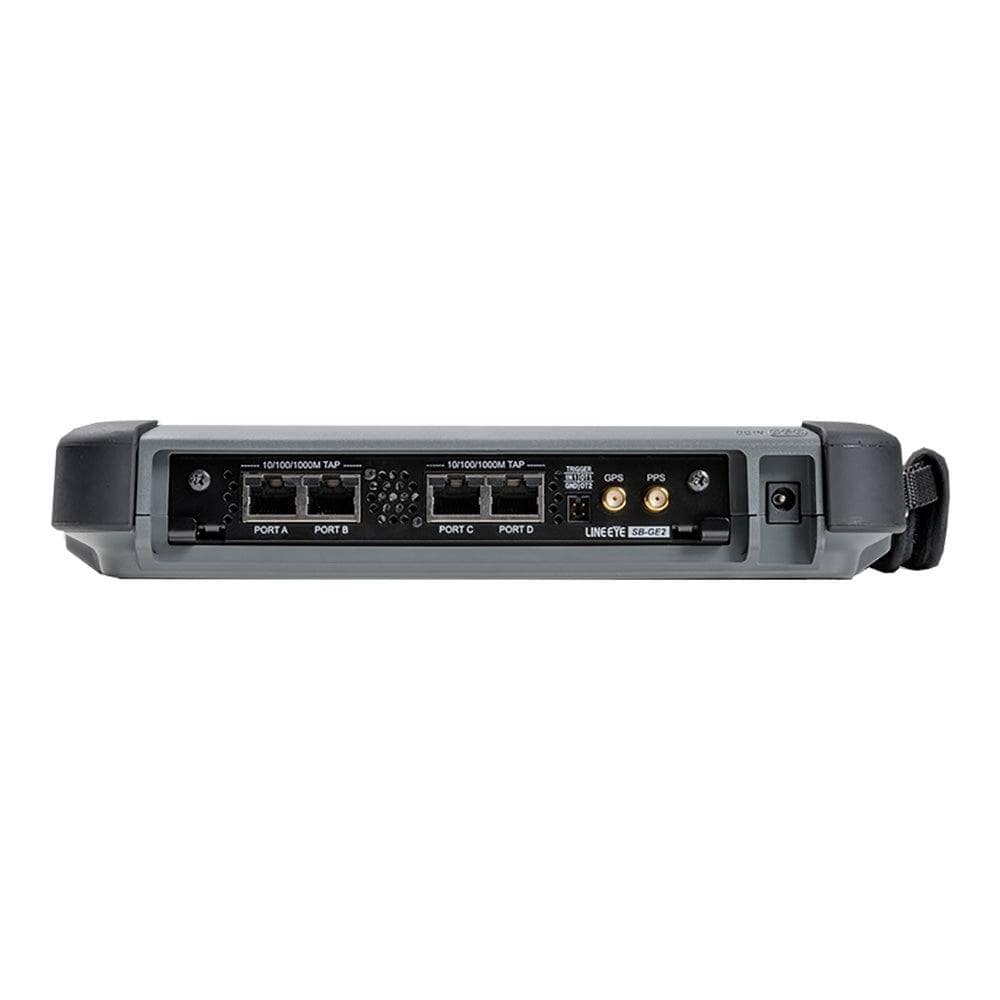

| 10/100/1000BASE-T | Yes | With SB-GE2*3 |
| RS-232C, RS-422/485, TTL | With SB-R2TS1*2 | Yes |
| Protocol | IPv4, ARP, ICMP, TCP, UDP, DHCP, EtherCAT | ASYNC, PPP, SYNC, BSC, HDLC, SDLC, X.25, CC-LINK, Modbus, PROFIBUS, I2C, SPI, BURST |
| Max. speed | 1Gbps | 4Mbps (20Mbps in high-speed mode) |
| Measurement test function | Packet monitor, packet and PoE monitor, PoE judgement recording, statistic analysis, delay time measurement, packet generate, Ping, port blink | Monitor, simulation, BERT, logic analysis, statistic analysis, signal level measurement, delay time measurement |
| Capture memory | 1Gbyte | |
| Display | 7-inch TFT colour with capacitive touch-panel | |
| GPS port | SMA (female), for time correction of the time stamp. Optional GPS antenna to be connected | |

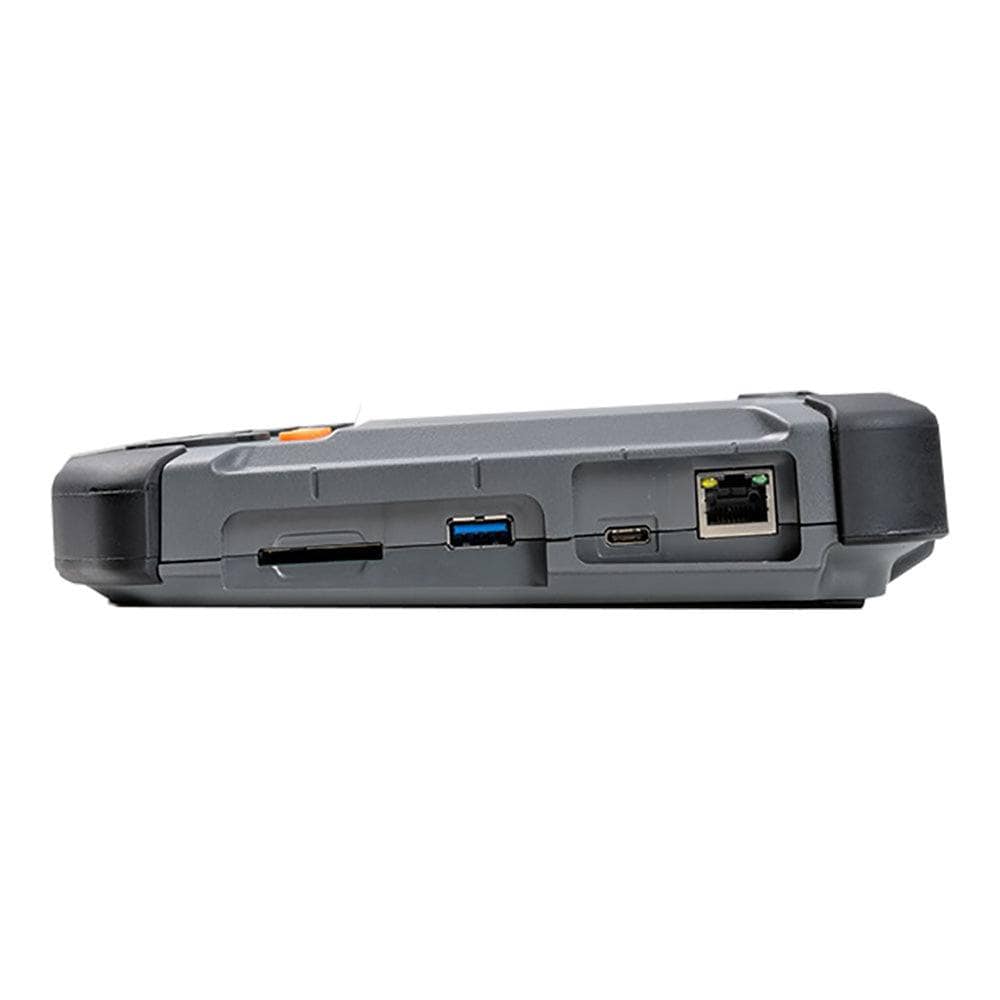

| USB device port | Type-C connector, for SuperSpeed transfer. A PC is to be connected | |
| USB host port | Standard A connector, for SuperSpeed transfer. External storage (USB flash, SSD) to be connected | |
| SD card slot | SDHC card supported. SD Association standard compliant | |
| Power | Built-in lithium-ion battery or attached AC adapter | |
| Size & Weight | 234(W) x 186(D) x 44(H)mm, about 990g | |
- "XR" model has Wi-Fi function (for PC connection)
- Functions equivalent to LE-8500X-RT by using optional board (SB-R2TS1)
- Functions equivalent to LE-8500X by using optional board (SB-GE2)
| General Information | |
|---|---|
Part Number (SKU) |
LE-8500X-E
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
1.0 kg
|
| Other | |
Warranty |
|
Country of Origin |
|
HS Code Customs Tariff code
|
|
EAN |
5055383699728
|
Frequently Asked Questions
Have a Question?
-
How does it compare to more expensive enterprise testers?
Enterprise handhelds (e.g., NetAlly EtherScope nXG, VIAVI MTS-5800-100G) add advanced multi-Gig and fibre modules at higher prices, while LE-8500X focuses on cost-effective 1 GbE with PoE and PCAP-NG.
-
Which accessories are available from Debug Store?
The P-26LW2 battery pack is stocked; see Protocol Analysers for more.
-
What’s the storage workflow for long captures?
Use internal storage or plug USB 3.0 media for automatic saving to extend trace depth.
-
Does it work without a laptop on site?
Yes, the touchscreen interface enables standalone operation; PC link is optional.
-
What if I need serial protocol analysis?
The LE-8500X-RT variant supports RS-232/422/485 and TTL/CMOS buses.
-
Can I add Wi-Fi connectivity?
Choose the LE-8500XR for Wi-Fi PC connection within the same series.
-
Is there a 10 GbE model?
Yes, the LE-8600X adds 10 GbE monitoring and two-channel packet output.
-
How do I analyse captures on my PC?
Export PCAP-NG and open in Wireshark; the file format is compatible for detailed protocol decoding.
-
Can it measure PoE while capturing traffic?
Inline PoE voltage/current and class are measured while frames are captured.
-
What Ethernet speeds does the LE-8500X support?
10/100/1000BASE-T on copper. For 10 GbE, see the related LE-8600X.
