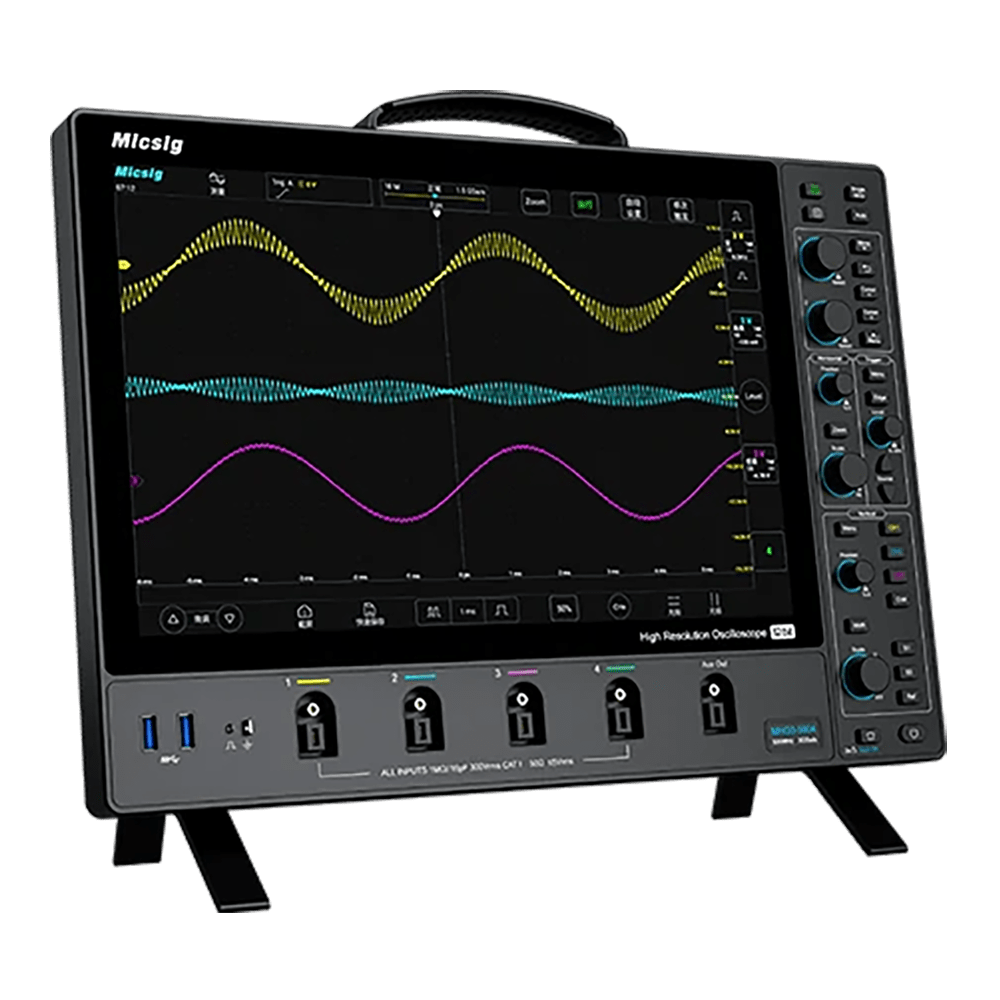

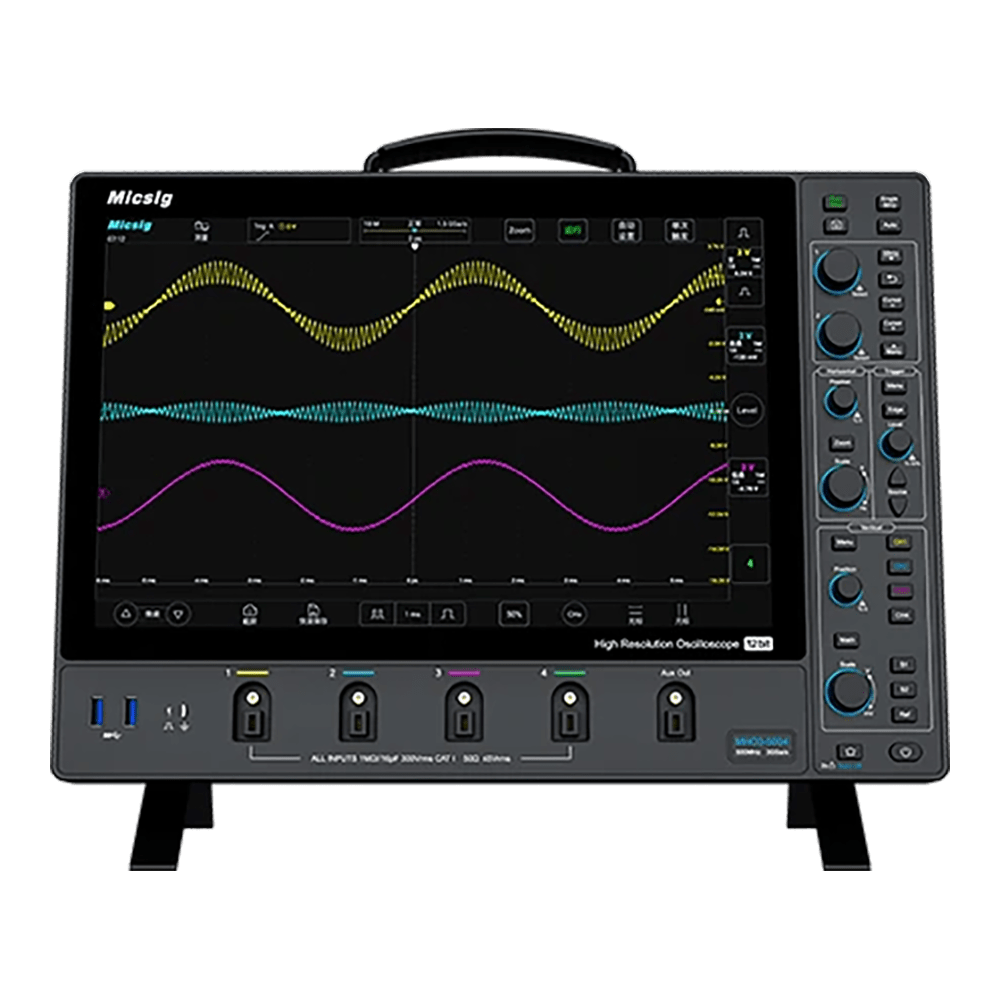

Micsig MHO3 Series - 14" High Resolution 500MHz Oscilloscope with 12-bit ADC
Micsig MHO3 Series - 14" High Resolution 500MHz Oscilloscope with 12-bit ADC
Couldn't load pickup availability
Key Features
- 12-bit ADC with 4096 quantization levels, providing 16 times more detail than 8-bit oscilloscopes.
- Advanced Signal Capture: 500MHz bandwidth, 3GSa/s sampling rate, and 360Mpts memory depth for comprehensive long-term signal analysis.
- Large 14-inch touchscreen for enhanced visualization
- Low Noise Floor: Less than 80μVrms at full bandwidth, enabling accurate detection of weak signals during circuit debugging.
- Advanced connectivity with Mic-OPI™ probe interface
Overview
The Micsig MHO3 Series represents a significant advancement in oscilloscope technology, offering professional design engineers unparalleled precision and versatility. With a 500MHz bandwidth, 3GSa/s sampling rate, and 12-bit vertical resolution, this high-performance instrument delivers exceptional signal fidelity and detail.
Key features include a 14-inch touchscreen with 1920x1200 resolution, providing an intuitive interface for complex waveform analysis. The 360Mpts memory depth, combined with segmented storage acquisition, allows for comprehensive long-term signal capture and playback.
Engineers will appreciate the low noise floor of less than 80μVrms at full bandwidth, enabling accurate detection of weak signals. The hardware digital filter offers selective frequency analysis, while the Mic-OPI™ probe interface ensures seamless integration with a wide range of Micsig probes.

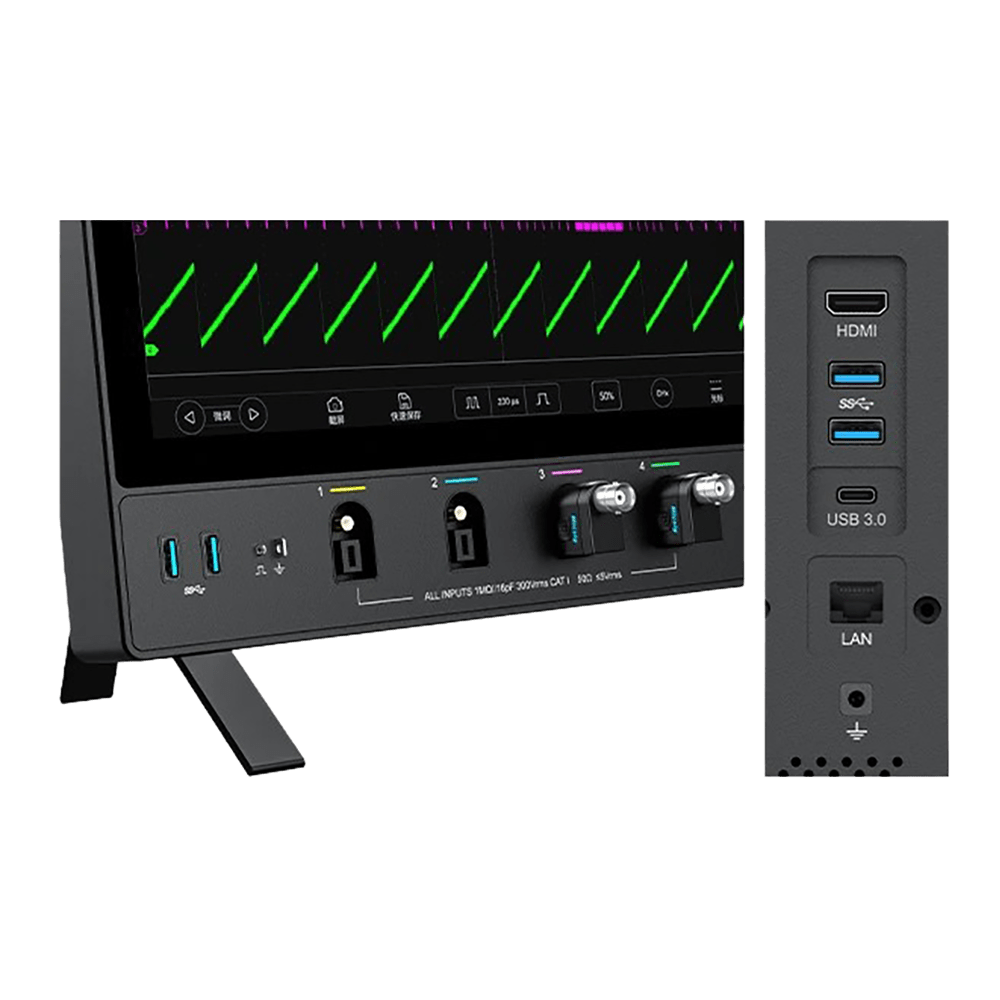

Designed for modern workflows, the MHO3 Series boasts extensive connectivity options, including USB 3.0, LAN, and HDMI. Its ultra-thin 3.58cm profile supports VESA mounting, making it adaptable to various laboratory setups.
For design engineers seeking a cutting-edge oscilloscope that combines high resolution, deep memory, and user-friendly operation, the Micsig MHO3 Series stands as an indispensable tool for advanced signal analysis and debugging.
Functions
Friendly User Interface
With over 10 years of UI design experience, the MHO 3 series simplifies all user interfaces so engineers can quickly learn to use in 5 minutes.
Deep Memory Depth
With memory depth of up to 360Mpts, there is no reduction in performance even with two channels opened at the same time
Digital Filtering
Digital filtering can selectively allow or block signal components
within specific frequency ranges.
Low Noise
Even at its full bandwidth of 500MHz, the noise floor is still less than 80μVrms, allowing engineers accurately capture weak but important signals.
Advanced Math Functions
Support various mathematical calculations: addition, subtraction, multiplication, division, integration, differentiation, etc.
Supports custom function formula for advanced signal analysis.
Multiple Trigger Functions
The MHO 3 series provides multiple triggers, including edge, pulse width, logic, Nth edge, Runt, slope, bus decoding, etc.
Friendly User Interface
With over 10 years of UI design experience, the MHO 3 series simplifies all user interfaces so engineers can quickly learn to use in 5 minutes.
Deep Memory Depth
With memory depth of up to 360Mpts, there is no reduction in performance even with two channels opened at the same time
Digital Filtering
Digital filtering can selectively allow or block signal components
within specific frequency ranges.
Low Noise
Even at its full bandwidth of 500MHz, the noise floor is still less than 80μVrms, allowing engineers accurately capture weak but important signals.
Advanced Math Functions
Support various mathematical calculations: addition, subtraction, multiplication, division, integration, differentiation, etc.
Supports custom function formula for advanced signal analysis.
Multiple Trigger Functions
The MHO 3 series provides multiple triggers, including edge, pulse width, logic, Nth edge, Runt, slope, bus decoding, etc.
