Tag Connect TC2030-ALT Legged Cable
Tag Connect TC2030-ALT Legged Cable
SKU: TC2030-ALT
Couldn't load pickup availability
Overview

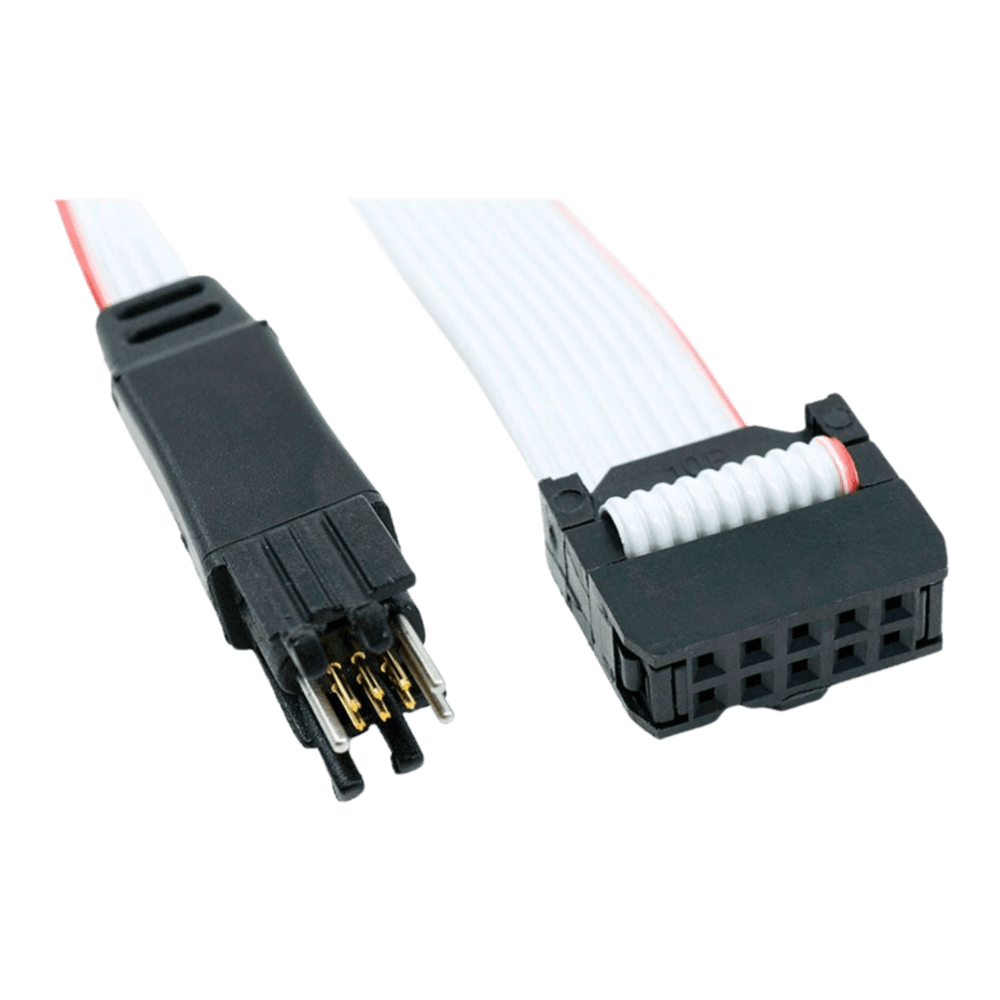

The Tag Connect TC2030-ALT programming cable is a special cable that has a TC2030 “Legged” Tag-Connector at one end and a 10-pin 0.1″ pitch female IDC connector at the other.
The 10-pin IDC can be plugged directly into some Altera USB Blasters and ByteBlasters.
The TC2030-ALT programming cable is a special cable that has a TC2030 "Legged" Tag-Connector at one end and a 10-pin 0.1″ pitch female IDC connector at the other. The 10-pin IDC can be plugged directly into some Altera USB Blasters and ByteBlasters.
The cable is wired as follows:
| TC2030-NL | 10-pin 0.1″ IDC |
|---|---|
| 1 | 4 Vref |
| 2 | 5 TMS |
| 3 | 9 TDI |
| 4 | 1 TCLK |
| 5 | 2,10 GND |
| 6 | 3 TDO |
Please refer to the TC2030-IDC datasheet for details of the TC2030 connector and footprint.
| General Information | |
|---|---|
Part Number (SKU) |
TC2030-ALT
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.1 kg
|
| Other | |
EAN |
5055383665143
|
