Tag-Connect TC-C2000-M Adapter
Tag-Connect TC-C2000-M Adapter
Couldn't load pickup availability
Overview
The Tag-Connect TC-C2000-M Adapter is used to connect the TC2050-IDC Pogo-pin cable to a TI C2000 hardware debugger, such as the XDS110 JTAG Debugger.
| General Information | |
|---|---|
Part Number (SKU) |
TC-C2000-M
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.1 kg
|
| Other | |
Warranty |
|
HS Code Customs Tariff code
|
|
EAN |
5055383690497
|

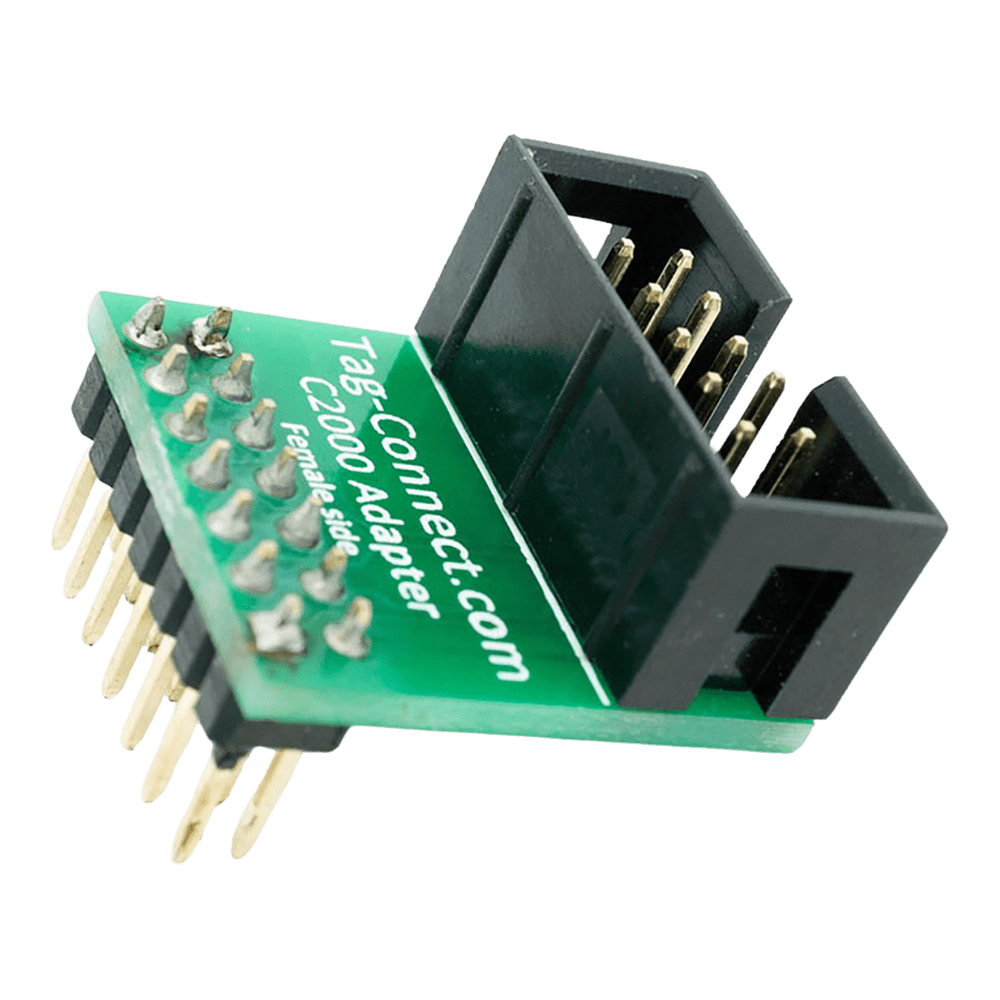

The TC-C2000-M adapter has male 0.1″ pitch connector with no key.

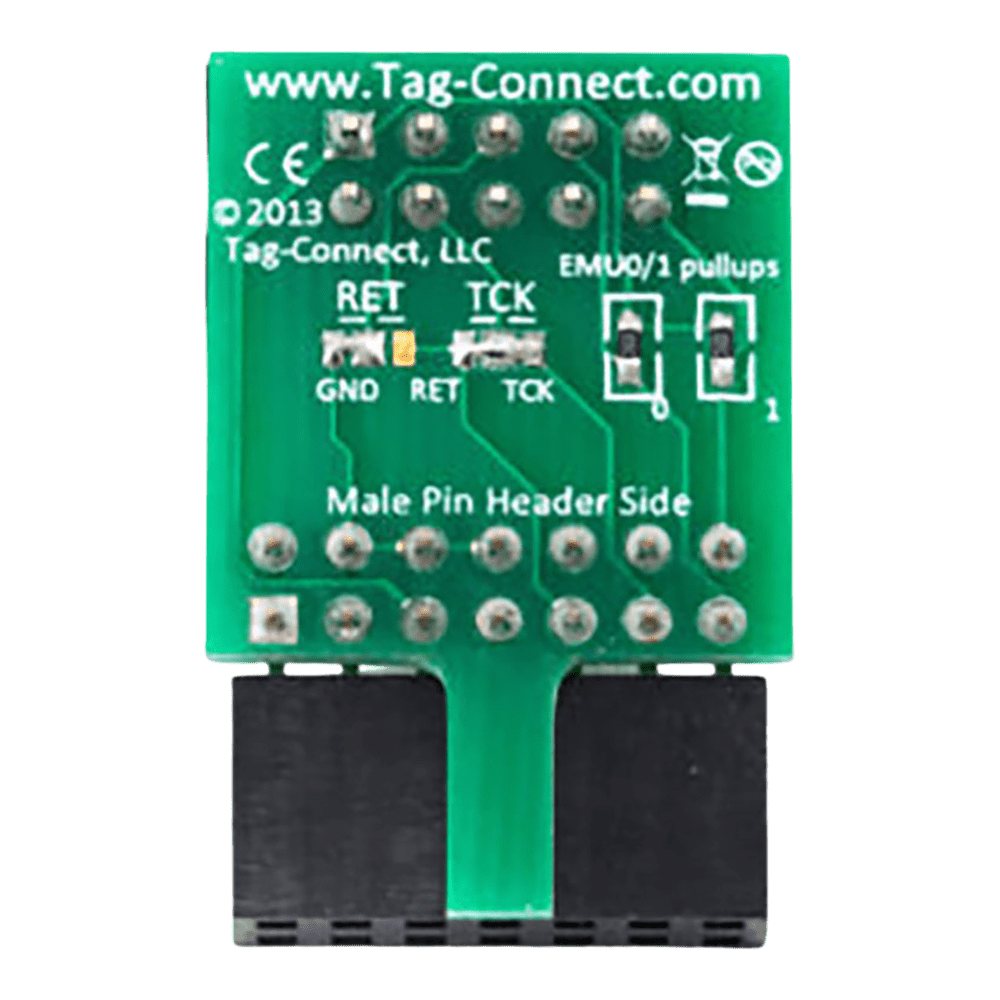

The TC-C2000 adapter enables use of Tag-Connect TC2050-IDC or TC2050-IDC-NL cables with TI DSP's and processors. The onboard EMU0 and EMU1 pull-up resistors can eliminate otherwise unused pull-ups on each and every target board. For normal use where the JTAG clock is sourced by the programmer / debugger solder-bridge jumpers are configured so that TCK is connected to TCK_RET on the adapter and TCK_RET is not needed on the target PCB.
See TC-2000-F-90 and TC-C2000-F-180 for other connector options.
