MikroProg to ST-Link v2 Adapter
MikroProg to ST-Link v2 Adapter
Couldn't load pickup availability

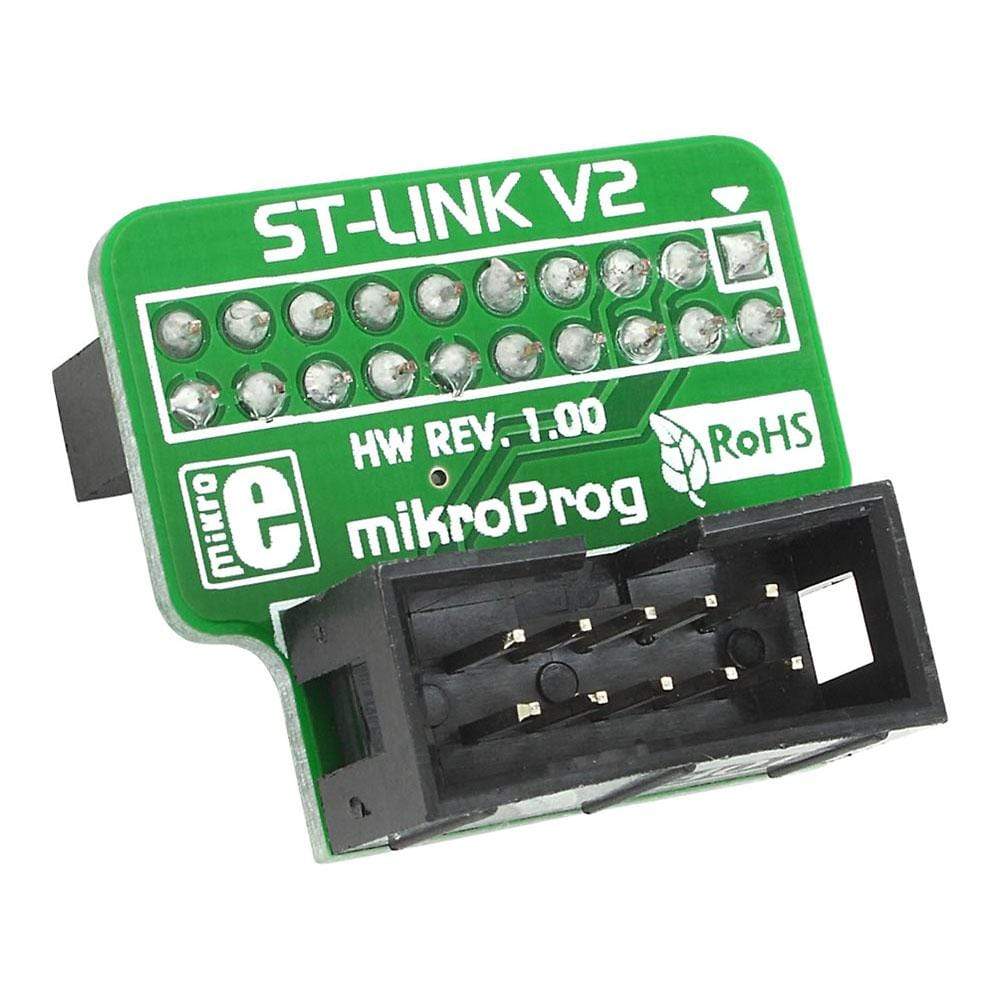

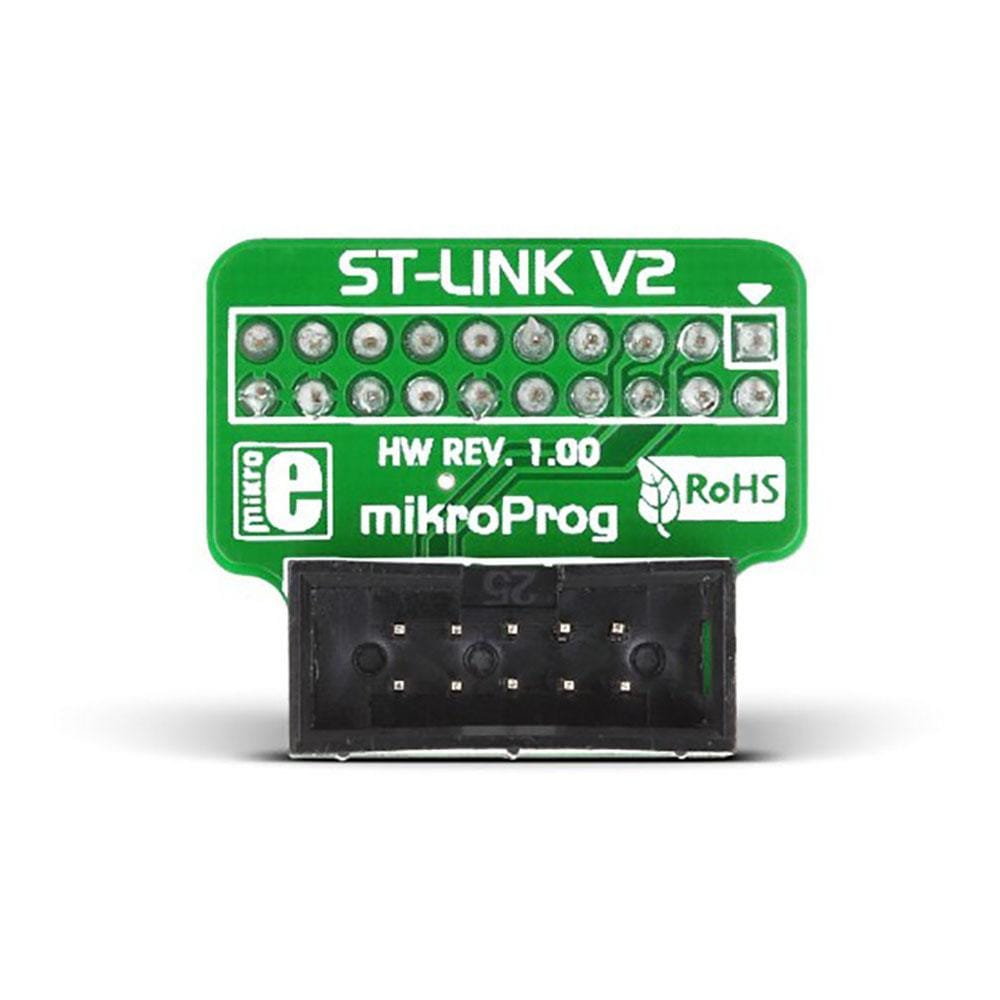

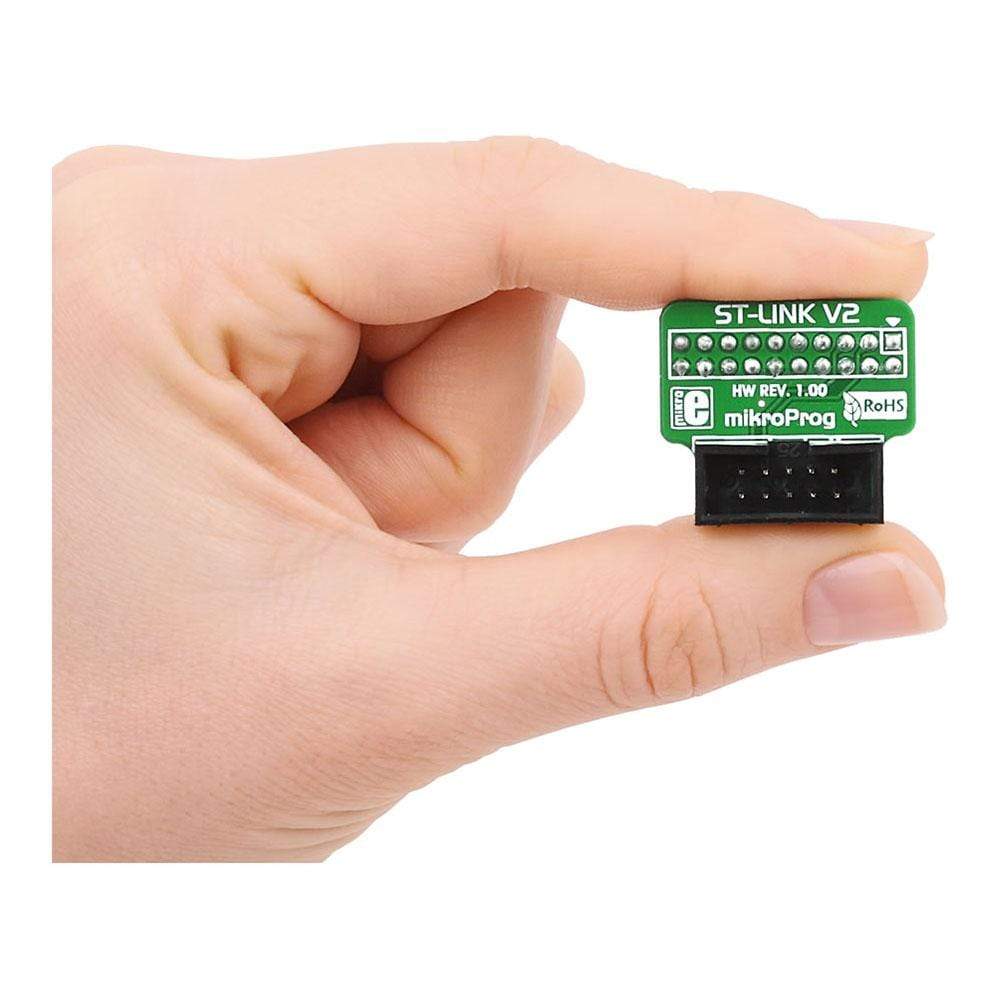

The MikroProg to ST-Link v2 Adapter lets you connect MikroProg for STM32 programmer and hardware debugger to the male JTAG connector on the target board. Based on ST-LINK v2, MikroProg for STM32 is a fast in-system programmer and hardware debugger. Backed with outstanding performance and easy operation, the multi-adapter board employs one 2x5 male header and a 2x10 female socket.
The MikroProg to ST-Link v2 Adapter should be first placed on a 2x10 male header on the target board, and after that, the MikroProg should be plugged into the adapter.
The mikroProg to ST-Link v2 Adapter allows you to connect mikroProg for STM32 programmer and hardware debugger to 20-pin male JTAG connector on your target board. The Adapter consists of one 2x10 male header and a 2x10 female socket. Its recommended to first place the adapter on 2x10 male header on the target board, and then plug in the mikroProg into the adapters 2x5 male header.
Specification
| Type | Adapter |
| Applications | Adapter allows you to connect mikroProg for STM32 programmer and hardware debugger to 20-pin male JTAG connector on your target board |
| On-board modules | 2x10 male header and a 2x10 female socket |
| Interface | GPIO |
| Compatibility | IDC10 |
