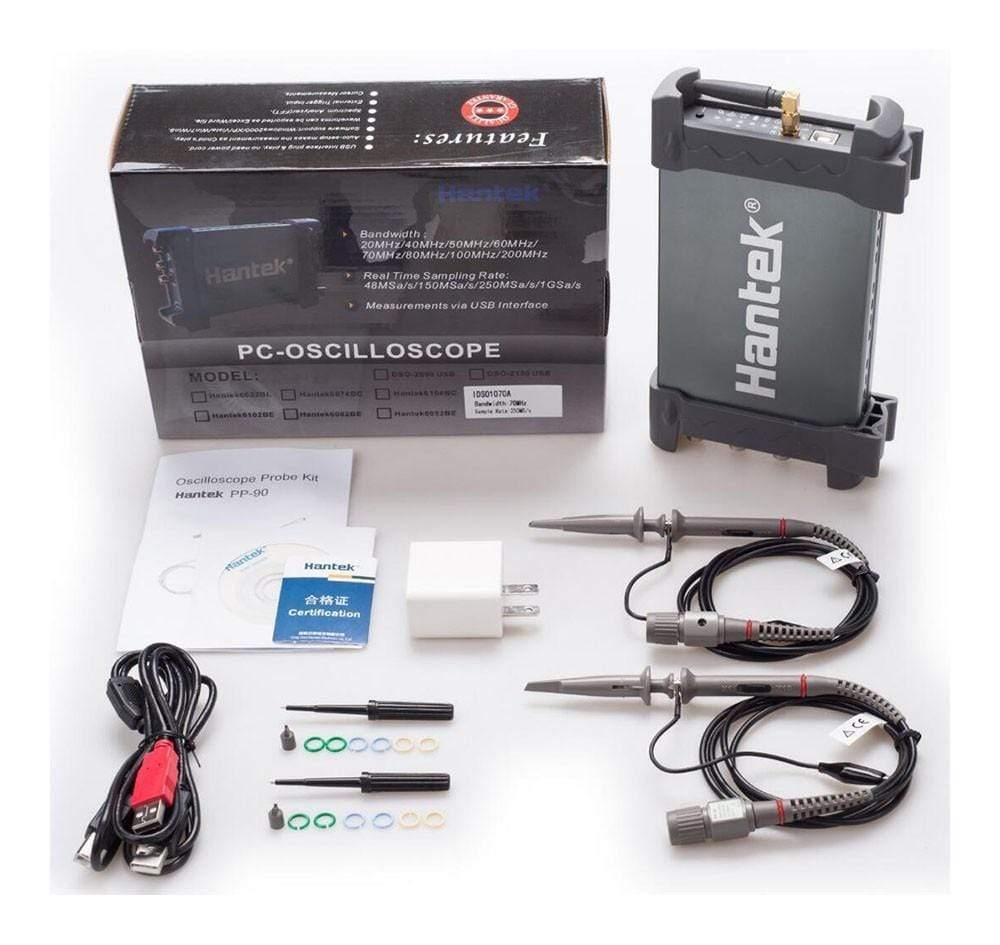

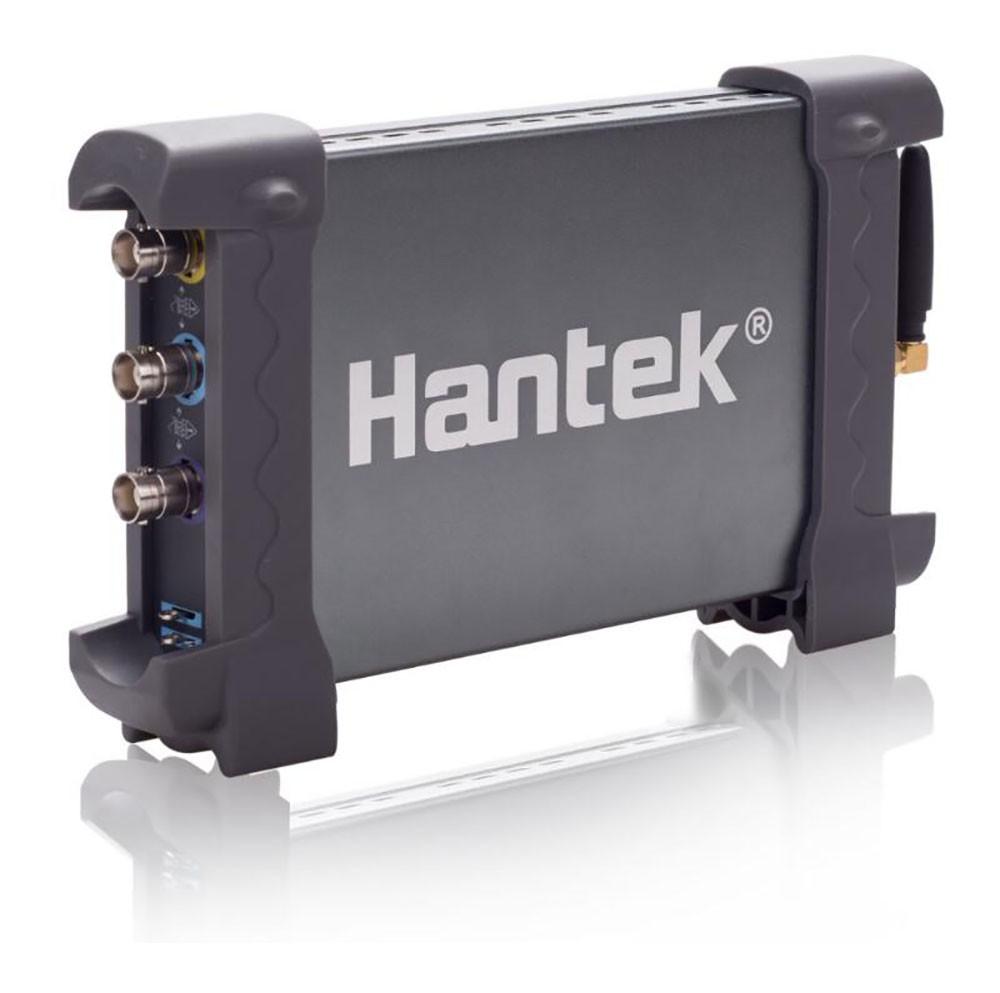

Hantek iDSO-1070A 70MHz WiFi & USB Oscilloscope

Hantek iDSO-1070A 70MHz WiFi & USB Oscilloscope

with WiFi for Windows, iOS and Android

SKU: iDSO-1070A

Regular price
m.683.00 AZN exc tax
Regular price Sale price
m.683.00 AZN exc tax
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll ship within 10 working days.
View full details

Key Features

70MHz bandwidth with 250MSa/s sampling rate
WiFi and USB dual connectivity options
Multi-platform support (Windows, Android, iOS)
Built-in lithium battery (4-hour operation)
Compact aluminium construction (190×100×25mm)
20 automatic measurement parameters
Math functions and FFT analysis

Overview

The Hantek iDSO-1070A represents a new category of portable test instruments, combining traditional oscilloscope functionality with modern wireless connectivity. This 2-channel, 70MHz bandwidth instrument communicates via WiFi or USB with smartphones, tablets, and computers, transforming any mobile device into a powerful measurement platform.

Built within a rugged anodised aluminium case measuring just 190×100×25mm and weighing 0.5kg, the iDSO-1070A delivers laboratory-grade performance in an ultra-portable package. The integrated lithium battery provides 4 hours of continuous operation, whilst WiFi connectivity ensures complete galvanic isolation for safety in high-voltage applications.

This oscilloscope is part of Hantek's growing range of portable instruments. Related products include the Hantek 6022BE USB Oscilloscope for basic applications and the Hantek MSO-5202D Mixed Signal Oscilloscope for advanced debugging requirements.

Portable Debugging

Take oscilloscope measurements anywhere without bench space constraints or mains power requirements

Safety Isolation

WiFi connectivity provides complete galvanic isolation from control device for high-voltage circuit debugging

Multi-Device Flexibility

Single instrument works with existing smartphones, tablets, and computers rather than dedicated display hardware

Portable WiFi & USB Dual-Channel Oscilloscope

The Hantek iDSO-1070A is a compact, battery-powered 2-channel digital storage oscilloscope that connects wirelessly via WiFi or through USB to Windows PCs, Android devices, and iOS phones/tablets. This portable instrument combines 70MHz bandwidth with 250MSa/s sampling rate in an ultra-compact form factor ideal for field work and laboratory applications.

Key Performance Specifications

Parameter Specification
Bandwidth 70MHz
Channels 2 + External Trigger
Real-time Sampling 250MSa/s (single), 125MSa/s (dual)
Memory Depth 6K points
Input Impedance 1MΩ || 25pF
Maximum Input 35Vpk (DC + AC peak)
Vertical Resolution 8 bits

Connectivity & Control

The oscilloscope features dual connectivity options. WiFi mode provides galvanic isolation between the scope and control device, making it safe for high-voltage measurements. USB mode offers reliable connection and device charging capabilities.

Safety Note: WiFi operation provides complete galvanic isolation from the controlling device, enabling safe measurements in high-voltage environments.

Wiring Quick-Start

Connect oscilloscope probes to the two BNC inputs (CH1 and CH2). Set probe attenuation on the software to match your probe (1×, 10×, 100×, or 1000×). For WiFi operation, ensure the device is powered on and connect to the "HANTEK_xxx" network from your control device.

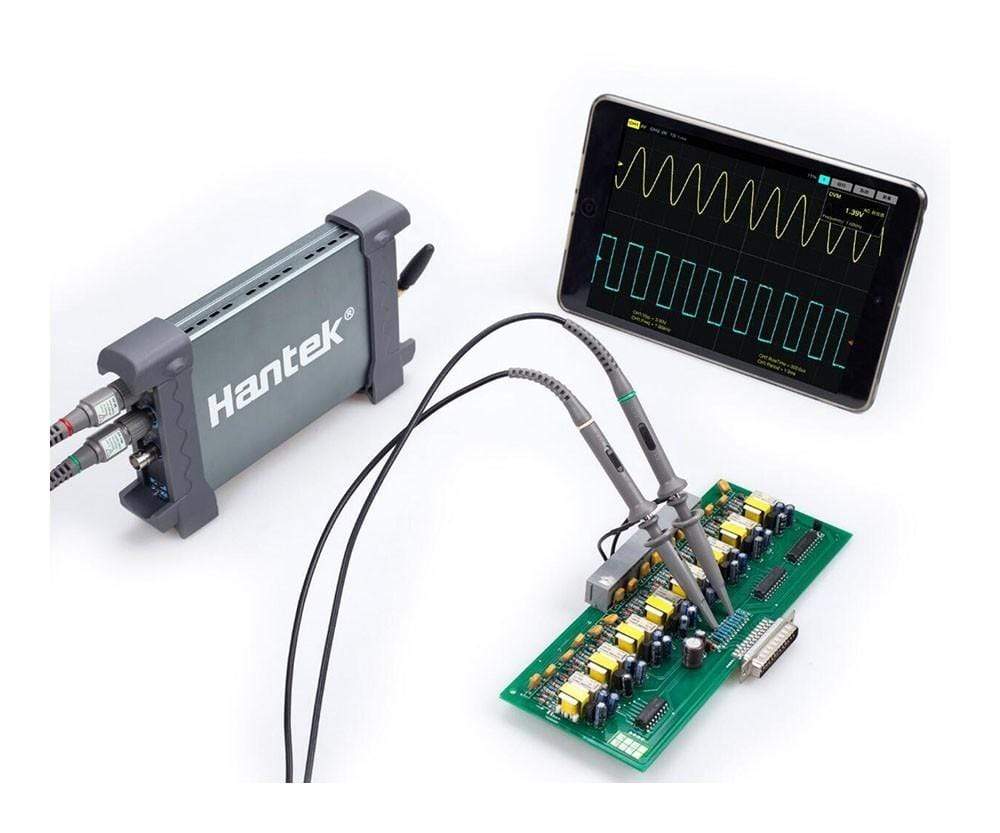

Oscilloscope probe connection diagram

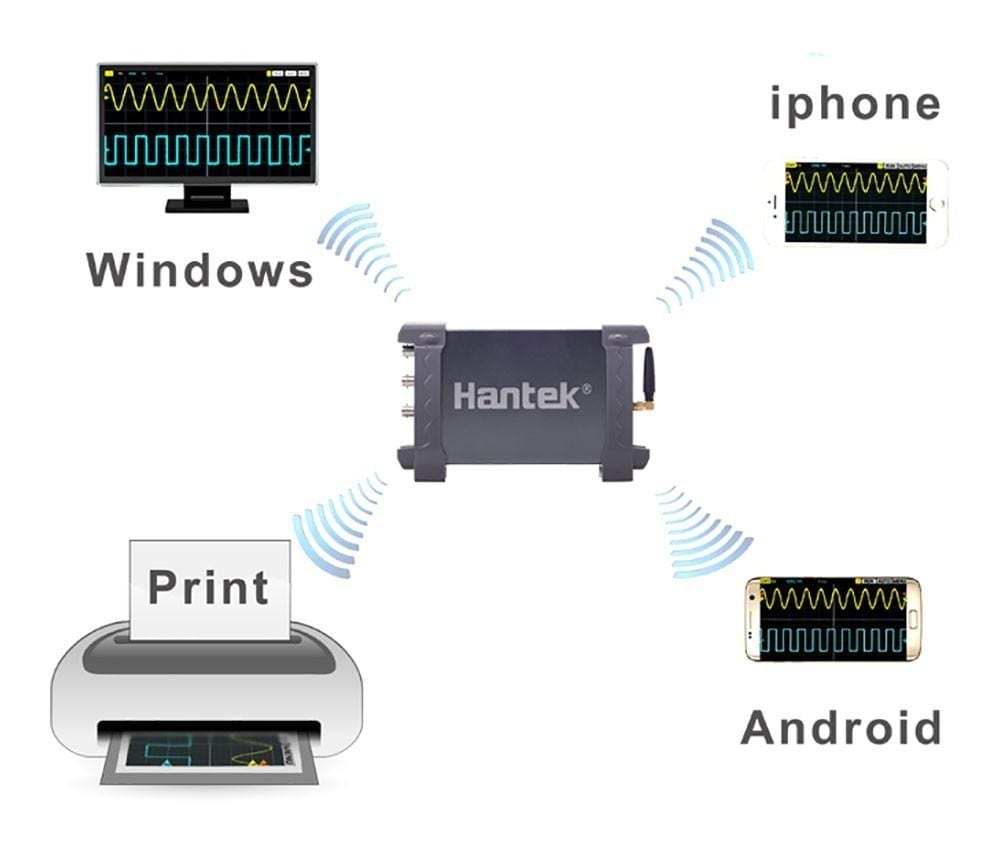

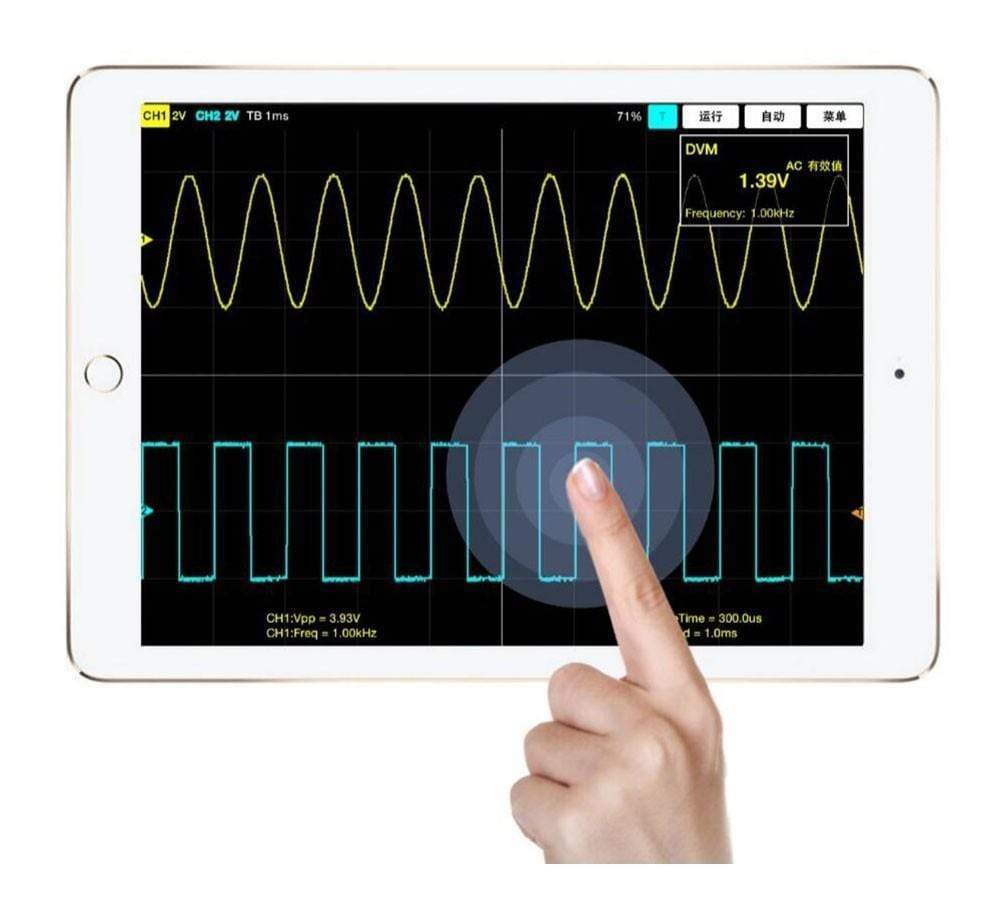

Multi-Platform Software

Comprehensive software applications are available for Windows, Android, and iOS platforms. The software provides full oscilloscope functionality including:

  • Real-time waveform display and analysis
  • 20 automatic measurements (Vpp, Vmax, Vmin, frequency, period, rise time, etc.)
  • Math functions: addition, subtraction, multiplication, division, FFT
  • Cursor measurements and pass/fail testing
  • Data logging and waveform export capabilities

Battery Operation

Built-in lithium battery provides up to 4 hours of continuous operation, making this ideal for portable and field applications. The unit charges via USB connection.

 // Example SCPI commands for remote control *IDN? // Identify device :CHANnel1:SCALe 0.5 // Set CH1 to 500mV/div :CHANnel1:COUPling DC // Set DC coupling :TRIGger:MODE AUTO // Set auto trigger :MEASure:VPP? CHANnel1 // Measure peak-to-peak voltage

Frequently Asked Questions

Have a Question?

Ask a Question
  • Is the Hantek iDSO-1070A suitable for automotive diagnostics?

    Yes, the portable nature and isolation capability make it excellent for automotive work. The 70MHz bandwidth handles most automotive signals, and the battery operation eliminates ground loop issues common with mains-powered equipment. Consider the Hantek automotive oscilloscope range for specialised automotive applications.

  • What software features are included for signal analysis?

    The software includes 20 automatic measurements (voltage, time, frequency parameters), math functions (add, subtract, multiply, divide), FFT spectrum analysis, cursor measurements, and pass/fail testing. Recording and playback functions are also available.

  • How does this compare to traditional bench oscilloscopes?

    The iDSO-1070A offers similar bandwidth and sampling performance to entry-level bench scopes but in a portable package. Trade-offs include smaller memory depth (6K vs typical 12M+ points) and 8-bit rather than 12-bit resolution, but gains significant portability and wireless capability.

  • What sampling rates are available for dual-channel operation?

    Single-channel operation provides 250MSa/s sampling rate. When using both channels simultaneously, the sampling rate is 125MSa/s per channel. This is sufficient for accurate capture of signals up to the 70MHz bandwidth limit.

  • Can I export measurement data and waveforms?

    Yes, the software allows export of waveforms as image files (JPG/BMP), data files (CSV/TXT), and direct copying to Excel or Word documents. This enables documentation and further analysis of captured signals.

  • What probe attenuation settings are supported?

    The software supports 1×, 10×, 100×, and 1000× probe attenuation factors. You must set the correct attenuation in software to match your probe for accurate voltage readings. The standard included probes are 1×/10× switchable.

  • How long does the battery last and how do I charge it?

    The built-in lithium battery provides approximately 4 hours of continuous operation. Charging occurs automatically when connected via USB to a computer or using the included USB power adapter. Charge time is typically 2-3 hours.

  • What is the maximum voltage I can safely measure?

    The maximum input voltage is 35Vpk (DC + AC peak) when using appropriate probe attenuation. With 10× probes, you can safely measure up to 350V signals. Always ensure probe specifications match your measurement requirements.

  • How does WiFi connectivity work and is it secure for measurements?

    The oscilloscope creates its own WiFi network called "HANTEK_xxx" which you connect to from your device. This provides complete galvanic isolation between the oscilloscope and control device, making it safe for high-voltage measurements. No internet connection is required.

  • What devices can control the Hantek iDSO-1070A oscilloscope?

    The oscilloscope works with Windows PCs, Android phones/tablets (version 4.0+), and iOS devices (iPhone/iPad). Software applications are available for each platform providing full oscilloscope functionality including measurements, math functions, and data export.
