Array 364XA Series DC Bench Power Supply

Output Voltage 18V 36V 72V

Product variants

m.570.00 AZN exc tax

Sale Sold out

Shipping calculated at checkout.

Pre-Ordered items ship within 10 days of ordering

Quantity

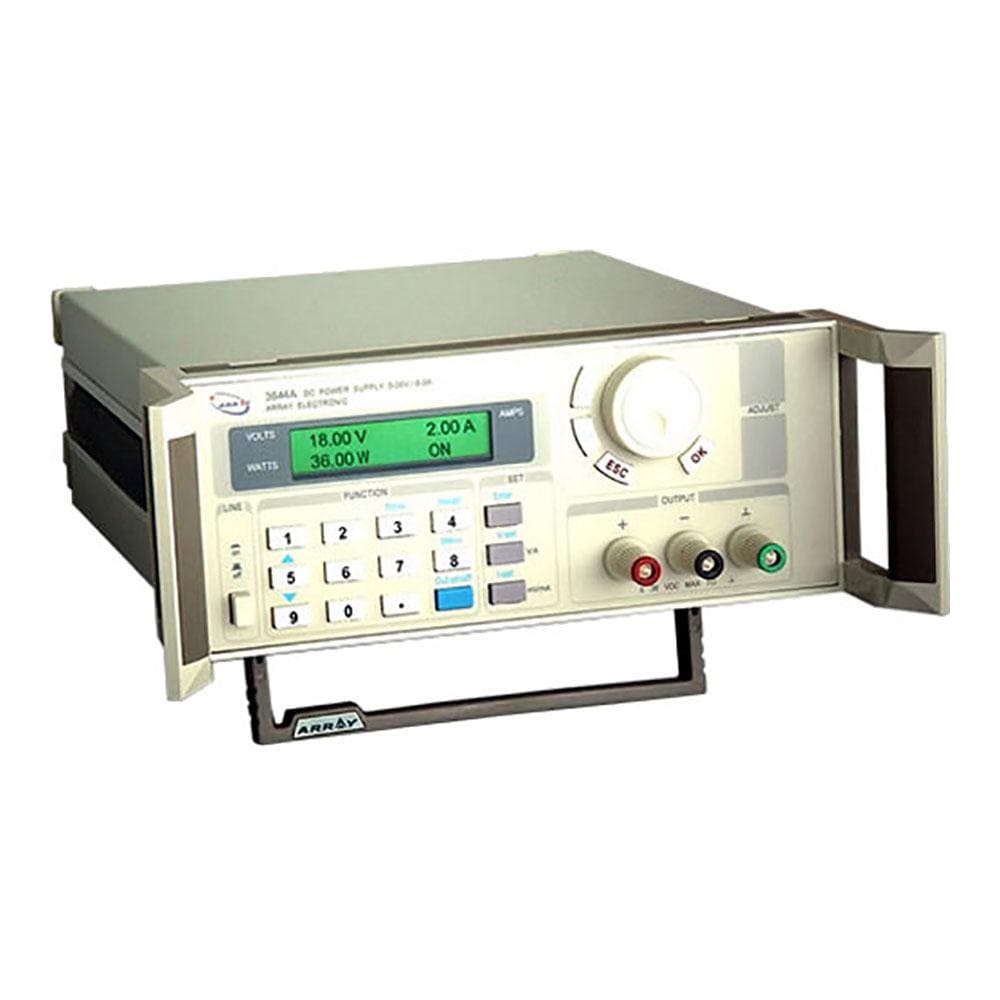

The Array Electronic 364XA Bench Power Supply is a high-performance single-output programmable DC power supply, with output voltages from 18V to 72V.

Model	3644A	3645A	3646A
Number of outputs	1	1	1
DC outputs
Voltage	0 ~ 18V	0 ~ 36V	0 ~ 72V
Current	5A	3A	1.5A
Power(max)	90W	108W	108W
Line regulation
Voltage	0-3.999V: 0.01%+3mV	0-3.999V: 0.01%+3mV	0-3.999V: 0.01%+3mV
Voltage	4-18V: 0.02%+10mV	4-36V: 0.02%+10mV	4-72V: 0.02%+10mV
Current	0.02%+8mA	0.02%+8mA	0.02%+8mA
Load regulation
Voltage	0.02%+20mV	0.02%+10mV	0.02%+10mV
Current	0.02%+15mA	0.02%+10mA	0.02%+8mA
Ripple and noise
Voltage	<1mV rms	<1mV rms	<1mV rms
Current	<5mA rms	<4mA rms	<3mA rms
Programming accuracyat 25℃+/-5℃
Voltage	0.1%+20mV	0.1%+20mV	0.1%+20mV
Current	0.2%+20mA	0.2%+20mA	0.2%+20mA
Readback accuracyat 25℃+/-5℃
Voltage	0.2%+20mV	0-19.99V：0.2%+20mV	0-19.99V：0.2%+20mV
Voltage	0.2%+20mV	20-36V：0.2%+100mV	20-72V：0.2%+100mV
Current	0.2%+20mA	0.2%+20mA	0.2%+20mA
Program resolution
Voltage	0-3.999V：1mV	0-3.999V：1mV	0-3.999V：1mV
Voltage	4-18V：10mV	4-36V：10mV	4-72V：10mV
Current	1mA	1mA	1mA
Readback resolution
Voltage	10mV	0-19.99V：10mV	0-19.99V：10mV
Voltage	10mV	20-36V：100mV	20-72V：100mV
Current	10mA	10mA	10mA
Protection	Over voltage/Over current/Over power
Interface	RS232/RS485/USB*1
AC Input	110V/220V AC +/-15%, 47~63Hz
Operating environment	0~50℃, 80% RH *2
Weight	6.00kg
Dimensions	212.6mm W x 88.1mm H x 250mm D
Software	PowerMS Power Management System software, ActiveX and DLL tools
Software	Support VB,VC++,DELPHI,LABVIEW
Standard accessories	User's manual, Ac cable, handlebars, software CD
Optional accessories	RS232 adaptor, RS485 adaptor, USB adaptor, Mounting rack
