Overview
The USB Wizard can communicate with up to four USB devices.

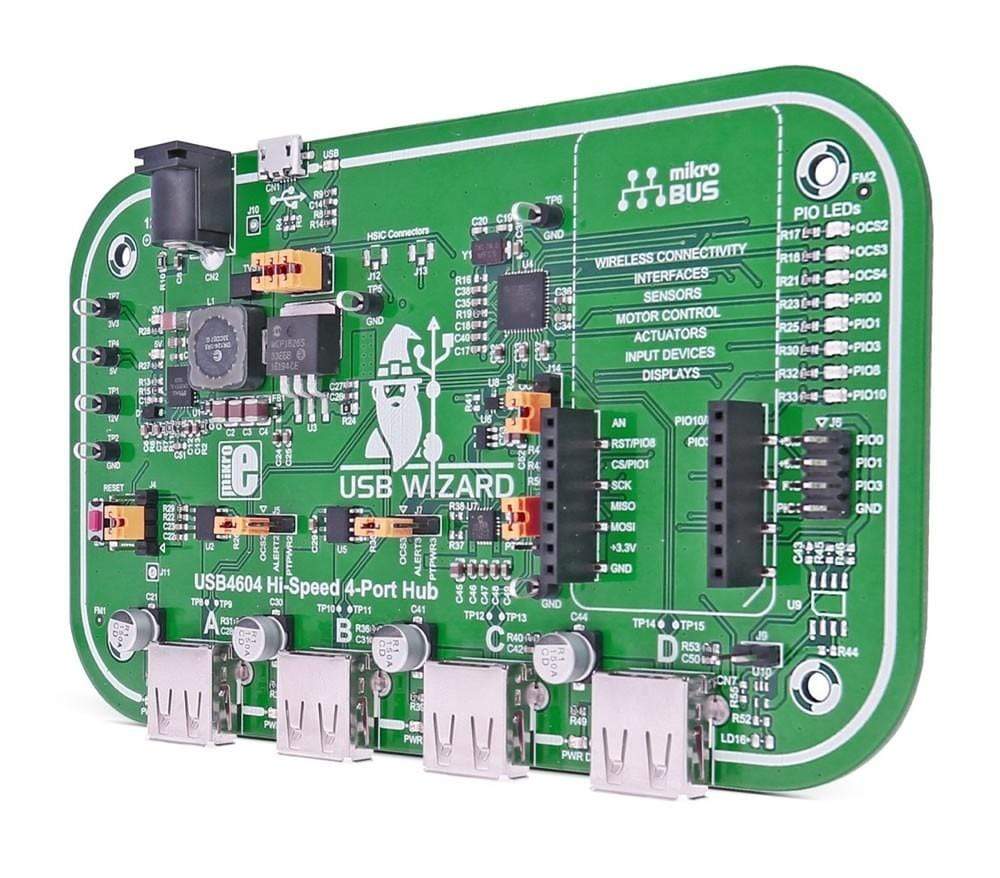

USB Wizard is an evaluation and demonstration platform featuring the USB4604 USB 2.0 4-Port hub controller. The board has four USB 2.0 downstream ports with individual port power control and over-current sense (OCS).
Der USB-Assistent kann mit bis zu vier USB-Geräten kommunizieren.
USB Wizard ist eine Evaluierungs- und Demonstrationsplattform mit dem USB4604 USB 2.0 4-Port-Hub-Controller. Die Karte verfügt über vier USB 2.0-Downstream-Ports mit individueller Port-Stromsteuerung und Überstromerkennung (OCS).
| Overview | |
|---|---|
| Description | Type USB, On-board modules USB4604 USB 2.0 4-port hub controller, Key Features Supports internal default hub configuration; optionally supports external configuration via I2C or SPI., Key Benefits 4 USB host ports, Expandability mikroBUS™ socket, Input Voltage 12V, Compatibility mikroBUS™ |
| Key components | |
| Main IC | MIC2545A-1YM, UCS2112-1-V/G4, USB4604-1080HN (Microchip Technology) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-2517 |
| Manufacturer | Mikroelektronika doo |
| EAN | 8606018711314 |
| Warranty | 12 Monate |
| Shipping weight | 0.5 kg |
-
1 ×
USB-Assistent
Contact us to confirm the full contents of the box.
