Amfeltec SKU-039-01 x1 PCIe 12" Riser (Host)
Amfeltec SKU-039-01 x1 PCIe 12" Riser (Host)
Verfügbarkeit für Abholungen konnte nicht geladen werden
Die SKU-039-01 ist ein PCI Express Riser , der den PCI Express Bus eines Motherboards erweitern soll. Dieses Riser-Set enthält eine x1 PCI Express Adapterkarte, eine x1 PCI Express Hostkarte und ein 304 mm (12") langes PCI Express Flachkabel.
Der Riser wird über das x1 PCIe-Hostboard vom Motherboard mit Strom versorgt.
.

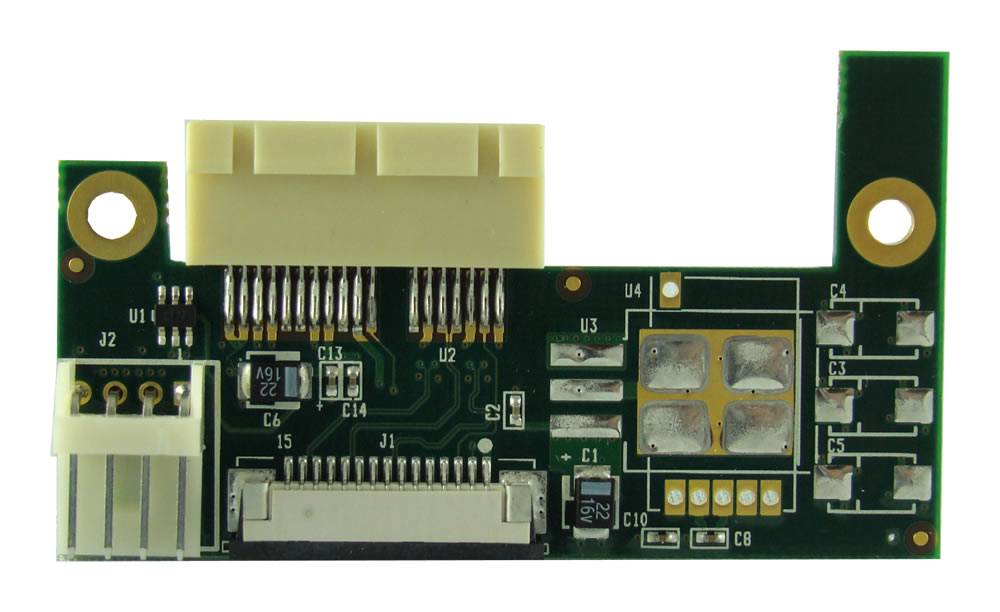

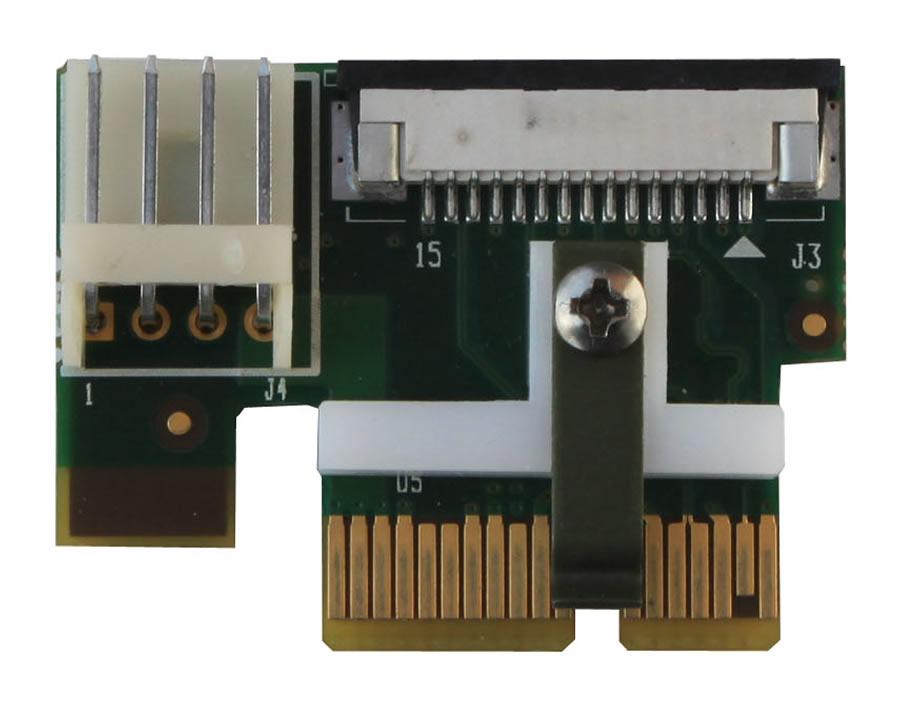

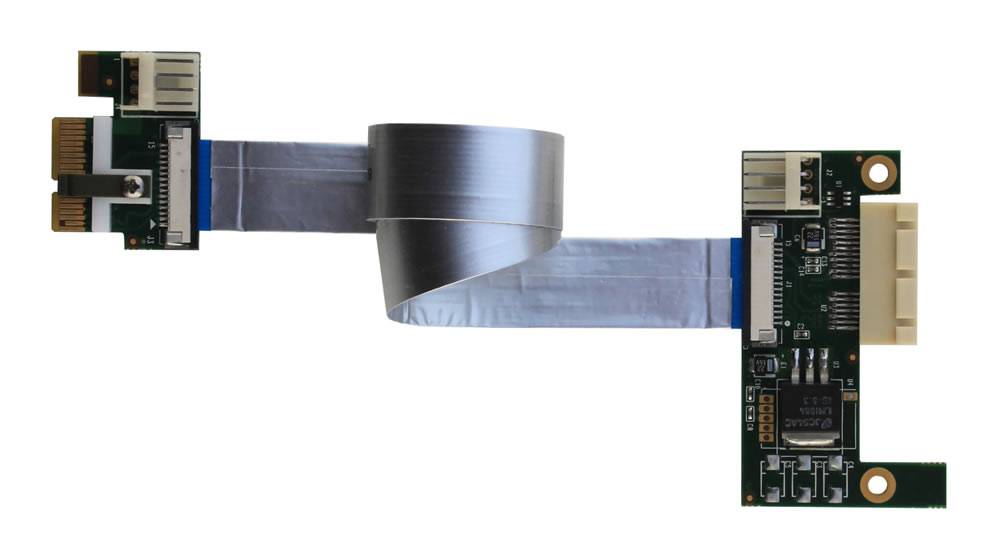

The Amfeltec SKU-039-01 PCIe Riser is designed to extend the PCI Express Bus of a motherboard. It comes with an x1 PCI Express adapter board, x1 PCI Express host board and a 304mm (12") PCI Express Flat cable. The PCI Express host board is connected to the motherboard of the host computer at the PCI Express port. The PCI Express adapter board is then connected to the host board via a 304mm (12") PCI Express Flat cable, and one expansion x1PCI Express add-in board is then plugged into the standard PCI Express female connector provided on the PCI Express adapter board.
Mechanical
The flexible nature of the connection allows positioning of the expansion PCI Express add-in board away from the motherboard or inside the computer chassis around other peripherals. The PCI Express adapter board comes with two mounting holes that aid in easy mounting of the board inside the computer chassis. Along with the mounting holes, this adapter board features two support tabs that provide mechanical stability to the add-in PCI Express expansion board (US Patent 7,255,570).
For convenient installing and functioning, the x1 PCI Express Host card comes with a unique PCI Express add-in board retainer that holds the holds the host card inside the computer chassis without using any bracket (Patent Pending).
Plug n Play
This riser system is powered by the host board and supports Plug-and-Play feature that allows you to use it right out of the box without installing any dedicated software on the computer system.
Power
The riser is powered from the motherboard via the PCIe Host Board.
.
