Picotest

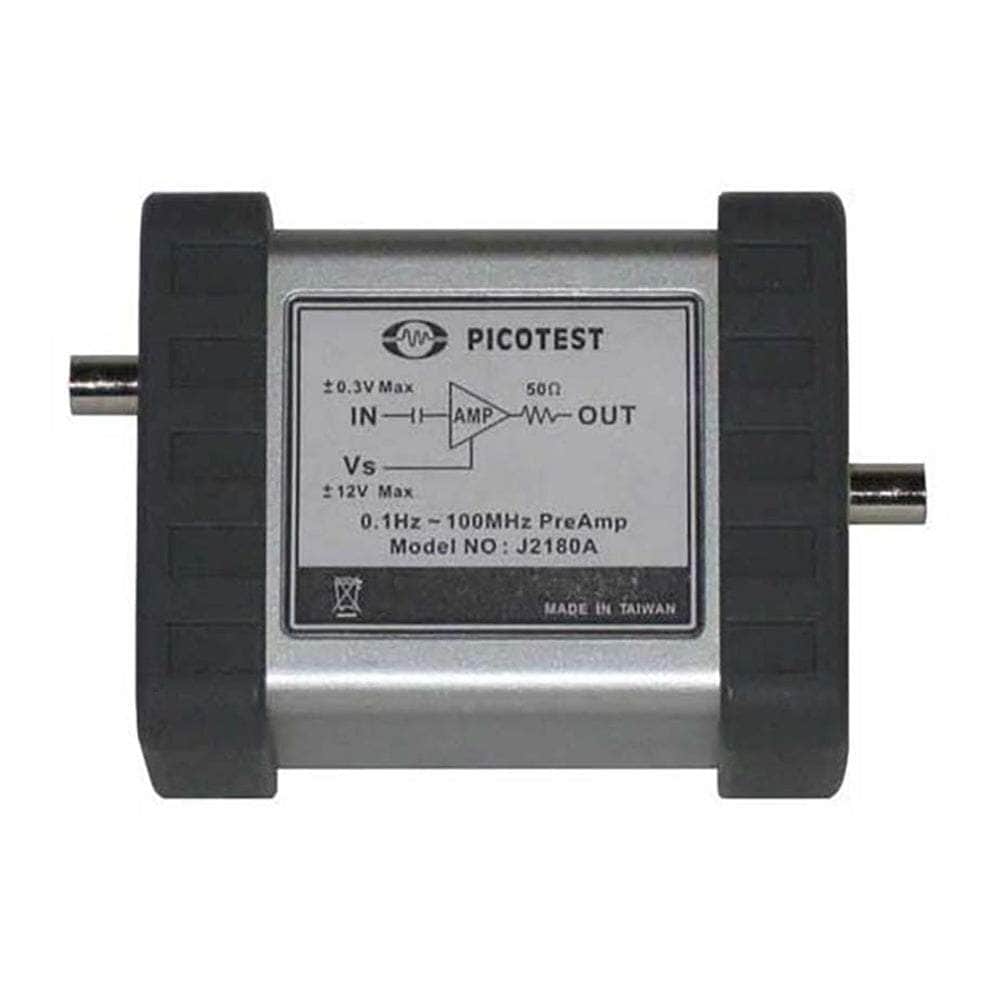

Picotest J2180A Vorverstärker mit extrem niedrigem Rauschen

Picotest J2180A Vorverstärker mit extrem niedrigem Rauschen
Für Signalmessungen mit extrem geringem Rauschen

SKU: J2180A-20

From €2.378,95 EUR exc tax

Choose Your Options

Select one of each below. The price updates as you choose.

Bandbreite

Check and Add to Cart

Confirm the price and stock for your selection, set the quantity, then press Add to Cart.

€2.698,95 EUR exc tax
€2.698,95 EUR exc tax
Sale Ausverkauft
Versand wird beim Checkout berechnet
If no stock is shown above, order now and we'll dispatch within 7 working days.
Vollständige Details anzeigen
  • Picotest J2180A Ultra Low Noise Amplifier
  • Picotest J2180A Ultra Low Noise Amplifier, view 2
  • Picotest J2180A Ultra Low Noise Amplifier, view 3
  • Picotest J2180A Ultra Low Noise Amplifier, view 4

Key Features

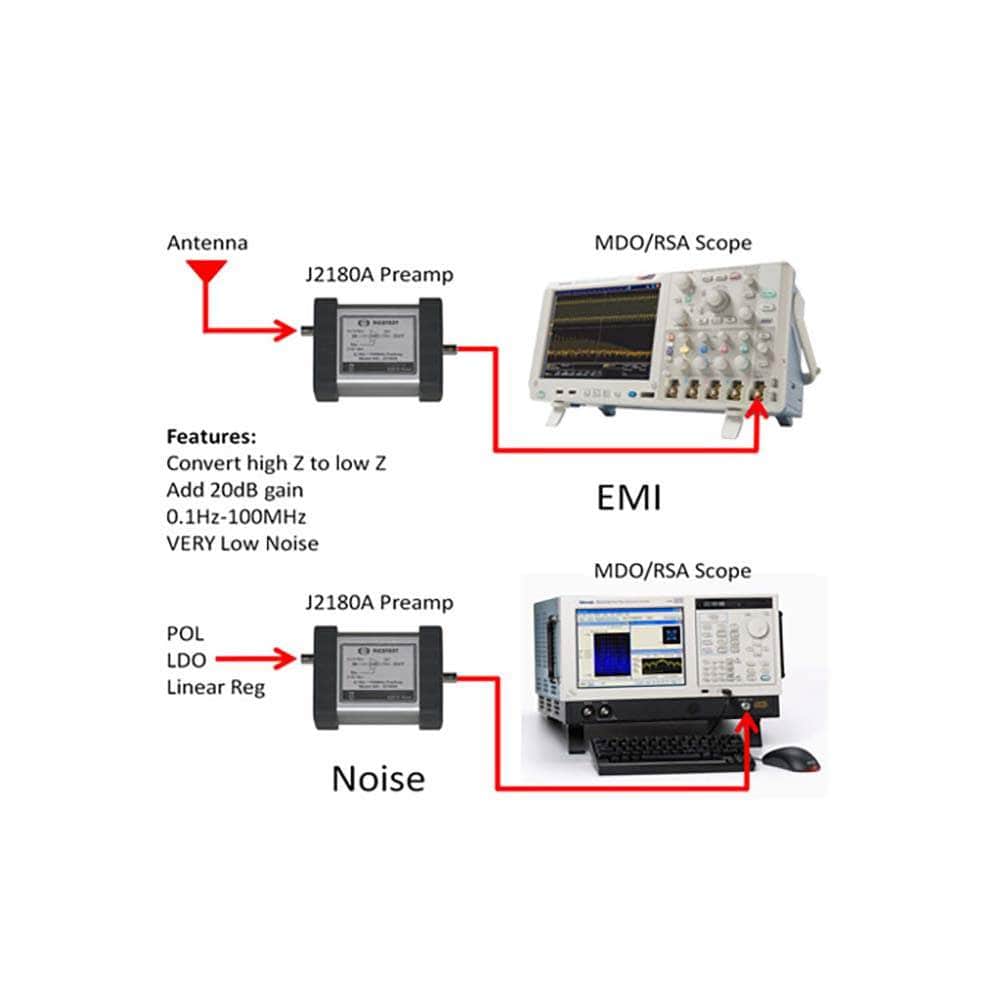

Funktioniert mit allen Oszilloskopen, Spektrumanalysatoren und Netzwerkanalysatoren
Kompatibel mit der Picotest P2106A-Sonde für ultra-niedriges Rauschen bis 2 MHz
Sehr große Bandbreite 0,1 Hz – 100 MHz
Extrem leise
Funktioniert mit Nahfeldsonden zur EMI-Fehlerbehebung
DC Bias Loop
Versatile Usage

Overview

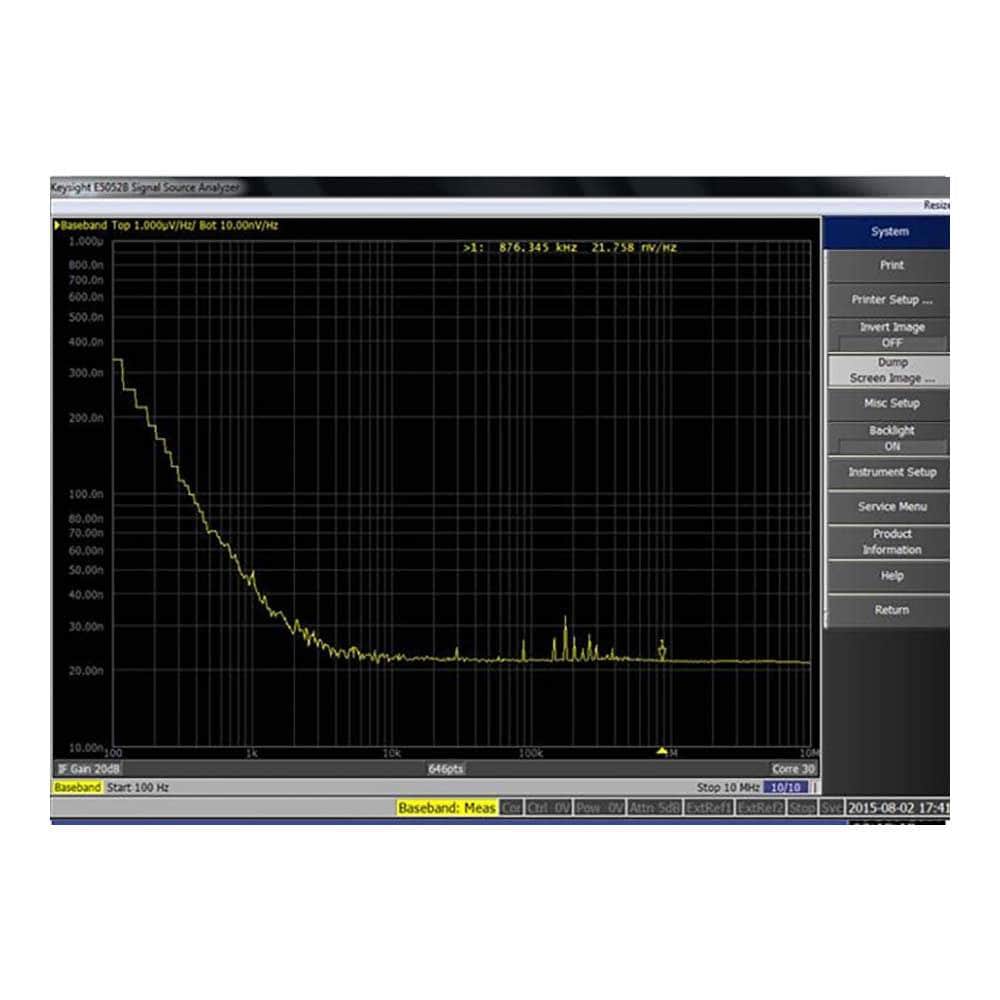

The Picotest J2180A Ultra-Low Noise Amplifier is engineered to enhance the capabilities of your measurement tools significantly. Designed for professional design engineers, this amplifier offers unparalleled noise performance, boasting a typical noise floor of 2.4nV/√Hz for the J2180A and 1/3rd the noise for the J2180A-20.

It works seamlessly with all oscilloscopes, spectrum, and network analysers, providing a versatile solution for various measurement applications. Its high input impedance (1 MOhm || 10pF) ensures compatibility with standard probes, minimising circuit loading. The amplifier converts this high impedance to a 50 Ohm output, making it ideal for use with 50 Ohm equipment.

With a bandwidth extending from 0.1Hz to 100MHz (J2180A) or 20Hz to 100MHz (J2180A-20), it supports low-frequency and high-frequency measurements. The J2180A also features an active DC bias loop for maintaining a stable, low DC output voltage, ensuring accurate readings in audio and pulse applications.

Downloads

Datasheets

User Manuals

Application Notes

Ordering information
Part number (SKU)J2180A-20
ManufacturerPicotest
EAN5055383622818
Warranty12 months
Shipping weight1.0 kg
  • 1 ×J2180A-20 ultra low noise preamp (20Hz-100MHz)
  • 1 ×J2171A high PSRR regulated adapter
  • 1 ×User manual
