mikroMedia HMI 4.3" UXB
mikroMedia HMI 4.3" UXB
Verfügbarkeit für Abholungen konnte nicht geladen werden
Als intelligente Displaylösung verfügt mikroMedia™ HMI 4,3" UXB über ein 480 x 272 Pixel großes Farbdisplay mit kapazitivem Touchpanel und dekorativer schwarzer Blende auf der Vorderseite sowie eine leistungsstarke FT900Q 32-Bit-MCU mit zusätzlichen wichtigen Schaltkreisen auf der Rückseite – was es zu einer eigenständigen, aber kostengünstigen Lösung macht, die für industrielle Anwendungen geeignet ist.
mikroMedia™ HMI boards are driven by FTDI Chips FT900Q with their proprietary 32-bit RISC core with industry-leading performance. With execution from shadow memory, the MCU can achieve speeds of 3.1 DMIPS/MHz at 100 MHz. FT900Q has 256KB of Flash memory, a small part of which is taken by the built-in bootloader.
The concept of mikroMedia™ HMI is to keep only the essential components that simplify its integration into a final product, whilst keeping overall costs down.

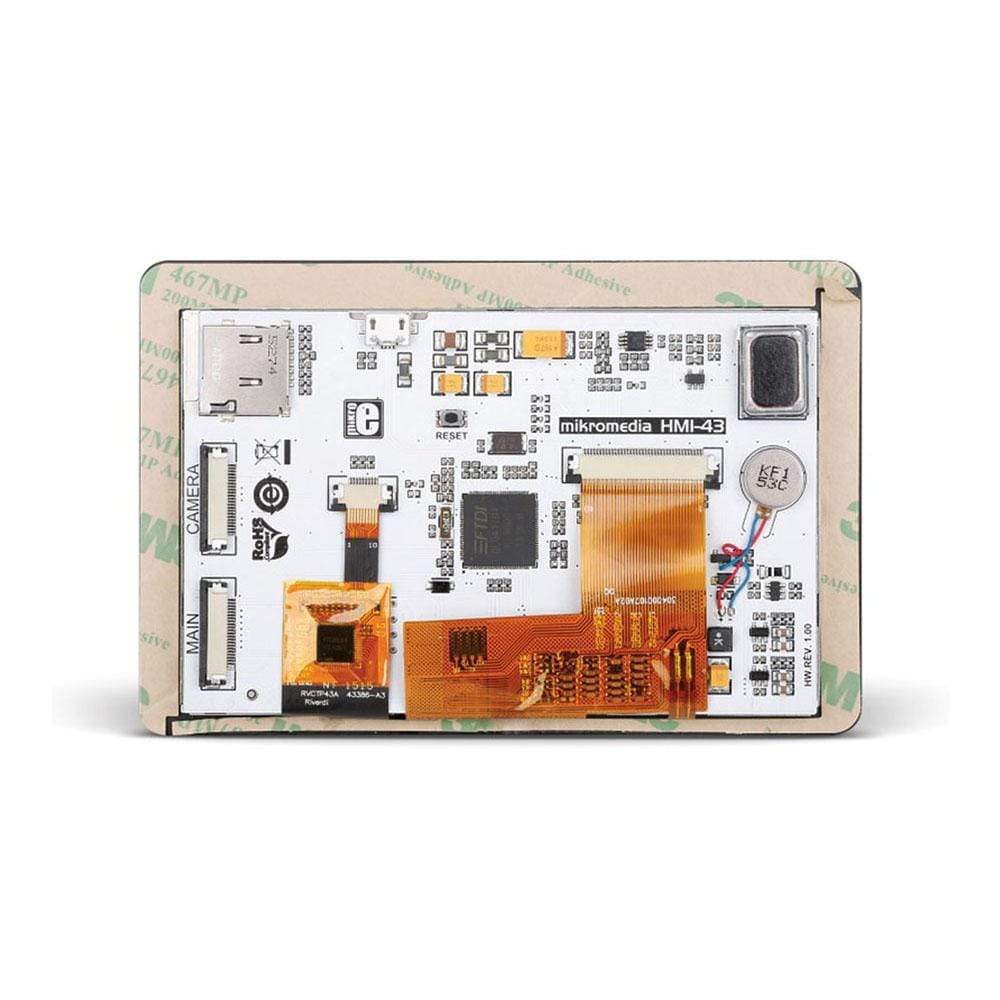

The board integrates a microSD card for expanding storage capacity, a haptic feedback motor, small audio speaker, and a micro USB connector. A connector for interfacing the MCU with external electronics, along with a separate connector for FT900Qs parallel camera interface.

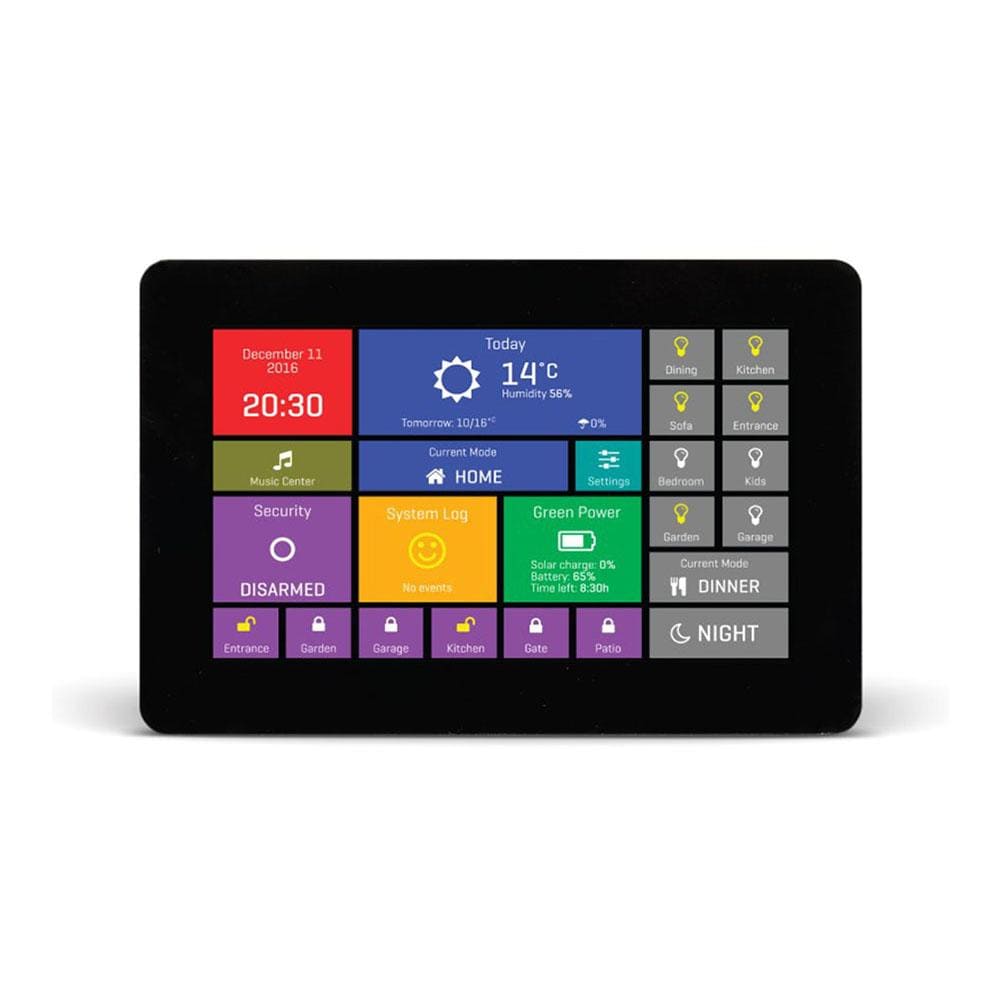

The mikroMedia™ for HMI 4.3" UXB has a high-quality Riverdi display with 16.7M colour depth and 550 NIT brightness. The display is driven by a FT813 graphic controller. A mounting frame surrounding the screen simplifies integration.
Extras
mikroMedia™ HMI breakout board (sold separately) contains a micro USB port, an RJ-45 ethernet connector, as well as an external programmer connector (ideally used with mikroProg for FT90x). Two 24-pin flat cables are included in the packaging, enabling the use of both mikroMedia™ HMI connectors at the same time (MAIN, CAMERA).
