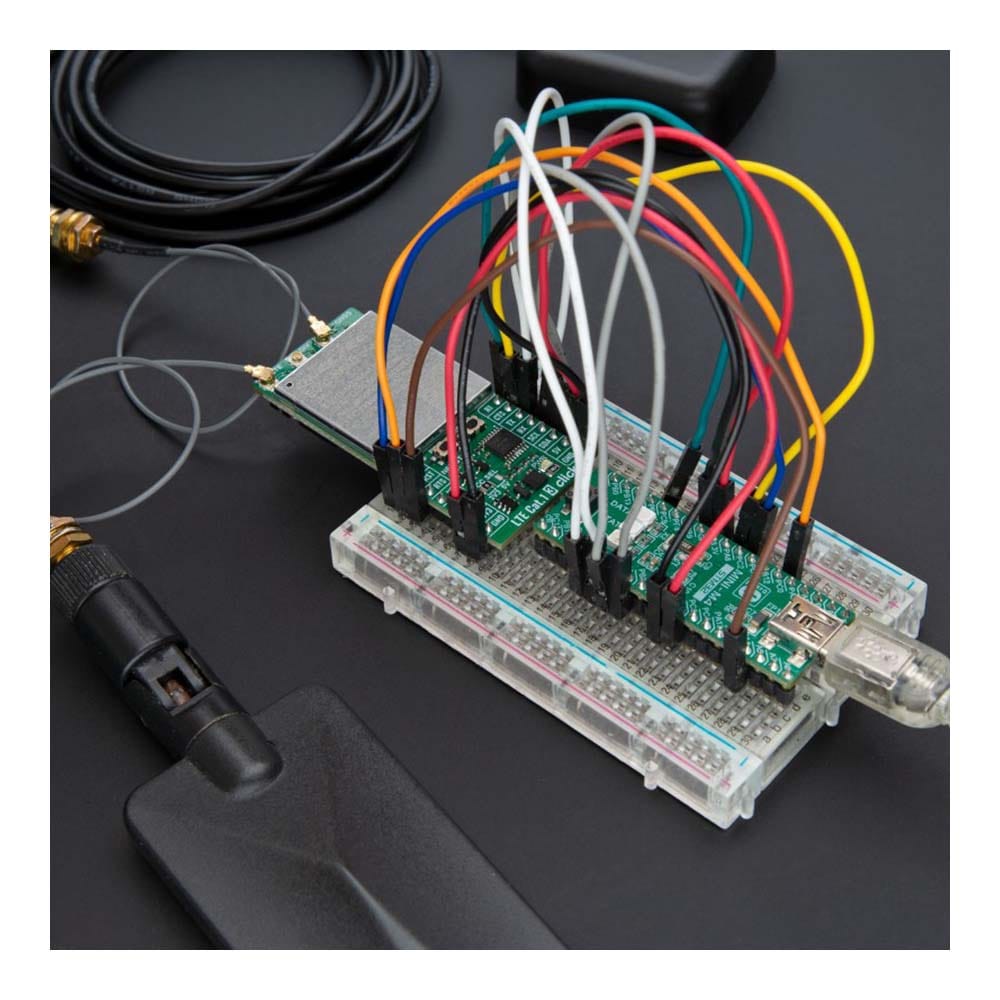

Upgrade your M2M communication solutions with the LTE CAT.1 3 Click Board (North America). This compact add-on board brings reliable 4G wireless connectivity to your projects, making it ideal for a wide range of applications in North America.
The LTE CAT.1 3 Click Board is equipped with the advanced EG91NAXDGA-128-SGNS LTE Cat 1 IoT data-only module developed by industry leader Quectel. Ensuring compatibility with LTE-FDD and WCDMA standards, this board offers seamless integration into diverse network environments.
- Enjoy multi-band LTE support covering B2, B4, B5, B12, B13, B25, and B26, providing extensive coverage and reliable connections.
- Leverage RX diversity for bands B2, B4, and B5, enhancing signal reception and transmission efficiency for optimized performance.
Additionally, the LTE CAT.1 3 Click Board boasts multi-constellation GNSS support, incorporating GPS, GLONASS, BeiDou/Compass, Galileo, and QZSS for precise location-based services.
Experience enhanced functionality with the integrated 16-bit mono audio codec, enabling voice capabilities compatible with standard CTIA headphones. The USB Type C connector facilitates easy power and data transfer, AT command communication, and firmware upgrades for seamless operation.
Unlock exciting possibilities across automotive, smart metering, tracking systems, security, routers, wireless POS, and more with the LTE CAT.1 3 Click Board (North America). Elevate your North American M2M applications to the next level with this versatile and reliable communication solution.
Rüsten Sie Ihre M2M-Kommunikationslösungen mit dem LTE CAT.1 3 Click Board (Nordamerika) auf. Dieses kompakte Zusatzboard verleiht Ihren Projekten zuverlässige 4G-Wireless-Konnektivität und ist damit ideal für eine Vielzahl von Anwendungen in Nordamerika.
Das LTE CAT.1 3 Click Board ist mit dem fortschrittlichen LTE Cat 1 IoT-Datenmodul EG91NAXDGA-128-SGNS ausgestattet, das vom Branchenführer Quectel entwickelt wurde. Dieses Board gewährleistet Kompatibilität mit den Standards LTE-FDD und WCDMA und bietet eine nahtlose Integration in verschiedene Netzwerkumgebungen.
- Genießen Sie Multiband-LTE-Unterstützung für B2, B4, B5, B12, B13, B25 und B26, die umfassende Abdeckung und zuverlässige Verbindungen bietet.
- Nutzen Sie die RX-Diversität für die Bänder B2, B4 und B5 und verbessern Sie die Effizienz des Signalempfangs und der Übertragung für eine optimierte Leistung.
Darüber hinaus verfügt das LTE CAT.1 3 Click Board über GNSS-Unterstützung für mehrere Konstellationen und integriert GPS, GLONASS, BeiDou/Compass, Galileo und QZSS für präzise standortbasierte Dienste.
Erleben Sie erweiterte Funktionalität mit dem integrierten 16-Bit-Mono-Audiocodec, der Sprachfunktionen ermöglicht, die mit Standard-CTIA-Kopfhörern kompatibel sind. Der USB-Typ-C-Anschluss ermöglicht eine einfache Strom- und Datenübertragung, AT-Befehlskommunikation und Firmware-Upgrades für einen reibungslosen Betrieb.
Entdecken Sie spannende Möglichkeiten in den Bereichen Automobil, Smart Metering, Trackingsysteme, Sicherheit, Router, drahtlose POS und mehr mit dem LTE CAT.1 3 Click Board (Nordamerika). Bringen Sie Ihre nordamerikanischen M2M-Anwendungen mit dieser vielseitigen und zuverlässigen Kommunikationslösung auf die nächste Ebene.
| Overview | |
|---|---|
| Category | GSM/LTE |
| Applications | Ideal for North American M2M applications such as automotive, smart metering, tracking system, security, router, wireless POS, and many more |
| Key components | |
| On-board modules | EG91NAXDGA-128-SGNS - embedded 4G wireless communication module from Quectel |
| Features | |
| Key features | Support of LTE-FDD, and WCDMA communication standards, multi-band North American LTE support, RX diversity for bands B2, B4, and B5, multi-constellation GNSS, data-only,16-bit mono audio codec compatible with CTIA standard headphones, echo cancellation and noise suppression, USB Type C connector for power and data transfer, software debugging, firmware upgrades, UART communication, visual status indicators, several test points, micro SIM card holder, and more |
| Interfaces | |
| Interface | I2C, UART |
| mikroBUS features | ClickID |
| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V or 5V |
| Physical | |
| Click board size | L (57.15 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-6277 |
| Manufacturer | Mikroelektronika doo |
| EAN | 8606032294305 |
| Warranty | 12 Monate |
| Shipping weight | 0.02 kg |
-
1 ×
LTE CAT.1 3 4G Modem Click Board (Nordamerika)
Contact us to confirm the full contents of the box.
