Overview
Das BATT-MAN 3 Click Board™ ist eine kompakte Zusatzplatine, die eine erweiterte Batteriemanagementlösung darstellt. Diese Platine verfügt über den ADP5350, einen Energiemanagement-IC mit induktiver Boost-LED und drei LDO-Regler von Analog Devices. Diese I2C-programmierbare Platine unterstützt USB, optimiert für USB-Spannungseingang. Sie kombiniert einen Hochleistungs-Abwärtsregler zum Laden einzelner Li-Ion/Li-Ion-Polymer-Batterien, eine Ladestandanzeige, einen hochprogrammierbaren Boost-Regler für die LED-Hintergrundbeleuchtung und drei 150-mA-LDO-Regler.
Das BATT-MAN 3 Click Board™ eignet sich für mit wiederaufladbaren Li-Ion- und Li-Ion-Polymer-Akkus betriebene Geräte, tragbare Kunden- und Instrumentierungsgeräte und vieles mehr.

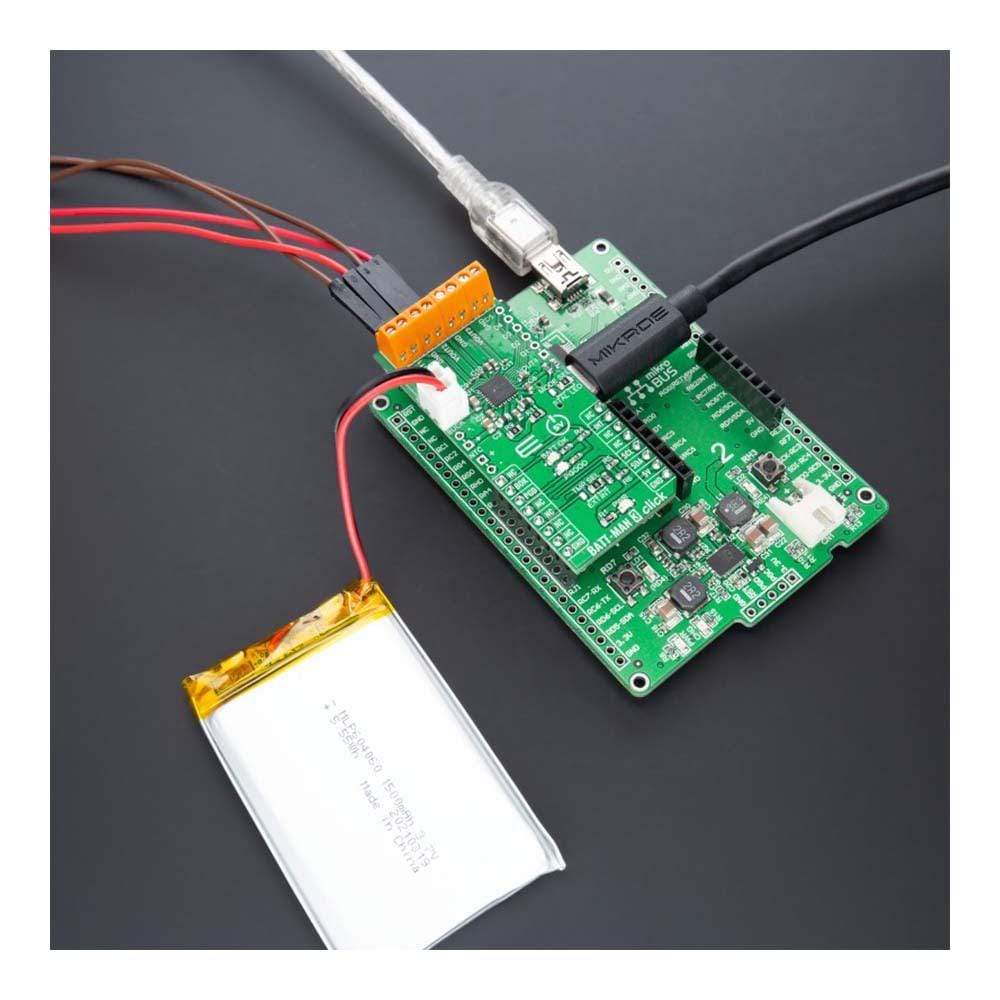

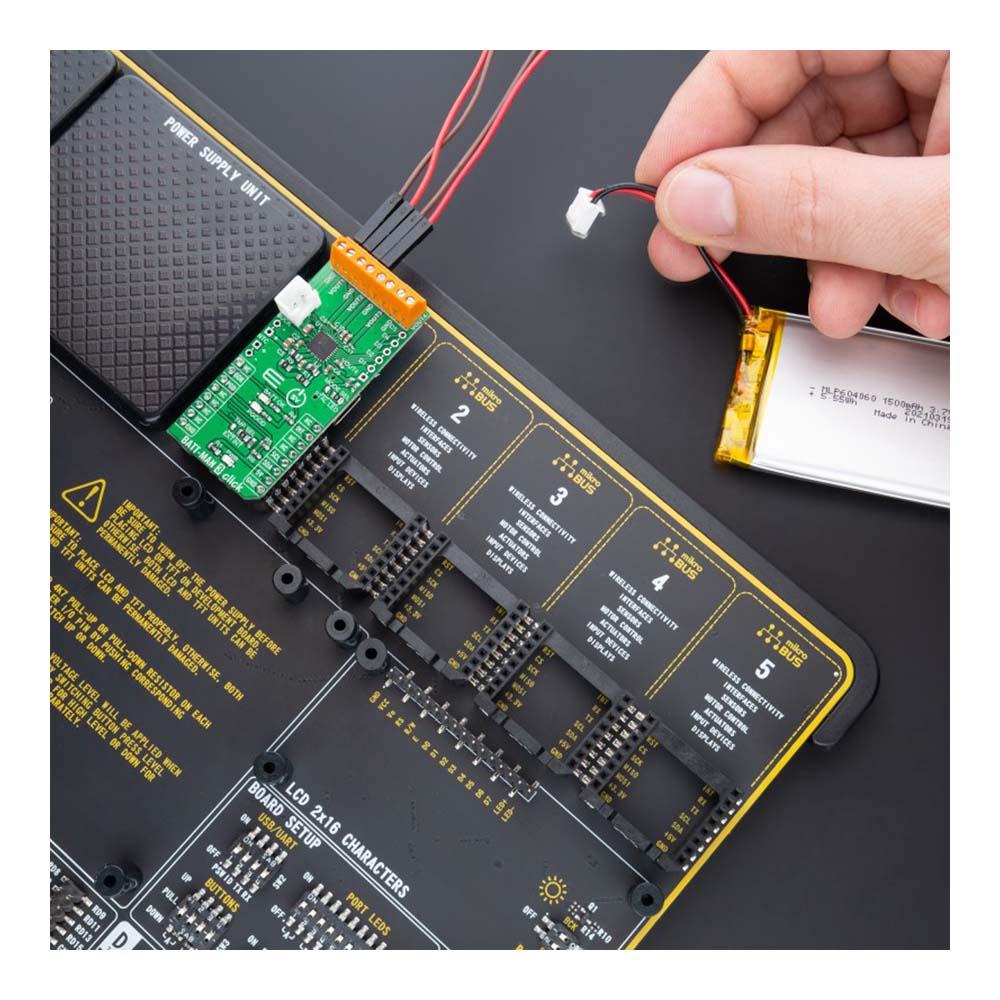

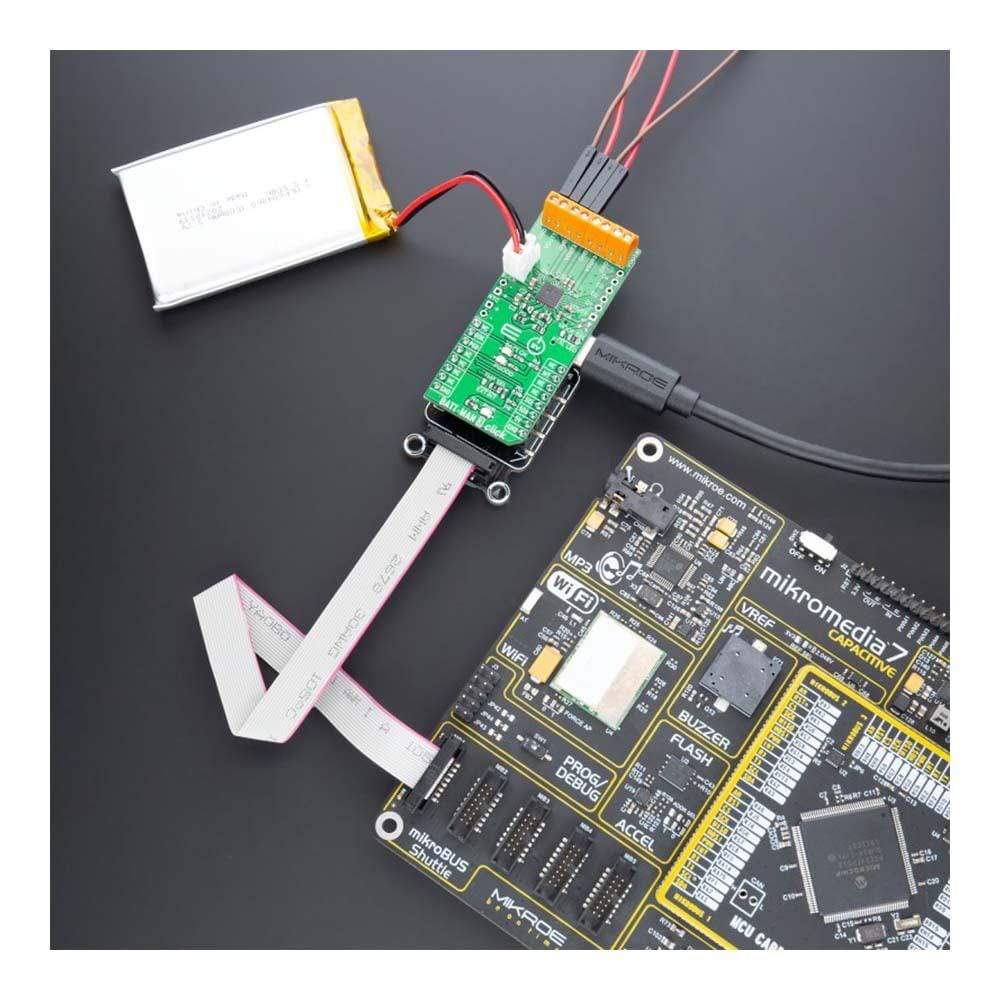

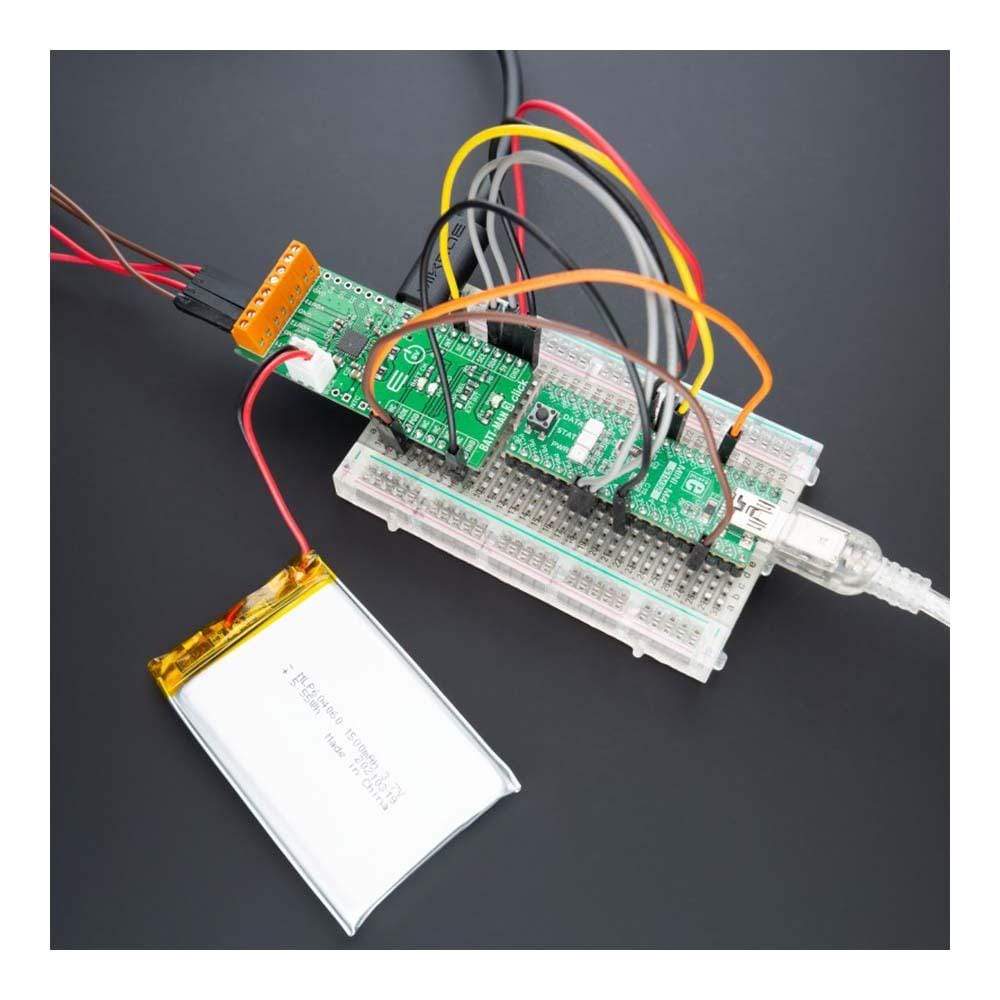

How Does The BATT-MAN 3 Click Board™ Work?

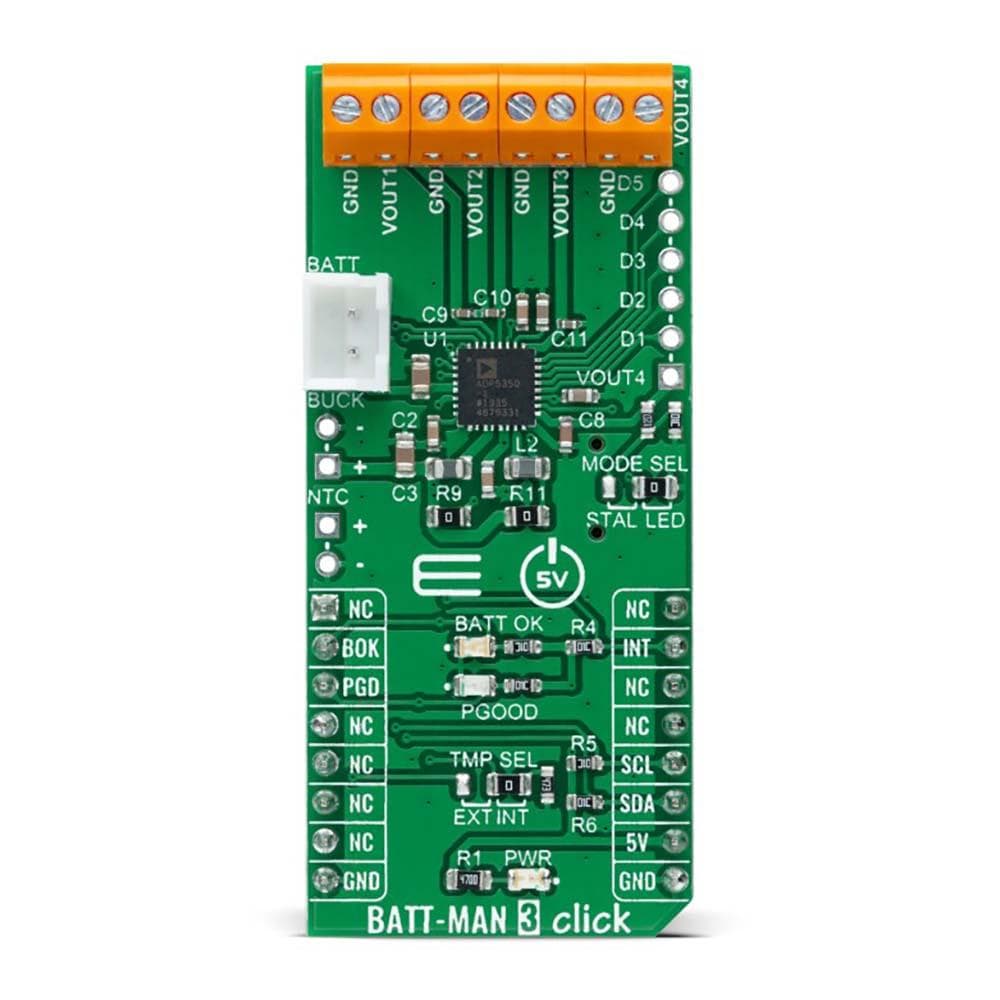

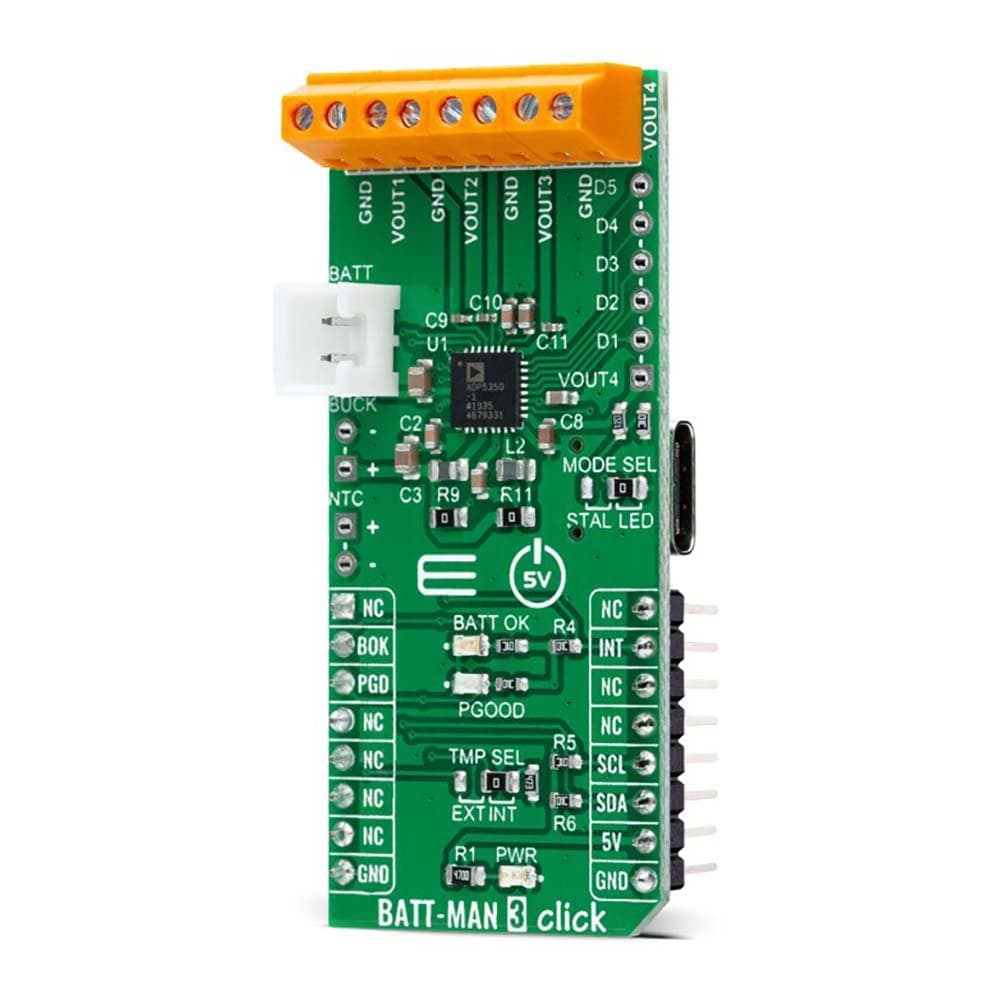

The BATT-MAN 3 Click Board™ as its foundation uses the ADP5350, an advanced battery management PMIC with inductive boost LED, and three LDO regulators from Analog Devices. It combines one high-performance buck regulator for single Li-ion/Li-ion polymer battery charging (also available on left side header labeled as BUCK), a fuel gauge, a highly programmable boost regulator for LED backlight illumination, one ultralow quiescent current low dropout (LDO) regulator, and two general-purpose LDO regulators. Besides, it supports a USB connection optimized for USB 5V input.
The ADP5350 operates in trickle charge mode and constant current (CC)/constant voltage (CV) fast charge mode. It also features an internal field-effect transistor (FET) that permits battery isolation on the system power side. The ADP5350 fuel gauge is a low current consuming solution optimal for rechargeable Li-Ion battery-powered devices. Its boost regulator operates at a 1.5MHz switching frequency and can be employed as a constant voltage regulator or supplemental constant current regulator for multiple LED backlight drivers available on the VOUT4 terminal.
This LED driver can support a wide range of LED backlight configurations, either multiple LEDs in parallel or series connected on the upper-right onboard header. This Click board™ also has a feedback-sensing for the boost regulator, which can be selected for standalone mode or LED operation mode by positioning the SMD jumpers labeled as MODE SEL to an appropriate position marked as STAL and LED. An additional option has been added for the users to activate or deactivate the Boost and LED part of the board by populating or removing two jumpers, R11 and R9.
The BATT-MAN 3 Click Board™ communicates with MCU using the standard I2C 2-Wire interface to read data and configure settings with a maximum frequency of 400kHz. Also, it uses several GPIO pins, one of which is an interrupt pin, the INT pin of the mikroBUS™ socket, used as a 'fault' indicator which immediately notifies the host when a fault occurs. The ADP5350 low dropout (LDO) regulators, available on top side terminals labeled from VOUT1 to VOUT3, are optimized to operate at low shutdown current and quiescent current to extend battery life. The device also acts as a load switch that can be fully turned OFF or ON. The I2C interface enables the programmability of all parameters, including status bit readback for operation monitoring and safety control.
The BATT-MAN 3 Click Board™ uses two LED indicators, labeled as PGOOD and BATT OK, used as power good and charging status indicator alongside the connector on the upper-left side of the board, reserved for a Li-ion/Li-ion polymer battery. PGOOD indicates a good input source, while BATT OK shows the real-time status of the battery voltage. Also, it features battery pack temperature sensing via an internal or external thermistor connected to the onboard header labeled as NTC. This sensing precludes charging when the battery pack temperature is outside the specified range. The selection of a thermistor can be made by positioning the SMD jumpers labeled as TMP SEL to an appropriate position marked as EXT and INT.
The BATT-MAN 3 Click Board™ can be operated only with a 5V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | Buck-Boost |
| Applications | The BATT-MAN 3 Click Board™ be used for rechargeable Li-Ion and Li-Ion Polymer battery-powered devices, portable customer and instrumentation devices, and many more |
| On-board modules | ADP5350 - advanced battery management PMIC with inductive boost LED, and three LDO regulators from Analog Devices |
| Key Features | Switching mode USB battery charger, boost regulator with five-channel LED driver, three 150mA linear LDO regulators, full I2C programmability with dedicated interrupt pin, LED indicators, external NTC, and more |
| Interface | I2C |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
| Input Voltage | 5V |

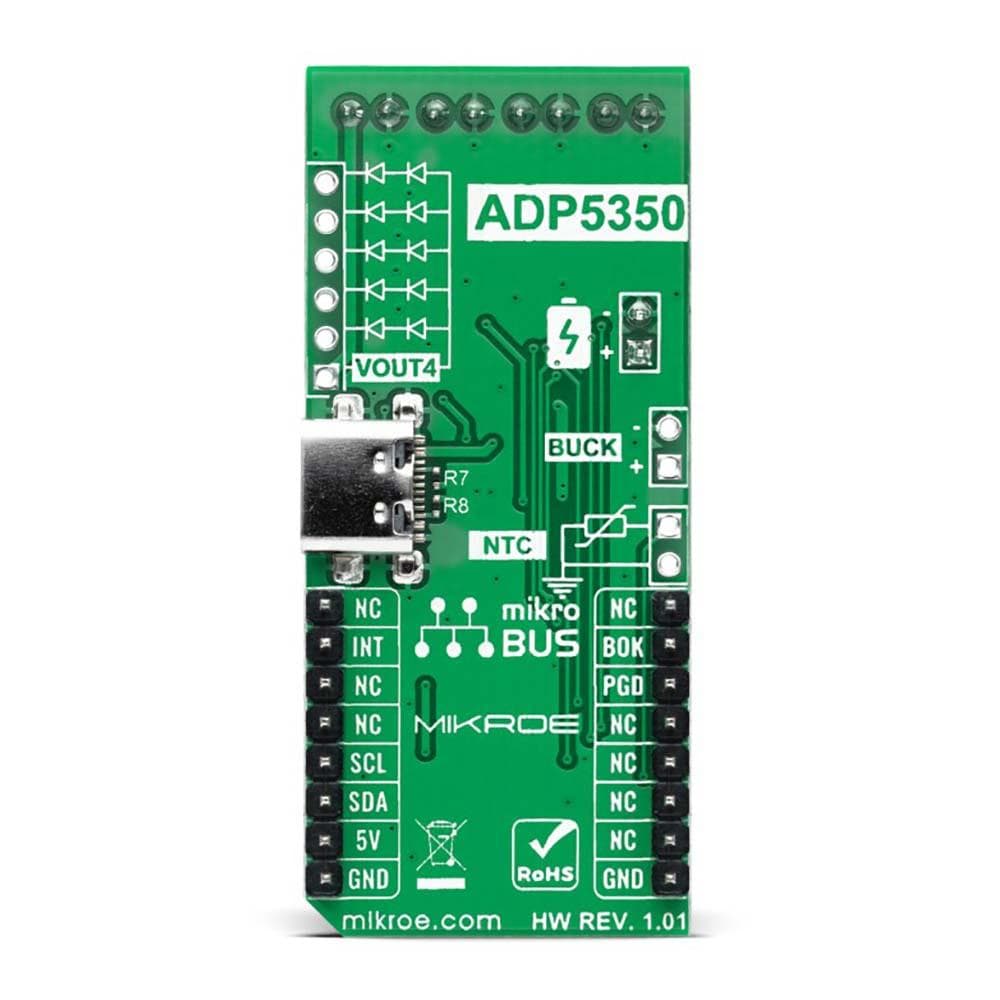

PINOUT DIAGRAM
This table shows how the pinout for the BATT-MAN 3 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| Battery Status | BOK | 2 | RST | INT | 15 | INT | Interrupt |
| Power-Good Status | PGD | 3 | CS | RX | 14 | NC | |
| NC | 4 | SCK | TX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | SCL | I2C Clock | |
| NC | 6 | MOSI | SDA | 11 | SDA | I2C Data | |
| NC | 7 | 3.3V | 5V | 10 | 5V | Power Supply | |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
| LD2 | BATT OK | - | Battery Status LED Indicator |
| LD3 | PGOOD | - | Power-Good LED Indicator |
| JP1 | TMP SEL | Right | Battery Pack Thermistor Selection EXT/INT: Left position EXT, Right position INT |
| JP2 | MODE SEL | Right | Boost Feedback Selection STAL/LED: Left position STAL, Right position LED |
| J1 | NTC | Unpopulated | External Thermistor Header |
| J2 | BUCK | Unpopulated | Buck Output Header |
| J1 | NTC | Unpopulated | External Thermistor Header |
| J4 | D1-D5 | Unpopulated | LED Channels Header |
| J4 | VOUT4 | Unpopulated | LED Channels Supply Voltage Header |
| R9 | R9 | Populated | LDO Activation Jumper |
| R11 | R11 | Populated | Boost Activation Jumper |
BATT-MAN 3 CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage VCC | - | 5 | - | V |
| Programmable Current Limit | 100 | - | 1500 | mA |
| LDO Output Current | - | 150 | - | mA |
| LED Current | - | - | 20 | mA |
| Operating Temperature Range | -40 | +25 | +125 | °C |
Software Support
We provide a library for the BATT-MAN 3 Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
The package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.
Library Description
This library contains API for the BATT-MAN 3 Click Board™ driver.
Key functions
-
battman3_get_battery_voltageRead battery voltage level. -
battman3_set_ldo_voutSet voltage output on LDO. -
battman3_set_charge_termination_voltageSet charge termination voltage.
Example Description
This example showcases ability of device to charge battery, and outputs and supply 4 different devices with 3 LDO's and 1 boost channel.
void application_task ( void )
{
static counter = 0;
float vbat = 0;
if ( !battman3_get_power_good( &battman3 ) )
{
battman3_ldo( BATTMAN3_DISABLE );
}
battman3_charge_status( );
if ( counter >= LOG_THRESHOLD_3SEC )
{
counter = 0;
battman3_get_battery_voltage( &battman3, &vbat );
log_printf( &logger, " > Battery voltage: %.2frn", vbat );
log_printf( &logger, "****************************************************rn" );
}
counter++;
Delay_ms( 100 );
}
void main ( void )
{
application_init( );
for ( ; ; )
{
application_task( );
}
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.
Other Mikroe Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.BATT-MAN3
Additional Notes and Information
Depending on the development board you are using, you may need a USB UART Click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.
MIKROSDK
The BATT-MAN 3 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
Software Support
We provide a library for the BATT-MAN 3 Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
The package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.
Library Description
This library contains API for the BATT-MAN 3 Click Board™ driver.
Key functions
-
battman3_get_battery_voltageRead battery voltage level. -
battman3_set_ldo_voutSet voltage output on LDO. -
battman3_set_charge_termination_voltageSet charge termination voltage.
Example Description
This example showcases ability of device to charge battery, and outputs and supply 4 different devices with 3 LDO's and 1 boost channel.
void application_task ( void )
{
static counter = 0;
float vbat = 0;
if ( !battman3_get_power_good( &battman3 ) )
{
battman3_ldo( BATTMAN3_DISABLE );
}
battman3_charge_status( );
if ( counter >= LOG_THRESHOLD_3SEC )
{
counter = 0;
battman3_get_battery_voltage( &battman3, &vbat );
log_printf( &logger, " > Battery voltage: %.2frn", vbat );
log_printf( &logger, "****************************************************rn" );
}
counter++;
Delay_ms( 100 );
}
void main ( void )
{
application_init( );
for ( ; ; )
{
application_task( );
}
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.
Other Mikroe Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.BATT-MAN3
Additional Notes and Information
Depending on the development board you are using, you may need a USB UART Click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.
MIKROSDK
The BATT-MAN 3 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
