Clicker-Board für Renesas RA4M1
Clicker-Board für Renesas RA4M1
Verfügbarkeit für Abholungen konnte nicht geladen werden

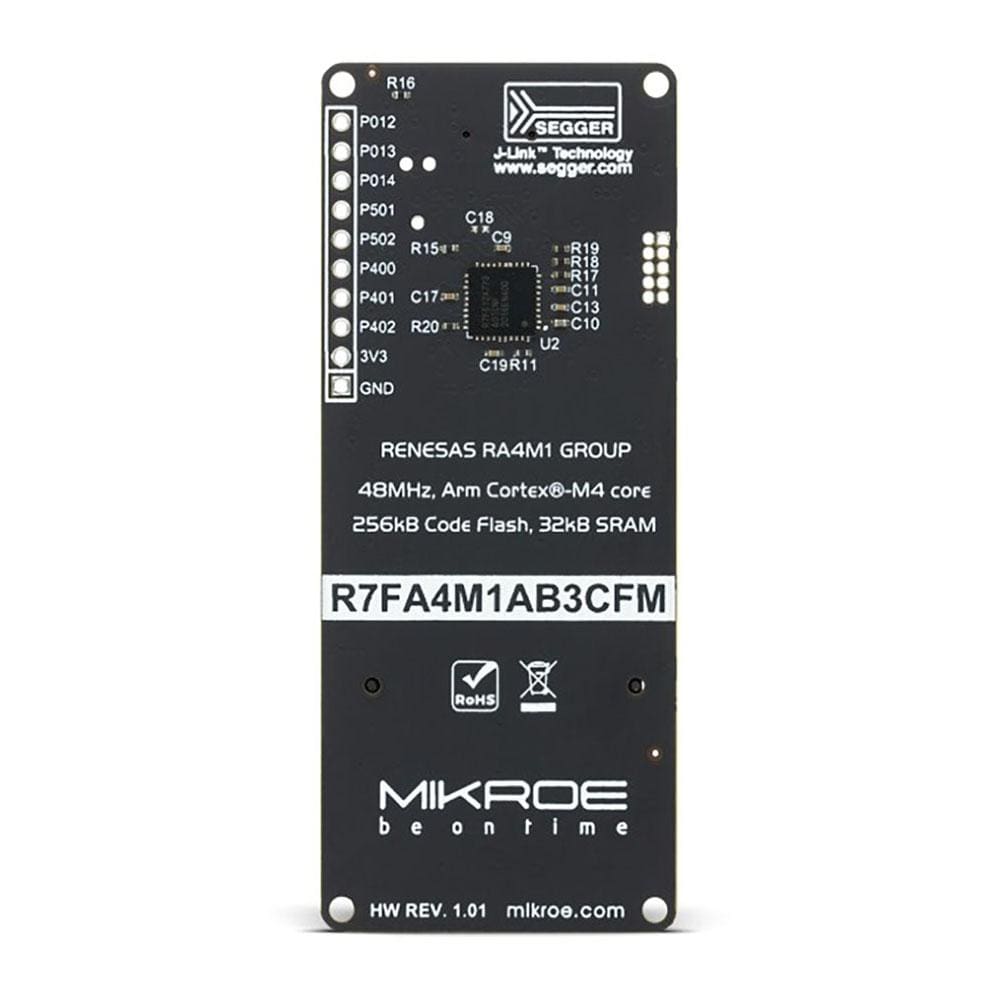

Das RA4M1 Clicker Board™ ist ein erstaunlich kompaktes Starter-Entwicklungskit, das Ihren bevorzugten Mikrocontroller mit einem innovativen mikroBUS™-Host-Sockel ausstattet.
Diese Platine bietet alles, was Sie für den Einstieg brauchen: 32-Bit-Mikrocontroller R7FA4M1AB3CFM, J-Link OB, USB-Anschluss, zwei LEDs und Drucktasten, Reset-Taste und Header für die Schnittstelle mit externer Elektronik.
The RA4M1 Clicker Board™ is an amazingly compact starter development kit which brings innovative mikroBUS™ host socket to your favourite microcontroller. This board features all you need to get started: 32-bit R7FA4M1AB3CFM microcontroller, J-Link OB, USB connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.
Hundreds of possibilities with Click boards™
With mikroBUS™ socket, you can take advantage of the huge potential of Click boards™, the constantly expanding range of over 934 add-on boards. New ideas are just a Click away.
Shuttle click in combination with mikroBUS Shuttle provides an easy and elegant solution for stacking multiple Click boards™ on a single mikroBUS™.
On-board Debug Probe
To make your prototyping experience as convenient as possible, RA4M1 Clicker is equipped with J-Link OB, an on-board debug probe. It allows you to fully use, test, and debug the target device right out of the box. RA4M1 Clicker is compatible with e² studio, Integrated Development Environment by Renesas. Just download and install Renesas Flexible Software Package and e2 studio development environment using the FSP with e² studio installer. For any software support you might need, your go-to source is Renesas Support.
TECHNICAL SPECIFICATIONS
Key Features
- 32-bit ARM® Cortex®-M4 R7FA4M1AB3CFM MCU operating at up to 48 MHz, 256 KB of Flash memory, and 32 KB of SRAM.
- USB Type-C connector. Two LEDs, two pushbuttons, and a reset button.
- J-Link OB and headers for interfacing with external electronics.
Key Benefits
- mikroBUS™ socket for adding Click board™.
- Small, affordable, yet powerful starter development kit.
- Mounting holes simplify integration.
- Compact design with clear and descriptive silkscreen markings.
What's In The Package?
GETTING STARTED
1. Software
RA4M1 Clicker is compatible with e² studio, Integrated Development Environment by Renesas. Just download and install Renesas Flexible Software Package and e² studio development environment using the FSP with e² studio installer. The FSP, J-Link USB drivers, and e² studio are bundled in a downloadable platform installer available on the FSP webpage FSP webpage.
2. Projects
Download and extract the Quick Start example project to a local directory on the host PC. The Quick Start example project (source code and project files) is available in the RA4M1 Clicker Example Projects Bundle, that is available on the RA4M1 Clicker Libstock page. The Quick Start example project can be modified by editing the source code and reconfiguring the properties of the MCU peripherals, pins, clocks, interrupts, and so forth.
3. Community
We invite you to join thousands of users of Mikroe development tools. You will find useful projects and tutorials and get help from a large user community. Choose from a fast-growing number of Click boards™, these ready-to-use boards require no additional hardware configuration. They enhance rapid development and accelerate time to market. More information at www.mikroe.com/click.
4. Support
Mikroe offers free Tech Support to the end of its life span, so if anything goes wrong, we are ready and willing to willing to help. Our Support Department, as one of the pillars upon which our company is based, now also offers the Premium Technical Support to business users, ensuring even shorter time frame for solutions. For any hardware. For any hardware support you might need, contact Mikroe Helpdesk. If you need any software support, your go-to source is Renesas Support.
