MikroBUS-Buchse 16 SM Schwarz
MikroBUS-Buchse 16 SM Schwarz
SKU: MIKROE-4248
Verfügbarkeit für Abholungen konnte nicht geladen werden
Overview

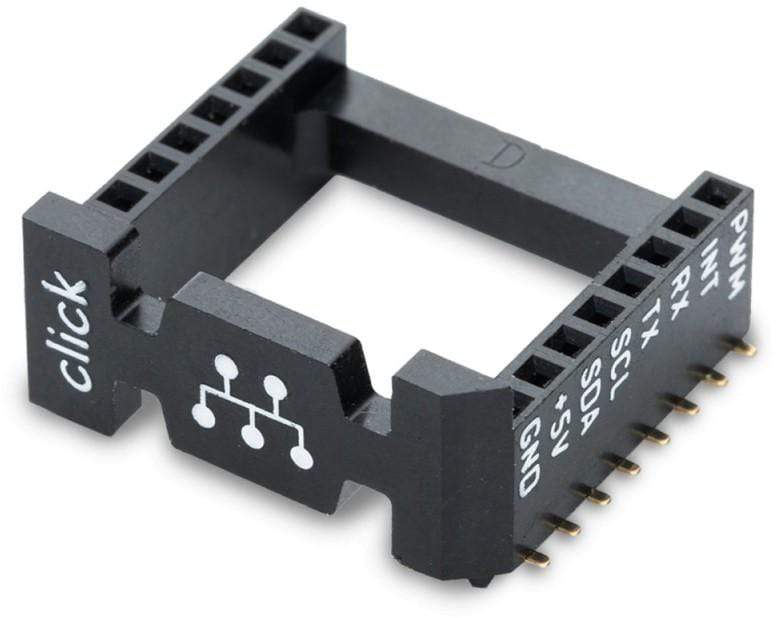

A new design of the mikroBUS™ socket allows even easier interfacing with the Click Board™ line of products: it has a sturdier design which helps to align the Click Board™ correctly. In addition to added horizontal supports between two 8-pin connectors, the right lower edge is chamfered at the angle of 45°, the same as the Click Board™, making it seamlessly fit into the mikroBUS™ socket. The new mikroBUS™ socket is now a fully-fledged, standardized monolithic component with all its pins clearly labelled, offering a very good grip for the Click Board™, preventing it from flipping over or being placed incorrectly.
This socket is supplied with a black housing.
| Overview | |
|---|---|
| Description | 16pin SMD socket, two 8-pin connectors, 2.54mm pitch |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-4248 |
| Manufacturer | Mikroelektronika doo |
| EAN | 8606027380211 |
| Warranty | 12 Monate |
| Shipping weight | 0.005 kg |
-
1 ×
MikroBUS-Buchse 16 SM Schwarz
Contact us to confirm the full contents of the box.
