WiFi 10 Click-Platine
WiFi 10 Click-Platine
Verfügbarkeit für Abholungen konnte nicht geladen werden
Key Features
- Unterstützt alle gängigen Übertragungs- und Sicherheits-LAN-Protokolle, geringer Stromverbrauch, hohe Datenraten, integrierte Trace-Antenne mit der Möglichkeit zur Verwendung einer externen Antenne, HF-Signalaufbereitung für bestmöglichen Empfang usw.
- Basierend auf dem SX-ULPAN-SB-2401, einem stromsparenden Wireless-LAN-Modul von Silex Technology
- Eine Fülle integrierter WiFi-Protokolle und -Standards, ein geringer Stromverbrauch und hohe Datenraten machen dieses Click Board™ zu einer idealen Lösung für die Entwicklung von Anwendungen, die WiFi-Konnektivität erfordern, mit einem starken Schwerpunkt auf IoT-Anwendungen.
- mikroBUS: SPI, GPIO-Schnittstellen und USB
Overview
Das WiFi 10 Click Board™ bietet ultra-energiesparende drahtlose Konnektivität für jede IoT-Anwendung. Es basiert auf dem SX-ULPAN-SB-2401, einem integrierten WLAN-Modul, das mit den drahtlosen Netzwerkprotokollen IEEE802.11a/b/g/n bei 2,4 GHz kompatibel ist. Das ULPAN-SB-2401-Modul ist mit einer PCB-Trace-Antenne ausgestattet, bietet aber auch einen kleinen Hirose U. FL-Anschluss, der die Verwendung einer externen Antenne für eine größere Reichweite ermöglicht. Das ULPAN-SB-2401-Modul unterstützt die Übertragungsprotokolle IPv4, TCP und UDP. Es unterstützt auch die Sicherheitsprotokolle WPS, WPA und WPA2 und ermöglicht so eine sichere Verbindung.
The SX-ULPAN-SB-2401 is targeted towards low-power IoT applications. An abundance of integrated WiFi protocols and standards, ability to use an external antenna for improved wireless range, low power consumption, and high data rates, make this Click board™ an ideal solution for the development of applications that require WiFi connectivity and Internet access, with a strong emphasis towards IoT applications.
How Does The WiFi 10 Click Board™ Work?

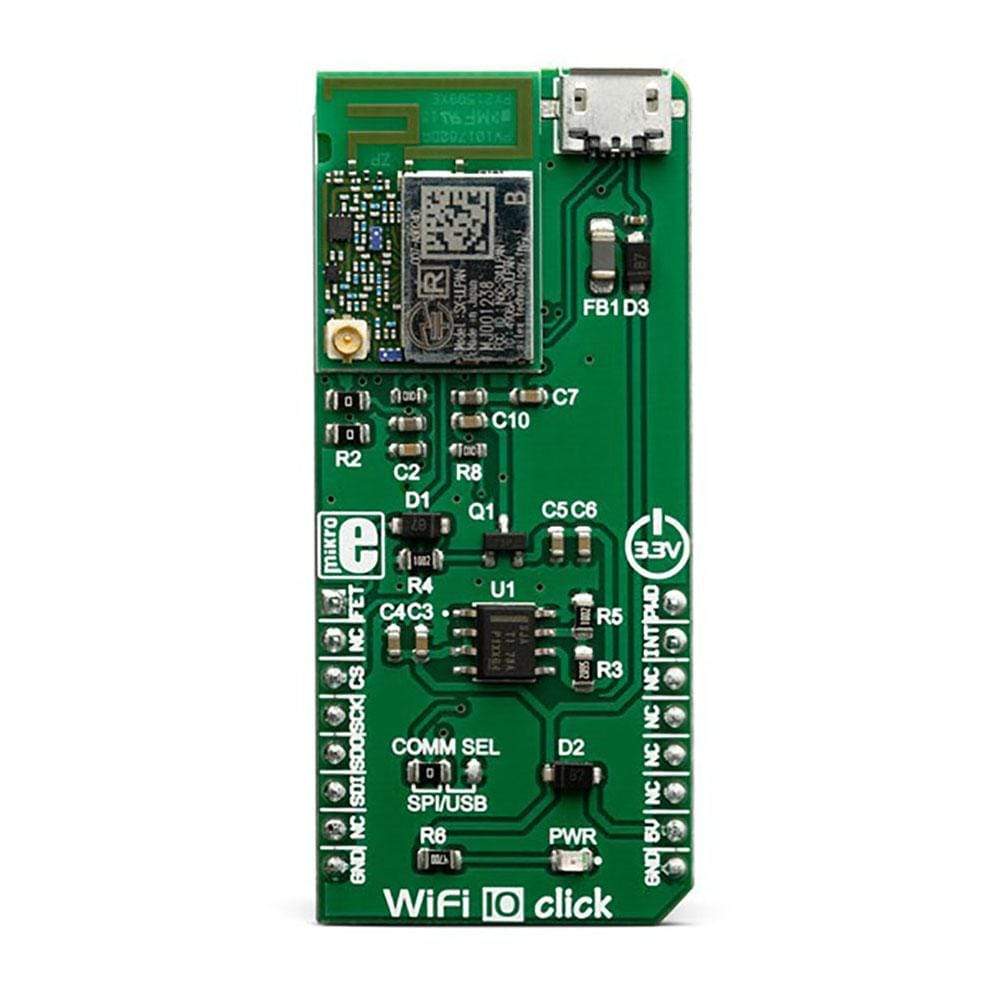

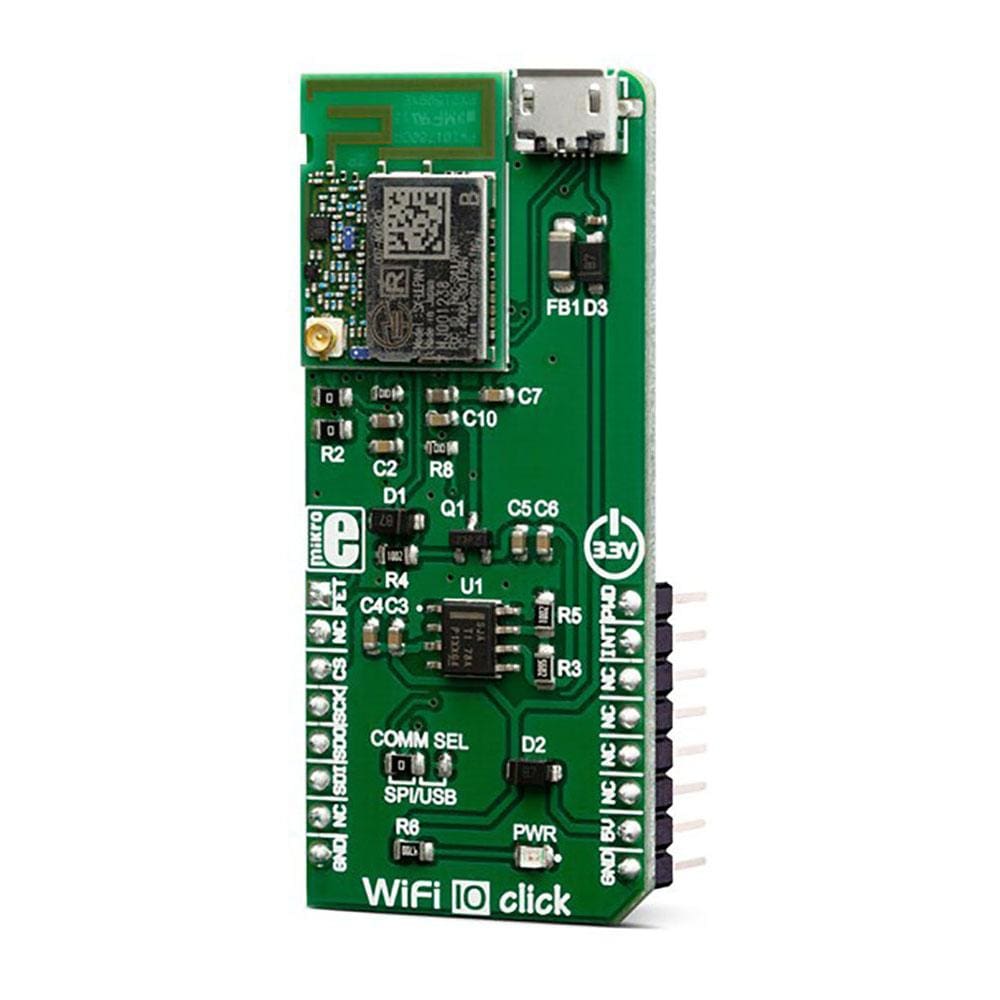

The WiFi 10 Click Board™ comes equipped with the SX-ULPAN-SB-2401, a low-power wireless LAN module, by Silex technology. The SX-ULPAN-SB-2401 is targeted towards IoT applications, offering a reasonably low power consumption. This module is based on the RF chip labeled as QCA4004X, by Qualcomm. WiFi 10 click uses the SPI communication interface to exchange data with the host MCU. This allows for a very high data rate between the Click board™ and the host MCU (up to 10 Mbps), avoiding bottlenecks when high data rates are required within LAN.
.jpg)
The ULPAN-SB-2401 module supports IPv4, TCP, and UDP transfer protocols, and complies with the IEEE802.11a/b/g/n wireless networking standards, at 2.4GHz. It supports data rates from 1 to 54 Mbps for 802.11b/g, and MCS from 0 to 7, for 802.11n. The SX-ULPAN-SB-2401 module also provides support for WPS, WPA, and WPA2 security protocols, allowing a secure connection.
Besides the QCA4004X RF chip itself, the module contains all the supporting circuitry that allows RF signal conditioning, antenna switching, etc. The SX-ULPAN-SB-2401 is equipped with a small trace antenna. However, it allows an external antenna to be connected over a mall Hirose U. FL alternative connector when better signal reception is required. The datasheet of the SX-ULPAN-SB-2401 offers a list of approved and tested external antennas.
The SX-ULPAN-SB-2401 module requires a power supply of 3.3V. Therefore, the Click board™ incorporates an integrated buck (step-down DC-DC) converter, labeled as TPS7A7002 by Texas Instruments. This IC can output up to 3A of current, still maintaining an excellent regulation. Its task is to provide a stable 3.3V power supply, capable of mitigating voltage drops at the input when a high current peak appears (typically at the startup of the device).
The USB connector is used for a firmware update and it is not used during normal operation. The Click board™ is equipped with a small SMD jumper labeled as COM SEL,used to switch the interface to USB when updating the firmware.
The WiFi 10 Click Board™ allows the host MCU to enable/disable the power for the SX-ULPAN-SB-2401 module, by employing a MOSFET. The gate of the MOSFET is routed to the mikroBUS™ AN pin, labeled as FET. By driving this pin to a HIGH logic state, the P channel MOSFET will be disabled and the SX-ULPAN-SB-2401 will be disconnected from the power source. Normally, the MOSFET gate is pulled to the GND by a resistor on the Click board™.
In order to allow the power supply voltage to reach its nominal levels, the Click board™ should be held in a RESET state for more than 25 ms. This can be accomplished by driving the CHIP_PWD_L pin of the module to a LOW logic level. This pin is routed to the mikroBUS™ PWM pin, labeled as PWD. It is pulled to a HIGH logic level by an internal resistor.
The SX-ULPAN-SB-2401 can send interrupts over the HSPI_INT pin. Therefore, this pin is routed to the INT pin of the mikroBUS™. Note that during the startup sequence, this pin should not be driven by the host MCU.
Although the Click board™ uses 5V for the power supply, the SX-ULPAN-SB-2401 module is operated at 3.3V. Having in mind its absolute maximum ratings, it is not advisable to use the Click board™ with MCUs that use logic voltage levels up to 5V.
Specifications
| Type | WiFi |
| Applications | An abundance of integrated WiFi protocols and standards, low power consumption, and high data rates, make this Click board™ an ideal solution for the development of applications that require WiFi connectivity, with a strong emphasis towards IoT applications. |
| On-board modules | SX-ULPAN-SB-2401, a low-power wireless LAN module, by Silex Technology |
| Key Features | Supports all the commonly used transfer and security LAN protocols, low power consumption, high data rates, trace antenna onboard, with the ability to use an external antenna, RF signal conditioning for best possible reception, etc |
| Interface | GPIO,SPI,USB |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
| Input Voltage | 5V |

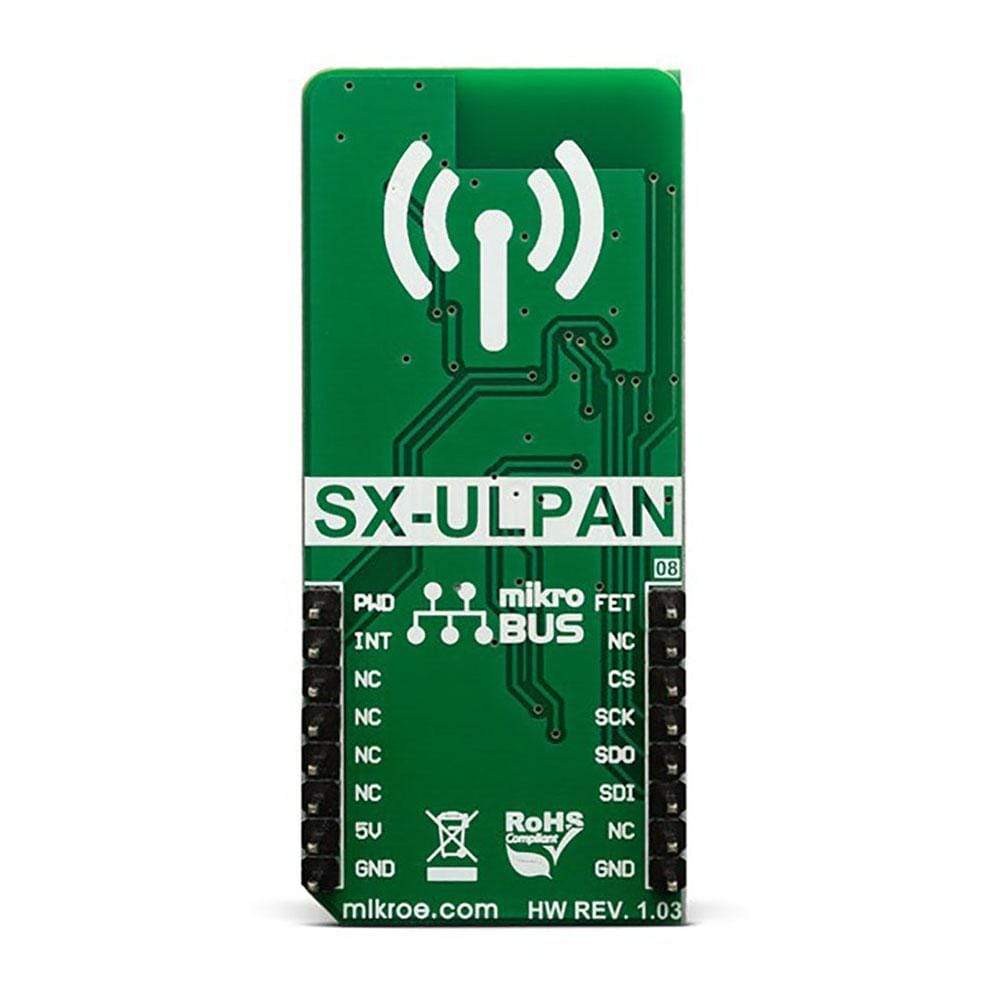

Pinout diagram
This table shows how the pinout on WiFi 10 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| Module Power ON | FET | 1 | AN | PWM | 16 | PWD | Module Reset |
| IoT Enable | IOT | 2 | RST | INT | 15 | INT | Module Interrupt |
| SPI Chip Select | CS | 3 | CS | RX | 14 | NC | |
| SPI Clock | CLK | 4 | SCK | TX | 13 | NC | |
| SPI Data Output | MISO | 5 | MISO | SCL | 12 | NC | |
| SPI Data Input | MOSI | 6 | MOSI | SDA | 11 | NC | |
| NC | 7 | 3.3V | 5V | 10 | 5V | Power Supply | |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
Onboard settings and indicators
| Label | Name | Default | Description |
|---|---|---|---|
| PWR | LD1 | - | Power LED indicator |
| COM SEL | JP2 | Left | Communication interface selection: left position SPI interface, right position USB interface |
Software Support
MikroElektronika does not provide software support for this Click board™ in the form of libraries, functions, or example code at this moment. The software support is provided by the NXP company and module manufacturer. Please visit the Silex Technology official website to get the full software support on SX-ULPAN-SB-2401 WiFi module or follow the instructions below.
There are two options to get firmware for WiFi 10 Click:
- If using MCUXpresso IDE (from version 11.1 onwards): when the IDE opens, click on “Download and install SDK”. Check “Wifi (QCA)” in the keywords to show only boards that support the Wifi 10 click, then select the NXP board you are using.
- For all other tools, go to the MCUXpresso SDK builder. Select the board being used, then click “Build MCUXpresso SDK”. On the next screen select “wifi_qca” from the available middleware, then download the SDK.
Software Support
MikroElektronika does not provide software support for this Click board™ in the form of libraries, functions, or example code at this moment. The software support is provided by the NXP company and module manufacturer. Please visit the Silex Technology official website to get the full software support on SX-ULPAN-SB-2401 WiFi module or follow the instructions below.
There are two options to get firmware for WiFi 10 Click:
- If using MCUXpresso IDE (from version 11.1 onwards): when the IDE opens, click on “Download and install SDK”. Check “Wifi (QCA)” in the keywords to show only boards that support the Wifi 10 click, then select the NXP board you are using.
- For all other tools, go to the MCUXpresso SDK builder. Select the board being used, then click “Build MCUXpresso SDK”. On the next screen select “wifi_qca” from the available middleware, then download the SDK.
