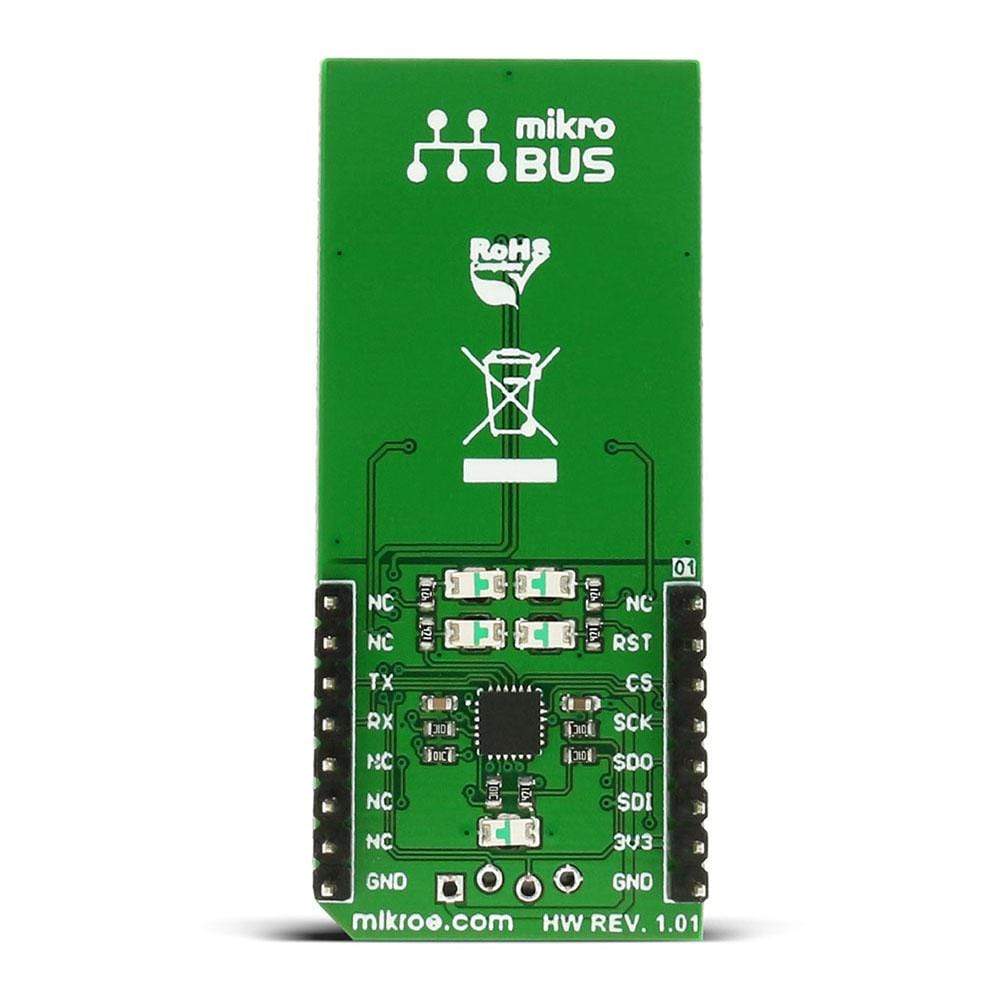

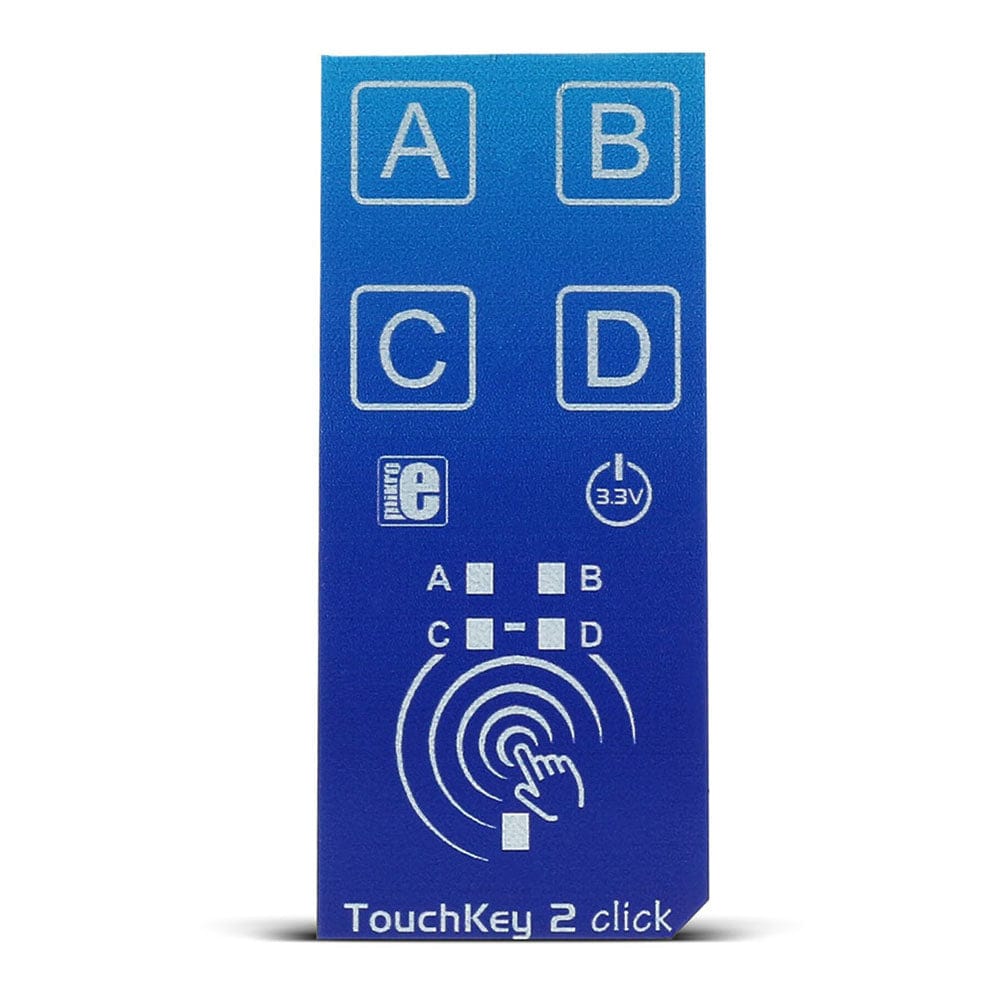

Das TouchKey 2 Click Board™ verfügt über vier kapazitive Pads, die vom ATtiny817 von Microchip gespeist werden, der über einen integrierten Touch-QTouch-Controller verfügt.
Das Click Board™ ist für den Betrieb mit einer 3,3-V-Stromversorgung ausgelegt. Die vier integrierten LEDs des TouchKey 2 Click Board™ zeigen an, wenn die Taste (das Pad) gedrückt wird. Das TouchKey 2 Click Board™ kommuniziert über die UART-Schnittstelle mit dem Zielmikrocontroller.
TouchKey 2 Click Board™ has four capacitive pads powered by Microchips ATtiny817 which has an integrated touch QTouch controller. The Click Board™ is designed to run on a 3.3V power supply. The four LEDs on-board the Click Board™ indicate when the Key (Pad) is pressed. TouchKey 2 Click Board™ communicates with the target microcontroller over UART interface (SPI interface is optional).
High Moisture Tolerance
You can use TouchKey 2 Click Board™ in all kinds of conditions, without fearing something will happen to it due to moisture and water droplets falling on it.
The plastic overlay on the TouchKey 2 Click Board™ protects the board from moisture. Thanks to this feature the electronic components are safe. The ATtiny817 has a driven shield for improved moisture and noise handling performance.
ATTINY817 Features
Microchips ATtiny817 is a microcontroller that uses an 8-bit AVR processor with hardware multiplier, running at up to 20MHz and with up to 8KB Flash, 512 bytes of SRAM and 128 bytes of EEPROM.
ATtiny817 uses the latest technologies from Microchip with a flexible and low-power architecture including Event System and SleepWalking, accurate analog features and advanced peripherals.
Capacitive touch interfaces with proximity sensing and driven shield are supported with the integrated QTouch peripheral touch controller.
The module supports wake-up on touch from power-save sleep mode.
Button Features
Capacitive buttons can be toggled even when placed under a layer of glass or paper.
How it Works
There are four LEDs for four touch keys. If key A is pressed LED_A is ON, etc. In addition, there is UART communication between ATtiny817 and main MCU.
Note: The header on-board the TouchKey 2 Click Board™ can be used for device programming. Current firmware sends data packets via UART (on which the demo example in our library is based). SPI communication is possible with firmware modifications.
