Mikroelektronika d.o.o.

Bereit für PIC (DIP28)

Bereit für PIC (DIP28)

28-polige DIP-MCU-Platine

SKU: MIKROE-1280

Normaler Preis
€89,95 EUR exc tax
Normaler Preis Verkaufspreis
€89,95 EUR exc tax
Sale Ausverkauft
Versand wird beim Checkout berechnet
If no stock shown above, check availability

Zahlungsmethoden

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Banküberweisung
Vollständige Details anzeigen

Overview

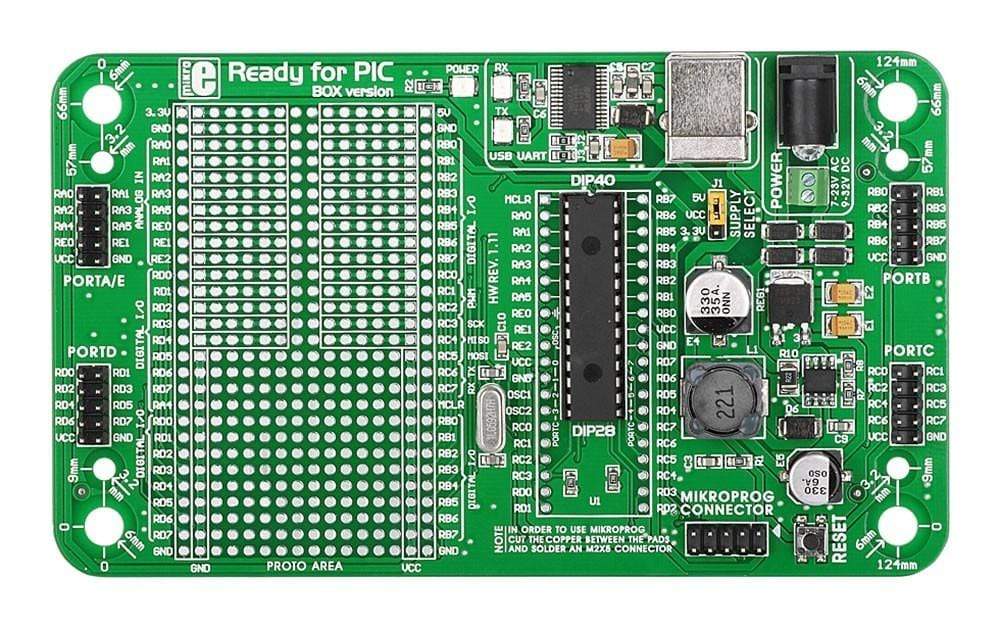

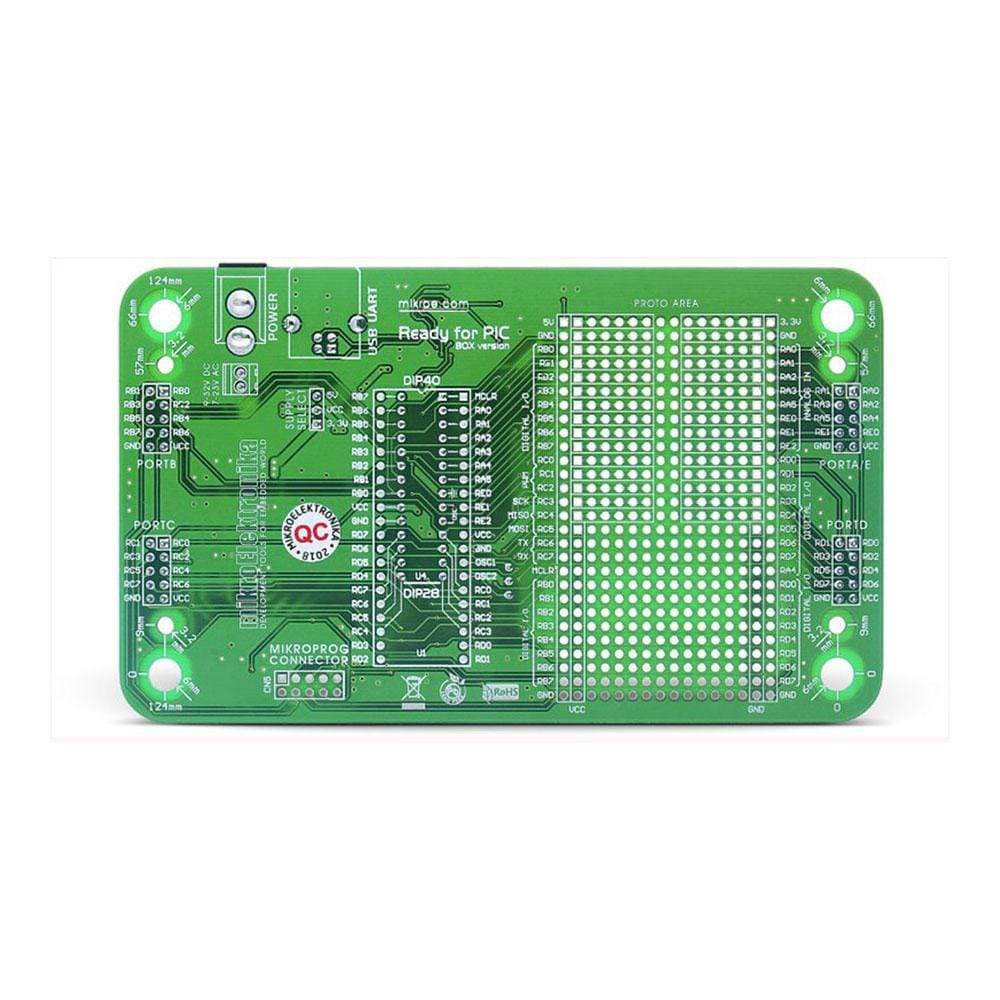

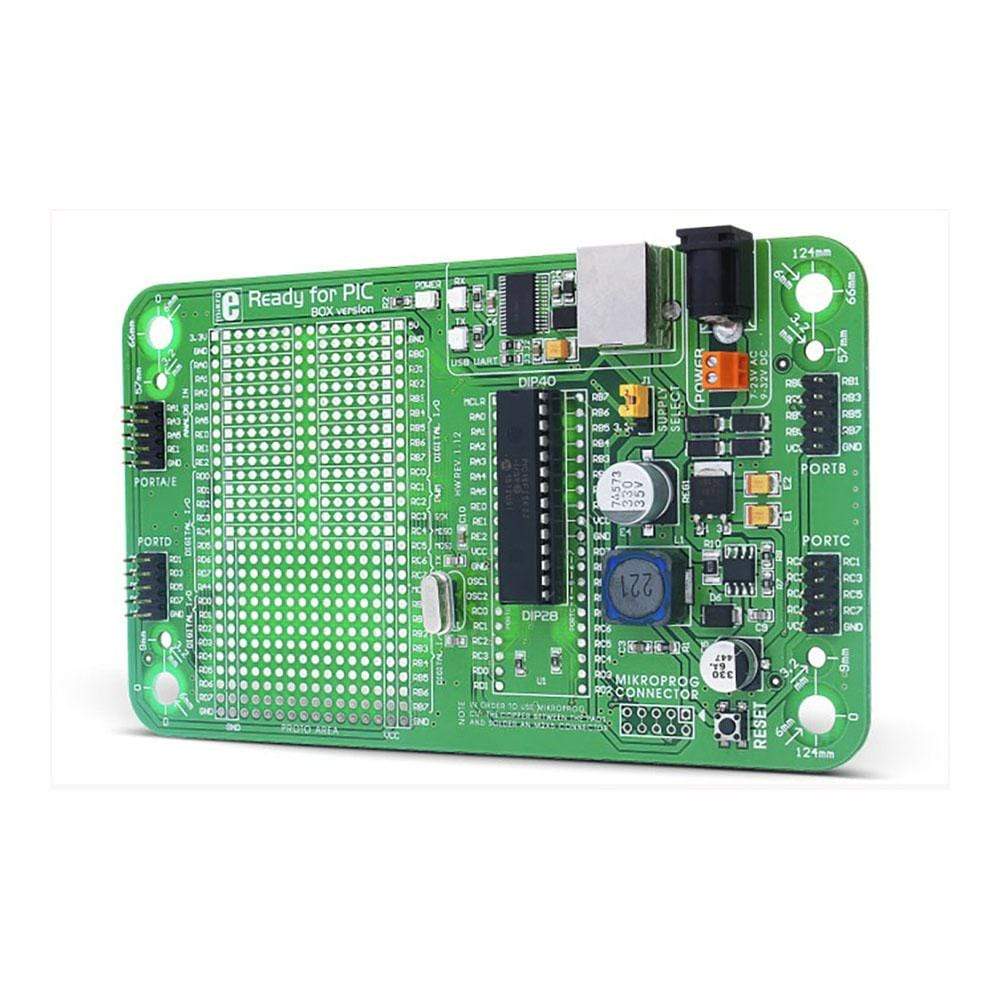

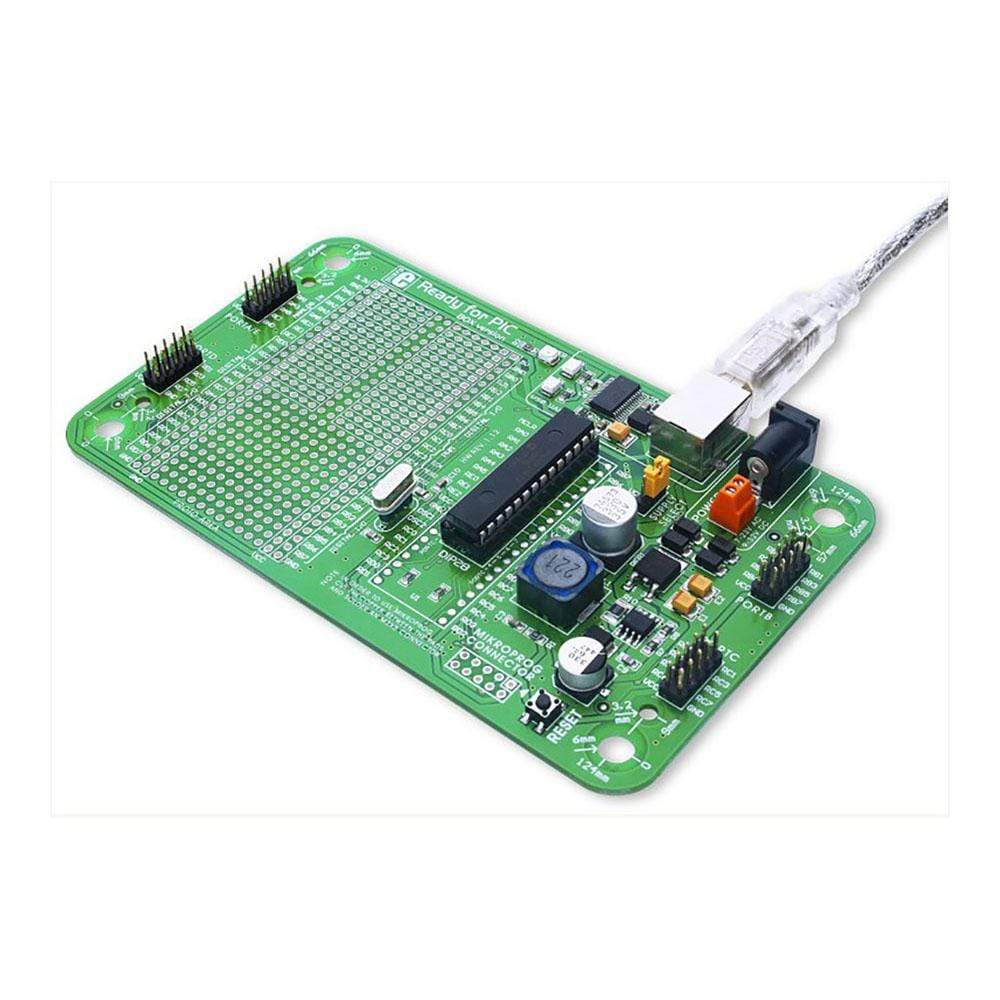

The Ready for PIC (DIP28) Board is the best solution for fast and simple development of microcontroller applications using 28-pin PIC MCUs. It comes with PIC18F25K22 connected to 8MHz crystal oscillator. It contains four IDC10 headers for all available microcontroller ports, USB-UART module, prototyping area and a power supply circuit. Board is specially designed to fit into special white plastic casing which is sold separately.

Board comes preprogrammed with fast UART bootloader which eliminates the need for external programmers. Board also supports fast USB 2.0 mikroProg programmer with hardware In-Circuit Debugger.

The Ready for PIC (DIP28) is fully supported by mikroC, mikroBasic and mikroPascal compilers for PIC. Compilers come with dozens of examples that demonstrate every feature of the board.

The on-board power supply regulator is great. It supports dual power supply, for both 5V and 3.3V microcontrollers. It features standard power connector, and screw terminals for even easier connectivity.

Die Ready for PIC (DIP28)-Platine ist die beste Lösung für die schnelle und einfache Entwicklung von Mikrocontroller-Anwendungen mit 28-poligen PIC-MCUs. Sie wird mit PIC18F25K22 geliefert, das an einen 8-MHz-Quarzoszillator angeschlossen ist. Sie enthält vier IDC10-Header für alle verfügbaren Mikrocontroller-Ports, ein USB-UART-Modul, einen Prototyping-Bereich und einen Stromversorgungskreis. Die Platine ist speziell für die Montage in ein spezielles weißes Kunststoffgehäuse konzipiert, das separat erhältlich ist.

Die Platine ist mit einem schnellen UART-Bootloader vorprogrammiert, sodass keine externen Programmierer erforderlich sind. Die Platine unterstützt außerdem einen schnellen USB 2.0-MikroProg-Programmierer mit Hardware-In-Circuit-Debugger.

Ready for PIC (DIP28) wird vollständig von den Compilern mikroC, mikroBasic und mikroPascal für PIC unterstützt. Die Compiler werden mit Dutzenden von Beispielen geliefert, die alle Funktionen der Platine demonstrieren.

Der integrierte Stromversorgungsregler ist großartig. Er unterstützt die duale Stromversorgung für Mikrocontroller mit 5 V und 3,3 V. Er verfügt über einen Standardstromanschluss und Schraubklemmen für noch einfachere Konnektivität.

Overview
ApplicationsBoard is the best solution for fast and simple development of microcontroller applications
ArchitecturePIC (8-bit)
Key components
MCUPIC18F25K22
MCU speed16MIPS, 48MHz
MCU memory32KB of Flash, 1,536 bytes of RAM
On-board modulesUSB-UART, Breadboard area
Features
Key benefitsCan be fitted in a professional-looking casing, which turns the your device into a ready-to-sell product
Expandability4 x IDC10 male headers
Interfaces
ProgrammingPreprogrammed with UART bootloader. Also features mikroProg for PIC, dsPIC and PIC32 connector
Electrical
Power supply5V (via USB), 7-23V AC or 9-32V DC (via external adapter)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-1280
ManufacturerMikroelektronika doo
EAN8606015074061
Warranty12 Monate
Shipping weight0.5 kg
  • 1 × Bereit für PIC (DIP28)

Contact us to confirm the full contents of the box.
