Micsig AC-Stromsonde (ACP1000)

Overview

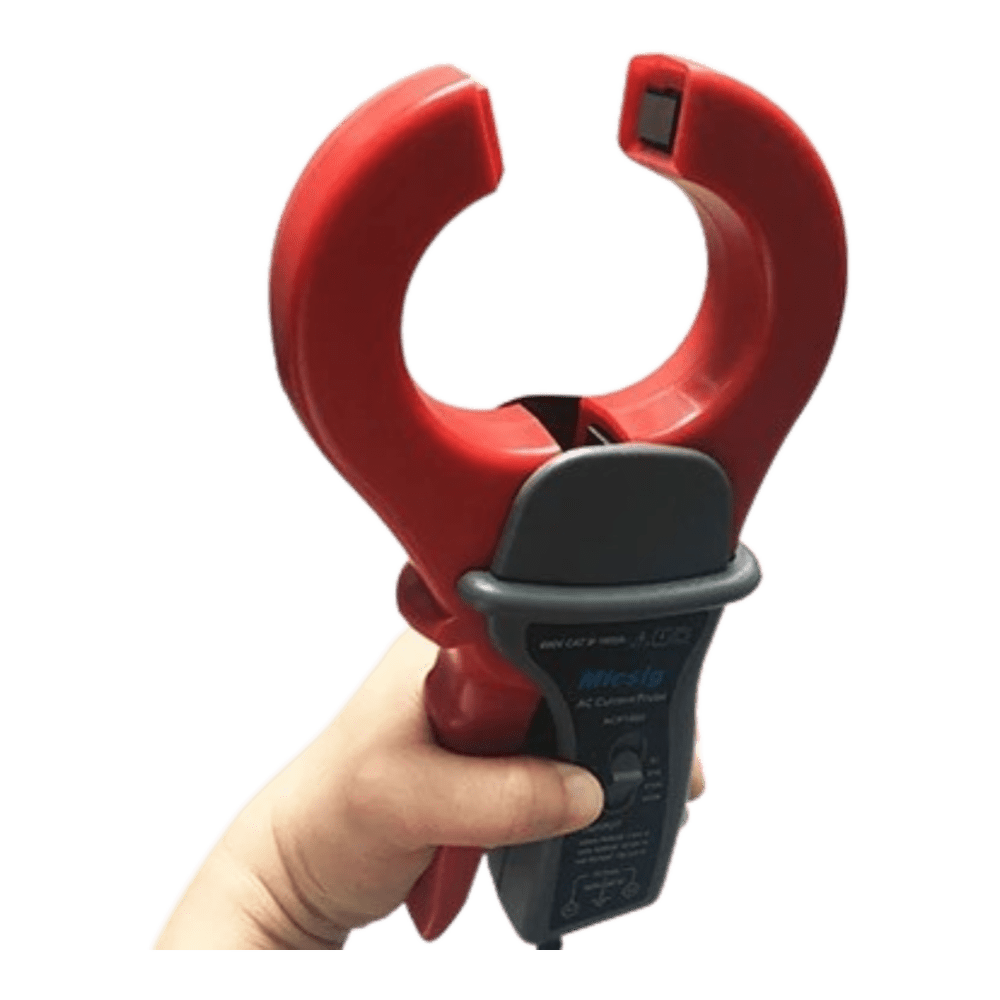

The AC Current Probe ACP1000 is a high-precision measurement tool designed for professional electronic design engineers. This versatile device offers accurate AC current measurements from 0.1A to 1000A without interrupting the circuit, thanks to its innovative clamp-on core design. With an operating frequency range of 10Hz to 100kHz and a maximum accuracy of 1%, the ACP1000 delivers reliable results for demanding applications.

Engineered for durability and safety, the ACP1000 features a CAT III 600V safety rating and can handle a maximum working current of 2000A. Its user-friendly interface and large conductor capacity (up to 52mm diameter) allow for quick and efficient measurements across various industrial and power analysis scenarios. The 1.5m BNC insulated coaxial output cable ensures seamless integration with oscilloscopes and other measurement devices.

Whether you're working on power factor correction devices, industrial control systems, or conducting harmonic analysis, the ACP1000 provides the precision and ease of use required for professional-grade current measurements. Elevate your testing capabilities with this advanced AC current probe, now available at The Debug Store.
