Professional ARM Flash Programming Solution
The SEGGER Flasher ARM is a production-grade programming tool designed specifically for ARM core-based microcontrollers with on-chip or external flash memory. Once configured, it operates as a standalone JTAG/SWD programmer without requiring a PC connection, making it ideal for production environments and field programming applications.
Key Programming Capabilities
| Feature | Specification |
|---|---|
| Supported Cores | ARM7, ARM9, ARM11, Cortex-M0/M0+/M1/M3/M4/M7, Cortex-A5/A7/A8/A9/A12/A15/A17 |
| Target Interface | JTAG, SWD via 20-pin connector |
| Programming Speed | 30 KB/sec to 1 MB/sec (target dependent) |
| Internal Memory | 128 MB for target program storage |
Connection Interfaces
The Flasher ARM provides multiple connectivity options for flexible integration:
- USB 2.0: High-speed connection for PC control and power
- Ethernet (10/100 RJ45): Network-based programming and remote control
- RS-232 (DB9): Serial interface for automated test equipment integration
- 20-pin JTAG/SWD: Standard ARM debug connector
Production Ready: Features LED status indicators (Ready/OK and Not Ready/Fail), push-button programming trigger, and authorised flashing capabilities for secure production environments.
Wiring Quick-Start

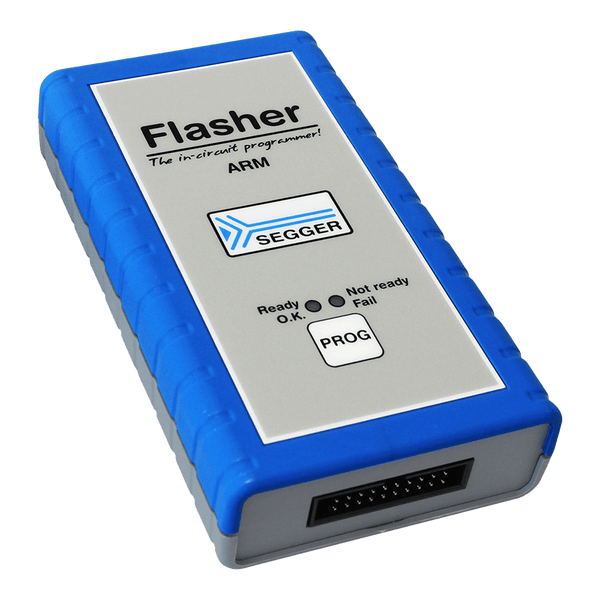

Product image: SEGGER Flasher ARM showing LED indicators and programming button
