Mikroelektronika d.o.o.
SKU: MIKROE-5445POT 5 Click Board
POT 5 Click Board
Couldn't load pickup availability
Key Features
- Resistance up to 10k, plastic shaft, low profile, without detent, wide temperature and voltage range, wide mechanical angle, long rotational life, selectable analogue or digital output, and more
- Based on the PDB081-P10-103B1 - 8mm micro rotary 10k potentiometer from Bourns
- Can be used for consumer white goods, test and measurement equipment, communications and laboratory equipment, and more
- mikroBUS: I2C and Analogue Interfaces

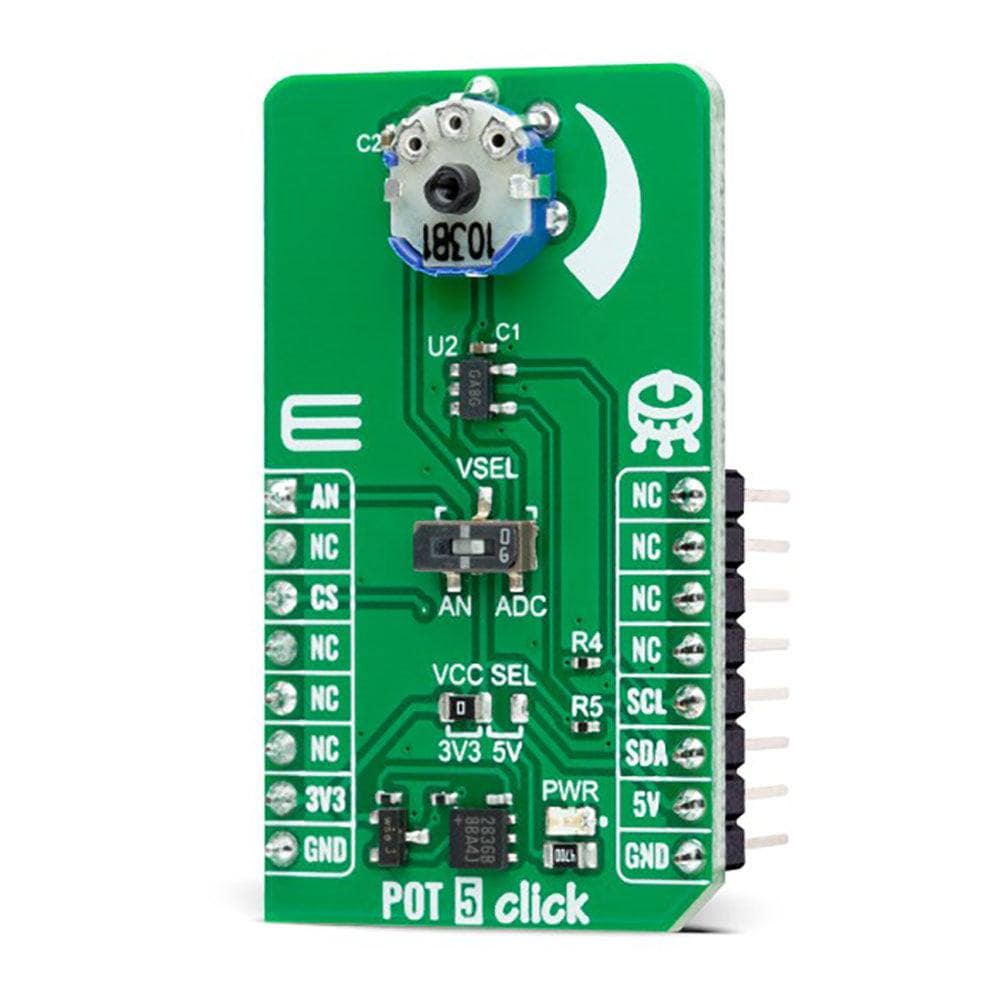

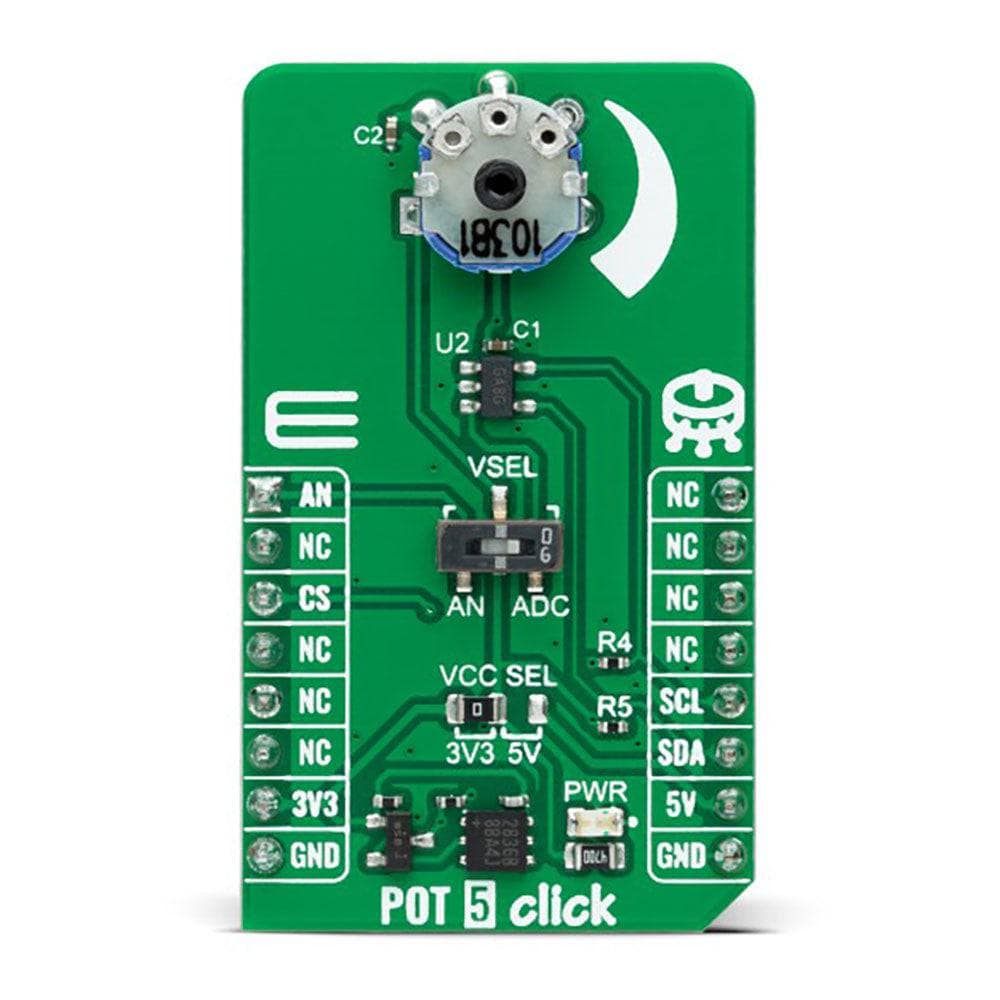

The POT 5 Click Board™ is a compact add-on board with accurate selectable reference voltage output. This board features the PDB081-P10-103B1, a high-quality 8mm micro rotary 10k potentiometer from Bourns. The PDB081-P10-103B1 potentiometers operate over a wide temperature range, withstanding 50V maximum voltage. This rotary potentiometer offers 5Ω minimum resistance, 0.03W power rating, and 100mV maximum sliding noise. This Click board™ can be used in any application that requires an analogue or digitized control voltage, HMI applications, test, measurement, or laboratory equipment.
The POT 5 Click Board™ is supported by a mikroSDK-compliant library, which includes functions that simplify software development. This Click board™ comes as a thoroughly tested product, ready to be used on a system equipped with the mikroBUS™ socket.
![Mikroelektronika d.o.o. MIKROE-5445 POT 5 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/products/mikroelektronika-d-o-o-click-board-pot-5-click-board-39086030061791.jpg?v=1684951311&width=1445)
![Mikroelektronika d.o.o. MIKROE-5445 POT 5 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/products/mikroelektronika-d-o-o-click-board-pot-5-click-board-39086030192863.jpg?v=1684951133&width=1445)
![Mikroelektronika d.o.o. MIKROE-5445 POT 5 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/products/mikroelektronika-d-o-o-click-board-pot-5-click-board-39086030127327.jpg?v=1684951314&width=1445)
![Mikroelektronika d.o.o. MIKROE-5445 POT 5 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/products/mikroelektronika-d-o-o-click-board-pot-5-click-board-39086030094559.jpg?v=1684951308&width=1445)
![Mikroelektronika d.o.o. MIKROE-5445 POT 5 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/products/mikroelektronika-d-o-o-click-board-pot-5-click-board-39086030160095.jpg?v=1684951142&width=1445)
![Mikroelektronika d.o.o. MIKROE-5445 POT 5 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/products/mikroelektronika-d-o-o-click-board-pot-5-click-board-39086030258399.jpg?v=1684951137&width=1445)
![Mikroelektronika d.o.o. MIKROE-5445 POT 5 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/products/mikroelektronika-d-o-o-click-board-pot-5-click-board-39086030029023.jpg?v=1684951304&width=1445)
![Mikroelektronika d.o.o. MIKROE-5445 POT 5 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/products/mikroelektronika-d-o-o-click-board-pot-5-click-board-39086030225631.jpg?v=1684951139&width=1445)
POT 5 Click Board
