Mikroelektronika d.o.o.

SKU: MIKROE-4662

Speaker Click Board

Speaker Click Board

Regular price
£37.20 inc VAT
£31.00 exc VAT
Regular price Sale price
£37.20 inc VAT
£31.00 exc VAT
Sale Sold out
Shipping calculated at checkout.
Order NOW to ship within 10 working days

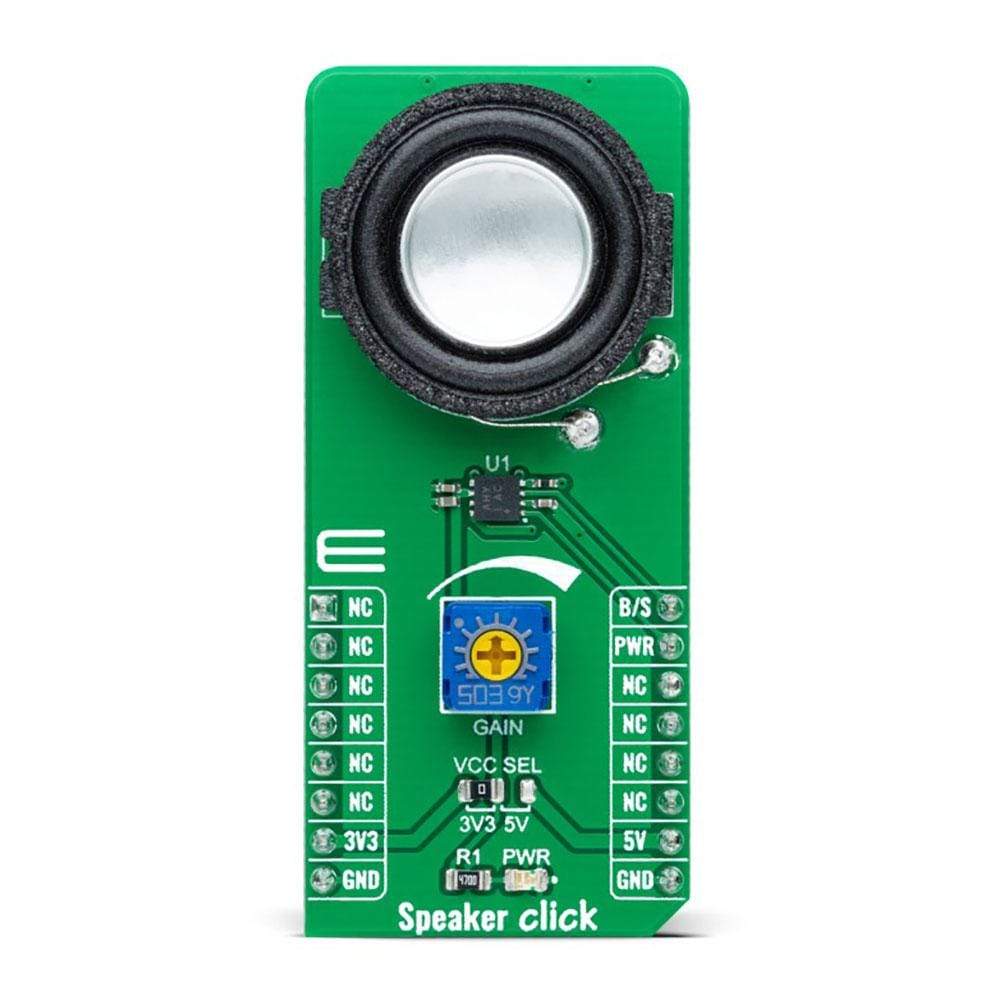

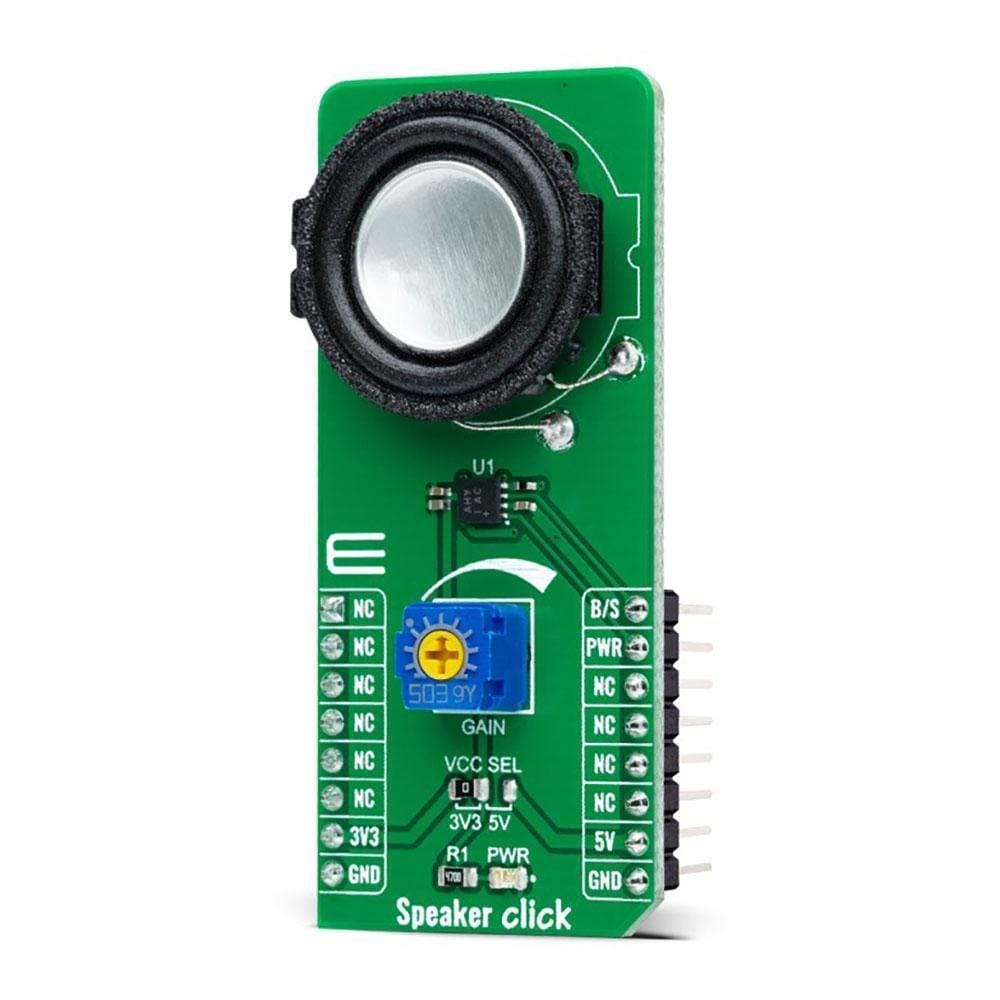

The Speaker Click Board™ is a compact add-on board that contains an audio power amplifier with a high-quality audio reproduction. This board features the MAX9717, a 1.4W mono bridge-tied load (BTL) architecture audio power amplifier from Maxim Integrated. It delivers 1.4W continuous power into a 4Ω load from a single +5V supply, or 350mW continuous power into an 8Ω load while operating from a single +3.3V supply. Also, the MAX9717 has an adjustable gain amplifier and a headphone sense input that senses headphone connection to the device, muting the speaker while driving the headphone as a single-ended load.

The Speaker Click Board™ is suitable for portable audio applications such as PDAs and portable devices where space and cost are of great importance.
