SKU: SKU-064-22Amfeltec SKU-064-22 3-Way x1 PCIe to MiniPCIe Gen2 Splitter (ATX)
Amfeltec SKU-064-22 3-Way x1 PCIe to MiniPCIe Gen2 Splitter (ATX)
Couldn't load pickup availability

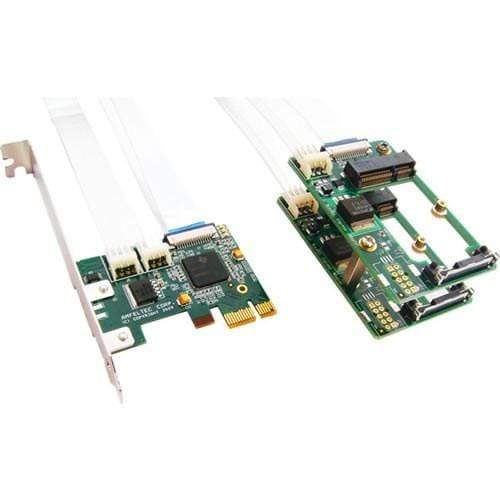

The Amfeltec SKU-064-22 is a flexible x1 PCIe to MiniPCIe Splitter used for expanding modern motherboards with a PCI Express interface. This splitter allows the connection of up to three MiniPCI Express add-in expansion boards to the standard motherboard PCI Express connector. It comes with one x1 PCI Express Host board, three MiniPCI Express Adapter boards, and 3 254mm (10") Flat PCI Express Cables.
.The splitter is powered from a standard ATX Power supply
.
The Amfeltec SKU-064-22 PCIe Gen2 Splitter is designed to connect three PCI Express add-in boards to the PCI Express connector of a computers motherboard. This splitter comes with one x1 PCI Express Host board, three MiniPCI Express Adapter boards, and three 254mm (10") Flat PCI Express cables. The host board connects to the motherboard of the host computer and the adapter boards are connected to the host board with the help of Flat PCI Express cables. The expansion MiniPCI Express add-in boards are connected to the MiniPCI Express Adapter boards at the standard MiniPCI Express connectors provided on the adapter boards.
Mechanical
The connection versatility of this splitter allows an easy connection of expansion MiniPCI Express add-in boards around any peripherals inside the chassis and even away from the PCI Express Host board. The adapter boards come with two mounting holes that allow them to securely fit in a computer chassis.
Plug n Play
One of the best features of this splitter is that it supports Plug-and-Play operation and works right out of the box with any software installation in the computer. It comes with the surface-mounted LEDs that indicate the Link status between PCI Express Host card and MiniPCI Express Adapter boards, along with the MiniPCI Express Adapter boards "PRESENT" and "RESET" status.
Power
The MiniPCI Express add-in boards derive power from a standard ATX power supply.
