Mikroelektronika d.o.o.

SKU: MIKROE-5645

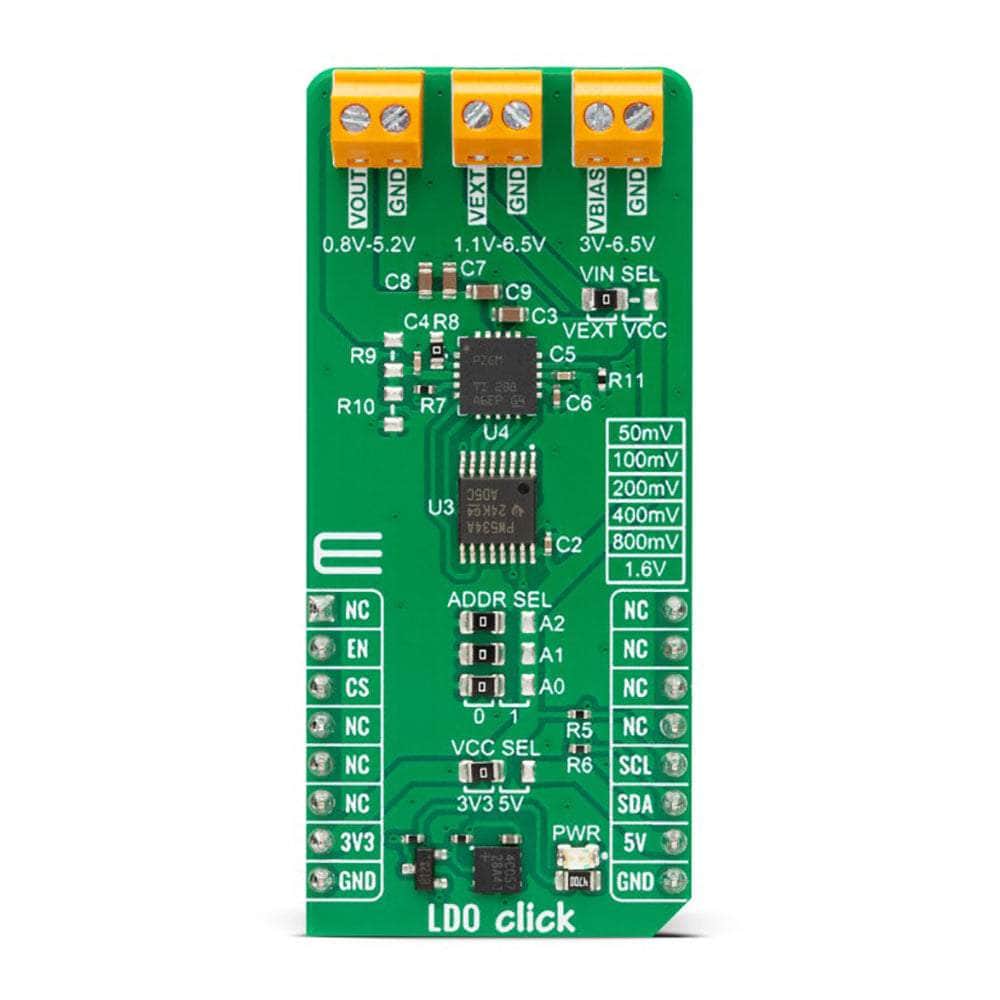

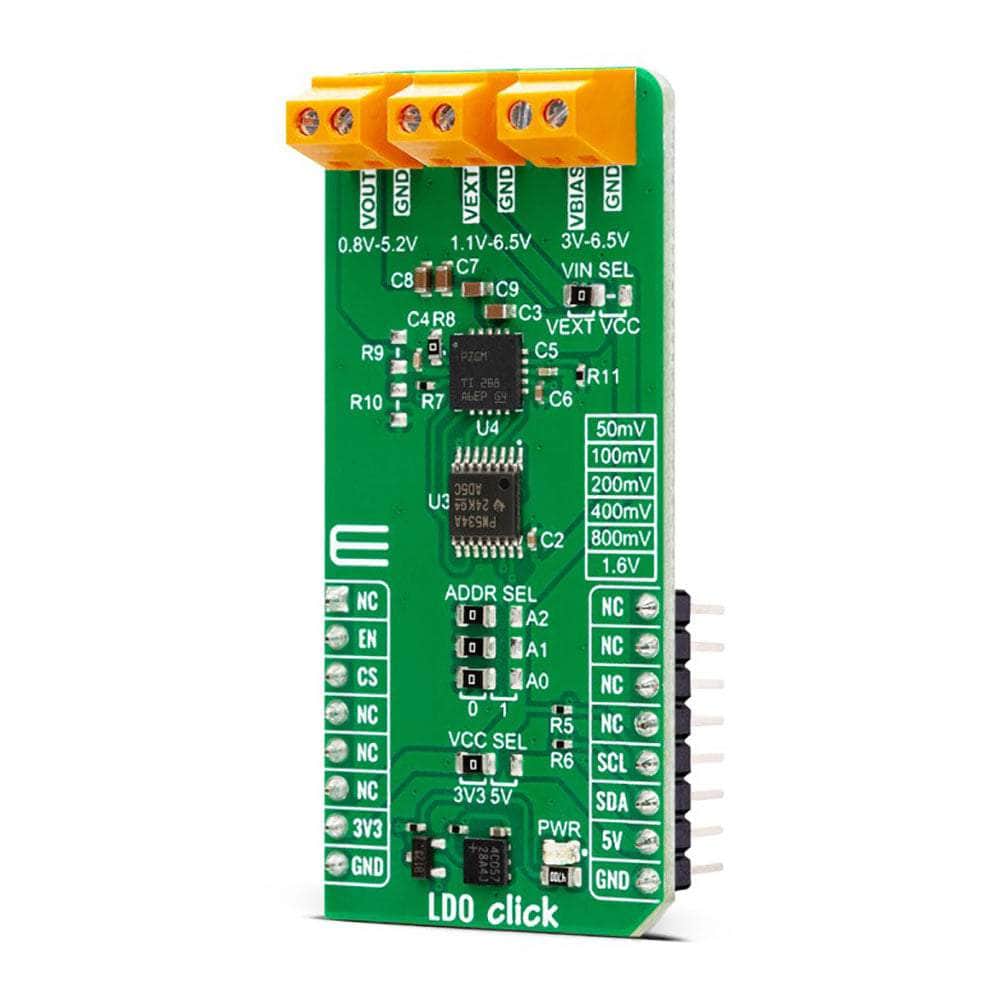

LDO Click Board

LDO Click Board

Regular price
£34.80 inc VAT
£29.00 exc VAT
Regular price Sale price
£34.80 inc VAT
£29.00 exc VAT
Sale Sold out
Shipping calculated at checkout.
When pre-ordered, this item normally ships within 10 working days

Key Features

  • High accuracy, low output voltage noise, wide input voltage range, pin-programmable and adjustable output voltage, excellent load transient response, bias supply to improve performance, and more
  • Based on the TPS7A83A - low-dropout linear regulator from Texas Instruments
  • Can be used to power noise-sensitive components such as a serializer and deserializer, ADCs, DACs, and RF components
  • mikroBUS: I2C Interface

Introducing the LDO Click Board™: Power Your Noise-Sensitive Components with Confidence

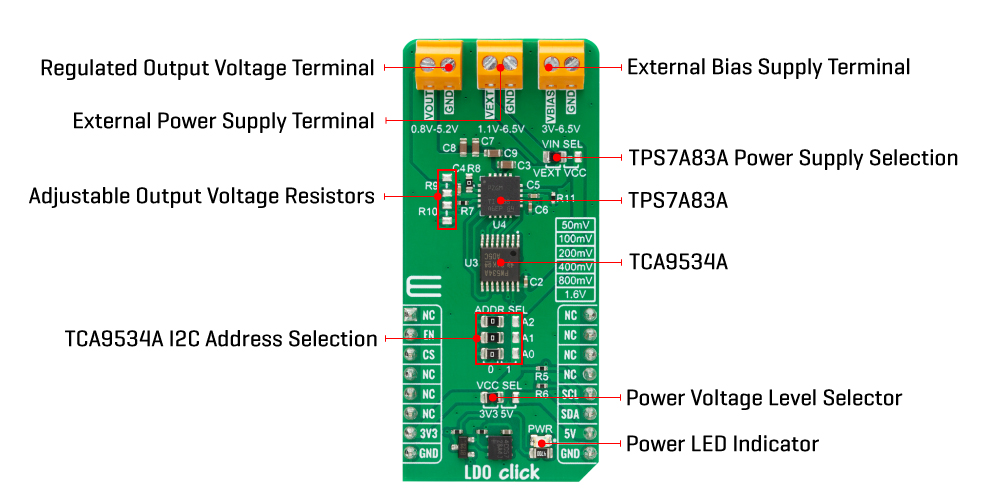

Discover the LDO Click Board™, a compact and highly efficient add-on board designed to regulate the output voltage of a power supply to a lower level while maintaining an impressively low dropout voltage. Experience the power of the TPS7A83A, a low-noise, low-dropout linear regulator (LDO) from Texas Instruments, capable of sourcing 2A with a maximum dropout of only 200mV. With a pin-programmable output voltage ranging from 0.8V-3.95V with 50mV resolution or adjustable from 0.8V-5.2V using an external resistor divider, the LDO Click Board™ is perfect for powering noise-sensitive components like serializer and deserializer, ADCs, DACs, and RF components. The high-performance TPS7A83A ensures minimal power-supply-generated phase noise and clock jitter for smooth operation.

mikroSDK-Compliant Library for Seamless Software Development

The LDO Click Board™ is supported by a mikroSDK-compliant library, offering a range of functions that make software development a breeze. This Click board™ is a thoroughly tested product, ready for immediate use on a system equipped with the mikroBUS™ socket. Enjoy unmatched performance and stability with the LDO Click Board™—your ultimate solution for powering noise-sensitive components.
