SKU: MIKROE-5639LED Driver 19 Click Board
LED Driver 19 Click Board
Couldn't load pickup availability
Key Features
- 12 individual LED channels, 12-bit PWM control, 8-bit analog control, thermal shutdown protection, low power consumption, 8 programmable pattern sequences in non-volatile memory, fault flag pin, high efficiency and performance, and more
- Based on the LED1202 - 12-channel low quiescent current LED driver from STMicroelectronics
- Can be used for color mixing and backlight application for amusement products, LED status signalization, home automation projects, and more
- mikroBUS: I2C Interface
Revolutionize Your LED Control with the LED Driver 19 Click Board™
Experience a new level of simplicity and precision in LED management with the compact and convenient LED Driver 19 Click Board™. Engineered with the LED1202 - a highly efficient 12-channel LED driver from STMicroelectronics - this board will radically enhance your control over multiple LEDs.
Outstanding Power Output and Adjustable Channels
This board boasts an impressive power output of 5V and can provide up to 20mA to each channel, with a headroom voltage of typically 350mW. You'll love the unique feature that allows each channel to be individually adjusted with 4096 pulse-width modulated (12-bit PWM) steps. With a programmable current value for all channels and a maximum of 20mA of LED current per channel, this board grants unparalleled control and precision.
Advanced Features for the Perfect Light Show
Further enhancing its utility, the LED Driver 19 Click Board™ also incorporates an 8-bit analogue dimming individual control feature. Whether you're creating dazzling colour mixes, crafting backlight applications for amusement products, signalling LED status, or working on home automation projects, this board ensures your lighting is nothing short of spectacular.
Supported by a MikroSDK Compliant Library
Working with the LED Driver 19 Click Board™ is a breeze, thanks to its compatibility with the mikroSDK-compliant library. This feature-rich library includes various functions that significantly streamline software development. Experience the joy of plug-and-play convenience with this fully tested product, designed to be seamlessly integrated into any system equipped with a mikroBUS™ socket.

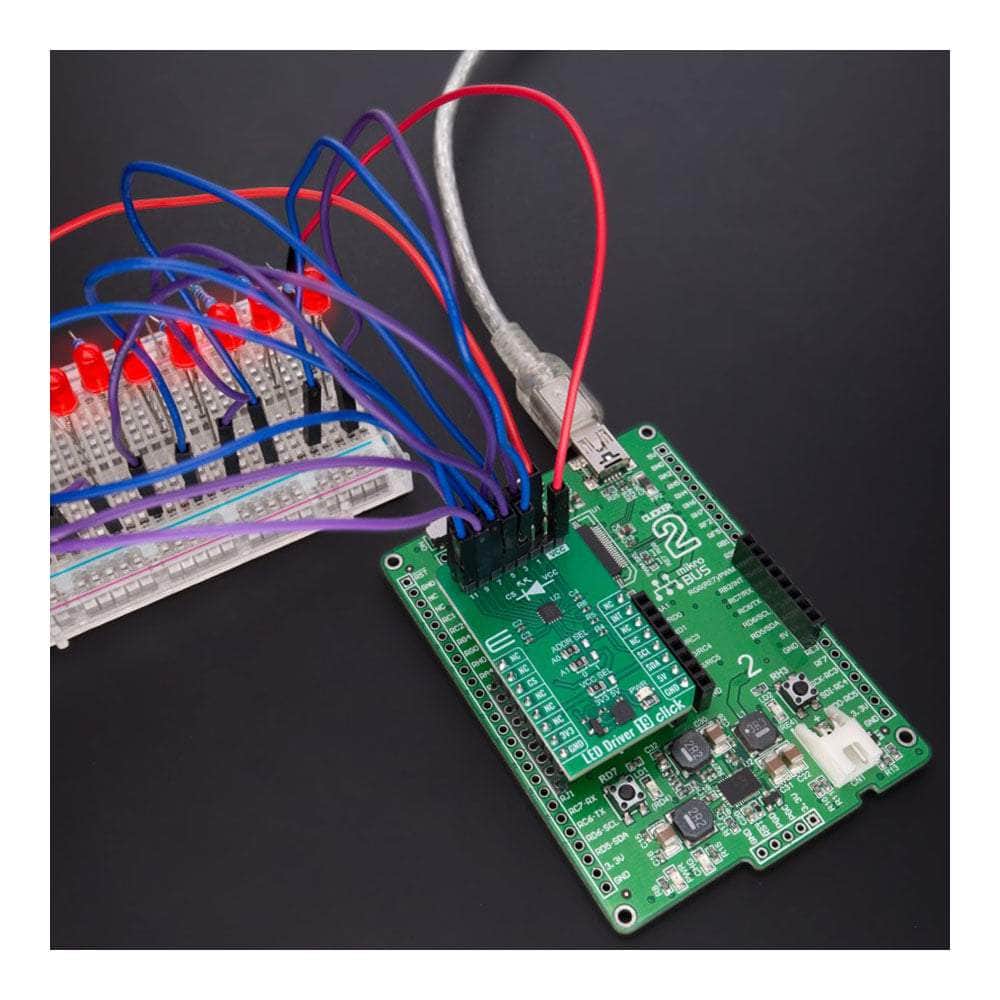

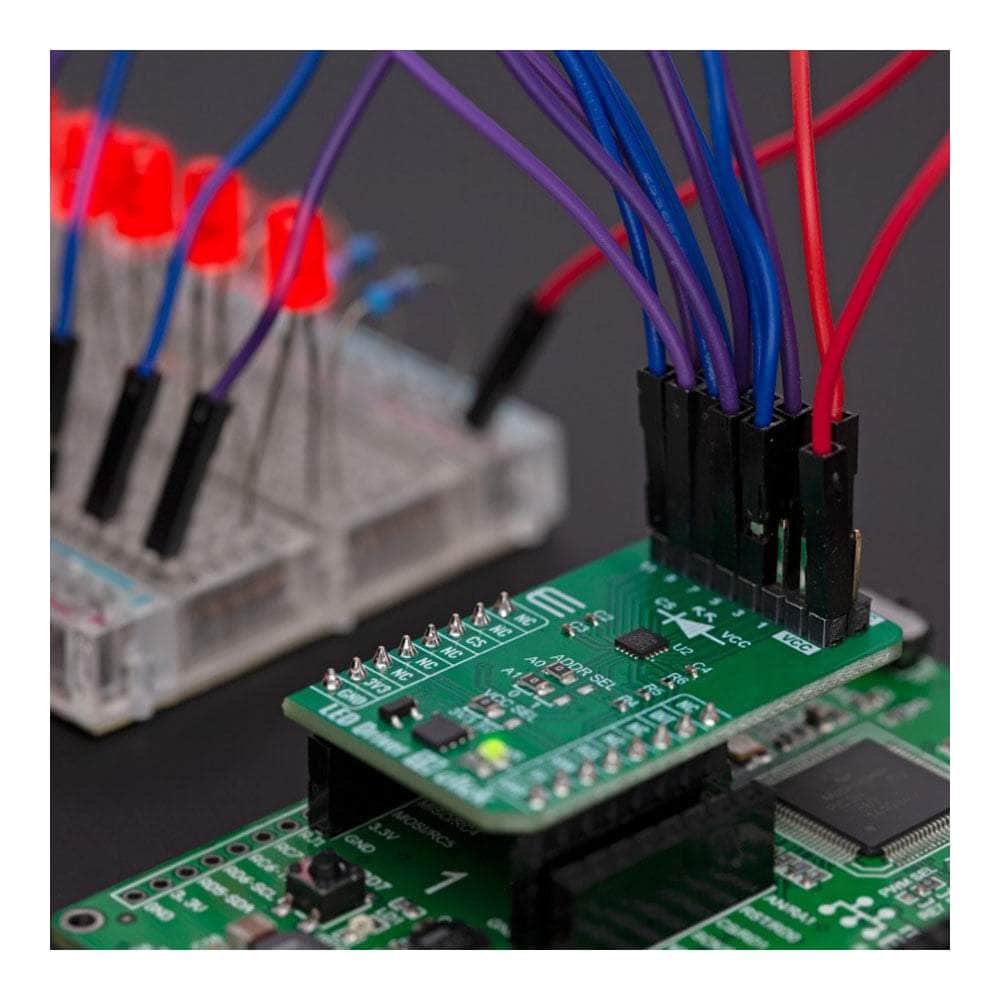

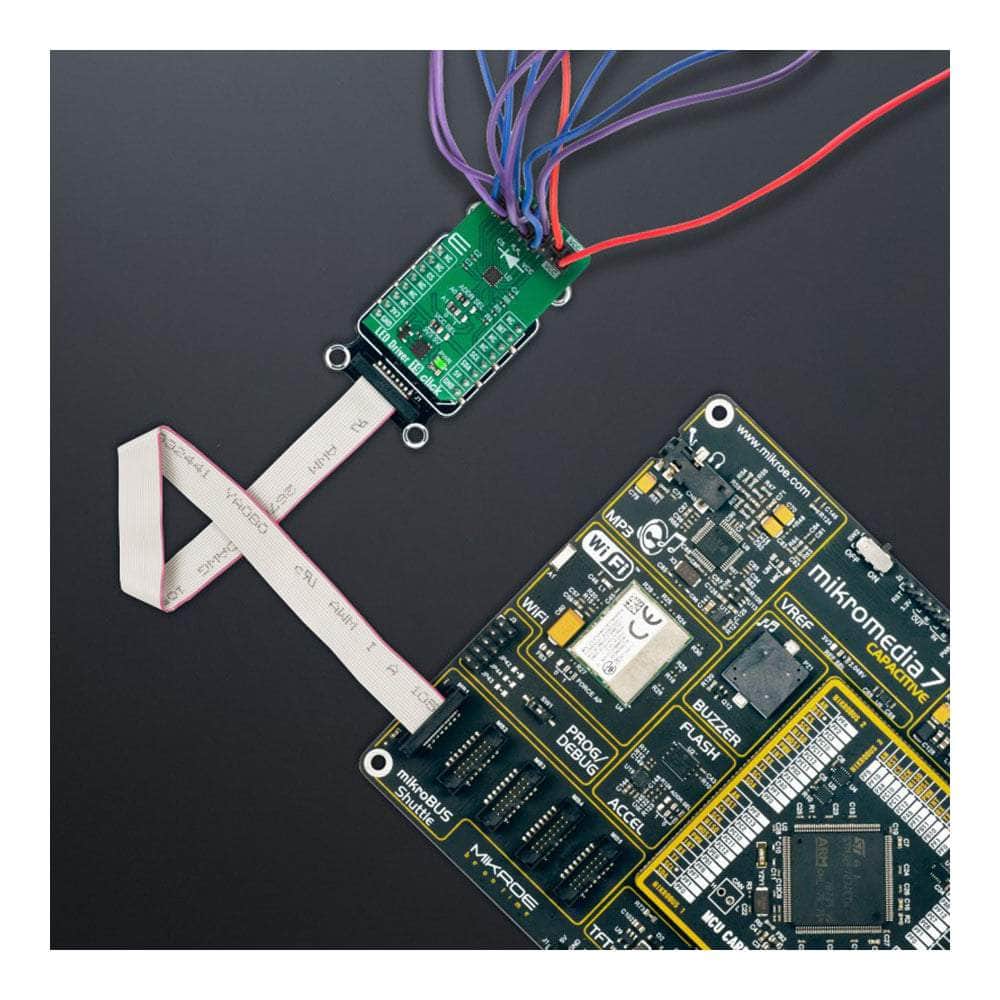

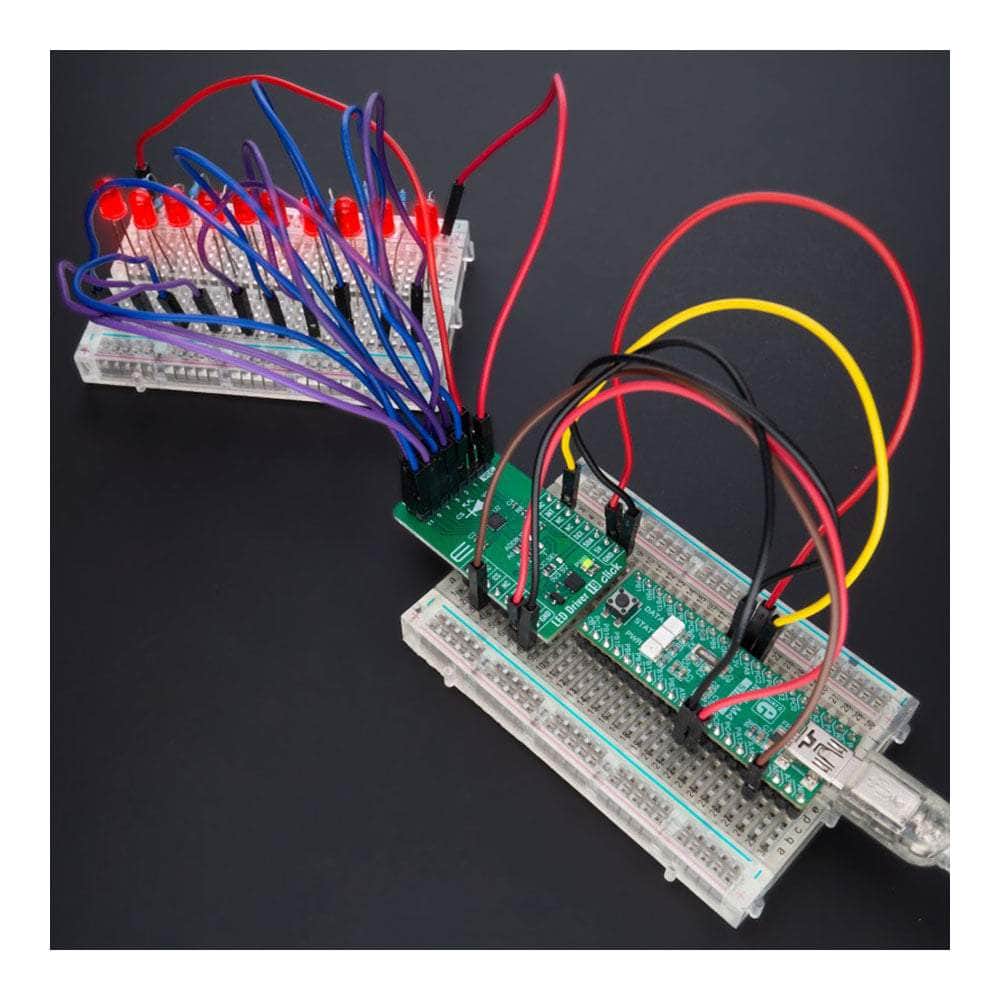

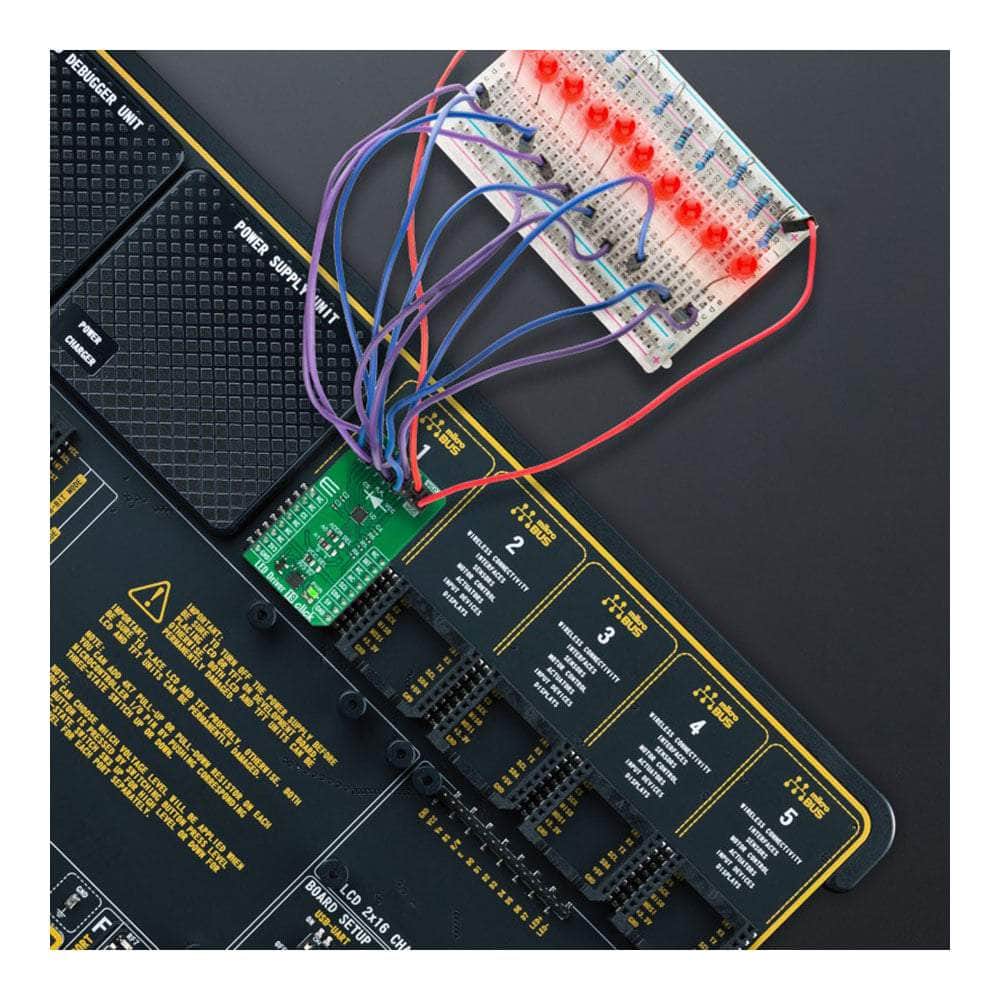

How Does The LED Driver 19 Click Board™ Work?

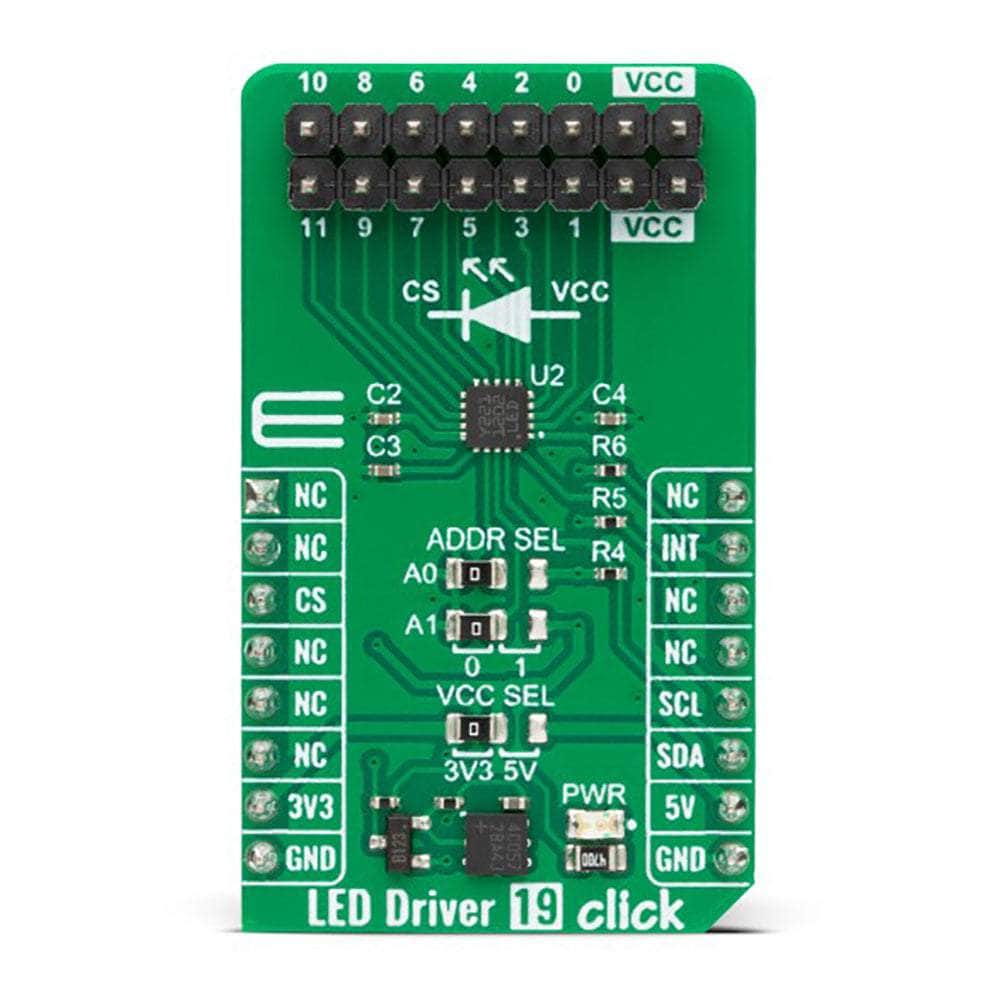

The LED Driver 19 Click Board™ is based on the LED1202, a 12-channel low quiescent current LED driver from STMicroelectronics. Its internal non-volatile memory can store up to 8 different patterns, each with a particular output configuration, thus enabling automatic sequencing without MCU intervention. Each channel has an output PWM dimming frequency of 220Hz in a 12-bit resolution. Analog dimming range is from 1 up to 20mA, in 256 steps per channel, and common to all patterns. In addition, using one of the PWM or analog modes, you can use both of them to achieve full control of LED brightness. This LED driver also features a built-in open LED detection and thermal shutdown function that turns OFF all output drivers during an over-temperature condition.
The LED Driver 19 Click Board™ uses a standard I2C 2-Wire interface to communicate with the host MCU. The I2C address can be selected via two ADDR SEL jumpers, where 0 is selected by default on both. The LED1202 driver can generate an interrupt on the INT pin if a fault or condition occurs; by that, it means an open LED, overtemperature, pattern end, and frame start. The INT pin informs the system about those statuses with active LOW.
The LED Driver 19 Click Board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. However, the Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | LED Drivers |
| Applications | Can be used for color mixing and backlight application for amusement products, LED status signalization, home automation projects, and more |
| On-board modules | LED1202 - 12-channel low quiescent current LED driver from STMicroelectronics |
| Key Features | 12 individual LED channels, 12-bit PWM control, 8-bit analog control, thermal shutdown protection, low power consumption, 8 programmable pattern sequences in non-volatile memory, fault flag pin, high efficiency and performance, and more |
| Interface | I2C |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |

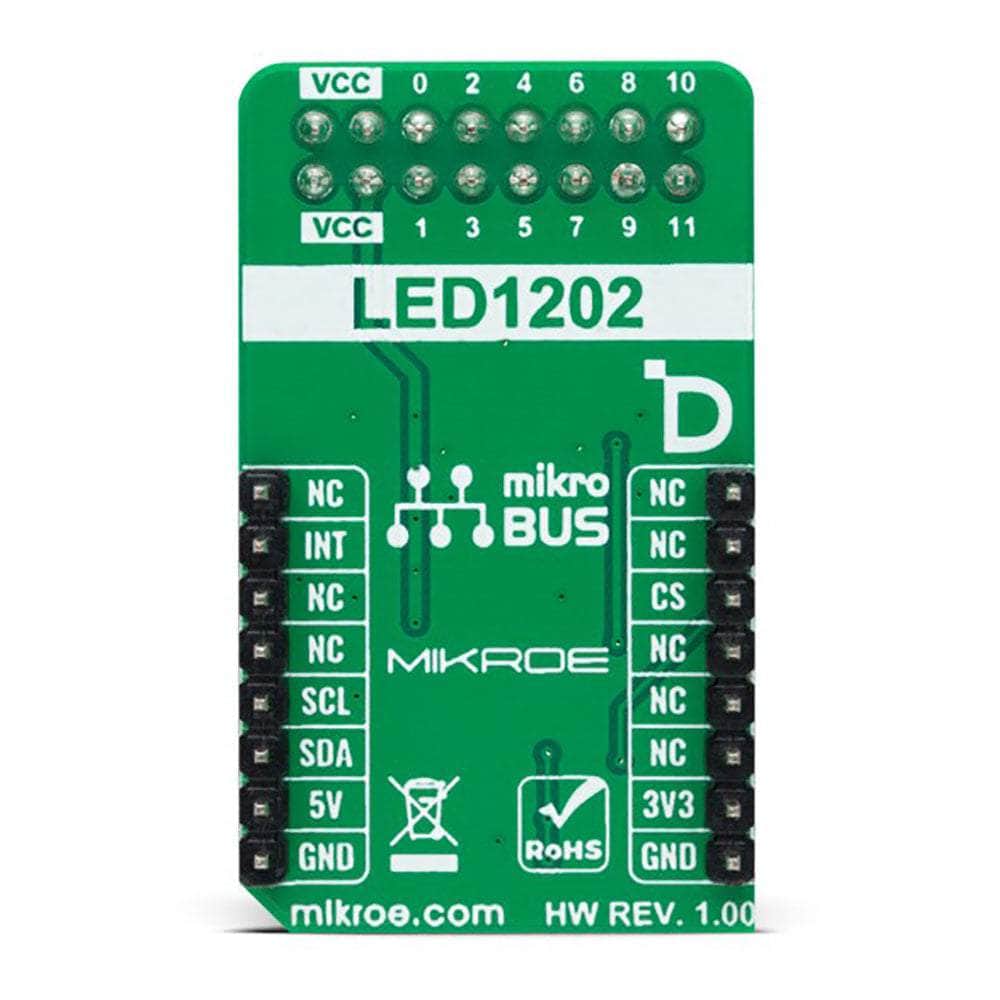

PINOUT DIAGRAM
This table shows how the pinout of the LED Driver 19 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| NC | 2 | RST | INT | 15 | INT | Fault Interrupt | |
| NC | 3 | CS | RX | 14 | NC | ||
| NC | 4 | SCK | TX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | SCL | I2C Clock | |
| NC | 6 | MOSI | SDA | 11 | SDA | I2C Data | |
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | 5V | Power Supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |

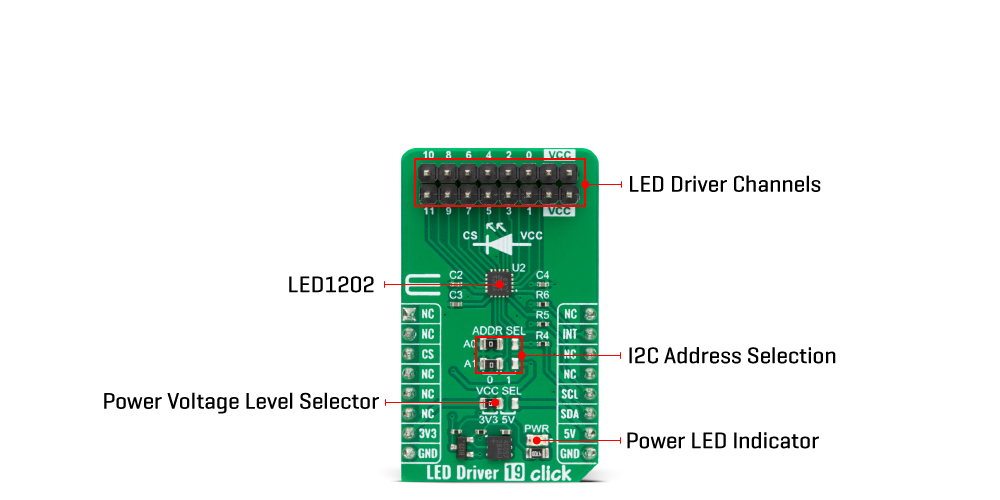

ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
| JP1 | VCC SEL | Left | Power/Logic Voltage Level Selection 3V3/5V: Left position 3V3, Right position 5V |
| JP2-JP3 | ADDR SEL | Right | I2C Address Selection 0/1: Left position 0, Right position 1 |
LED DRIVER 19 CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | 3.3 | - | 5 | V |
| Maximum Output Current per Channel | - | - | 20 | mA |
Software Support
Software Support
We provide a library for the LED Driver 19 Click Board™ as well as a demo application (example), developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.
The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MIKROE Github account.
Library Description
This library contains API for the LED Driver 19 Click Board™ driver.
Key functions
-
leddriver19_sw_resetLED Driver 19 software reset function. -
leddriver19_enable_channelsLED Driver 19 enables channels function. -
leddriver19_set_pattern_pwmLED Driver 19 set pattern PWM value function.
Example Description
This library contains API for the LED Driver 19 Click Board™ driver. The library initializes and defines the I2C bus drivers to write the default configuration for a PWM output value of the out pins.
void application_task ( void )
{
for ( uint8_t n_cnt = LEDDRIVER19_CH_SEL_0; n_cnt <= LEDDRIVER19_CH_SEL_11; n_cnt++ )
{
leddriver19_set_pattern_pwm( &leddriver19, LEDDRIVER19_PATSEL_0, n_cnt, 100 );
Delay_ms( 100 );
}
Delay_ms( 1000 );
for ( uint8_t n_cnt = LEDDRIVER19_CH_SEL_0; n_cnt <= LEDDRIVER19_CH_SEL_11; n_cnt++ )
{
leddriver19_set_pattern_pwm( &leddriver19, LEDDRIVER19_PATSEL_0, n_cnt, 0 );
Delay_ms( 100 );
}
Delay_ms( 1000 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MIKROE Github account.
Other MIKROE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.LEDDriver19
Additional Notes and Information
Depending on the development board you are using, you may need USB UART Click Board™, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MIKROE compilers.
MIKROSDK
Thie LED Driver 19 Click Board™ is supported with mikroSDK - MIKROE Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
LED Driver 19 Click Board
Frequently Asked Questions
Ask a Question-
Is the LED Driver 19 Click Board™ a ready-to-use product?
Yes, the LED Driver 19 Click Board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
-
Is there a software development library available for the LED Driver 19 Click Board™?
Yes, the LED Driver 19 Click Board™ is supported by a mikroSDK compliant library, which includes functions that simplify software development.
-
What applications is the LED Driver 19 Click Board™ suitable for?
The LED Driver 19 Click Board™ is suitable for various applications, including color mixing and backlighting for amusement products, LED status signalization, home automation projects, and more.
-
Can the LED Driver 19 Click Board™ support analog dimming control?
Yes, the LED Driver 19 Click Board™ supports 8-bit analog dimming for individual control.
-
Can the LED Driver 19 Click Board™ control the current value of all channels?
Yes, the LED Driver 19 Click Board™ allows the programming of the current value for all channels. The maximum LED current per channel is 20mA.
-
How many pulse-width modulated (PWM) steps are available for each channel?
Each channel of the LED Driver 19 Click Board™ is individually adjustable with 4096 pulse-width modulated (12-bit PWM) steps.
-
What is the headroom voltage of the LED Driver 19 Click Board™?
The headroom voltage of the LED Driver 19 Click Board™ is typically 350mV.
-
How much current can each channel of the LED Driver 19 Click Board™ provide?
Each channel of the LED Driver 19 Click Board™ can provide up to 20mA of current.
-
What is the output voltage of the LED Driver 19 Click Board™?
The LED Driver 19 Click Board™ can output 5V.
-
What is the LED Driver 19 Click Board™?
The LED Driver 19 Click Board™ is a compact add-on board designed to simplify the control of multiple LEDs. It features the LED1202, a 12-channel low quiescent current LED driver from STMicroelectronics.
