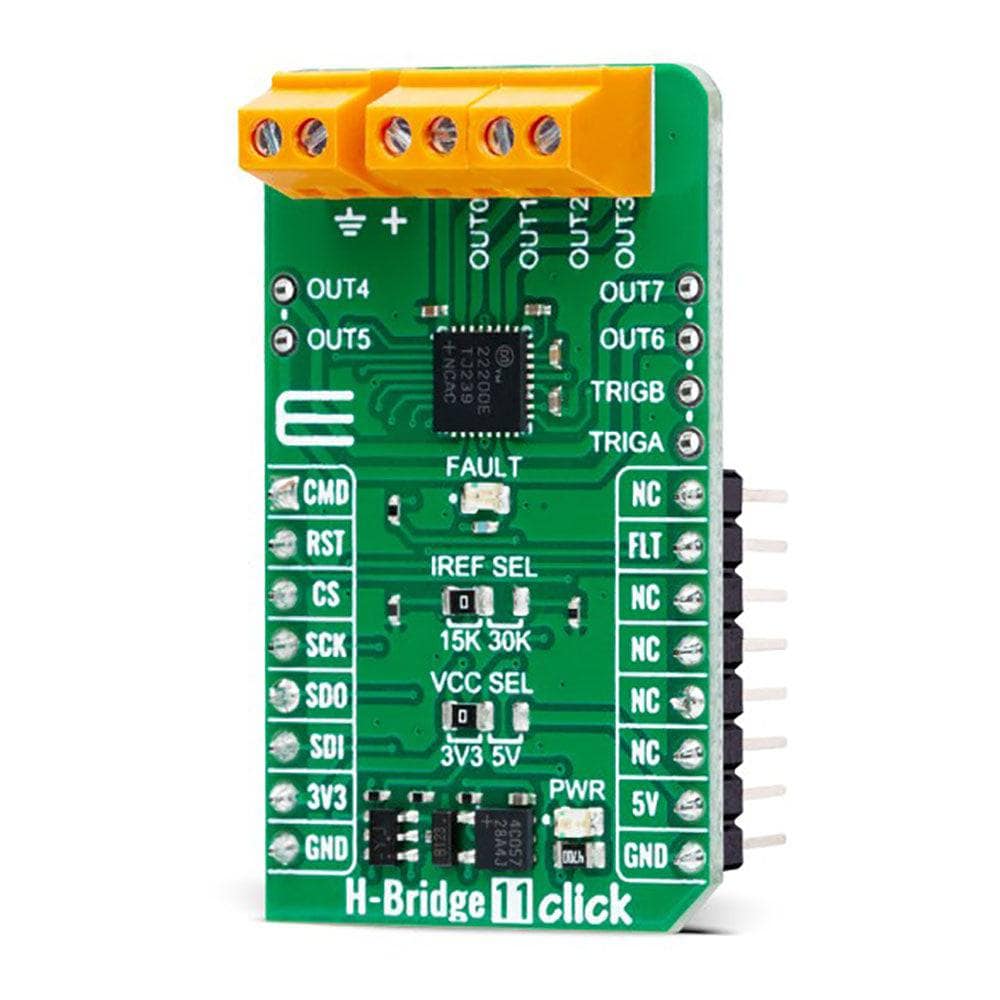

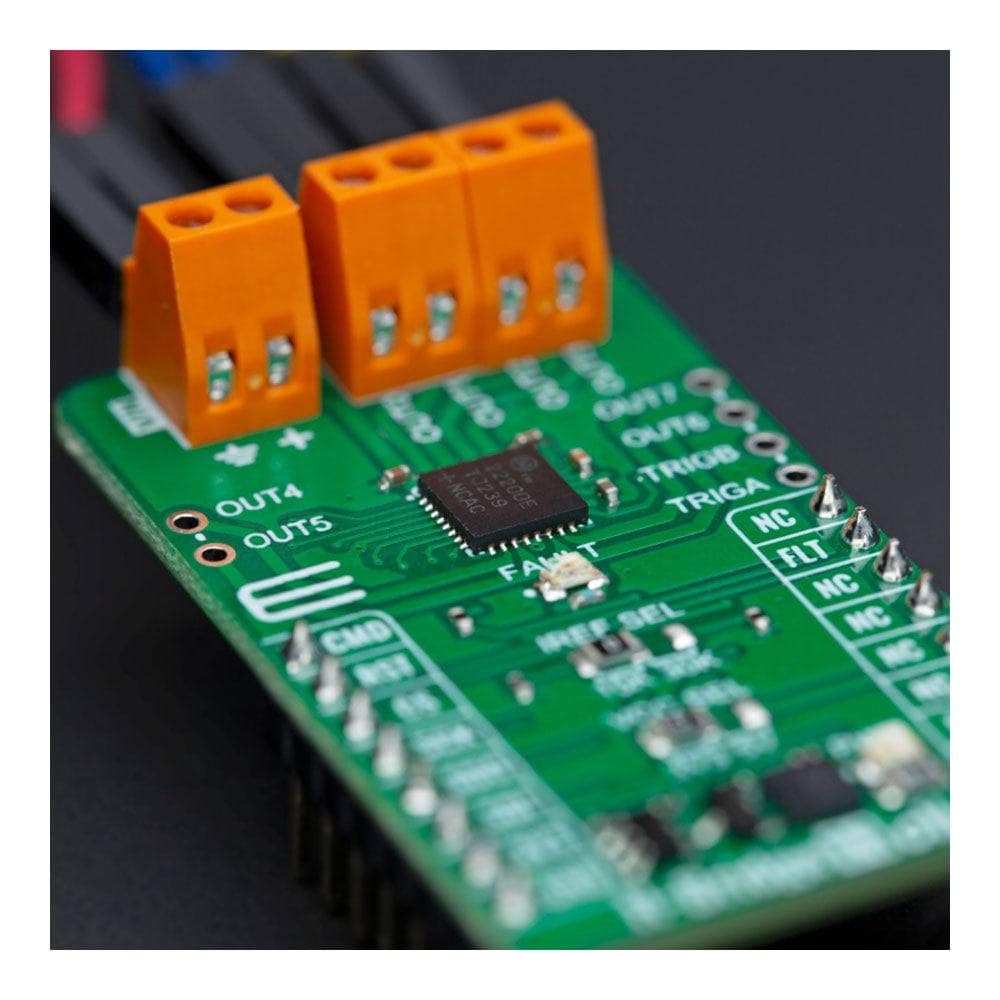

H-Bridge 11 Click Board

H-Bridge 11 Click Board

Regular price
$38.00 USD exc tax
Regular price Sale price
$38.00 USD exc tax
Sale Sold out
Shipping calculated at checkout.
When pre-ordered, this item normally ships within 10 working days

Key Features

  • Eight half-bridges up to +36V, high performance, programmable output current, two control methods, high flexibility, high-speed SPI interface, full set of protection and diagnostic features, and more
  • Based on the MAX22200 - serial-controlled solenoid and motor driver from Analog Devices
  • Can be used for solenoid driver applications (valve control, relays control) in which low power consumption and a high level of integration are required
  • mikroBUS: SPI Interface

Introducing the H-Bridge 11 Click Board™: The Ultimate Motor and Solenoid Control Solution

Discover the power of the H-Bridge 11 Click Board™, a compact add-on board designed to apply a voltage across a load in either direction. This board promises unparalleled performance and reliability and is equipped with the cutting-edge MAX22200 octal serial-controlled solenoid and motor driver from Analog Devices.

Highly Configurable with Outstanding Performance

With an SPI-configurable MAX22200, the H-Bridge 11 Click Board™ operates within a voltage range of 4.5V to 36V. Each channel boasts a low-impedance push-pull output stage featuring sink-and-source driving capability up to 1A RMS driving current. The internal half-bridges can be set up as low-side or high-side drivers, offering incredible flexibility.

Dual Control Methods & Advanced Features

The H-Bridge 11 Click Board™ supports voltage and current drive regulation control methods. Additionally, it comes with a full set of protections and diagnostic functions, making it the perfect choice for solenoid driver applications (valve control, relay control) where low power consumption and a high level of integration are paramount.

mikroSDK-Compliant Library for Simplified Development

Thanks to the mikroSDK-compliant library, the H-Bridge 11 Click Board™ streamlines software development with various functions that make it easy to use. As a fully tested product, the Click board™ is ready for seamless integration into a system equipped with a mikroBUS™ socket. Experience the ultimate in voltage control with the H-Bridge 11 Click Board™ today!
