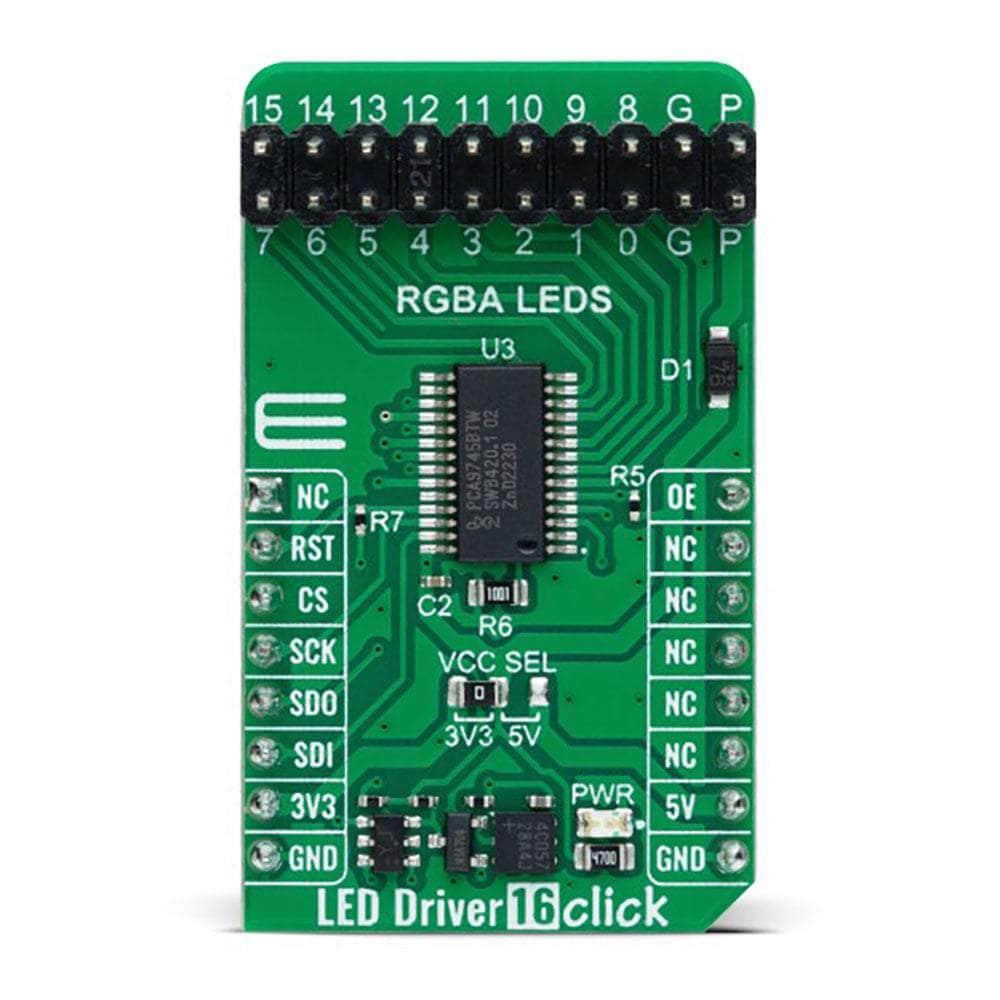

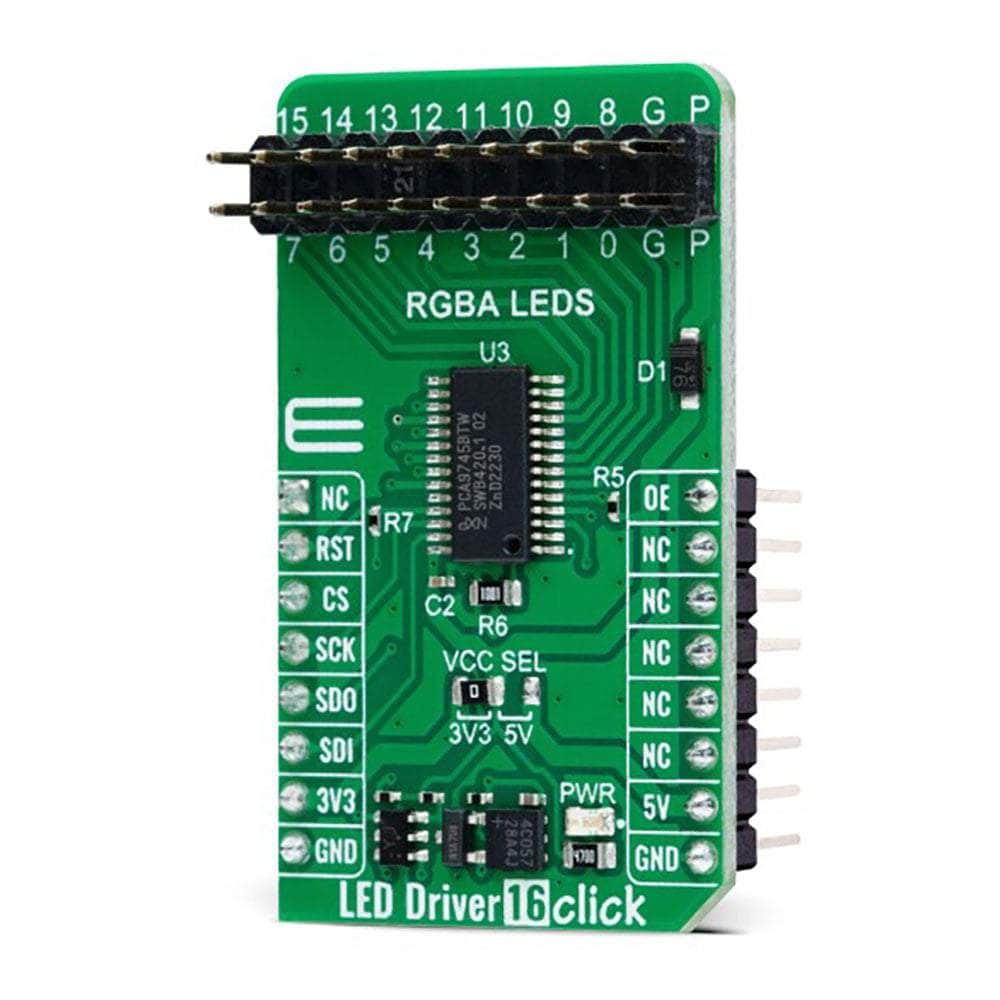

LED Driver 16 Click Board

Revolutionize Your LED Control with LED Driver 16 Click

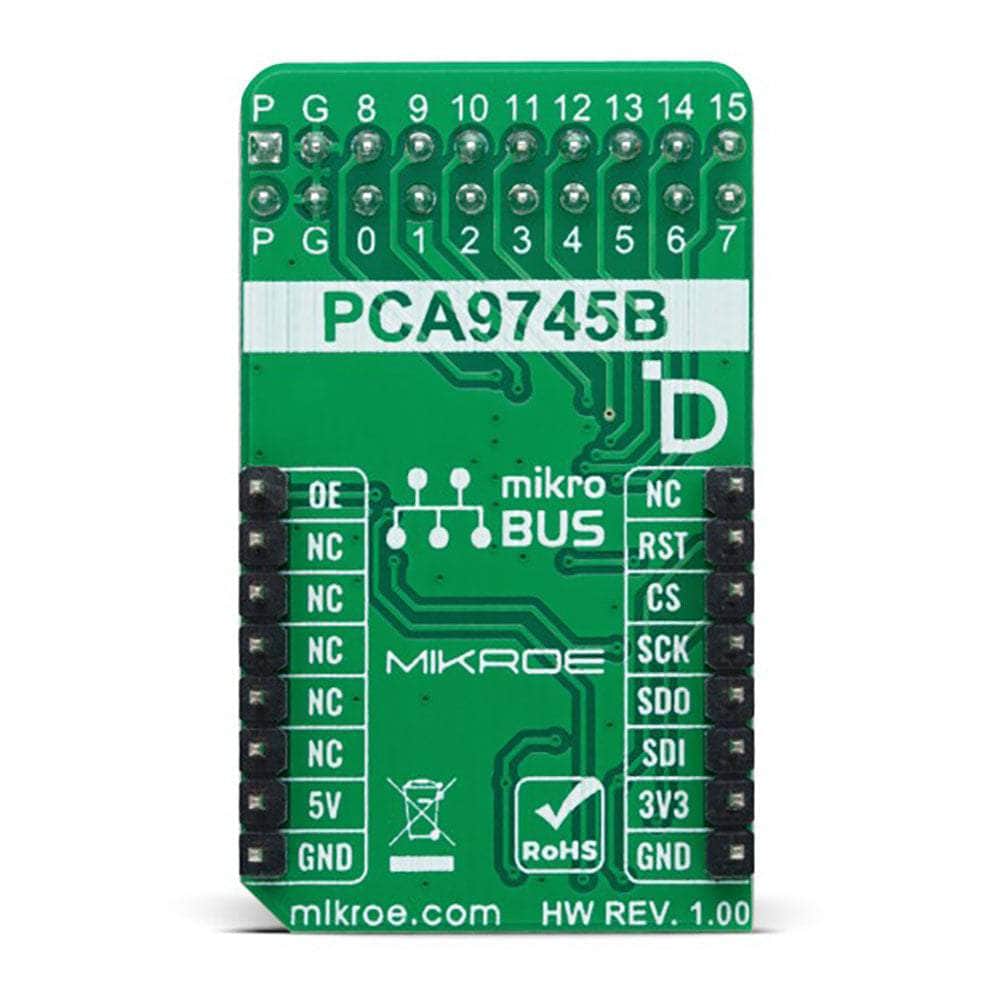

Unleashing the Power of PCA9745B

LED Driver 16 Click is not just another LED control board. It's a game-changer in LED illumination, powered by the formidable PCA9745B from NXP Semiconductors. This sixteen-channel constant current LED driver is the heart of the board, offering unparalleled precision and flexibility in LED control.

Precision Lighting at Your Fingertips

Each of the sixteen LED Driver 16 Click channels boasts an 8-bit resolution PWM controller. This means you have 256 control steps, ensuring smooth and precise brightness adjustments. Operating at a 31.25kHz frequency, the driver allows an adjustable duty cycle from 0 to 100%, enabling you to set the LED brightness to the required level.

Versatile Power Options

Flexibility is critical in electronic design. The LED Driver 16 Click is designed to support both 3.3V and 5V power rails from the mikroBUS™ socket. This versatility ensures that the board can be seamlessly integrated into a wide range of existing systems.

High Current, High Performance

With a maximum output current of 57mA per channel, this board can drive a wide array of LEDs, making it suitable for both small-scale projects and more prominent, more demanding applications.

Advanced Protection for Peace of Mind

LED Driver 16 Click is engineered with multiple built-in protection functions. These safeguards ensure that the circuit remains secure and functional despite electrical abnormalities, providing you with peace of mind and reliability.

Perfect for a Range of Applications

Whether for consumer amusement applications, LED status signalization, or any other project requiring high-quality LED control, LED Driver 16 Click is up to the task. Its design is particularly optimized for dimming and blinking RGBA LEDs, adding a touch of sophistication to any project.

Simplified Software Development

Supported by a mikroSDK-compliant library, this Click board™ takes the hassle out of software development. The library includes a variety of functions designed to simplify the coding process, making your project development faster and more efficient.

Ready to Use

LED Driver 16 Click comes thoroughly tested and ready to be used on any system equipped with a mikroBUS™ socket. This plug-and-play functionality means you can get started on your project immediately, without additional setup or testing.
