Mikroelektronika d.o.o.

SKU: MIKROE-5175

Hall Current 15 Click Board

Hall Current 15 Click Board

Regular price
£25.20 inc VAT
£21.00 exc VAT
Regular price Sale price
£25.20 inc VAT
£21.00 exc VAT
Sale Sold out
Shipping calculated at checkout.
When pre-ordered, this item normally ships within 10 working days

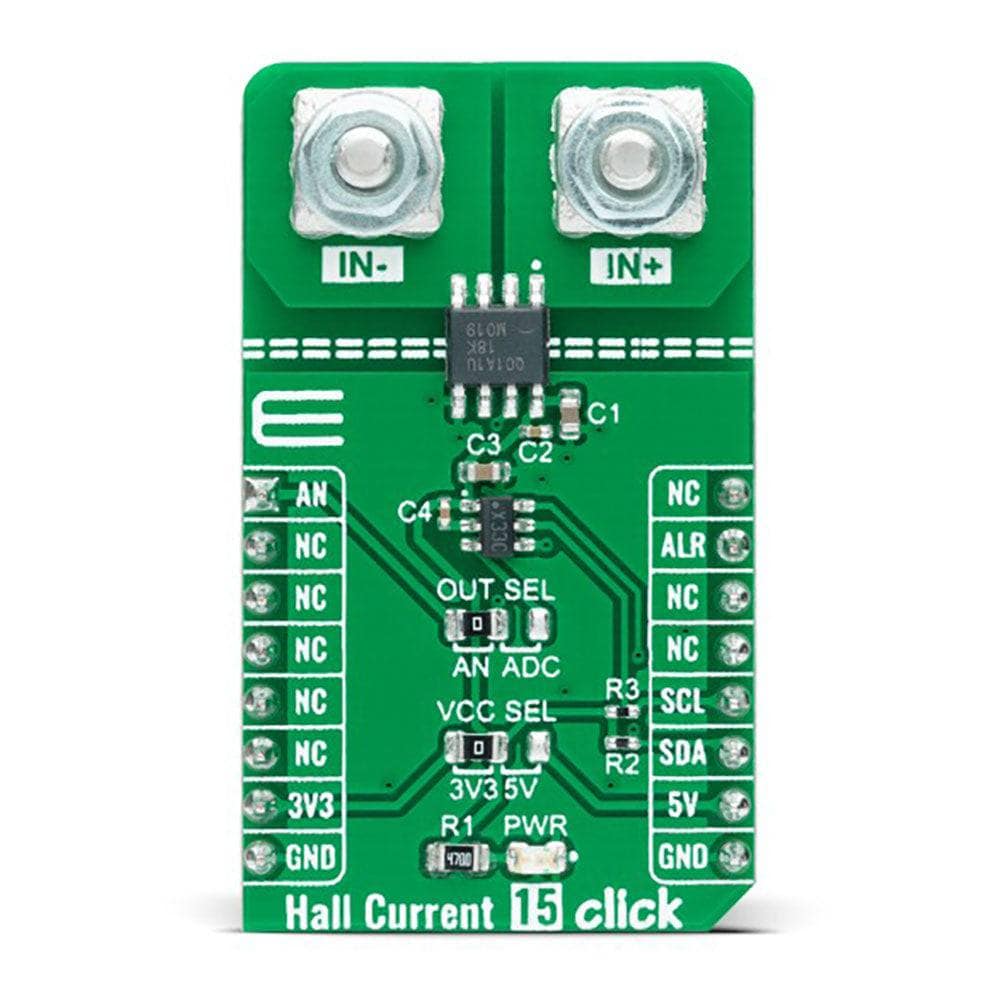

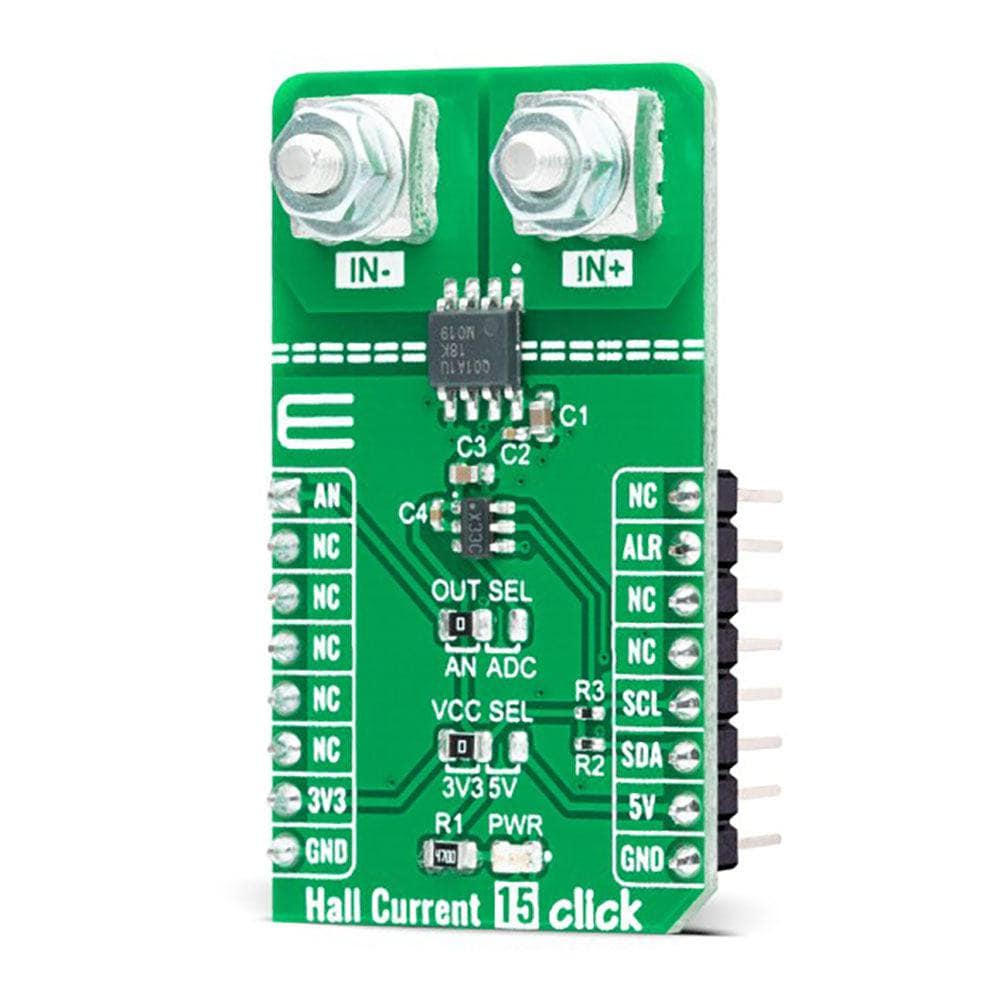

The Hall Current 15 Click Board™ is a compact add-on board that provides precise AC or DC current-sensing solution. This board features the TMCS1101-Q1, a galvanically isolated Hall-effect current sensor capable of DC or AC current measurement with high accuracy, excellent linearity, and temperature stability from Texas Instruments. A low-drift, temperature-compensated signal chain provides <1.5% full-scale error across a broad operating temperature range. It also provides a reliable 600V lifetime working voltage and 3kVRMS isolation between the current path and circuitry with uni/bidirectional current sensing. Besides, the user is allowed to process the output signal in analogue or digital form. This Click board™ is suitable for AC or DC current-sensing in industrial and commercial systems, motor and load control, power factor correction, overcurrent protection, and more.

The Hall Current 15 Click Board™ is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
