Product Description

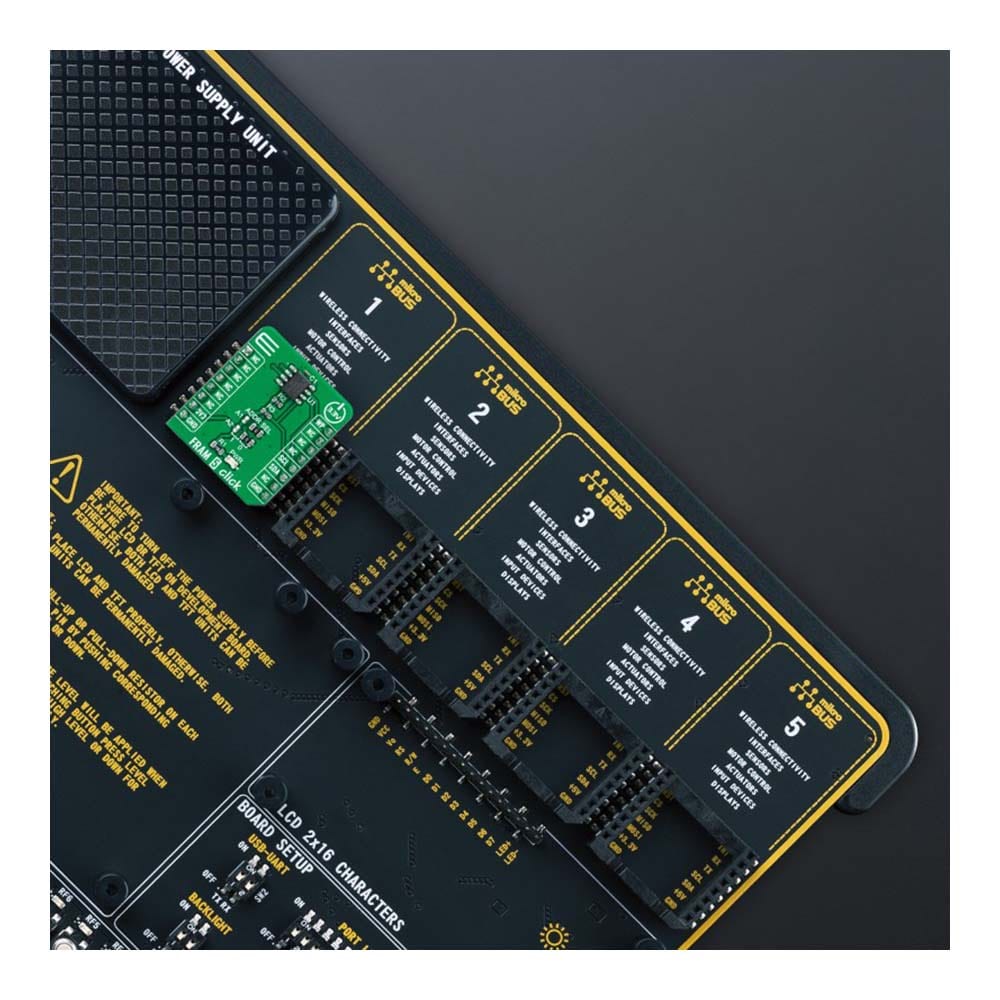

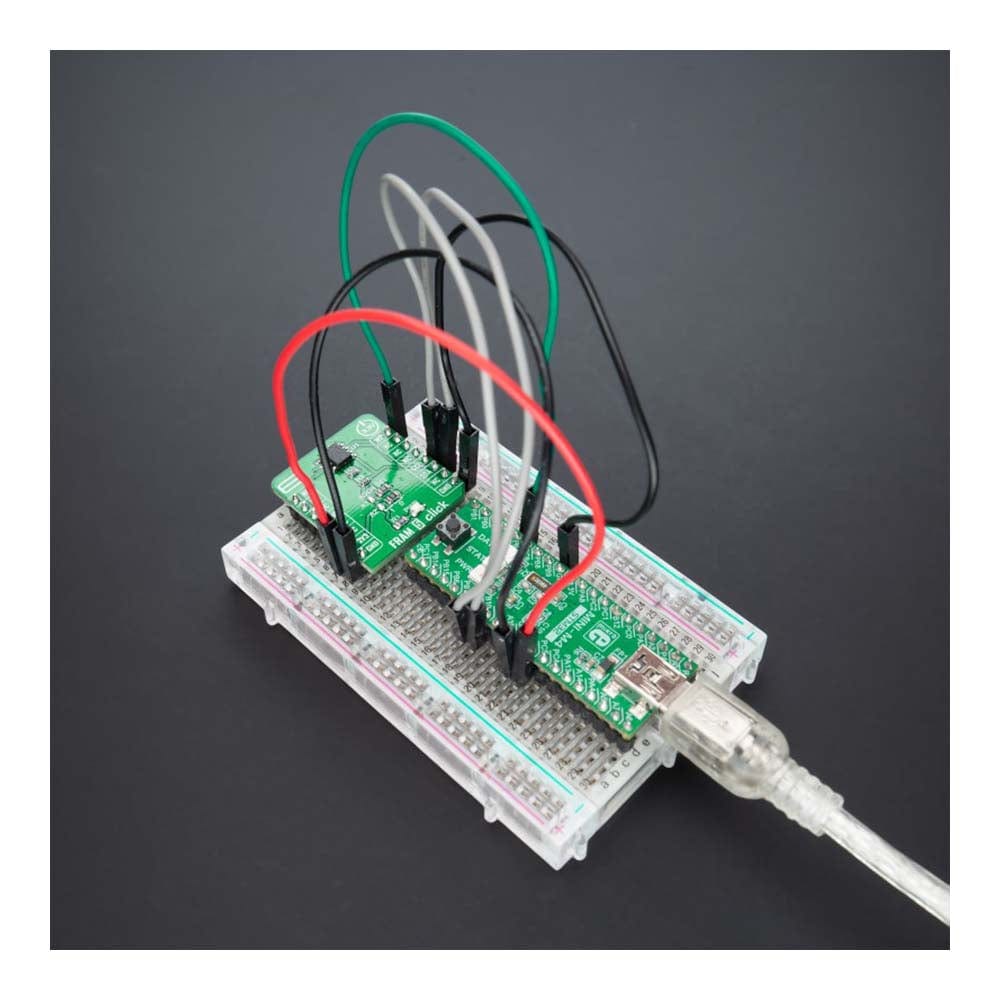

How Does The FRAM 5 Click Board™ Work?

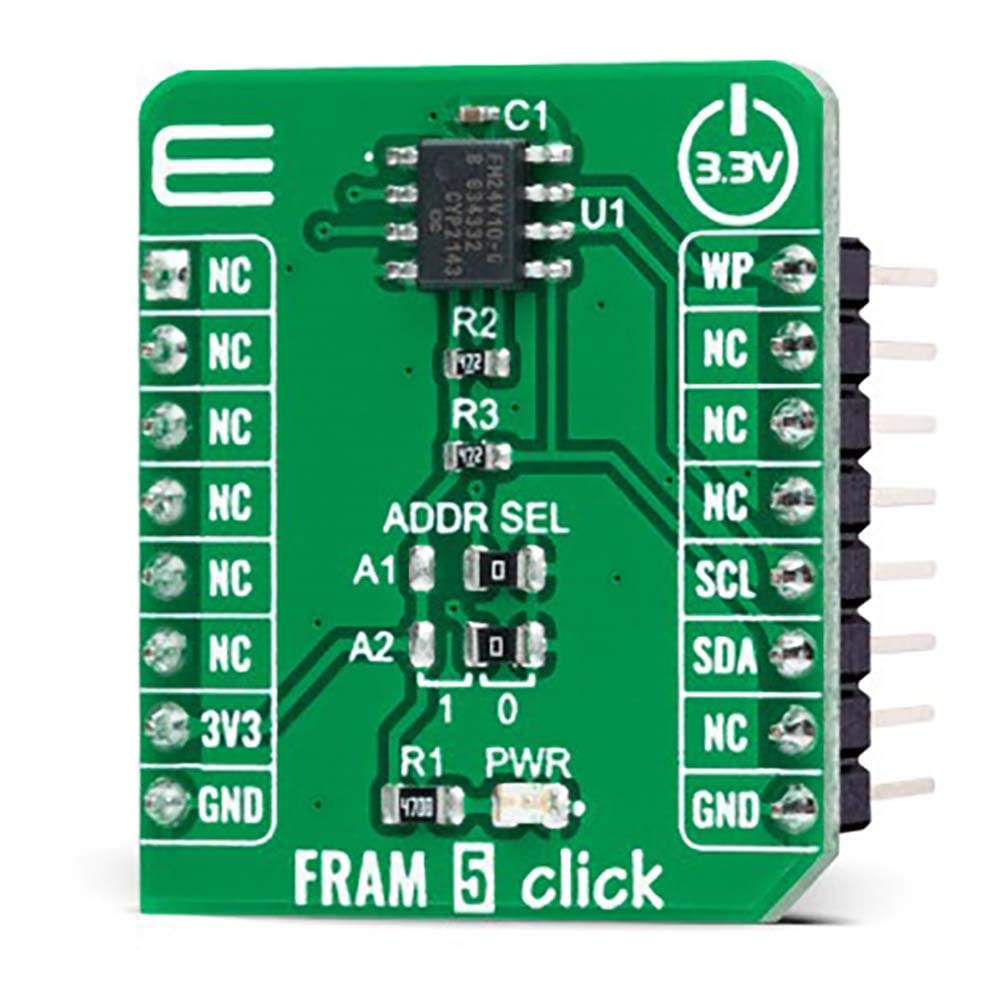

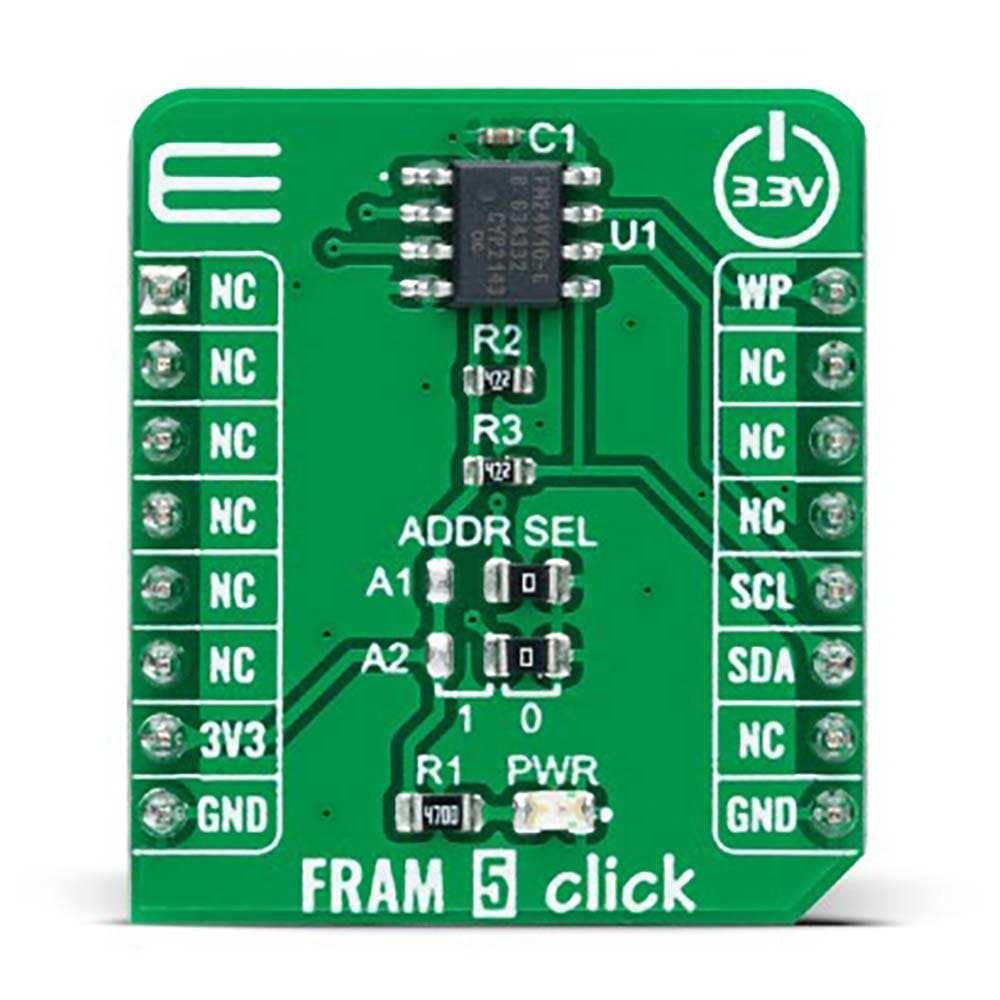

The FRAM 5 Click Board™ as its foundation uses the FM24V10, a 1Mbit ferroelectric random access memory (FRAM) logically organized as 131,072×8 bits and accessed using an industry-standard I2C interface from Infineon. The functional operation of the FRAM is similar to serial I2C EEPROM, where the significant difference between the FM24V10 and EEPROM represents the F-RAM's superior write performance, high endurance, and low power consumption. The FRAM 5 Click Board™ is ideal for nonvolatile memory applications requiring frequent or rapid writes, where example ranges from data collection to demanding industrial controls where the long write time of serial EEPROM can cause data loss.

The FRAM 5 Click Board™ communicates with MCU using the standard I2C 2-Wire interface, supporting operation with a clock frequency up to 3.4MHz. Unlike serial EEPROM, the FM24V10 performs write operations at bus speed, where no write delays are incurred. It provides reliable data retention for 151 years while eliminating the complexities, overhead, and system-level reliability problems caused by EEPROM and other nonvolatile memories and supports 10 trillion (1014) read/write cycles or 100 million times more write cycles than EEPROM. Besides, the FM24V10 allows choosing its I2C slave address using the SMD jumpers labelled ADDR SEL. The selection can be made by positioning the SMD jumpers to an appropriate position marked as 1 or 0.
An additional feature of this FRAM represents the configurable Write Protection function labelled as WP routed on the PWM pin of the mikroBUS™ socket. The WP pin protects the entire memory and all registers from write operations and must be set to a high logic state to inhibit all the write operations. All memory and register writes are prohibited when this pin is high, and the address counter is not incremented.
The FRAM 5 Click Board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
Type |
FRAM |
Applications |
The FRAM 5 Click Board™ can be used for nonvolatile memory applications requiring frequent or rapid writes and unlimited endurance |
On-board modules |
FM24V10 - 1Mbit nonvolatile memory employing an advanced ferroelectric process organized as 128K words of 8 bits each from Infineon |
Key Features |
Low power consumption, high endurance, 151 years data retention, advanced high-reliability ferroelectric process, fast serial interface, sophisticated write protection scheme, and more |
Interface |
I2C |
Compatibility |
mikroBUS |
Click board size |
S (28.6 x 25.4 mm) |
Input Voltage |
3.3V |
PINOUT DIAGRAM

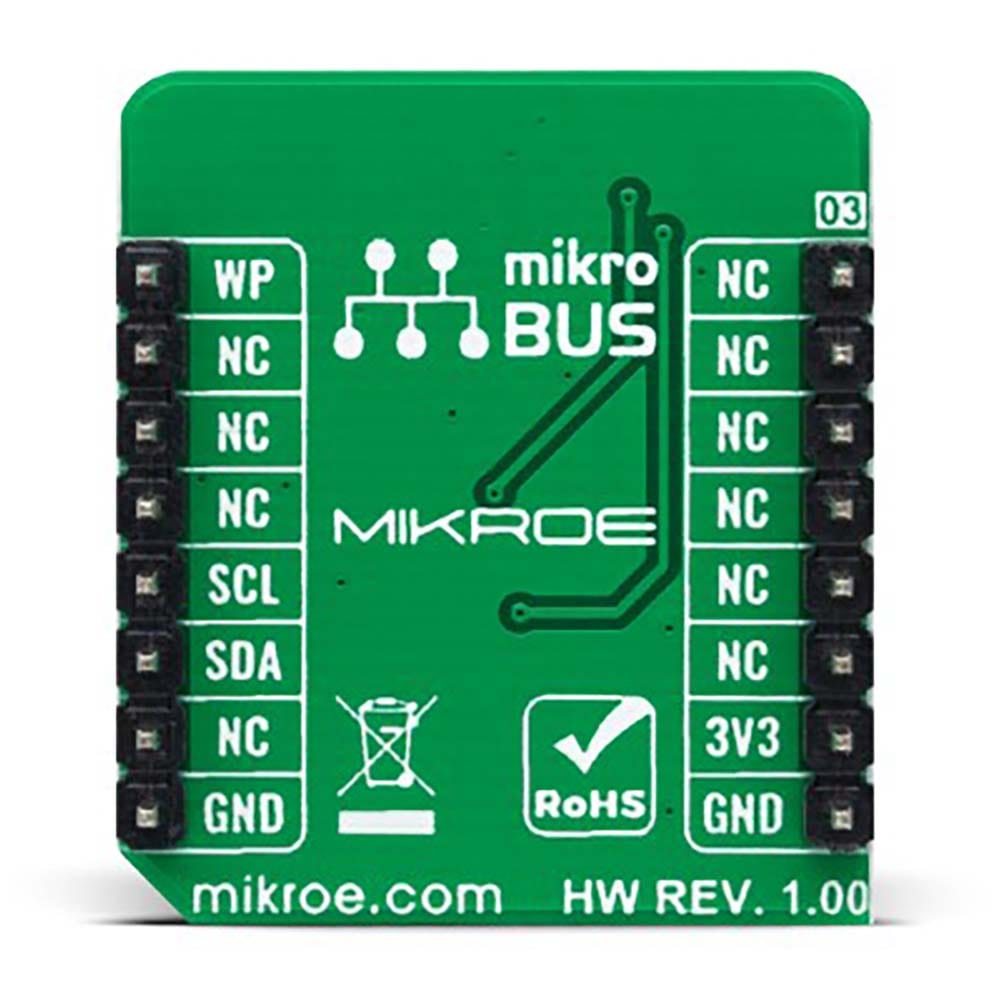

This table shows how the pinout of the FRAM 5 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Notes |
Pin |
 |
Pin |
Notes |
NC |
1 |
AN |
PWM |
16 |
WP |
Write Protect |
NC |
2 |
RST |
INT |
15 |
NC |
NC |
3 |
CS |
RX |
14 |
NC |
NC |
4 |
SCK |
TX |
13 |
NC |
NC |
5 |
MISO |
SCL |
12 |
SCL |
I2C Clock |
NC |
6 |
MOSI |
SDA |
11 |
SDA |
I2C Data |
Power Supply |
3.3V |
7 |
3.3V |
5V |
10 |
NC |
Ground |
GND |
8 |
GND |
GND |
9 |
GND |
Ground |
ONBOARD SETTINGS AND INDICATORS
Label |
Name |
Default |
Description |
LD1 |
PWR |
- |
Power LED Indicator |
JP1-JP2 |
ADDR SEL |
Right |
I2C Address Selection 1/0: Left position 1, Right position 0 |
FRAM 5 CLICK ELECTRICAL SPECIFICATIONS
Description |
Min |
Typ |
Max |
Unit |
Supply Voltage |
- |
3.3 |
- |
V |
Memory Size |
- |
- |
1 |
Mbit |
Write Endurance |
1014 |
- |
- |
Write Cycles |
Data Retention |
151 |
- |
- |
Years |
Operating Temperature Range |
-40 |
+25 |
+85 |
°C |
