SKU: MIKROE-4987Flash 9 Click Board
Flash 9 Click Board
Couldn't load pickup availability
Key Features
- High performance, low power consumption, reliability, flexible architecture with 4KB sectors, advanced security features, data retention, and more.
- Based on the W25Q02JV - SPI configurable serial Flash memory solution from Winbond Electronics
- Can be used to provide a storage solution for limited space and power systems in various embedded applications
- mikroBUS: SPI Interface

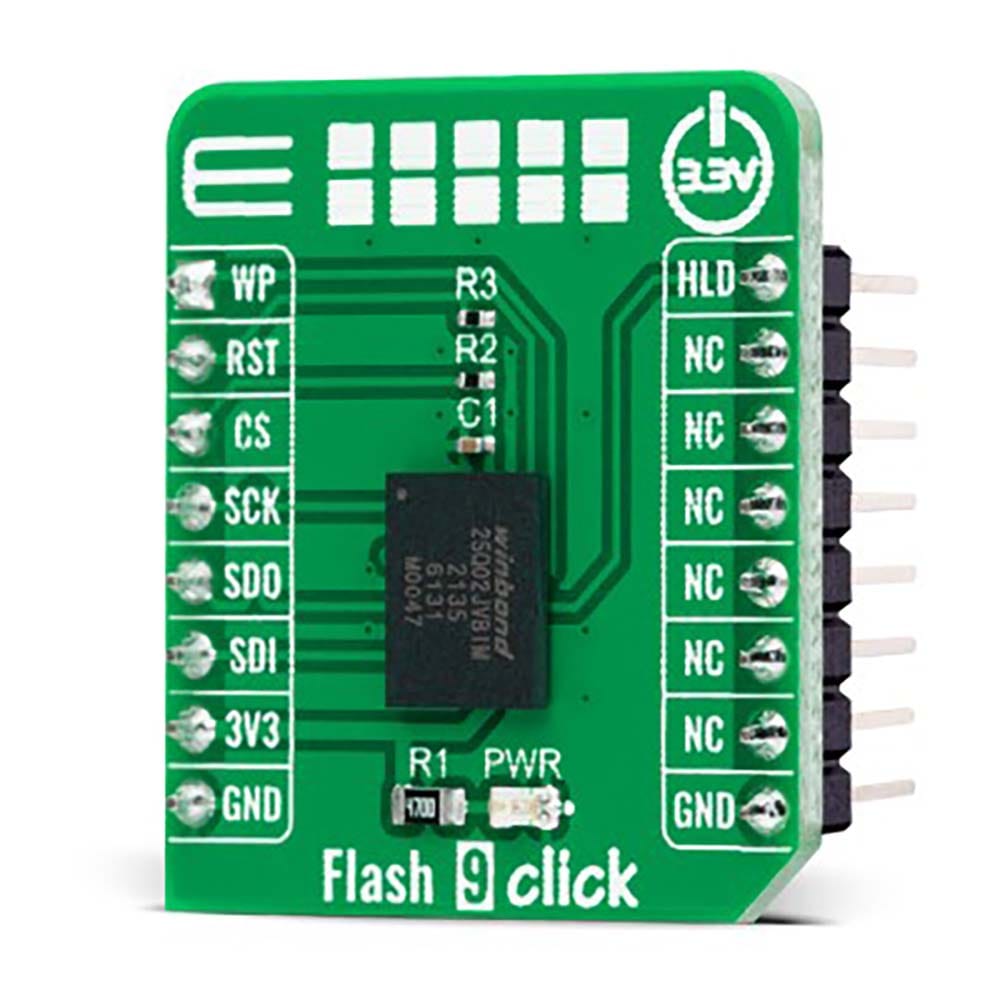

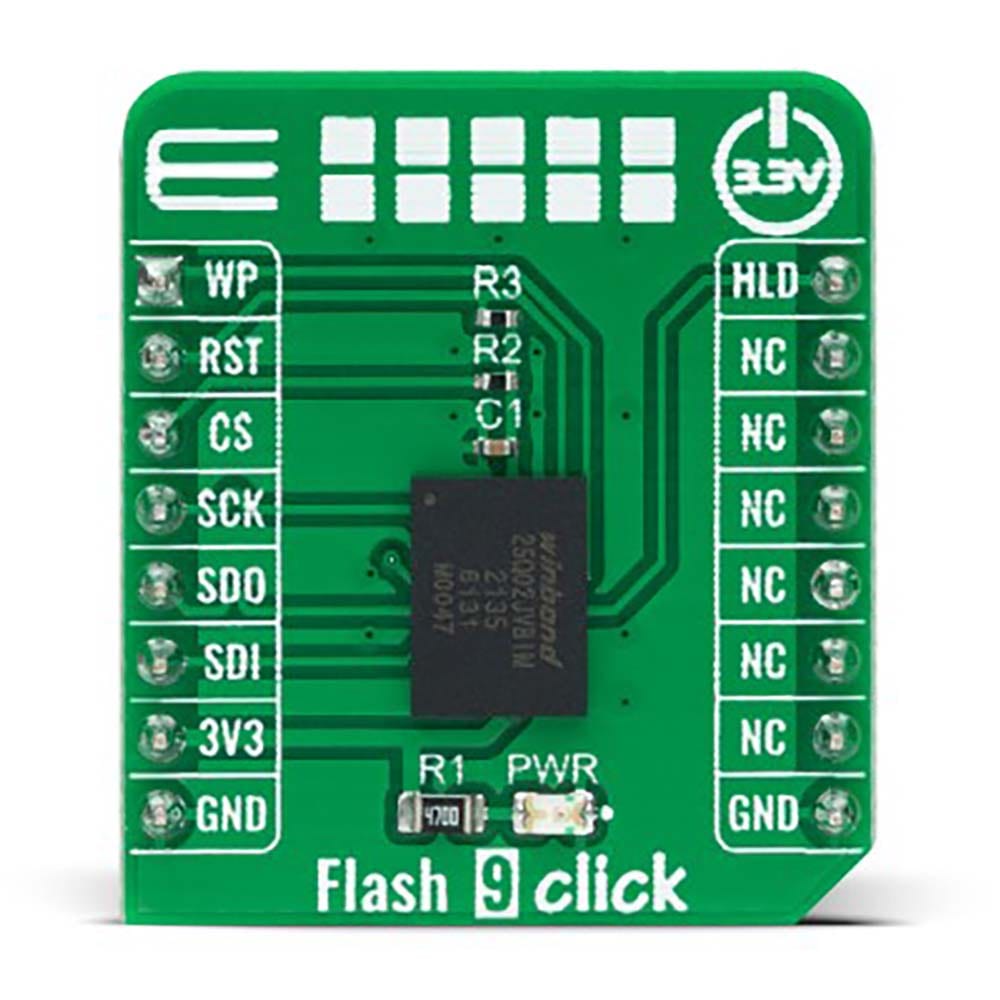

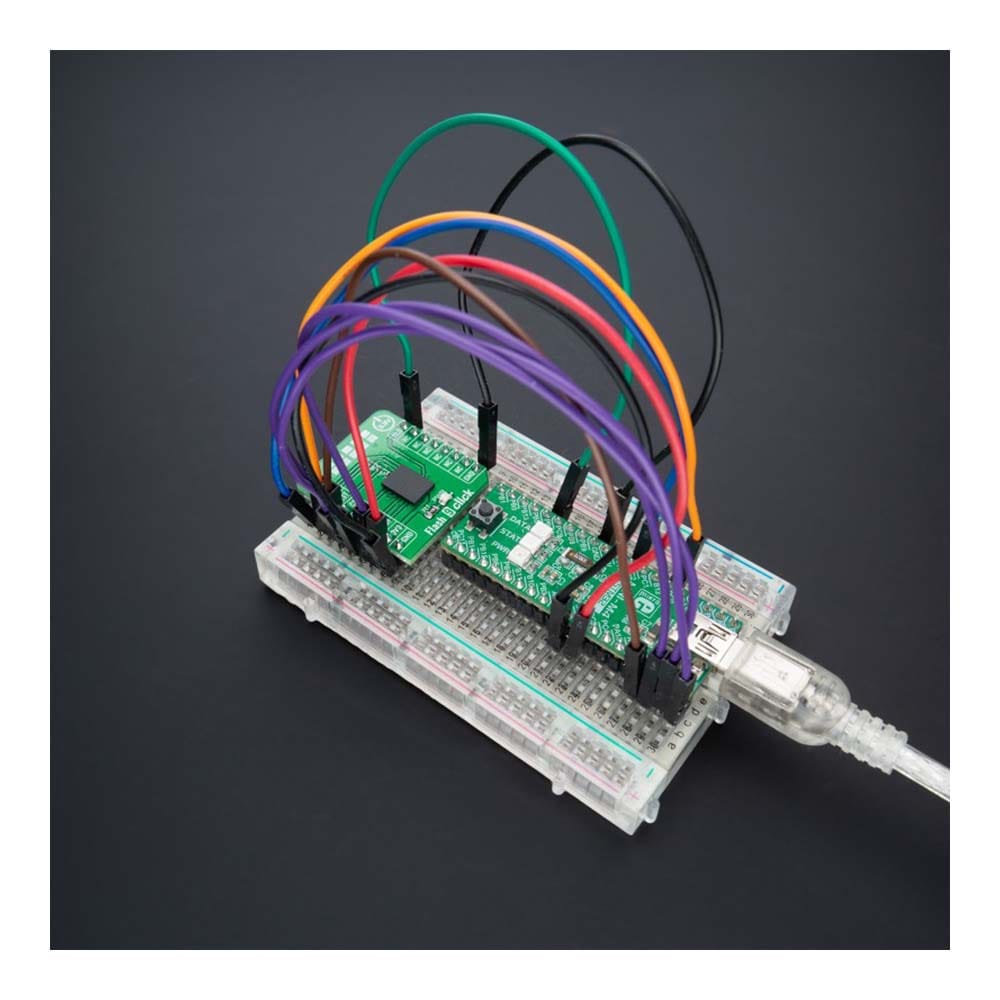

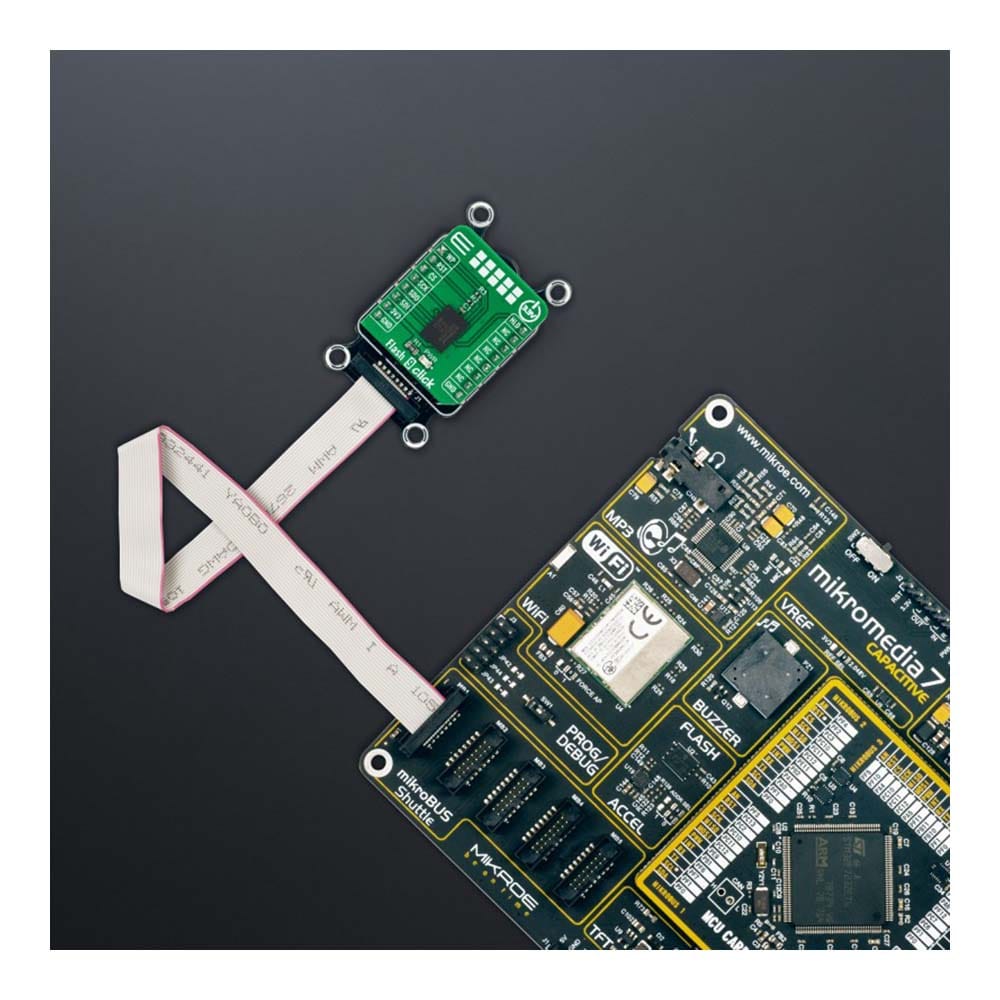

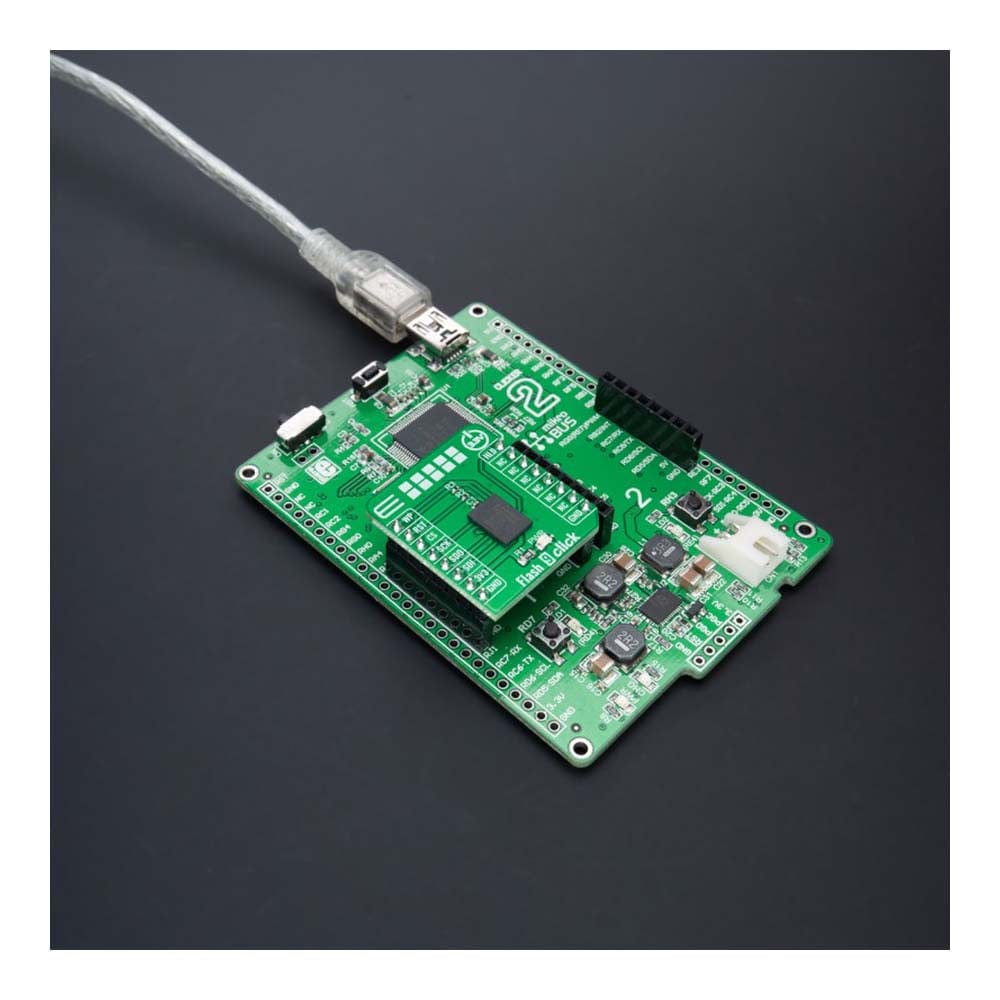

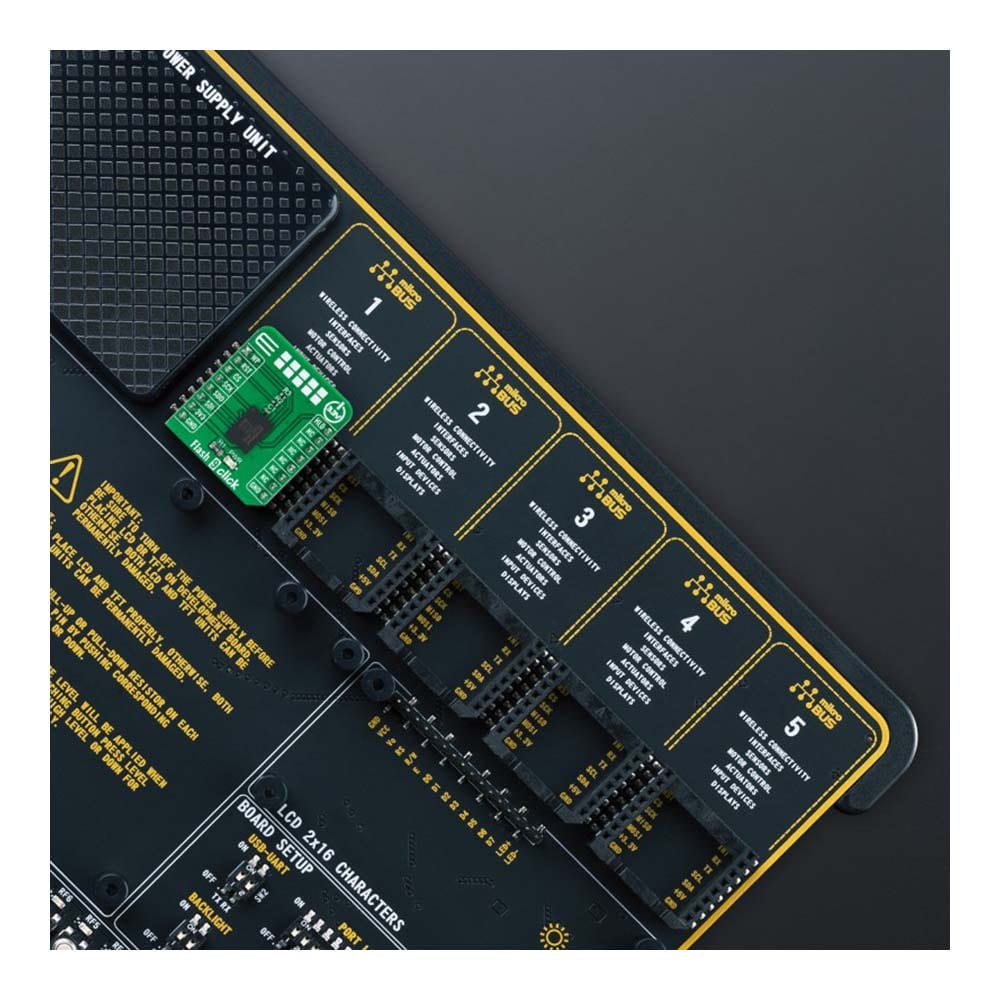

The Flash 9 Click Board™ is a compact add-on board that contains a highly reliable memory solution. This board features the W25Q02JV, an SPI configurable serial Flash memory solution from Winbond Electronics. It represents a four 512Mb stack die supporting linear addressing for the full 2Gb memory address range, offering flexibility and performance well beyond ordinary Serial Flash devices. The W25Q02JV array is organized into 1,048,576 programmable pages of 256-bytes each, where up to 256 bytes can be programmed at a time. This memory also has advanced security features, can withstand many write cycles (minimum 100k), and has a data retention period greater than 20 years. This Click board™ provides a storage solution for limited space and power systems in various embedded applications.
The Flash 9 Click Board™ is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
How Does The Flash 9 Click Board™ Work?
The Flash 9 Click Board™ is based on the the W25Q02JV, a highly reliable serial Flash memory solution offering flexibility and performance well beyond ordinary Serial Flash devices from Winbond Electronics. The W25Q02JV represents a four 512Mb stack die where only one can be active at any given time to communicate with the external SPI controller. It supports linear addressing for the full 2Gb memory address range (continuously-read accessible only into four separate 512Mb address memory segments). The W25Q02JV array is organized into 1,048,576 programmable pages of 256-bytes each, where up to 256 bytes can be programmed at a time.
Pages of the W25Q02JV can be erased in groups of 16 (4KB sector erase), groups of 128 (32KB block erase), groups of 256 (64KB block erase), or the entire chip (chip erase). This IC has 32,768 erasable 4KB sectors and 2,048 erasable 64KB blocks, respectively. The small 4KB sectors allow for greater flexibility in applications that require data and parameter storage. Also, it specifies a minimum of 100.000 endurance cycles with data retention of a minimum of 20 years, which gives the W25Q02JV the capability to handle unlimited reads/writes to the memory.
The Flash 9 Click Board™ communicates with MCU through a standard SPI interface that enables high clock speed, supporting the two most common SPI modes, SPI Mode 0 and 3. Alongside the internal software Reset sequence, this board also has an active-low reset signal routed on the RST pin of the mikroBUS™ socket used to reset the W25Q02JV to the initial power-on state. When this signal is asserted low, any ongoing program/erase operation will be interrupted, and data corruption may happen (the device will not accept any command input).
An additional feature of this Click board™ represents the configurable Write Protection function labelled as WP routed on the AN pin of the mikroBUS™ socket. The WP pin protects the entire memory and all registers from write operations and must be set to a low logic state to inhibit all the write operations. Besides, the Flash 9 Click also has an additional hold pin, labelled as HLD and routed to the PWM pin of the mikroBUS™ socket, allowing the device to be paused while it's still actively selected.
The Flash 9 Click Board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | FLASH |
| Applications | Can be used to provide a storage solution for limited space and power systems in various embedded applications |
| On-board modules | W25Q02JV - SPI configurable serial Flash memory solution from Winbond Electronics |
| Key Features | High performance, low power consumption, reliability, flexible architecture with 4KB sectors, advanced security features, data retention, and more. |
| Interface | SPI |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
| Input Voltage | 3.3V |
PINOUT DIAGRAM

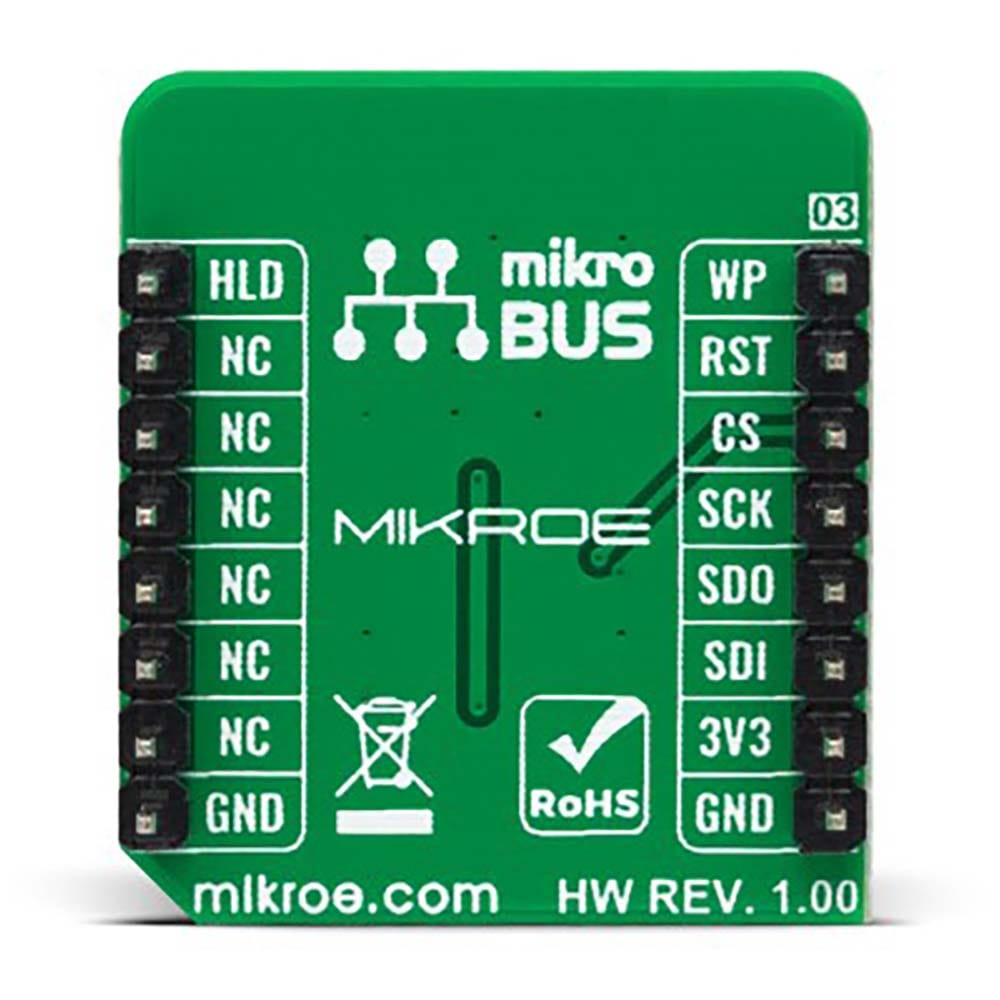

This table shows how the pinout of the Flash 9 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| Write Protect | WP | 1 | AN | PWM | 16 | HLD | SPI Suspension |
| Reset | RST | 2 | RST | INT | 15 | NC | |
| SPI Chip Select | CS | 3 | CS | RX | 14 | NC | |
| SPI Clock | SCK | 4 | SCK | TX | 13 | NC | |
| SPI Data OUT | SDO | 5 | MISO | SCL | 12 | NC | |
| SPI Data IN | SDI | 6 | MOSI | SDA | 11 | NC | |
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | NC | |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
FLASH 9 CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | - | 3.3 | - | V |
| Memory Size | - | - | 2 | Gbit |
| Write Endurance | 100.000 | - | - | cycles |
| Write Endurance | 20 | - | - | years |
| Operating Temperature Range | -40 | +25 | +85 | °C |
Software Support
We provide a library for the Flash 9 Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MikroE Github account.
Library Description
This library contains API for the Flash 9 Click Board™ driver.
Key functions
-
flash9_erase_memoryThis function erases the selected amount of memory which contains the selected address. -
flash9_memory_writeThis function writes a desired number of data bytes to the memory starting from the selected address. -
flash9_memory_read_fastThis function reads a desired number of data bytes from the memory starting from the selected address performing the fast read command.
Example Description
This example demonstrates the use of the Flash 9 Click Board™ by writing specified data to the memory and reading it back.
void application_task ( void )
{
uint8_t data_buf[ 128 ] = { 0 };
if ( FLASH9_OK == flash9_erase_memory ( &flash9, FLASH9_CMD_SECTOR_ERASE_WITH_4BYTE_ADDRESS,
STARTING_ADDRESS ) )
{
log_printf ( &logger, "Sector from address 0x%.8LX has been erased!rn", STARTING_ADDRESS );
}
Delay_ms ( 500 );
if ( FLASH9_OK == flash9_memory_write ( &flash9, STARTING_ADDRESS, DEMO_TEXT_MESSAGE,
strlen ( DEMO_TEXT_MESSAGE ) ) )
{
log_printf ( &logger, "Data written to address 0x%.8LX: "%s"rn", STARTING_ADDRESS,
( char * ) DEMO_TEXT_MESSAGE );
}
Delay_ms ( 500 );
if ( FLASH9_OK == flash9_memory_read_fast ( &flash9, STARTING_ADDRESS, data_buf,
strlen ( DEMO_TEXT_MESSAGE ) ) )
{
log_printf ( &logger, "Data read from address 0x%.8LX: "%s"rnn", STARTING_ADDRESS,
data_buf );
}
Delay_ms ( 2000 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MikroE Github account.
Other MikroE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.Flash9
Additional Notes and Information
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.
MIKROSDK
The Flash 9 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
