Mikroelektronika d.o.o.

SKU: MIKROE-4743

ADC 13 Click Board

ADC 13 Click Board

Regular price
£61.20 inc VAT
£51.00 exc VAT
Regular price Sale price
£61.20 inc VAT
£51.00 exc VAT
Sale Sold out
Shipping calculated at checkout.
Order NOW to ship within 10 working days

Key Features

  • Low power consumption, low noise and drift, integrated PGA, internal fault monitors, 11 multifunction analog inputs, high accuracy, and more
  • Based on the ADS1262 - low noise, low-drift, 38.4kSPS, delta-sigma (ΔΣ) ADC with an integrated PGA, reference, and internal fault monitors from Texas Instruments
  • Can be used for the most demanding sensor applications, including weighing scales, strain-gauge sensors, thermocouples, and resistance temperature devices (RTD)

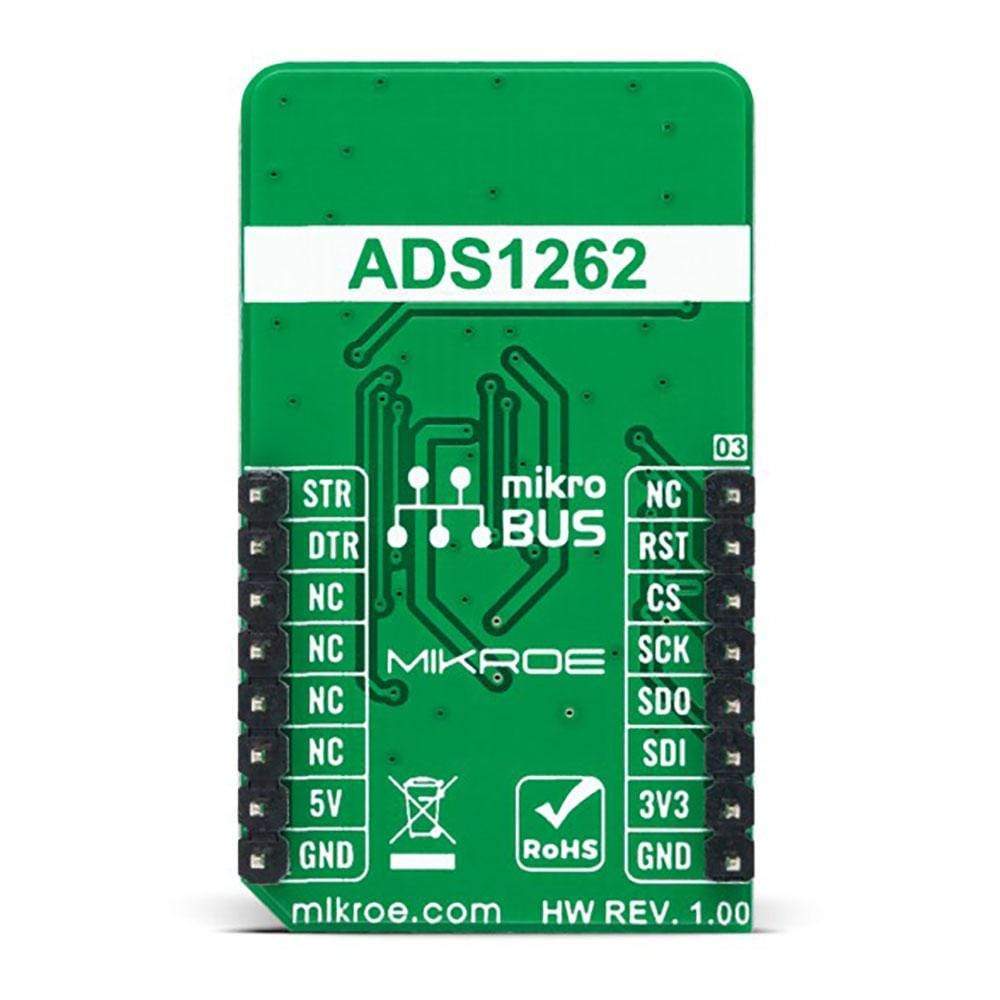

  • mikroBUS: SPI Interface

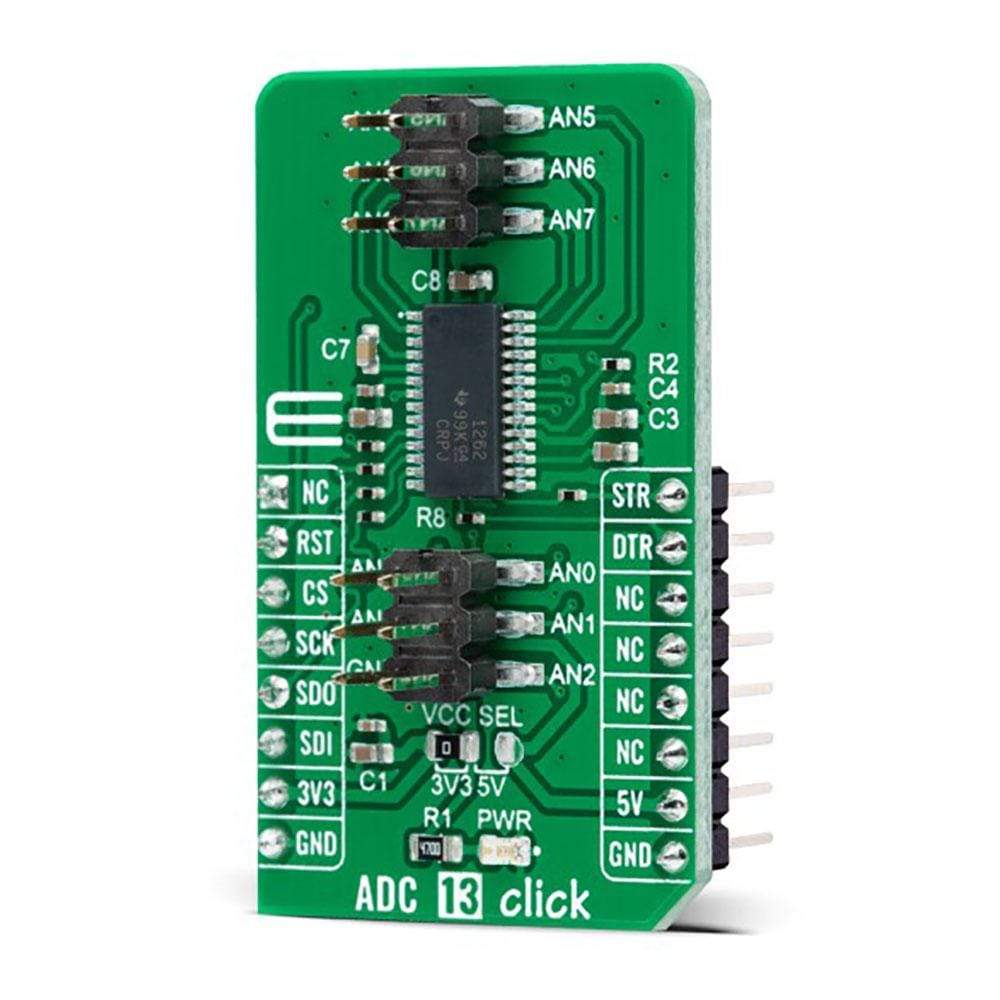

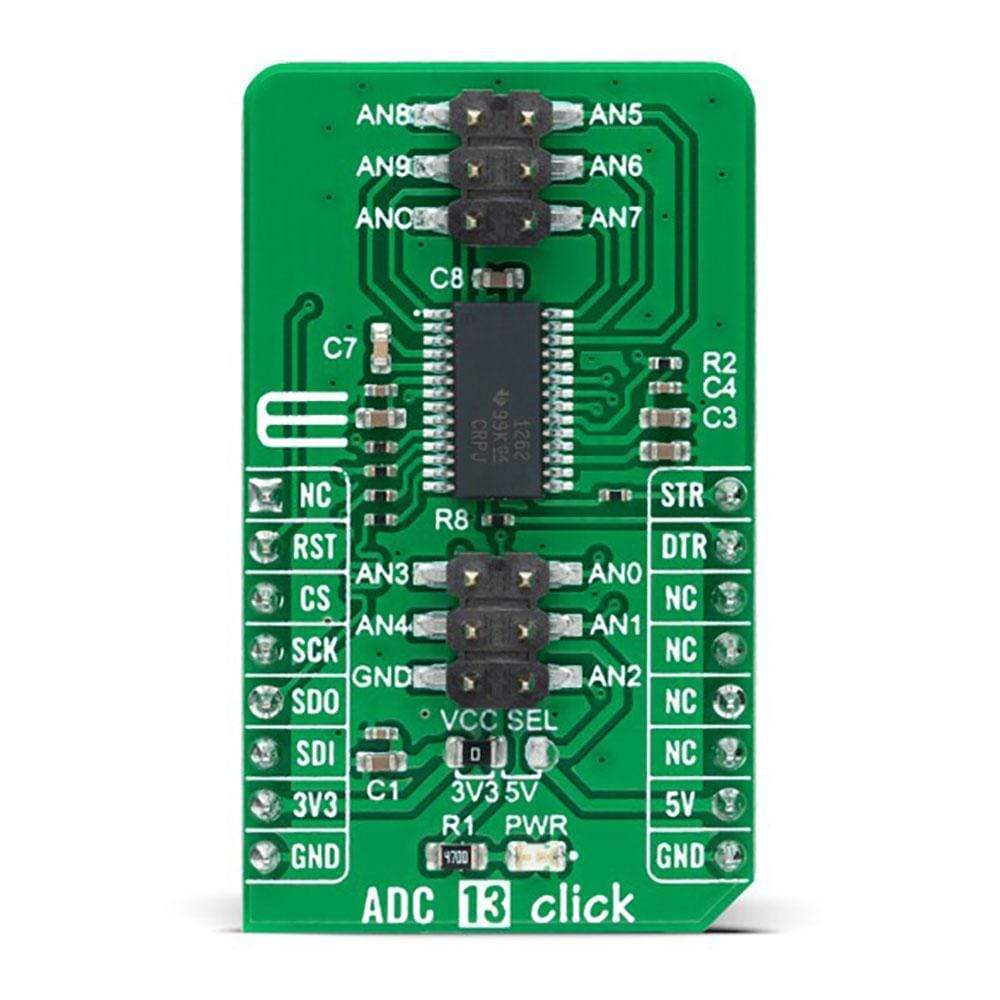

The ADC 13 Click Board™ is a compact add-on board that contains a high-performance data converter. This board features the ADS1262, a 32-bit, high precision, 38-kSPS, analogue-to-digital converter with programmable gain amplifier and voltage reference from Texas Instruments. This ADC consists of a low-noise CMOS PGA (gains 1 to 32), a ΔΣ modulator, followed by a programmable digital filter. The flexible analogue frontend (AFE) incorporates two sensor-excitation current sources suitable for direct RTD measurement. A single-cycle settling digital filter maximizes multiple input conversion throughput while providing 130dB rejection of 50Hz and 60Hz line cycle interference.

The ADC 13 Click Board™ offers complete, high accuracy solutions for the most demanding sensor applications, including weighing scales, strain-gauge sensors, thermocouples, and resistance temperature devices (RTD).
