Product Description
Put a PIC in charge.
16 inputs and outputs
Relays and optocouplers
Develop complex industrial, home or office control systems with 16 optocouplers and 16 relays that allow you to connect the MCU to high-powered external industrial (but also home or office) devices.
Everything is already here
Debugger on board
Powerful on-board USB 2.0 programmer and mikroICD hardware debugger will simplify programming and debugging, whether you’re an experienced professional or a begginer.
Telecommunication capabilities
Supports GSM

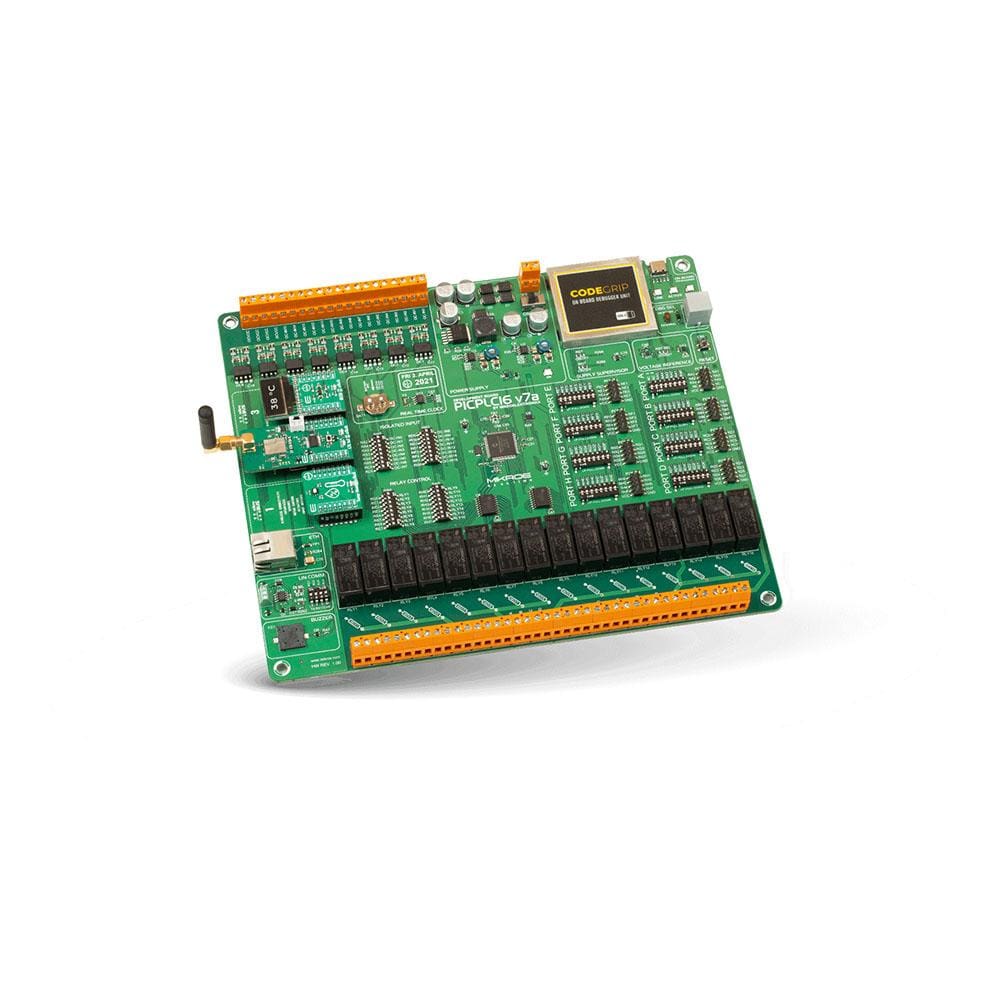

Easily incorporate GSM functionality, including audio communication, into your PLC system. The board features a connector for adding a GSM module via our GSM booster card.
Versatile PLC system
Numerous modules
PICPLC16 v6 packs a lot of modules further increasing the connectivity and versatility of the board: RS232, RS485 Real time clock, Serial Ethernet, and a whole lot of ports and switches.
- Description
- Specification
- Supported MCU
- Programming
- Image Gallery
What’s on Board
mikroICD and programmer
Onboard fast USB 2.0 programmer and in-circuit debugger for testing and debugging programs on PIC devices.
What is PICPLC16™ v6?

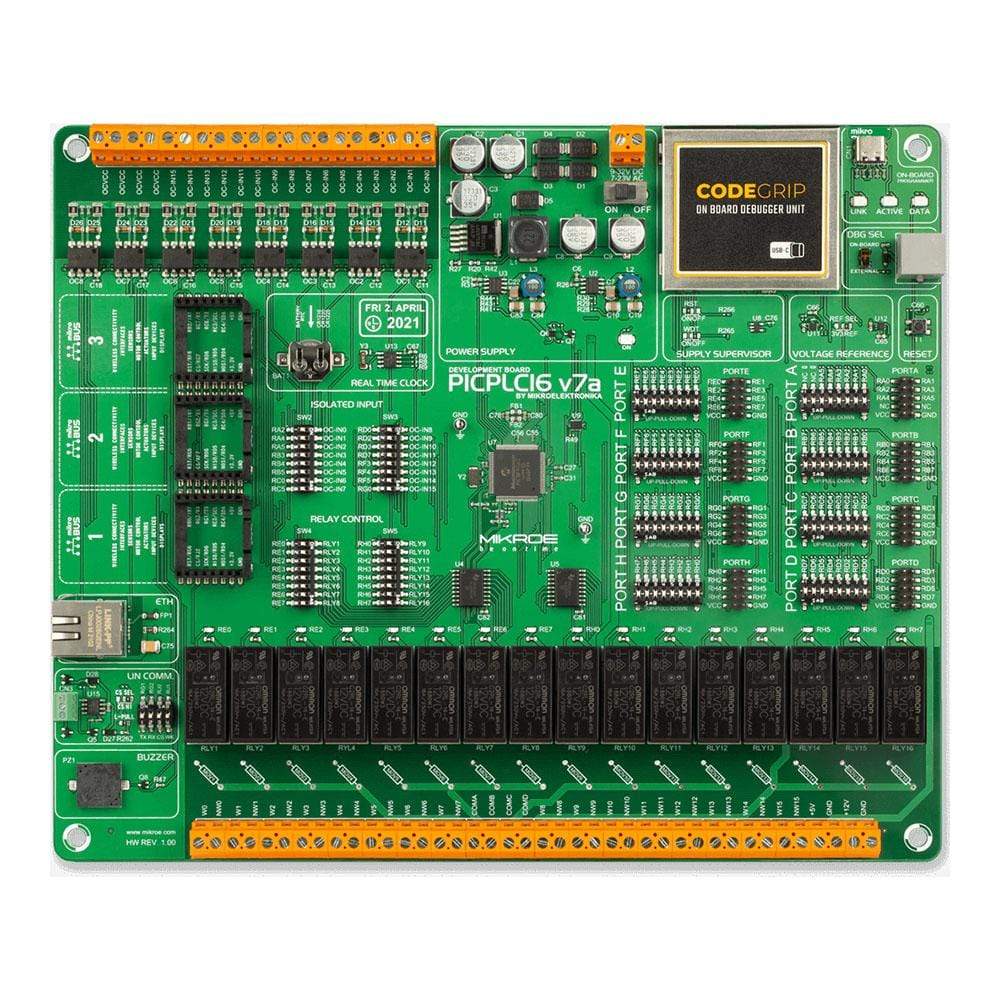

PICPLC16 v6 is a PLC system with 16 opto-inputs and 16 relays (for currents up to 16A). With it, you can develop PIC-based industrial, home or office automation devices the easy way—PICPLC16 has all the MikroElektronika features you’re familiar with: onboard programmer and mikroICD debugger, clear silkscreen markings, and many onboard modules.
mikroICD™ onboard - PICPLC16 has a built-in powerful mikroICD debugger for testing the executed program in real-time at the hardware level. Whether you are a beginner or a well-trained professional, this remarkable feature is an irreplaceable advantage.
Modules
Ethernet on-board
The Serial Ethernet connector lets you connect your PLC system to a network.
RTC
The RTC module with its own battery will keep precise time for the system.
Antenna holder
The antenna holder fixes the external GSM antenna in place.
Relays
16 relays for currents of up to 16 amps line the side of the board.
GSM Connector
GSM connector for adding telecommunication capabilities to your PLC.
GSM Audio
Speaker and microphone connectors are for the GSM module.
