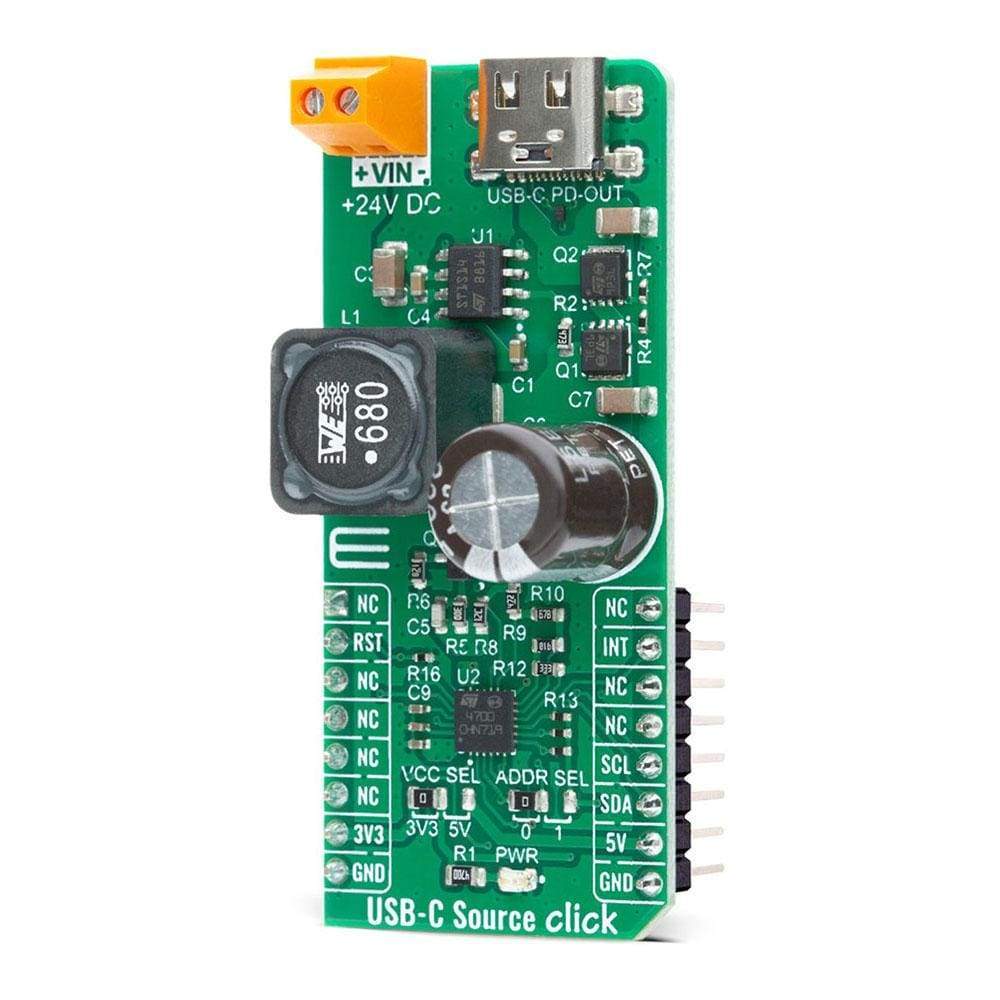

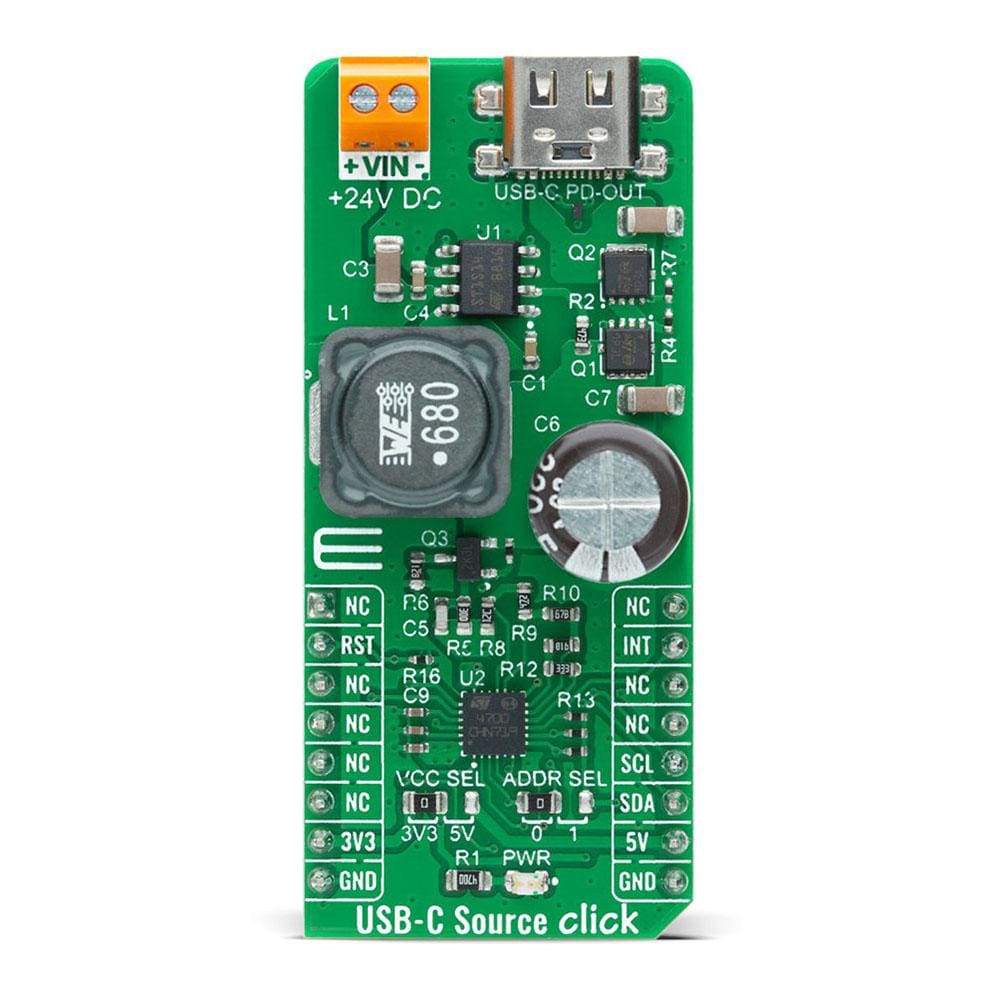

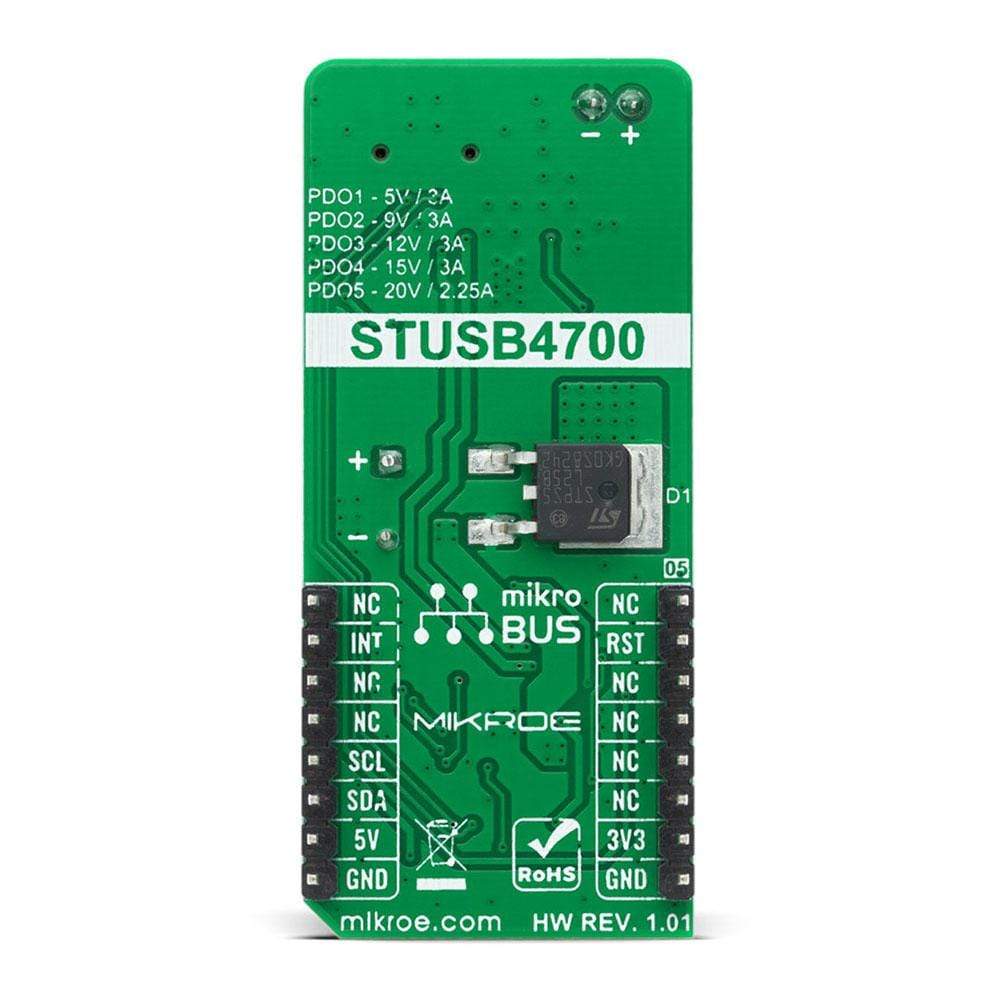

USB-C Source Click Board

USB-C Source Click Board

USB-C Power Delivery Controller
When pre-ordered, this item normally ships within 10 working days
Regular price
$41.00 USD exc tax
Regular price Sale price
$41.00 USD exc tax
Sale Sold out
Shipping calculated at checkout.

The USB-C Source Click Board™ is a compact add-on board that contains a standalone autonomous USB power delivery controller. This board features the STUSB4700, an independent USB power delivery controller optimized as a provider to negotiate a given amount of power to be sourced to an inquiring consumer device from STMicroelectronics. The main functions of the STUSB4700 are discovery, configuration, and monitoring of the VBUS: Type-C low, medium, or high current mode. Additionally, it offers 5 customizable power data objects (PDOs), several GPIOs, an integrated discharge path, and is natively robust to high voltage peaks. This Click Board™ is suitable for any type-C source device, AC adapters, and power supplies for computer, consumer or portable consumer applications, and more.

The USB-C Source Click Board™ is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click Board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
