Mikroelektronika d.o.o.

SKU: MIKROE-4299

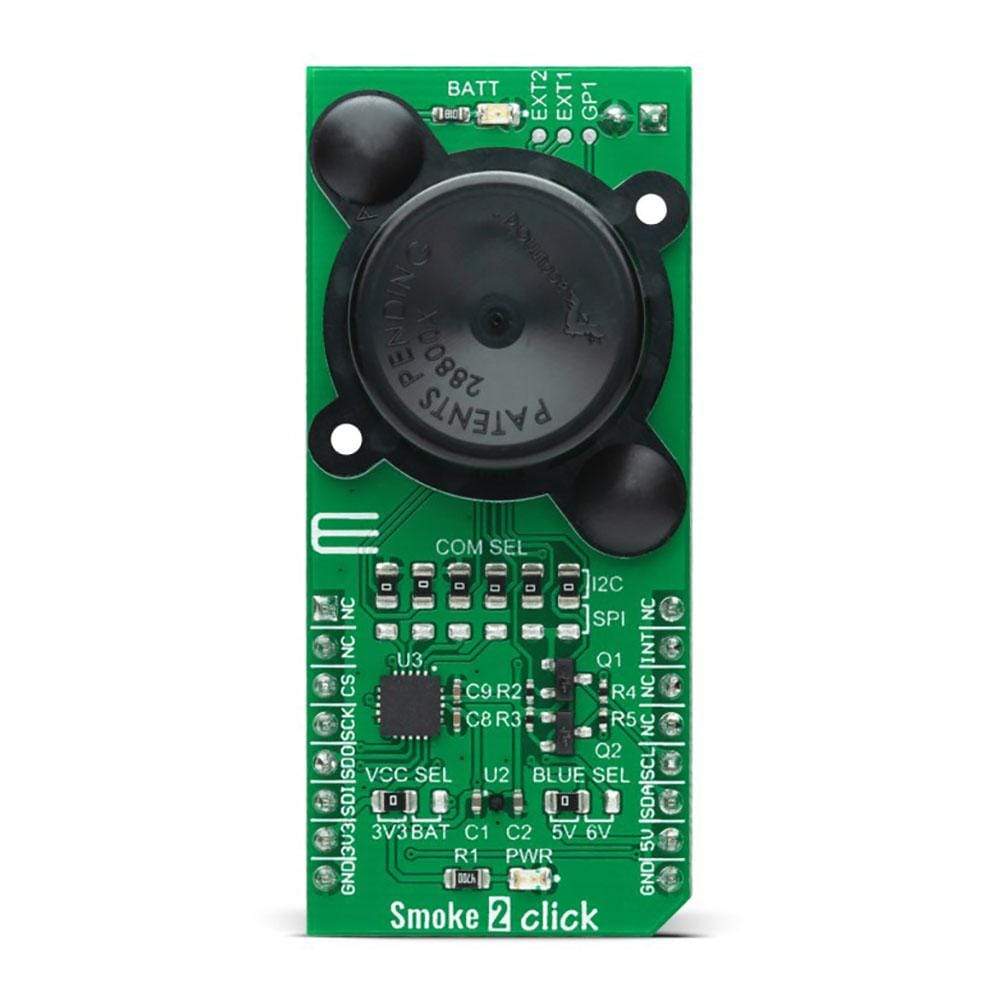

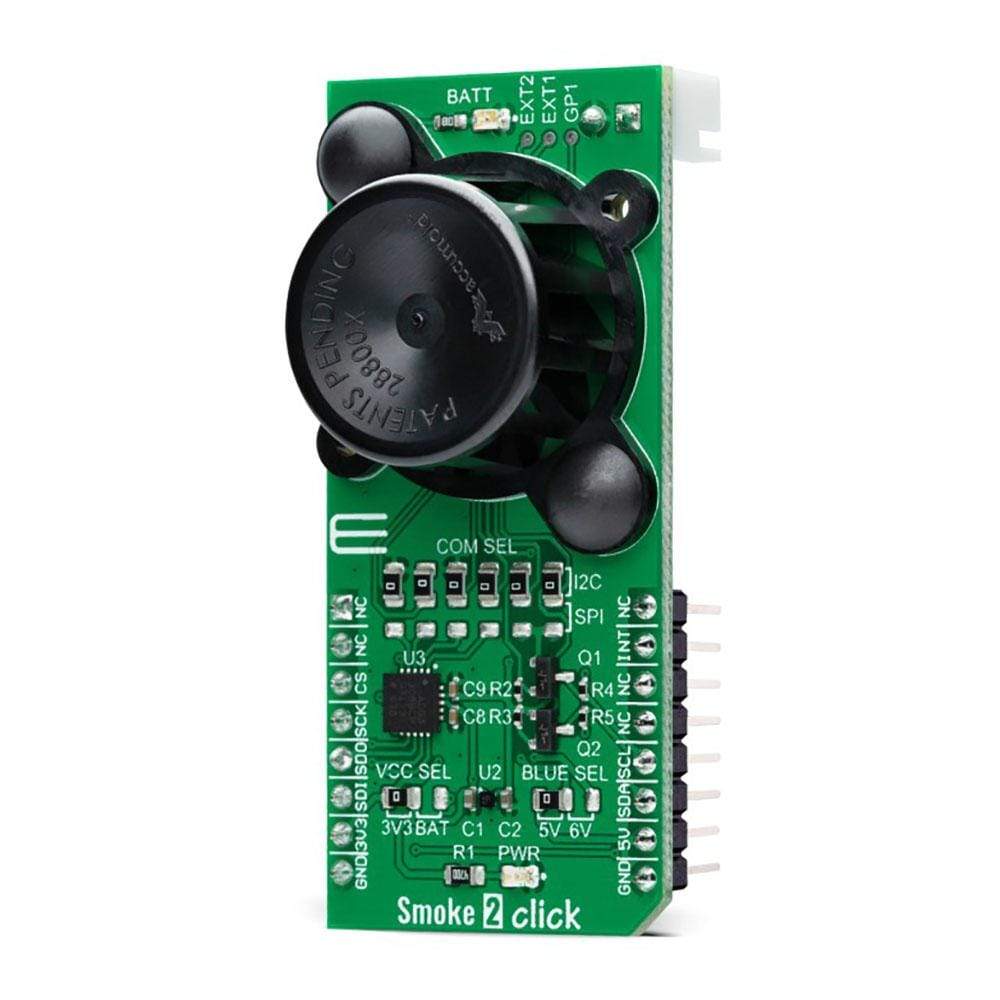

Smoke 2 Click Board

Smoke 2 Click Board

Regular price
£54.00 inc VAT
£45.00 exc VAT
Regular price £45.00 GBP Sale price
£54.00 inc VAT
£45.00 exc VAT
Sale Sold out
Shipping calculated at checkout.
Order NOW to ship within 10 working days

Key Features

  • Low power consumption, high precission, integrates a highly efficient photometric front end, two light emitting diodes, and two photodiodes, equipped with smoke detection chamber, optimized SNR for signal limited cases, and more

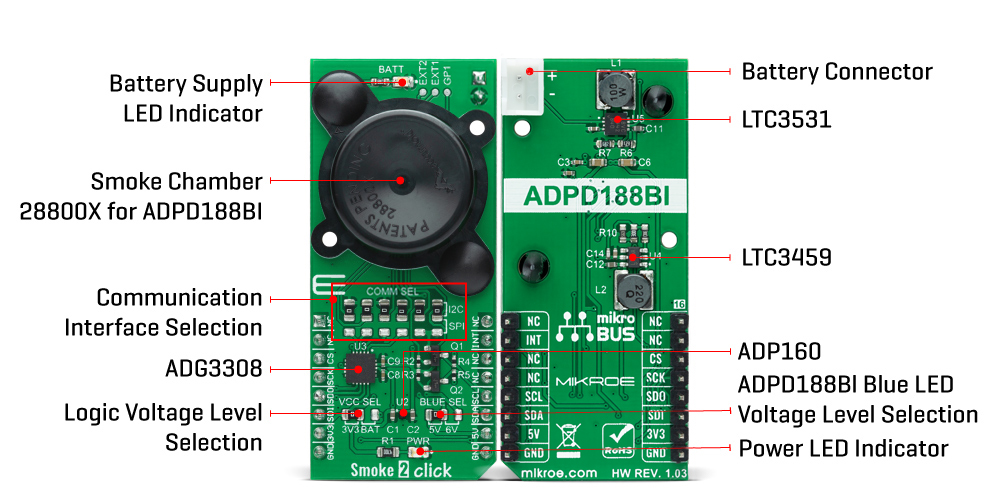

  • Based on the ADPD188BI - complete photometric system for smoke detection using optical dual-wavelength technology from Analog Devices ADP160 - small regulating LDO from Analog Devices ADG3308 - bidirectional level translator containing eight bidirectional channels from Analog Devices LTC3531 - synchronous buck-boost DC/DC converter from Analog Devices LTC3459 - synchronous boost converter from Analog Devices
  • Can be used for application as smoke detector that is more architecturally compatible for residential and commercial use.

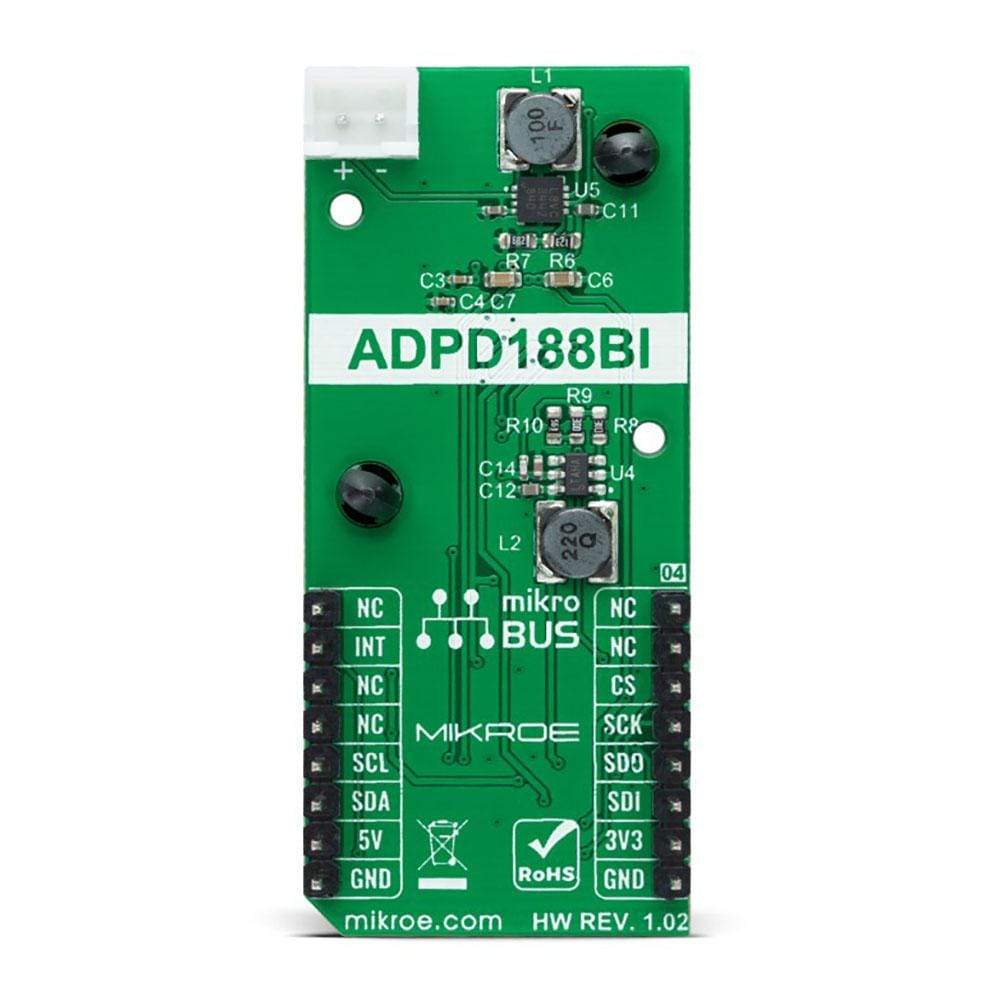

  • mikroBUS: I2C or SPI Interfaces

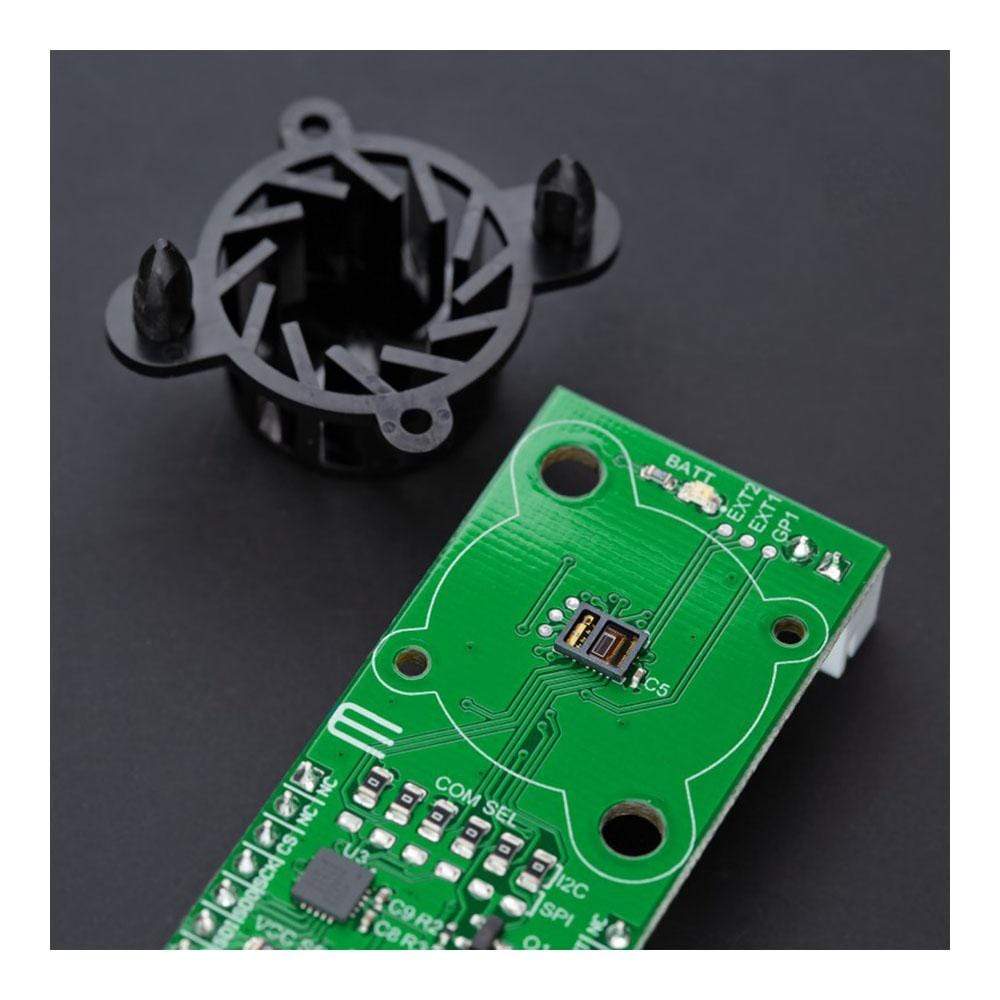

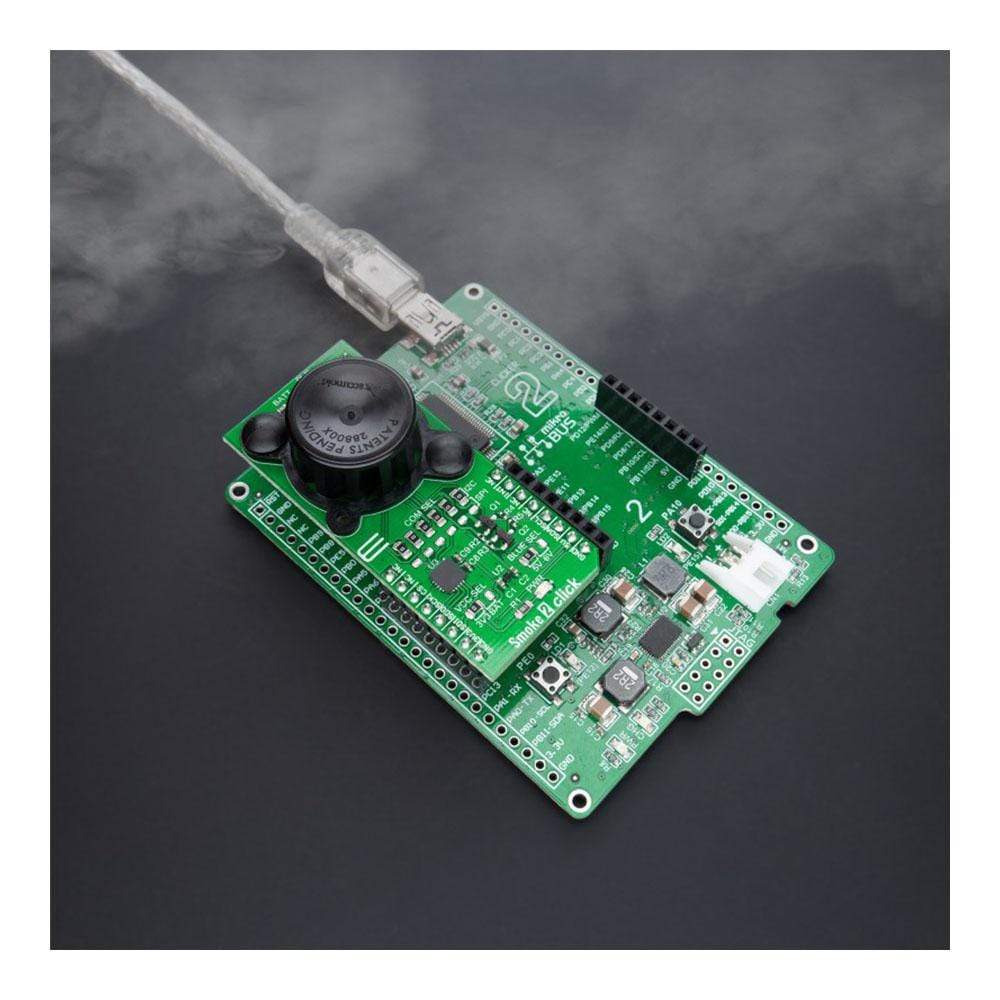

The Smoke 2 Click Board™ is a compact add-on board containing the smoke detector's most efficient version. This board features the ADPD188BI, a complete photometric system for smoke detection using optical dual-wavelength technology from Analog Devices. The module combines the dual photodetector with two separate LEDs, and a mixed-signal photometric front-end ASIC, housed in a package that prevents light from going directly from the LED to the photodiode without first entering the smoke detection chamber. It supports an SPI and I2C serial interface, although only one is allowed at any given time in the actual application.

The Smoke 2 Click Board™ is suitable for application as a smoke detector that is more architecturally compatible for residential and commercial use.
