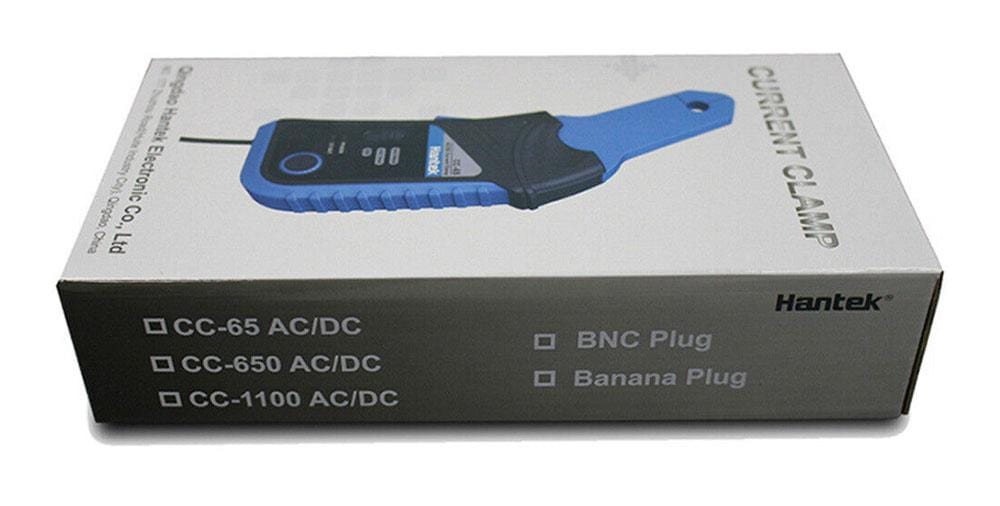

SKU: CC-650-4mmHantek CC-650-4mm 650A AC/DC Current Clamp
Hantek CC-650-4mm 650A AC/DC Current Clamp
With 4mm Connector For Use With a Multimeter
Regular price
£98.90
inc VAT
£82.50
exc VAT
Regular price
Sale price
Unit price
per
£98.90
inc VAT
£82.50
exc VAT
Shipping calculated at checkout.
Pre-Ordered items ship within 10 days of ordering
Couldn't load pickup availability
The Hantek CC-650 Current Clamp for measuring currents in the range 65mA to 650A in conductors up to 30mm in diameter. It is powered by a 9V battery not supplied which makes ideal for use away from the lab.
It is a current transducer which constructed of permalloy and hall-effect element, which linearly transforms current flowing from the magnetic field generated around a conductor to a voltage at 1mV/10mA.
This model has been designed to be connected to a multimeter by 4mm (banana) colour-coded plugs.
Specifications
| DCA Range | 1 mV /10mA | ±(1.5%±5mA) 10mA ~ 20A |
| 1mV/100mA | ±(2%±20mA) 100mA ~ 40A; ±(4%±0.3A) 40A ~ 65A | |
| ACA Range | 1mV/10mA | ±(2%±30mA) 100mA ~ 10A (40Hz ~ 2KHz); ±(4%±30mA) 100mA ~ 10A (2KHz ~ 10KHz); ±(6%±30mA) 100mA ~ 10A (10KHz ~ 20KHz); ±(8%±30mA) 10A ~ 15A (40Hz ~ 20KHz) |
| 1mV/100mA | ±(2%±30mA) 200mA ~ 40A (40Hz ~ 1KHz); ±(4%±30mA) 200mA ~ 40A (1KHz ~ 2KHz); ±(6%±30mA) 200mA ~ 40A (2KHz ~ 5KHz); ±(8%±0.3A) 40A ~ 65A (40Hz ~ 20KHz) | |
| Captured Conductor Size | 9mm maximum | |
| Low Battery Indictor | red LED lighting | |
| Operating Temperature | 0℃ to 50℃, 70% R.H. | |
| Storage Temperature | -20℃ to +70℃, 80% R.H. | |
| Battery Type | 9V DC, PP3, NEDA 1604, 6F22,0006P | |
| Battery Life | 100 hours typical with alkaline | |
| Weight | 250 gm typical | |
| Dimensions | 195mm(H) x 70mm(W) x 33mm(D) | |
| Output | Supplied with coil cable with BNC plug. |
