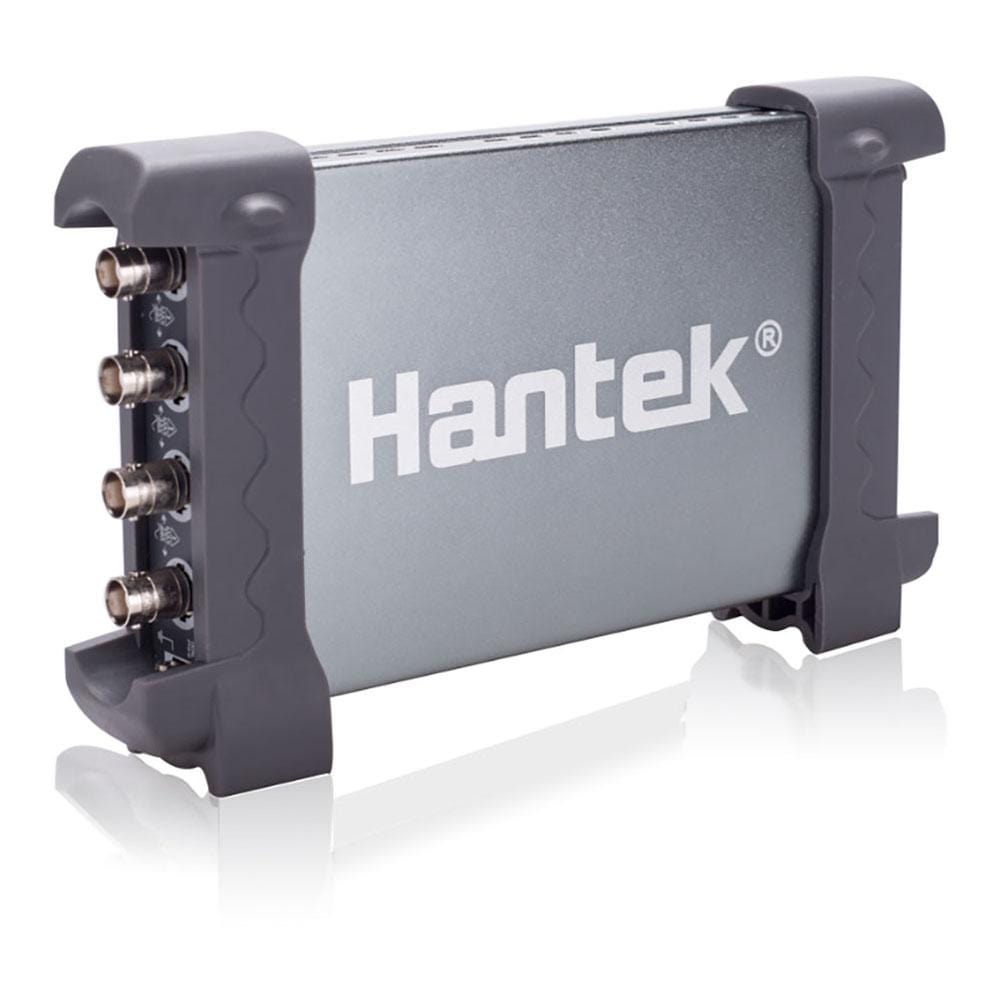

Hantek-6074EU 4-ch 70MHz, 1Gs/s, 128M Fast Scope

Product variants

£303.60 inc VAT

£253.00 exc VAT

£303.60 inc VAT

£253.00 exc VAT

Sale Sold out

Shipping calculated at checkout.

Pre-Ordered items ship within 10 days of ordering

Quantity

4 analogue channels, waveform capture rate is 400,000FPS.1GSa/s real-time sampling rate,250MHz bandwidth. 128Mpts memory depth, 80,000 section fragmentation. It is powered by USB2.0 Interface, plug and play device with small size which is easy for carrying. High-cost performance, pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record, and replay function.

View full details

Model	Hantek6254EU	Hantek6204EU	Hantek6104EU	Hantek6074EU
Bandwidth	250MHz	200MHz	100MHz	70MHz
Channel	4 CH
Real-time Sampling Rate	1GSa/s
Memory Depth	128M
Time Base Precision	±50ppm
Time Base Range	2ns/div-1000s/div (1-2-5 sequences)
Input Impedance	1MΩ 25pF
Input Sensitivity	2mV/div～10V/div
Vertical Resolution	8Bit
Vertical Displacement Range	500uV ~ 10V/div @ x1 probe; 5mV ~ 100V/div @ x10 probe；
	50mV ~ 1000V/div @ x100 probe; 500mV ~ 10000V/div @ x1000 probe
DC Gain Accuracy	±3%
Bandwidth Limit	20MHz
Trigger Mode	Edge, Pulse, Video, Alternative

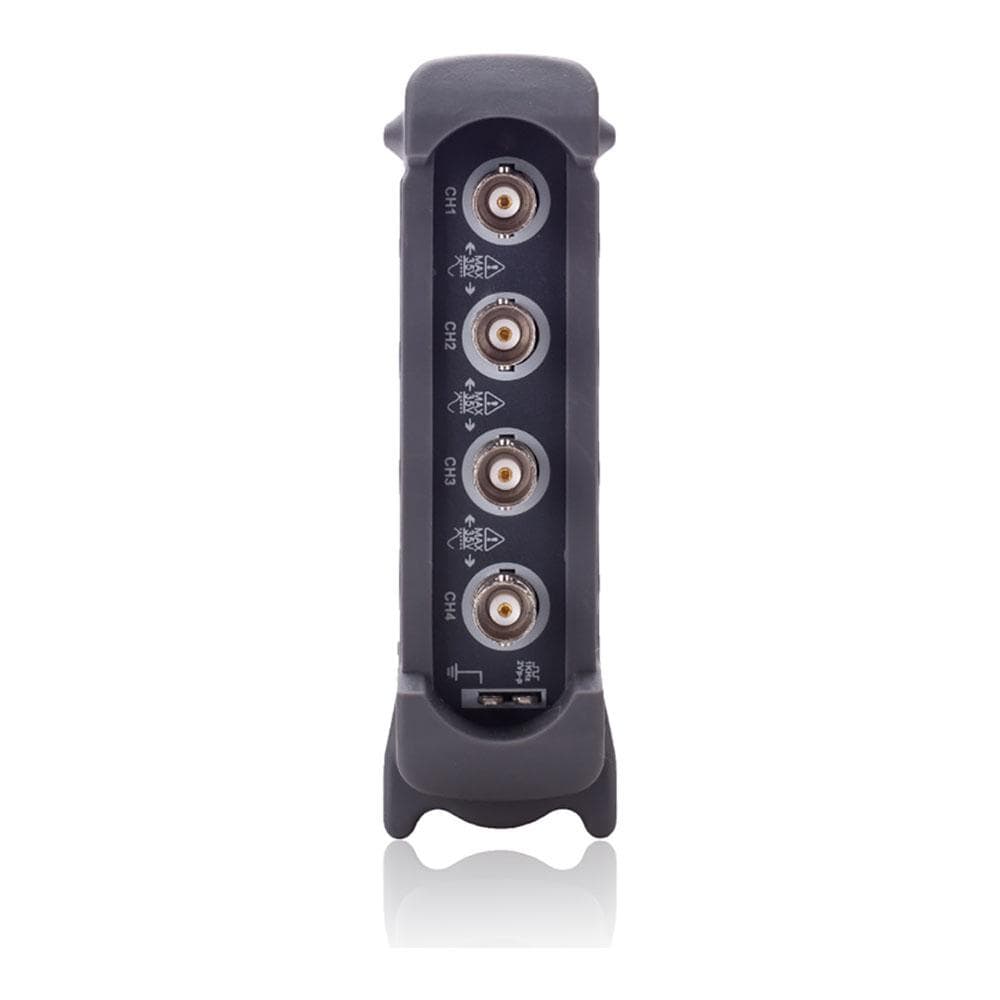

Trigger Source	CH1, CH2, CH3,CH4
Waveform Signal Process	+,-,x,÷,FFT, Invert
Cursors Measurement	Cross, Trace, Horizontal, Vertical
Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume	175mm * 105mm * 25mm
Weight	0.9KG
Accessory	2 passive probes, 2 gator clip lines
