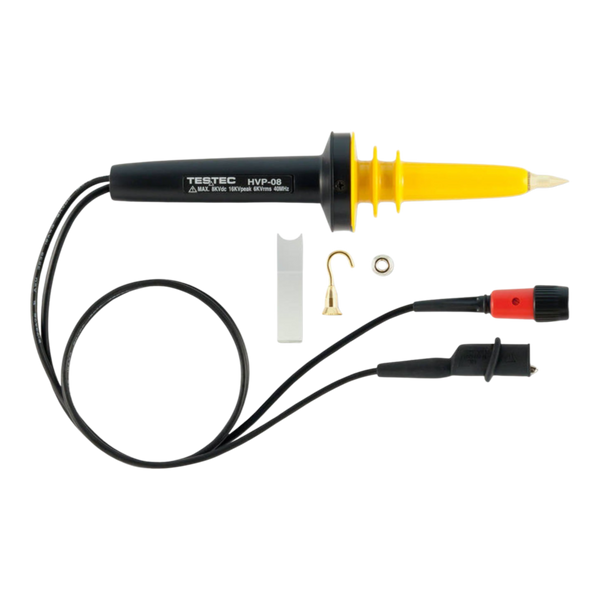

The Testec TT-HVP 08 High Voltage Probe is a professional-grade accessory designed for precise measurement of high-voltage circuits in industrial and laboratory environments. With a 1000:1 attenuation ratio, it extends the capability of oscilloscopes to safely measure up to 8 kV DC or 6 kV RMS AC (16 kV peak), making it ideal for power electronics, automotive systems, and renewable energy applications.
Engineered for safety, the TT-HVP 08 features robust insulation and a 100 MΩ input resistance to minimise circuit loading. Its 40 MHz bandwidth (±3 dB) ensures accurate signal capture, while the frequency compensation adjustment enables compatibility with oscilloscopes featuring 15–30 pF input capacitance. The probe includes a 2-metre shielded cable and meets stringent operating temperature requirements (0°C to +50°C), ensuring reliability in demanding conditions.
For engineers requiring higher voltage ranges, Testec offers additional variants in its HVP series, including models optimised for transient and pulsed measurements. The TT-HVP 08 stands out with its straightforward calibration process, durable nylon housing, and compliance with international safety standards, providing a cost-effective solution without compromising precision or user safety.
