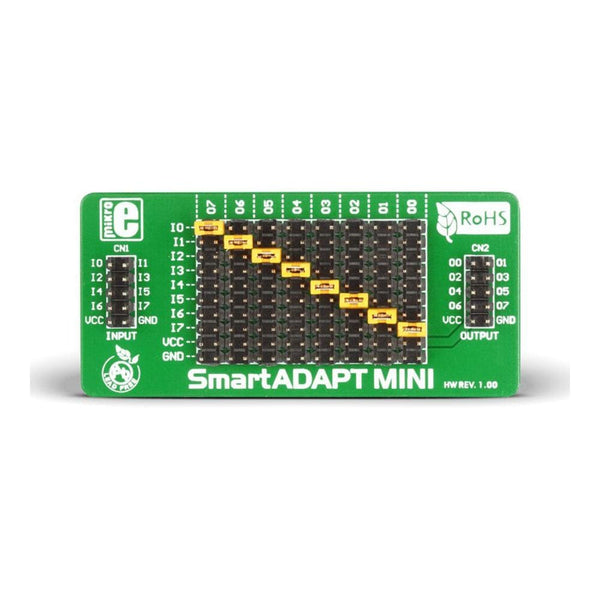

The SmartADAPT MINI Board allows users to manually redirect signals sent from a pin on the development system to a pin of another additional board or device. This board is equipped with 160 male headers from a 16x10 header matrix and 8 jumpers that aid in adjusting the input lines. By routing the input lines to specific output headers, the user can form a new, desired pinout arrangement. The SmartADAPT MINI Board features two output and two input IDC10 headers compatible with MikroElektronika development and accessory boards. The SmartADAPT MINI board is designed to operate using both 3.3V and 5V systems.
Note: Pins 9 and 10 are universally reserved for VCC and GND among all MikroElektronika systems, leaving only eight output pins to be configurable.
