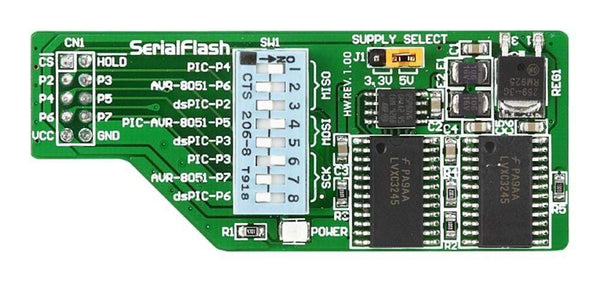

The SerialFlash Board is an add-on board featuring an EN25F80, 8-Mbit (1024-byte), low-voltage Serial Flash Memory with advanced write protection mechanisms accessed by a high-speed SPI-compatible bus. Various electronic devices and applications use serial-interface memory. Initially, it is used to store preference data and configuration/setup data. Known to be one of the most flexible non-volatile memory modules used today, the Serial memory modules are rated way better than other NVM solutions. The EN25F80 memory module offers a lower pin count, smaller package, lower voltage, and lower power consumption.
The onboard LED indicator denotes the power status of the board. The DIP switch allows for the selection of communication lines and sets the pins used for MISO/MOSI/SCK. The Serial Flash Board is designed to operate using both 3.3V and 5V power supplies.
The Serial Flash Board, with such features, makes an ideal choice for multimedia devices, drives, optical and printing devices.
.
