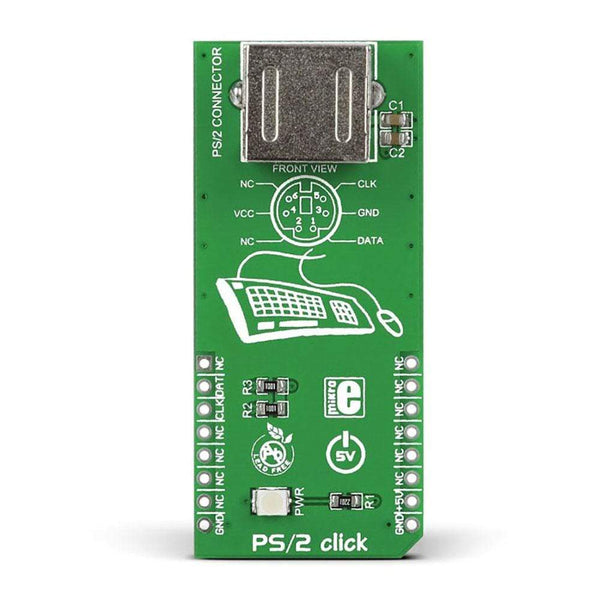

The PS/2 Click Board™ is a cost-effective solution for adding keyboard and mouse connectivity to your design. It features a standard 6-pin Mini-DIN PS/2 connector, a mikroBUS™ host socket, and a power indicator LED. PS/2 click communicates with the target board through mikroBUS™ RST (data) and CS (clock) pins. It's designed to use a 5V power supply only.
PS/2 Connector
The PS/2 Click Board™ has a PS/2-style 6 pin mini-DIN connector used for connecting some keyboards and mice to a PC compatible computer system. It was irst introduced by IBM way back in 1987. It works on a serial, synchronous and bidirectional communication protocol.
Full N-Key Rollover
The PS/2 Click Board™ is used in certain high-end keyboards, especially for gamer keyboards as it supports n-key rollover. This means that each key is scanned entirely independently by the keyboard hardware, and thus, allowing the high-end keyboards to handle any number of simultaneous keystrokes.
Why PS/2 over USB
Though superseded by USB, PS/2 connectors are still used. The PS/2 connected keyboards are faster, and have slightly shorter effective scan intervals than their USB counterparts. PS/2 supports full n-key rollover, whereas USB keyboards can handle typically two to six keys at a time.
