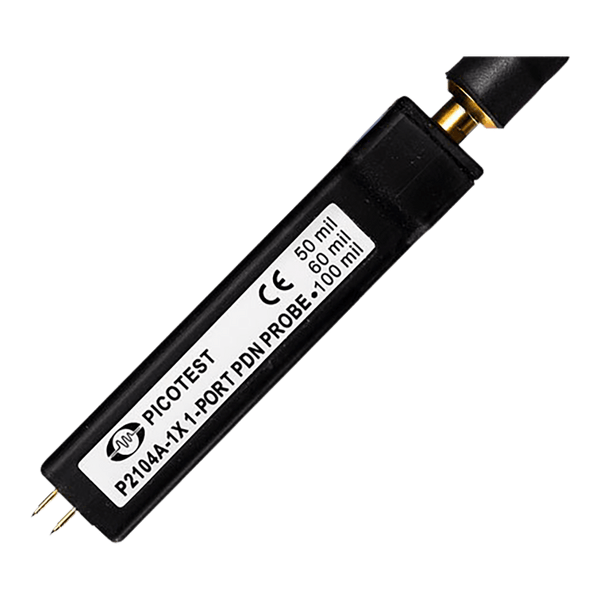

The Picotest P2104A 1-Port Transmission Line PDN Probe is an essential tool for professional design engineers focused on power integrity analysis. With a high bandwidth of >6 GHz (uncorrected) and an exceptionally low input capacitance of <1pF (420 fF typical), this probe ensures accurate measurements in a variety of applications, including impedance, ripple, noise, TDT/TDR, PCB resonances, clock jitter, and non-invasive stability measurements.
Crafted for versatility, the P2104A is available in various attenuations (1X, 2X, 5X, 10X) and pin pitches (50, 60, 70, or 100 mil), allowing for optimal sensitivity and SNR across different voltage and impedance ranges. Its ergonomic design features a rugged, slim body with spring tips for reliable connectivity and accessibility to tight spaces. It is ideal for all 50-ohm instruments like VNAs, oscilloscopes, and spectrum analyzers.
The probe's precision is further enhanced by the inclusion of the P2100A-CAL Calibration Board, supporting both SOLT and ISOLATION calibration for precise measurements. The P2104A is not just a probe; it's an indispensable solution for power electronics, signal integrity, and power distribution network analysis, ensuring that engineers can deliver high-quality, reliable designs.
