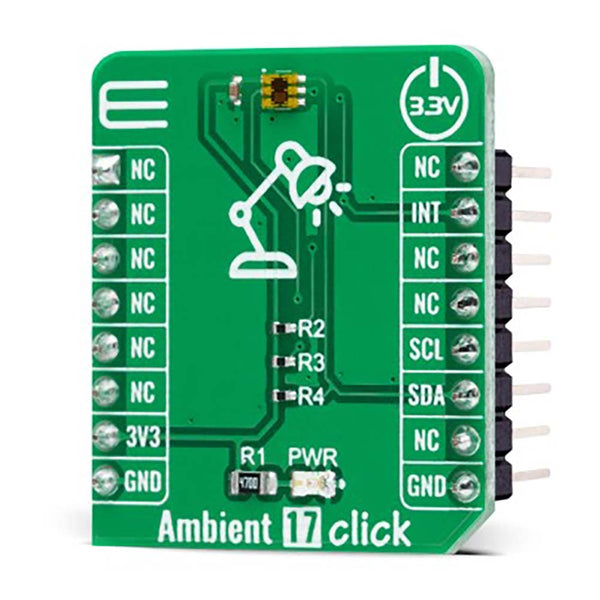

How Does The Ambient 17 Click Board™ Work?
The Ambient 17 Click Board™ as its foundation uses the TSL2572, a high sensitivity light-to-digital converter that transforms light intensity into a digital output signal from AMS AG. The TSL2572 provides ambient light sensing (ALS) that approximates human eye response to light intensity under various lighting conditions and through a variety of attenuation materials. Accurate ALS measurements result from dual-diode technology and the UV rejection filter incorporated in the package. In addition, the TSL2584TSV can detect a wide range of precise lux measurements up to 60klx, even when mounted behind dark glass. It also has stable performance over a wide temperature range of -30°C to 70°C, suitable for measuring the present ambient light.
The Ambient 17 Click Board™ communicates with MCU using the standard I2C 2-Wire interface to read data and configure settings, supporting Standard Mode operation with a clock frequency of 100kHz and Fast Mode up to 400kHz. It also possesses an additional interrupt signal, routed on the INT pin of the mikroBUS™ socket labelled as INT, indicating when a specific interrupt event occurs, such as detecting a meaningful change in light intensity. An interrupt is generated when the value of an ALS conversion exceeds either an upper or lower threshold. In addition, a programmable interrupt persistence feature allows the user to determine how many consecutive exceeded thresholds are necessary to trigger an interrupt.
The Ambient 17 Click Board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | Optical |
| Applications | The Ambient 17 Click Board™ can be used for obtaining ambient light data for adjusting brightness in applications that require power saving and better visibility |
| On-board modules | TSL2572 - high sensitivity light-to-digital converter that transforms light intensity into a digital output signal from ams AG |
| Key Features | Low power consumption, corresponds to a dark window because of high sensitivity, close responsivity to the human eye, I2C interface, wide operational range, stable performance over temperature, and more |
| Interface | I2C |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
| Input Voltage | 3.3V |
PINOUT DIAGRAM
This table shows how the pinout of the Ambient 17 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin | Pin | Notes | ||||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| NC | 2 | RST | INT | 15 | INT | Interrupt | |
| NC | 3 | CS | RX | 14 | NC | ||
| NC | 4 | SCK | TX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | SCL | I2C Clock | |
| NC | 6 | MOSI | SDA | 11 | SDA | I2C Data | |
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | NC | |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
AMBIENT 17 CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | - | 3.3 | - | V |
| Illuminance Measurement Range | 0 | - | 60.000 | lx |
| Resolution | - | 16 | - | bits |
| Operating Temperature Range | -30 | +25 | +70 | °C |
