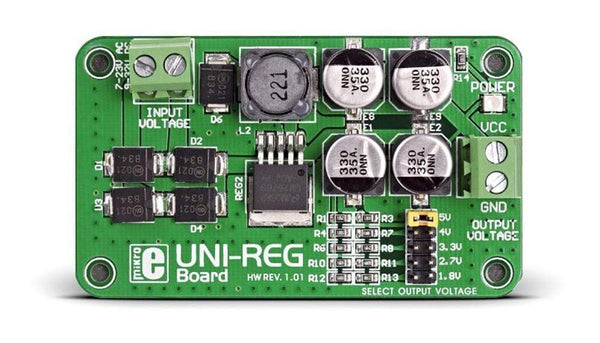

The UNI-REG Board contains an on-board LM2576, a simple switcher step-down voltage regulator. This monolithic IC is designed to provide all active functions for a step-down (buck) switching regulator that drives various loads (up to 3A) with an exceptional line and load regulation.
The UNI-REG Board is ideally suited for any embedded project that requires a power source conversion, i.e., from higher to lower AC (DC) voltages. The unit takes 7-23V AC (or 9-32V DC) as input voltage and offers a steady and stable 5V, 4V, 3.3V, 2.7V or 1.8V DC output. The UNI-REG Board can be used to reduce and stabilize input voltage to the values selected by jumpers. Furthermore, the board comprises of screw terminals to facilitate easy connections. Mounting holes are provided on the corners for easy integration into the final device. All the components used on-board are of high-quality to maintain high-level performance.
