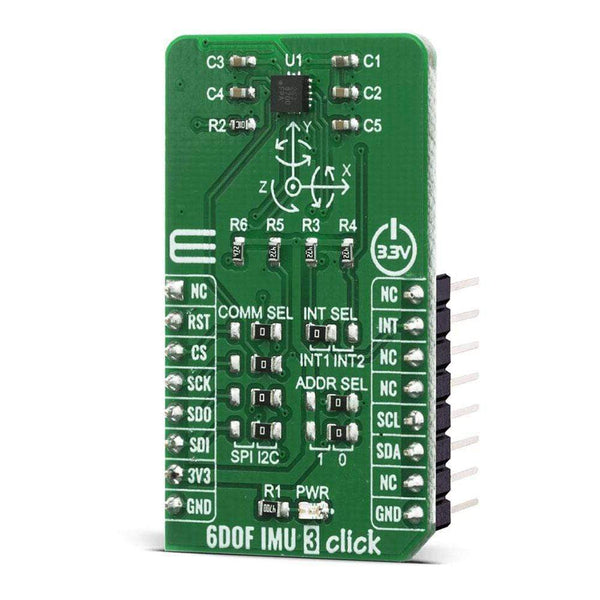

The 6DOF IMU 3 Click Board™ is a complete 6-axis detection development board suitable for movement and position tracking devices. This Click Board™ board features the compact FXOS8700CQ motion sensor from NXP, an integrated 3-axis linear accelerometer and a 3-axis magnetometer combined in one package.
The device supports a selectable I2C or point-to-point SPI serial interface with a 14-bit accelerometer and 16-bit magnetometer which are combined with a high-performance ASIC to enable an eCompass solution capable of a typical orientation resolution of 0.1° and sub-5° compass heading accuracy for many applications.
