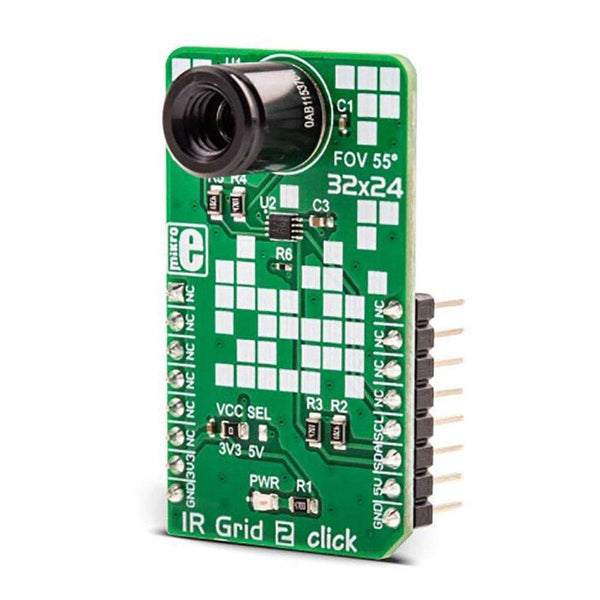

The IR Grid 2 Click Board™ is a cutting-edge thermal imaging sensor designed for professional electronic engineers. This advanced module features the MLX90640ESF-BAB IR sensor, boasting an impressive array of 768 factory-calibrated IR elements arranged in a 32x24 pixel grid. With its ability to measure object temperatures up to 300°C within its local Field of View (FOV), this sensor offers exceptional thermal imaging capabilities.
Housed in an industry-standard TO39 package, the sensor requires only four pins for operation and includes 2Kbit of EEPROM for storing compensation and calibration parameters. The I2C compatible digital interface ensures seamless integration with a wide range of MCUs, making it versatile for various applications.
The IR Grid 2 Click Board™ provides a summed field of view of 55°x32° and can output up to 64 frames per second, delivering real-time thermal imaging performance. This high-resolution sensor is ideal for engineers developing advanced thermal monitoring systems, security applications, or industrial process control solutions.
